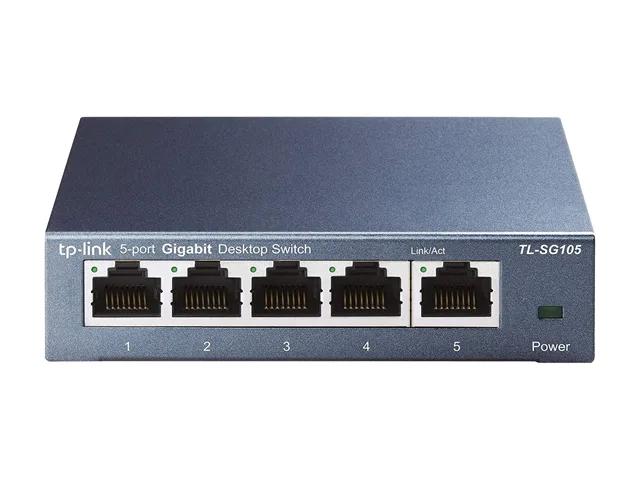

Compact metal box with five RJ45 ports and status LEDs

TP-Link

TP-Link TL-SG105 5-port Gigabit network switch

SKU CH-DPNK-JZNK4 MPN TL-SG105

A five-port Gigabit switch adds wired connections for computers, consoles or printers with plug-and-play setup, a fanless metal case and QoS traffic optimisation

  • FormatDesktop
  • StandardsIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
  • Network Management TypeUnmanaged
  • Uplink PortsNone
  • Primary Ports5 x RJ45
  • Primary Port Speed10/100/1000Mbps

Model TL-SG105

  • TL-SG105
  • LS1005G
  • LS1008G
  • TL-SG108
  • TL-SG105S
  • TL-SG108S
  • TL-SX105
  • TL-SX1008
  • TL-SG108E
  • TL-SG105E
  • TL-SG1005D
  • TL-SG1008D
Voir les 2 autres configurations

Les versions barrées existent, mais ne sont pas disponibles ici.

Primary Port 5 Port

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Plug-and-play setup requires no software or configuration
  • Five Gigabit RJ45 ports expand wired network capacity
  • Fanless metal case runs silently on desk or wall
  • QoS prioritises voice and video for smooth traffic
  • Green Ethernet cuts power use by up to 84 percentage

Five-port Gigabit switch

The TP-Link TL-SG105 is an unmanaged desktop switch with five RJ45 ports operating at 10/100/1000Mbps. It uses store-and-forward switching and supports 9K jumbo frames for efficient data transfer. A sturdy metal enclosure provides fanless, silent operation and allows desktop or wall mounting.

Home and small-office expansion

This switch suits users who need extra wired connections for devices such as laptops, consoles or printers without any configuration. It is not for networks requiring PoE, uplink ports, VLANs or Layer 3 routing features. Buyers needing managed traffic control or redundant power should look elsewhere.

Capacity and headroom

Five Gigabit ports deliver full-duplex throughput up to 2000Mbps per port with IEEE 802.3x flow control. QoS prioritises latency-sensitive voice and video traffic while 84 percentage power saving reduces consumption based on link status and cable length. The switch runs out of ports at five devices and offers no fibre uplinks or stacking.

Points forts

  • Plug-and-play setup requires no software or configuration
  • Five Gigabit RJ45 ports expand wired network capacity
  • Fanless metal case runs silently on desk or wall
  • QoS prioritises voice and video for smooth traffic
  • Green Ethernet cuts power use by up to 84 percentage

Caractéristiques

BrandTP-Link
ModelTL-SG105
FormatDesktop
StandardsIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Network Management TypeUnmanaged
Uplink PortsNone
Primary Ports5 x RJ45
Primary Port Speed10/100/1000Mbps
Switching MethodStore and Forward
Jumbo Frames9K
ProtocolsCSMA/CD
PoENo
QoSYes
LayerLayer 2 Only
LEDsSystem Power
Link, Speed and activity indicators per port built into each RJ-45 port

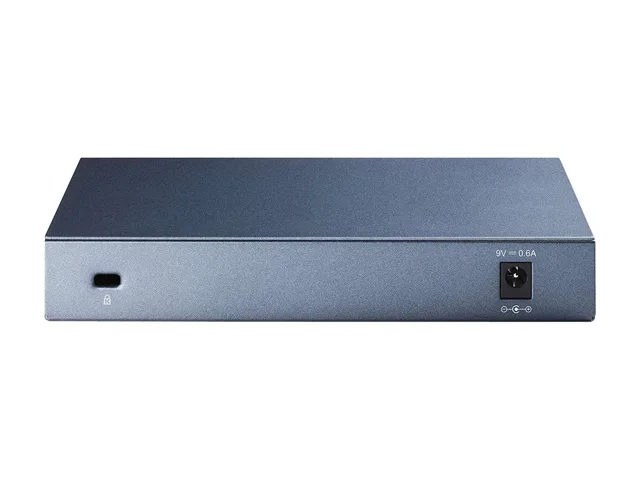

Power100~240VAC, 50/60Hz

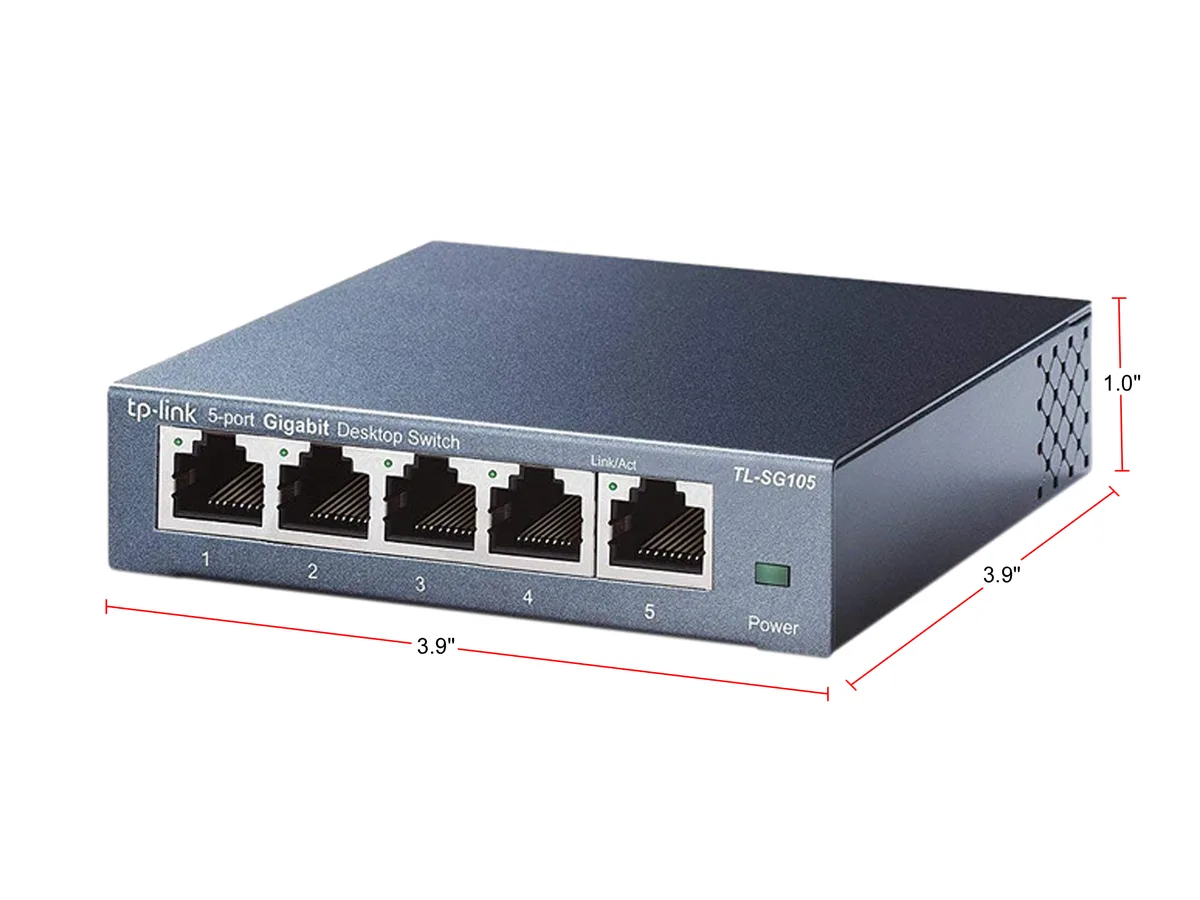

Dimensions3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
Weight0.85
Temperature0°C to 40°C (32°F to 104°F)
Humidity10% - 90%, Non-condensing
FeaturesFanless
Advanced Features:
Green Technology, saving power up to 65%
802.3X Flow Control, supports QoS (IEEE802.1P), IGMP Snooping function
System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Mac OS, NetWare, UNIX or Linux.
Innovative energy-efficient technology saves power up to 65%
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Steel design, desktop or wall-mounting design
Supports QoS (IEEE 802.1p) and IGMP snooping function
Non-blocking switching architecture that forwards and filters packets at full wire-spe

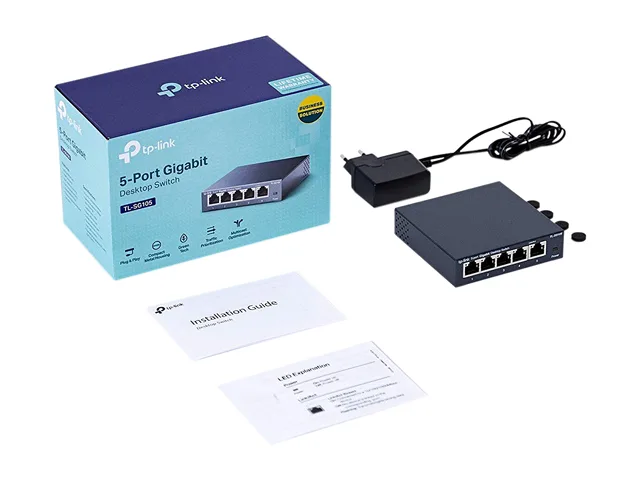

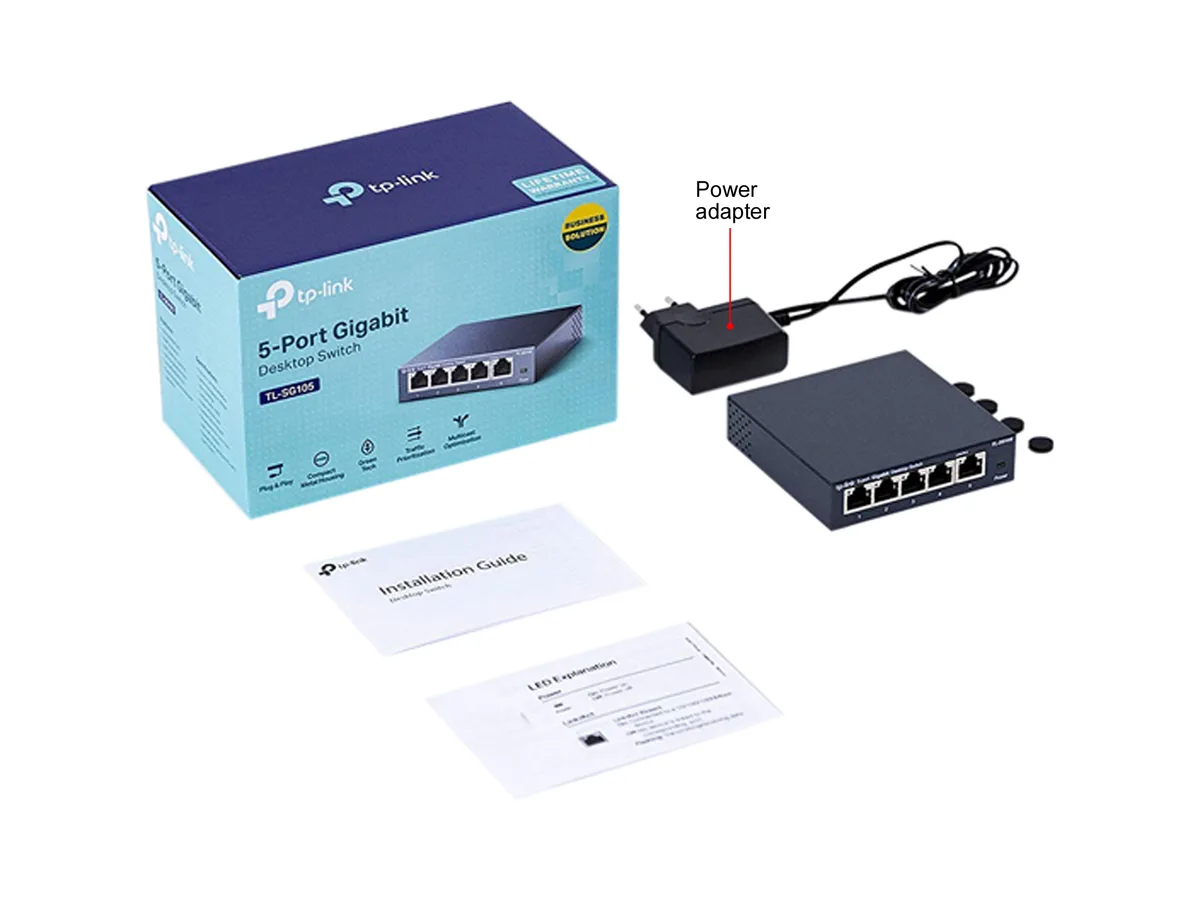

Package Contents5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
User Guide
Poids d’expédition0.48 kg
Dimensions du colis188 × 124 × 102 mm

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What cables and devices do I need to connect to the 5 RJ45 ports running at 10/100/1000 Mbps?

You need standard Ethernet cables (Cat5e or better) and devices with RJ45 network ports such as a router, PC, NAS, printer or game console. The switch auto-negotiates speed and MDI/MDIX so no crossover cables are required.

Will my older 10/100 Mbps gear slow down the gigabit ports on this switch?

No. Each port negotiates independently at 10, 100 or 1000 Mbps, so legacy 10/100 devices run at their rated speed while gigabit devices still operate at 1000 Mbps on the other ports.

How can I verify the switch is passing traffic correctly after I plug everything in?

Check the per-port LEDs built into each RJ45 jack — a steady or blinking link/activity light shows an active connection and data flow, while the system power LED confirms the unit is receiving 100–240 V AC power.
