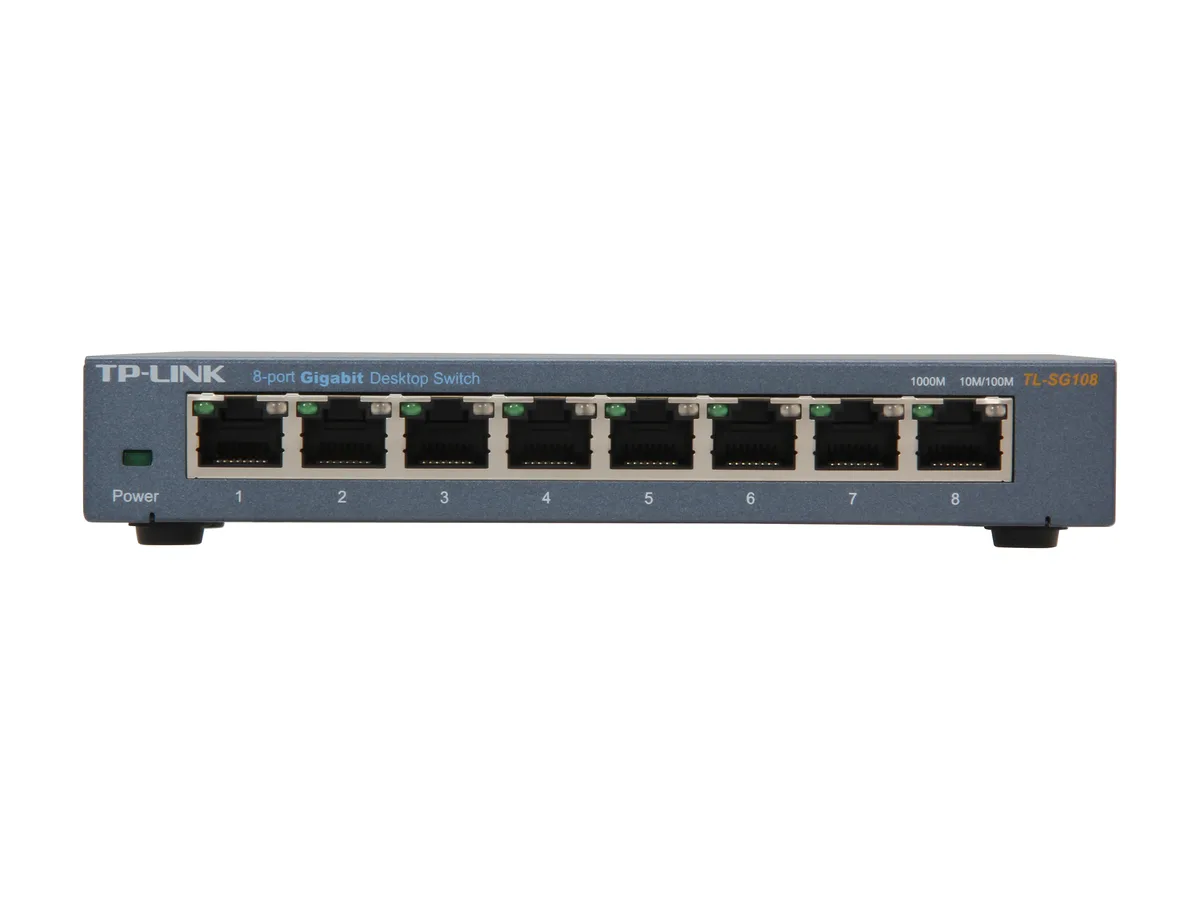

Small black metal box with eight Ethernet ports on the front

TP-Link

TP-Link TL-SG108 8-port Gigabit network switch

SKU CH-YCXR-7ZYQB MPN TL-SG108

Eight-port Gigabit desktop switch adds wired connections for PCs, consoles and printers with plug-and-play setup and a fanless metal case

  • FormatDesktop
  • StandardsIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
  • Network Management TypeUnmanaged
  • Uplink PortsNone
  • Primary Ports8 x RJ45
  • Primary Port Speed10/100/1000Mbps

Model TL-SG108

  • TL-SG108
  • LS1005G
  • LS1008G
  • TL-SG105
  • TL-SG105S
  • TL-SG108S
  • TL-SX105
  • TL-SX1008
  • TL-SG108E
  • TL-SG105E
  • TL-SG1005D
  • TL-SG1008D
Voir les 2 autres configurations

Les versions barrées existent, mais ne sont pas disponibles ici.

Primary Port 8 Port

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Plug-and-play setup requires no configuration or software
  • Eight Gigabit RJ45 ports auto-negotiate 10/100/1000Mbps speeds
  • Fanless metal chassis runs silently from 0°C to 40°C
  • IEEE 802.3x flow control plus 802.1p/DSCP QoS smooths voice and video traffic
  • Green Ethernet cuts power up to 72% based on link status and cable length

8-Port Gigabit Desktop Switch

The TP-Link TL-SG108 is an unmanaged Layer 2 switch with eight RJ45 ports that auto-negotiate 10, 100 or 1000 Mbps speeds. It suits homes or small offices that need extra wired connections for computers, consoles or printers without any configuration.

Metal Case and Flexible Mounting

A sturdy metal enclosure acts as a heatsink so the unit runs fanless and silent on a desk or mounted on a wall. Shielded ports and Auto MDI/MDIX remove the need for crossover cables, while the 100–240 VAC internal supply plugs directly into mains power.

Fanless Operation and Energy Efficiency

With no moving parts the switch stays quiet across its 0 °C to 40 °C operating range. IEEE 802.3x flow control and 802.1p/DSCP QoS keep latency-sensitive traffic smooth, and the energy-efficient design cuts power use by up to 72 % based on link status and cable length.

Points forts

  • Plug-and-play setup requires no configuration or software
  • Eight Gigabit RJ45 ports auto-negotiate 10/100/1000Mbps speeds
  • Fanless metal chassis runs silently from 0°C to 40°C
  • IEEE 802.3x flow control plus 802.1p/DSCP QoS smooths voice and video traffic
  • Green Ethernet cuts power up to 72% based on link status and cable length

Caractéristiques

BrandTP-Link
ModelTL-SG108
FormatDesktop
StandardsIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Network Management TypeUnmanaged
Uplink PortsNone
Primary Ports8 x RJ45
Primary Port Speed10/100/1000Mbps
Switching MethodStore and Forward
Jumbo FramesYes
ProtocolsCSMA/CD
PoENo
QoSYes
LayerLayer 2 Only
LEDsSystem Power
Link, Speed and activity indicators per port built into each RJ-45 port
Power100~240VAC, 50/60Hz
Dimensions1.00" x 6.20" x 4.00" (H x W x D)
Weight1.10 lbs.
Temperature0°C to 40°C (32°F to 104°F)
Humidity10% - 90%, Non-condensing
FeaturesAdvanced Features:
Green Technology,saving power up to 72%
802.3X Flow Control
Supports QoS (IEEE802.1P)
System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Mac OS, NetWare, UNIX or Linux.
Innovative energy-efficient technology saves power up to 72%
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Steel design, desktop or wall-mounting design
Supports QoS (IEEE 802.1p) function
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
9K Jumbo frame improves pe

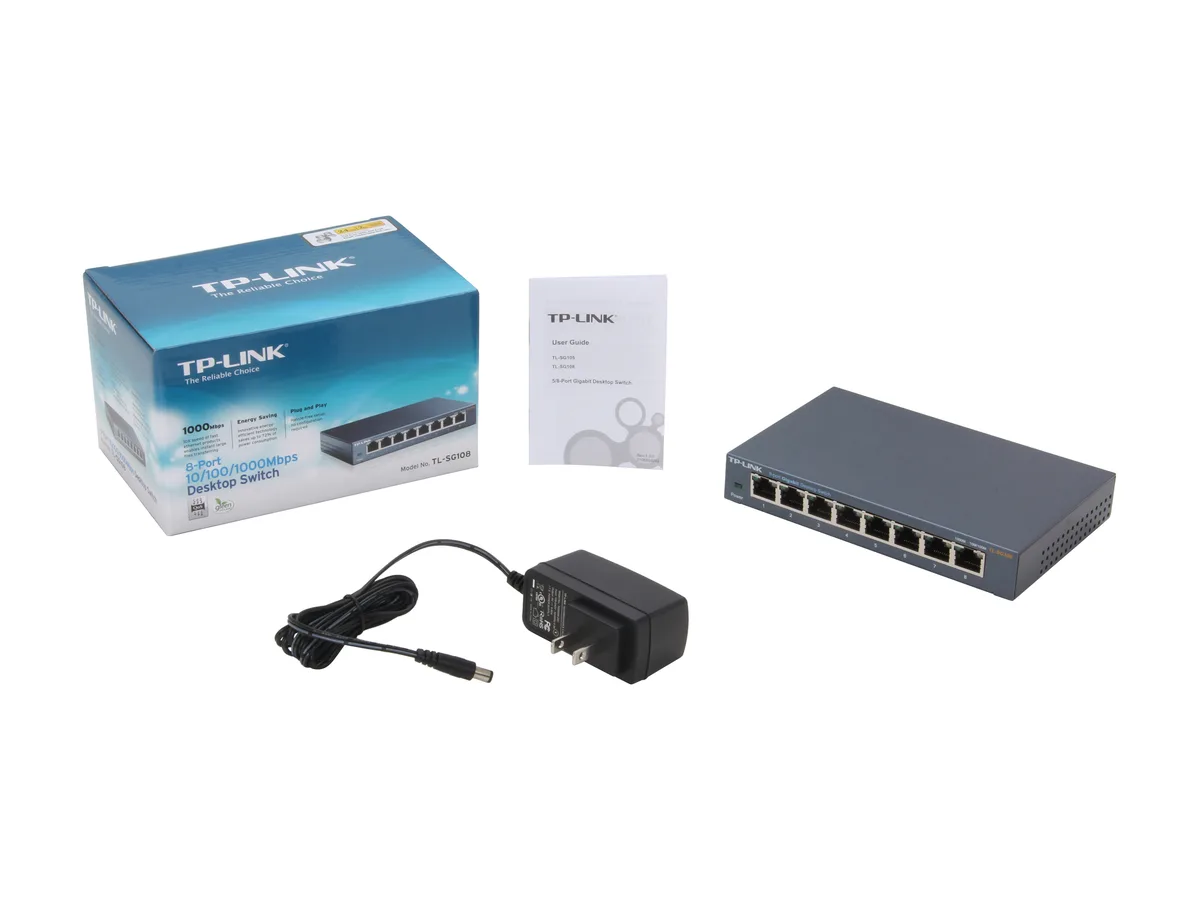

Package Contents8-Port 10/100/1000Mbps Desktop Switch
Power Adapter
User Guide
Poids d’expédition0.59 kg
Dimensions du colis188 × 130 × 86 mm

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What Gigabit Ethernet standards does the TL-SG108 support and what speed does each port cap at?

The switch complies with IEEE 802.3, 802.3u and 802.3ab, so each of the eight RJ45 ports auto-negotiates up to 1000 Mbps full-duplex.

What are the physical dimensions and mounting options for this desktop switch?

It measures 1.00" high, 6.20" wide and 4.00" deep, weighs 1.10 lbs, and includes keyhole slots for wall mounting or rubber feet for desktop use.

How do I install the TL-SG108 and what common step should I avoid?

Connect the supplied 100–240 VAC power adapter, then plug Ethernet cables into any port; no crossover cables are needed because Auto MDI/MDIX handles pinout automatically.
