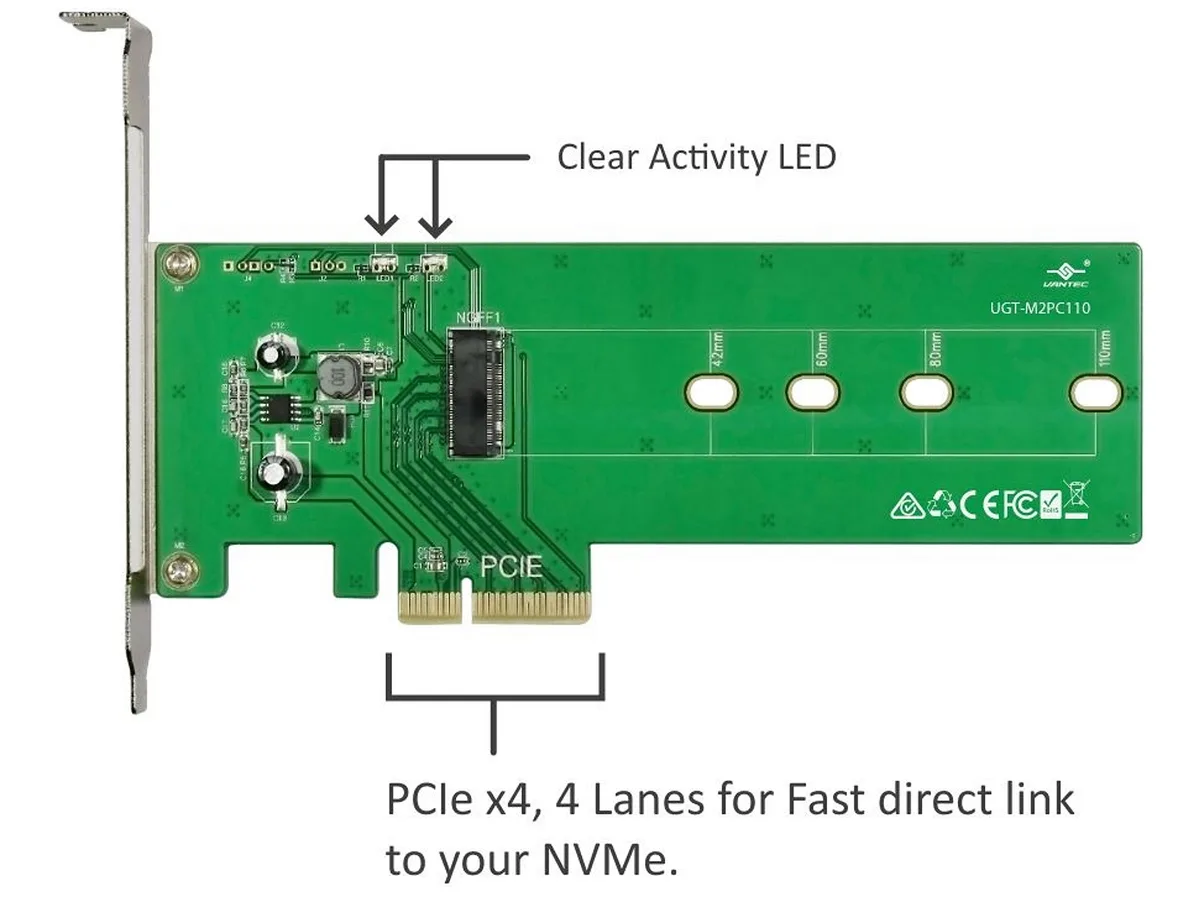

Green circuit board with M-key slot and low-profile bracket

Vantec

Vantec UGT-M2PC110 PCIe to M.2 expansion card 110mm

SKU CH-20MK-BWA81

Adds an M-key M.2 slot to a PCIe x4, x8 or x16 slot, accepting NVMe or AHCI SSDs from 22x42 mm up to 22x110 mm

  • TypePCI Express to M.2 Card
  • External Ports1 x M.2 (NGFF), M Key
  • Internal Ports1 x PCIe x4
  • Operating Systems SupportedAvailable system board PCIe x4 or x8 or x16 slot OS support
  • CompatibilityM.2 Type Support: NVMe or AHCI SSD using M Key only M.2 size
  • SpecificationsThis M.2 NVMe SSD PCIe x4 Adapter can support module of diff
  • Supports extra-long 110mm M.2 modules for maximum capacity
  • Fits 42mm to 110mm lengths covering all common drive sizes
  • Works in x4, x8 or x16 PCIe slots for broad motherboard compatibility
  • Runs on PCIe 3.0 with v2.0 backward compatibility for flexible deployment

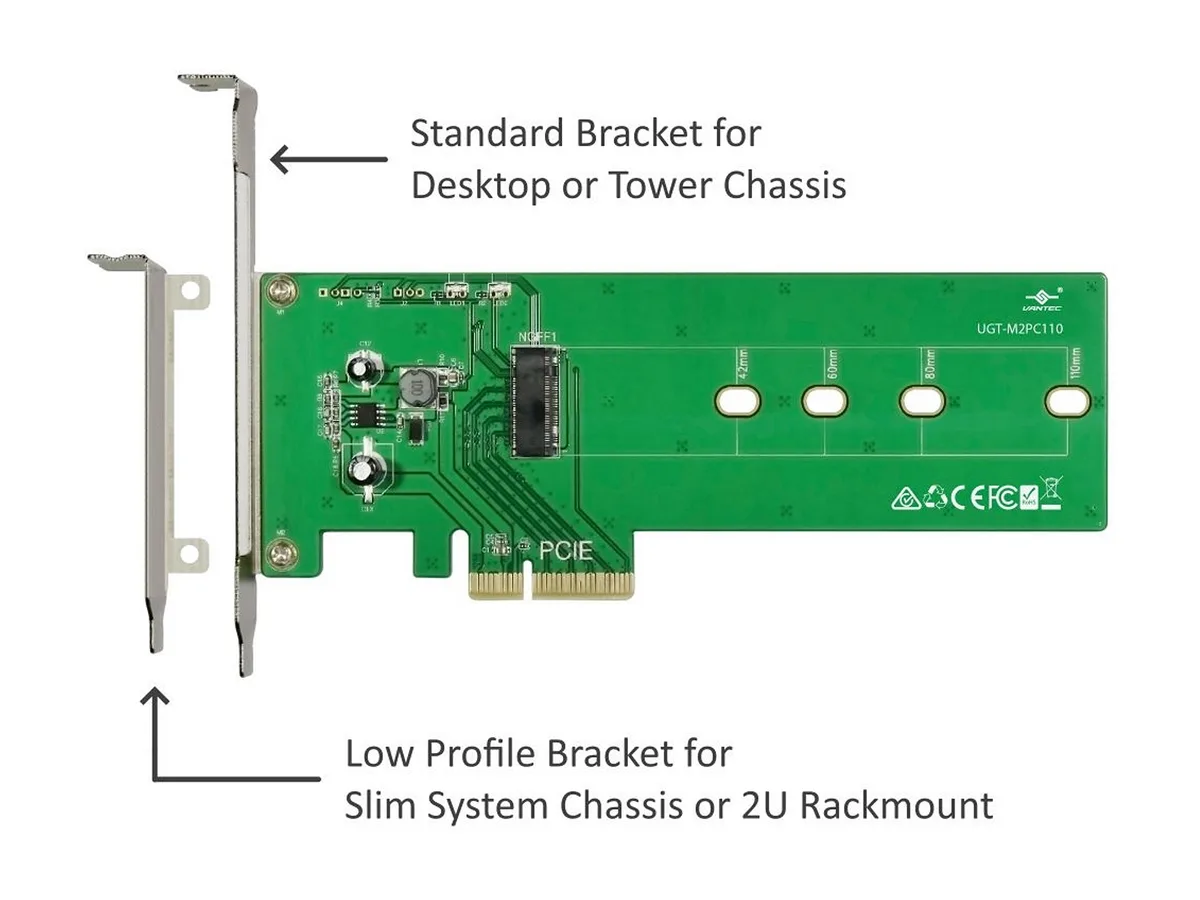

  • Low-profile bracket included for slim chassis installations

PCIe to M.2 adapter for 110 mm modules

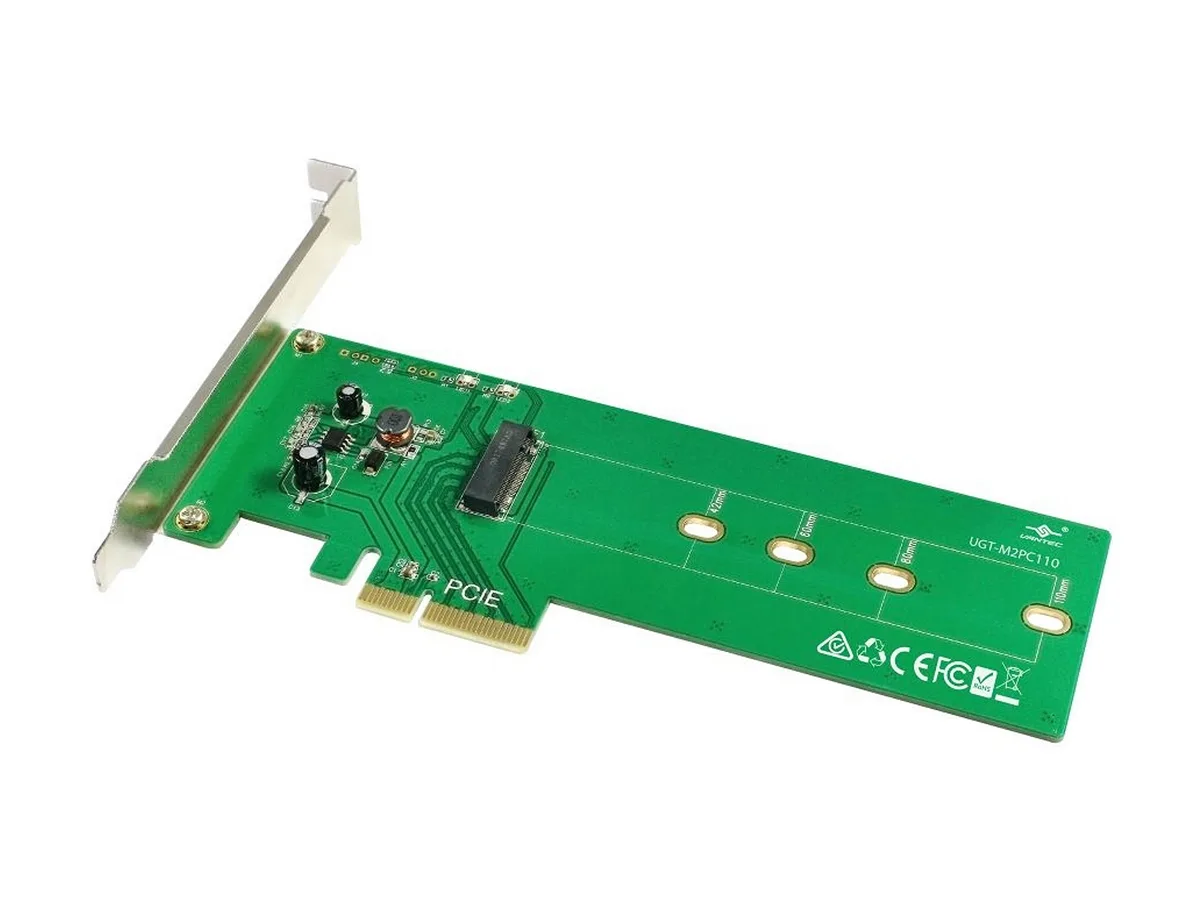

The Vantec UGT-M2PC110 is a new PCI Express to M.2 add-on card that lets you install an extra-long 110 mm NVMe or AHCI SSD into a standard PCIe x4, x8 or x16 slot. It accepts M-key modules from 42 mm up to 110 mm in length and operates at PCIe 3.0 or 2.0 x4 speeds.

For builders needing 110 mm NVMe support

Suits anyone whose motherboard lacks an on-board M.2 slot long enough for a 22x110 mm drive, or who wants to add a second high-speed NVMe device. Not for systems without a free PCIe x4 or larger slot, or for drives that use an M+B key interface.

M-key only compatibility decides fit

The card accepts M.2 modules with an M key exclusively; M+B key drives will not fit. It supports lengths of 22x110, 22x80, 22x60 and 22x42 mm and draws power from the PCIe 3.3 V rail. A low-profile bracket is included for slim chassis.

Points forts

  • Supports extra-long 110mm M.2 modules for maximum capacity
  • Fits 42mm to 110mm lengths covering all common drive sizes
  • Works in x4, x8 or x16 PCIe slots for broad motherboard compatibility
  • Runs on PCIe 3.0 with v2.0 backward compatibility for flexible deployment
  • Low-profile bracket included for slim chassis installations

Caractéristiques

BrandVANTEC
ModelUGT-M2PC110
TypePCI Express to M.2 Card
External Ports1 x M.2 (NGFF), M Key
Internal Ports1 x PCIe x4
Operating Systems SupportedAvailable system board PCIe x4 or x8 or x16 slot
OS support like Windows 7/8/8.1/10 (Windows 10 preferred), or Linux (Latest Kernel)
For booting, requires System UEFI BIOS with booting Support and latest OS
CompatibilityM.2 Type Support: NVMe or AHCI SSD using M Key only
M.2 size: Length support 22x110, 22x80, 22x60, 22x42mm
Internal Interface: 1 x M.2 (NGFF), M Key
PCIe Interface: PCIe v3.0 or PCIe v2.0 x4 (4 lanes)
SpecificationsThis M.2 NVMe SSD PCIe x4 Adapter can support module of different size from 42mm to the Extra Long 110mm. It offers the fastest boot or data access possible via the PCIe interface using 4 lanes of data path straight to the NVMe SSD resulting in super-fast data transfer. This adapter allows for flexible installation of an M.2 (NGFF) NVMe or PCIe AHCI SSD of different size like 42, 60, 80, or 110mm in length with varying and ever growing capacity. This M.2 adapter will give you the best performance possible for your system.
FeaturesSupport Extra Long M.2 NVMe Module like 110mm, 80, 60, or 42
Support for M.2 with 30mm width x 110mm length Module
Support M.2 (NGFF) PCIe based (NVMe or AHCI) SSD to PCIe x4 slot
Support M.2 interface with M key only, do not support M+B key
Adapter supports PCI Express v3.0 Specs and compatible with v2.0 / v1.0
Supports system boards with PCIe x4,x8,x16 slots
Uses minimum power from PCIe 3.3V for better power management
Low Profile Bracket included
Dimensions7.4" x 4.8" x 0.9"
Weight4 oz.
Package ContentsM.2 NVMe PCIe x4 Adapter with Support for Long 110 Module
Quick Installation Guide
Mount and Screws set
Low Profile Bracket

Questions sur cet article

What motherboard slot do I need free to install the Vantec UGT-M2PC110?

You need an available PCIe x4, x8 or x16 slot on the system board.

Will the adapter run at PCIe 2.0 speeds if my board only has PCIe 2.0 slots?

Yes, the card is compatible with PCIe 2.0 x4 and will operate at 2.0 speeds.

How can I confirm the M.2 NVMe SSD is recognised after I fit the card?

The drive should appear in the UEFI BIOS boot list and in the OS disk manager once the latest kernel or Windows 10 is loaded.
