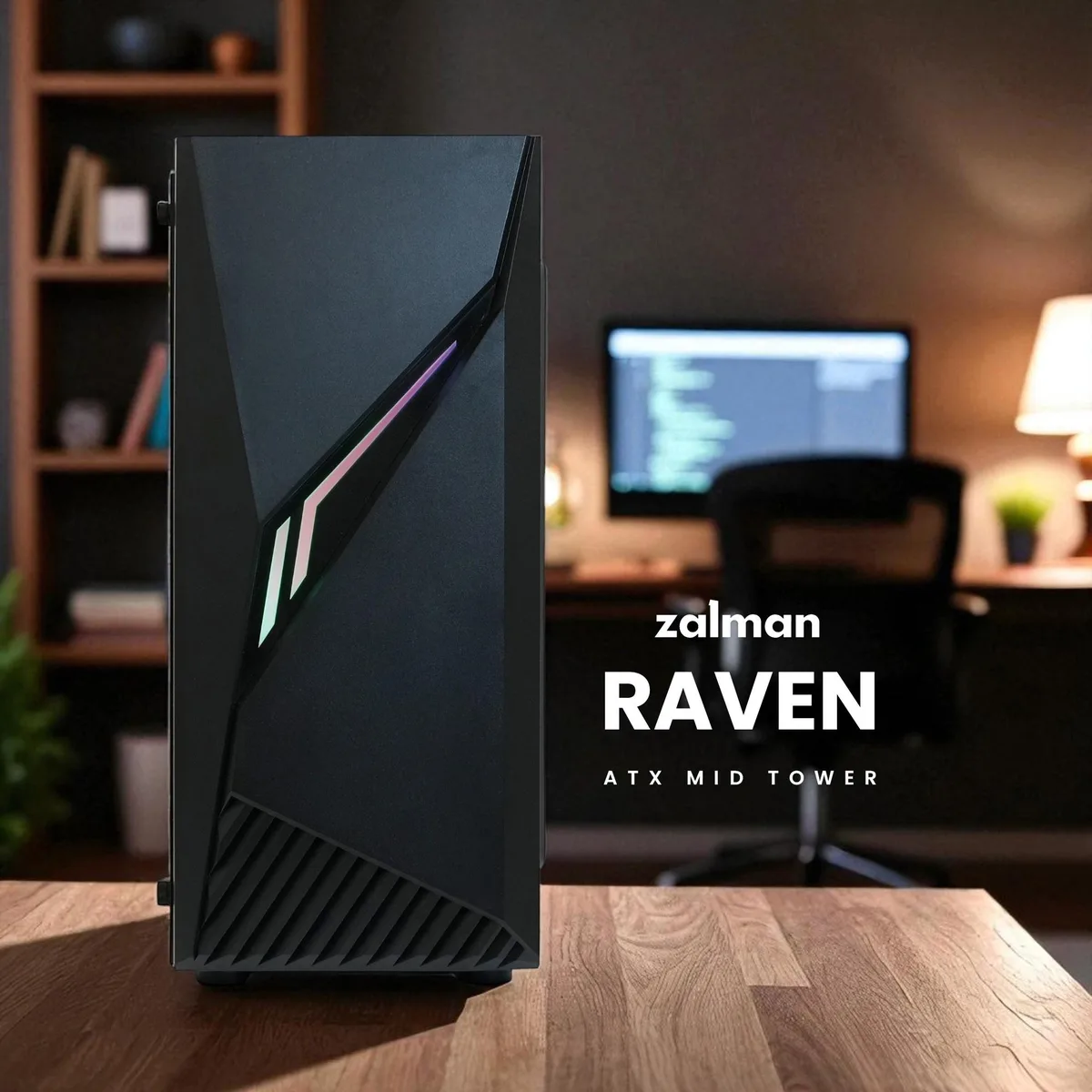

Black mid-tower case with tempered glass side panel and front RGB strip

Zalman

Zalman Raven ATX Mid-Tower Case, RGB Strip, 1 x 120mm Fan, Tempered Glass, USB 3.0, Black

SKU CH-TSDA-JS60C

An ATX mid-tower case with a front RGB strip, tempered glass side panel, one pre-installed 120 mm rear fan, USB 3.0 front ports and room for 295 mm graphics cards and 150 mm CPU coolers

  • Motherboard CompatibilityMicro ATX / ATX
  • Power Supply MountedTop
  • ColorBlack
  • Case MaterialABS / Steel / Tempered Glass
  • With Power SupplyNo
  • Side Panelwith Side Window

Options Raven [ATX]

  • Vibrant front lighting controlled by a dedicated I/O button

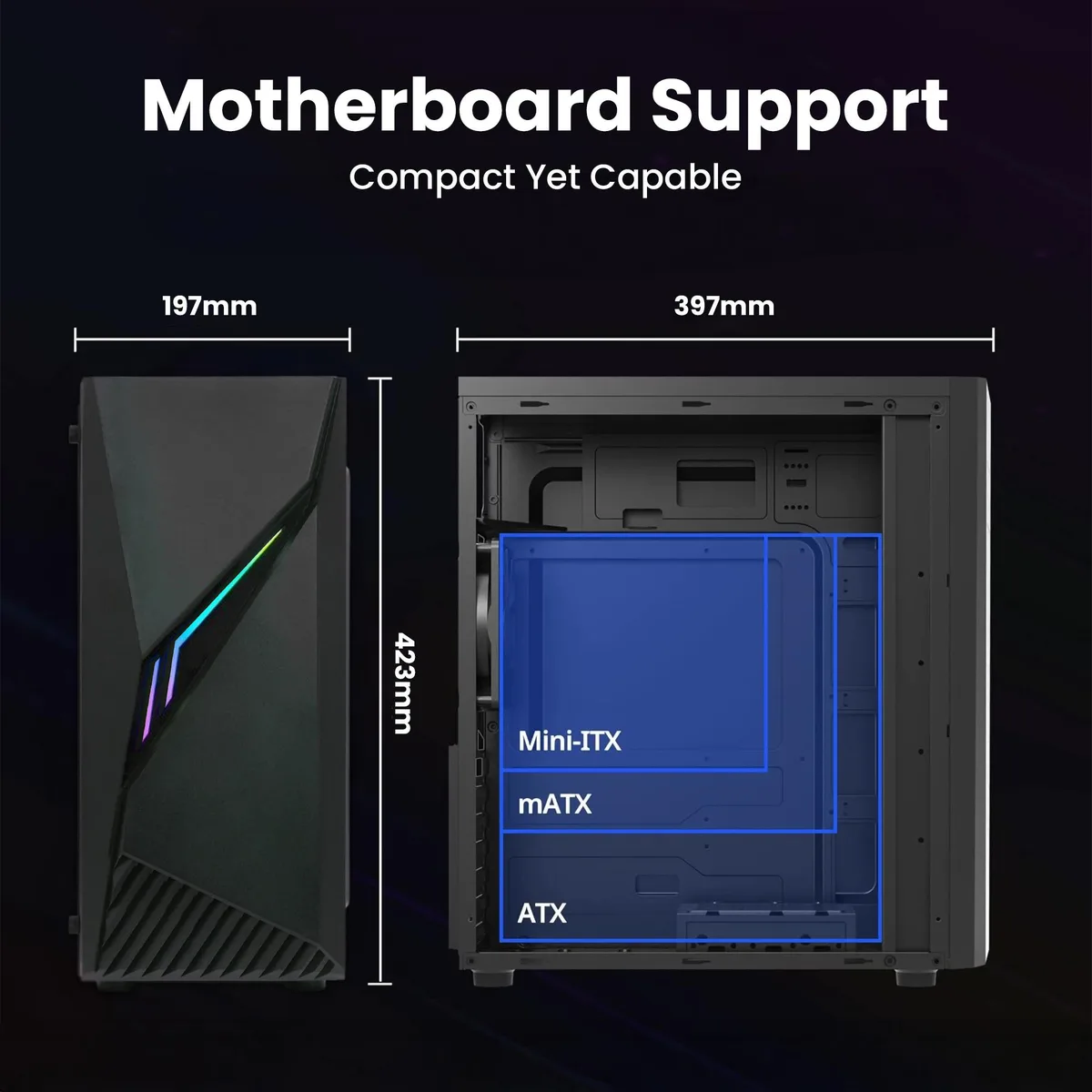

  • ATX motherboard support in a compact mid-tower footprint
  • Tinted tempered glass side panel displays internal components
  • Pre-installed 120 mm rear fan delivers quiet airflow
  • GPU clearance up to 295 mm and CPU cooler height up to 150 mm

Raven ATX Mid-Tower Case

The Raven is a compact ATX mid-tower chassis built for standard and Micro ATX motherboards. It targets builders who want a clean look and front-panel RGB control without extra software. A single pre-installed 120 mm rear fan handles baseline airflow. The top-mounted power supply layout keeps cable routing straightforward.

Tempered Glass Side Panel & Front I/O

The full tinted tempered glass side window lets you showcase internal components while resisting scratches. Dust filters on the intake areas reduce maintenance. Front I/O includes USB 2.0, USB 3.0, audio jacks and a dedicated RGB control button for instant lighting changes. The case body combines steel and ABS for rigidity.

Hardware Clearances & Upgrade Path

The chassis accepts graphics cards up to 295 mm long and CPU coolers up to 150 mm tall, covering most mainstream parts. Power supplies up to 140 mm deep fit in the top bay. Two 3.5 inch and two 2.5 inch drive bays provide storage flexibility. Front mounts support a 240 mm radiator and the rear supports a 120 mm radiator for liquid cooling upgrades.

Points forts

  • Vibrant front lighting controlled by a dedicated I/O button
  • ATX motherboard support in a compact mid-tower footprint
  • Tinted tempered glass side panel displays internal components
  • Pre-installed 120 mm rear fan delivers quiet airflow
  • GPU clearance up to 295 mm and CPU cooler height up to 150 mm

Caractéristiques

Motherboard CompatibilityMicro ATX / ATX
Power Supply MountedTop
ColorBlack
Case MaterialABS / Steel / Tempered Glass
With Power SupplyNo
Side Panelwith Side Window
LEDRGB
Dust FiltersYes
Front PortsUSB 2.0 / USB 3.0 / Audio / Controls
120mm Fans1
Fan OptionsRear - 1 x 120mm
BrandZALMAN
ModelRaven
Part NumberRaven
Internal 3.5" Drive Bays2
Internal 2.5" Drive Bays2
Expansion Slots7
Max GPU Length295 mm
Max CPU Cooler Height150 mm
Max PSU Length140 mm
Dimensions16.65 x 7.76 x 15.63 in
Weight7.05 lbs
FeaturesSpectrum RGB Strip

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What USB 3.0 speed does the front-panel port actually deliver?

The front I/O includes a USB 3.0 port that runs at the standard 5 Gbit/s rate when connected to a matching motherboard header.

How much room is there for a graphics card and a CPU cooler?

The chassis accepts GPUs up to 295 mm long and CPU coolers up to 150 mm tall.

How is the RGB strip controlled and what mistake do builders make?

Press the dedicated LED button on the top I/O panel to cycle modes; the common error is forgetting to plug the strip's 3-pin 5 V ARGB connector into the motherboard header.
