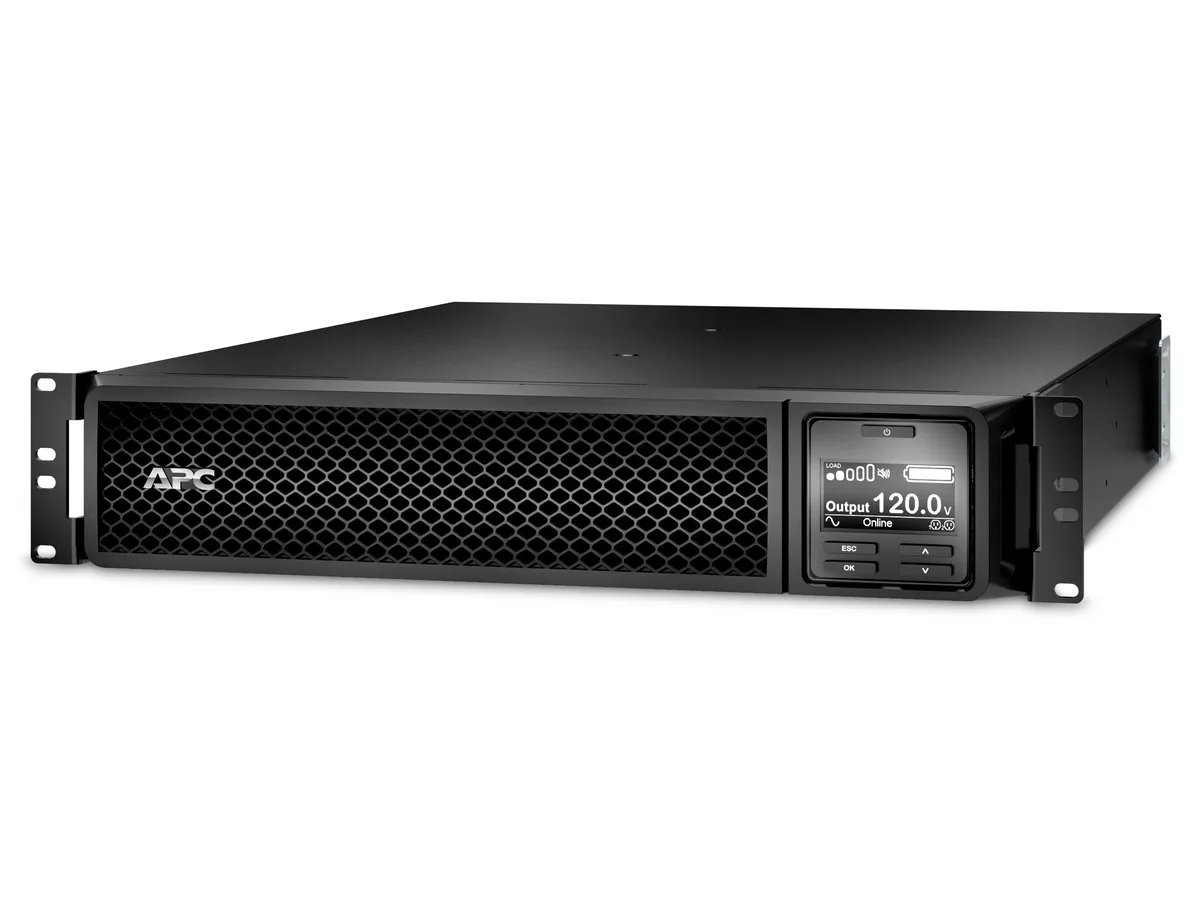

Black 2U rackmount UPS with front LCD display and ten NEMA outlets visible

APC

APC SRT3000RMXLA UPS 3000VA 2700W 120V 2U Rackmount 10 Outlets

SKU CH-QX6K-Z65D3 MPN SRT3000RMXLA

Double-conversion on-line UPS delivers 3000 VA and 2700 W with ten battery-backup outlets and a 3-hour recharge

  • International Version120V
  • Input Frequency40 - 70 Hz (auto sensing)
  • Input ConnectionNEMA L5-30P
  • VA Rating3000 VA
  • Watts2700 Watts
  • Output Voltage120V

Options SRT3000RMXLA

  • SRT3000RMXLA
  • SRT1000RMXLA-NC
  • SRT1500RMXLA-NC
  • SRT2200RMXLA-NC
  • SRT3000RMXLA-NC
  • SRT3000RMXLT-NC
  • SRT1000XLA
  • SRT1500XLA
  • SRT2200XLA
  • SRT3000XLA
  • SRT1000RMXLA
  • SRT1500RMXLA
他に 1点の構成を表示

取り消し線の付いたバージョンは存在しますが、こちらでは取り扱っていません。

  • Double-conversion on-line topology delivers pure sine wave output
  • 3000 VA and 2700 W capacity supports critical server loads
  • 10 NEMA outlets include L5-30R L5-20R and eight 5-20R receptacles
  • 2 minutes runtime at full load extends to 10.3 minutes at half load
  • SmartSlot plus USB and RJ-45 serial enable remote management integration

On-line UPS for critical IT loads

The APC Smart-UPS SRT3000RMXLA is a double-conversion on-line unit rated at 3000 VA and 2700 W. It delivers pure sine-wave output at 120 V to protect servers, network gear and storage arrays from every mains disturbance. The 2U rackmount form factor fits standard cabinets and ships with a rail kit for quick installation.

Input window and outlet constraints

The UPS auto-senses an input frequency range of 40 to 70 Hz and connects via a NEMA L5-30P plug. Output is limited to ten battery-backed receptacles: one NEMA L5-30R, one NEMA L5-20R and eight NEMA 5-20R. No surge-only or switched outlets are provided, so every connected device shares the same runtime pool.

Runtime at typical loads

At the full 2700 W rating the battery lasts approximately 3.2 minutes. Reducing the load to roughly 1350 W extends runtime to about 10.3 minutes. Recharge takes three hours. The sealed lead-acid pack is rated for a two-year service life, and the 340 J surge rating covers only modest transients.

特長

  • Double-conversion on-line topology delivers pure sine wave output
  • 3000 VA and 2700 W capacity supports critical server loads
  • 10 NEMA outlets include L5-30R L5-20R and eight 5-20R receptacles
  • 2 minutes runtime at full load extends to 10.3 minutes at half load
  • SmartSlot plus USB and RJ-45 serial enable remote management integration

仕様

BrandAPC
SeriesSmart-UPS
ModelSRT3000RMXLA
International Version120V
Input Frequency40 - 70 Hz (auto sensing)
Input ConnectionNEMA L5-30P
VA Rating3000 VA
Watts2700 Watts
Output Voltage120V
Output Frequency50/60Hz +/- 3 Hz
Outlets10
Outlet Type(1) NEMA L5-30R (Battery Backup)
(1) NEMA L5-20R (Battery Backup)
(8) NEMA 5-20R (Battery Backup)
Battery TypeSealed Lead Acid
Battery Run TimeFull Load (2700 Watts): Approximately 3.2 minutes
Half Load (1350 Watts): Approximately 10.3 minutes
Battery Recharge Time3 hour(s)
AlarmsAudible and visible alarms prioritized by severity
Interface PortRJ-45 Serial, Smart-Slot, USB
ApprovalsCSA C22.2 No.107.3-05, ENERGY STAR (USA), FCC Part 15 Class A, OSHPD, UL 1778, RoHS Compliant
Surge Energy Rating340 Joules
FeaturesAPC Smart-UPS SRT 3000VA RM 120V
High density, double-conversion on-line power protection with scalable runtime
Dimensions3.35" x 17.00" x 25.00"
Weight69.00 lbs.
Package ContentsCD with software, Documentation CD, Installation guide, Rack Mounting brackets, Rack Mounting support rails, USB cable, Warranty card
配送重量38.08 kg
梱包サイズ870 × 597 × 229 mm

このモデルの他のバージョン

同シリーズにさらに 1点

同じファミリーで、メモリ・クーラー・クロックが異なります — 購入前に比較してください。

この商品に関する質問

Should I pick the 3000 VA model or a lower-capacity unit?

Choose the 3000 VA / 2700 W model if your connected load approaches 2700 watts; a smaller unit would not support that load.

What does the 2700 W rating mean when the UPS is powering my rack?

It is the maximum real power the UPS can deliver continuously; at that load the battery lasts about 3.2 minutes, while at half load (1350 W) runtime extends to roughly 10.3 minutes.

What does the NEMA L5-30P input and mixed NEMA outlets cap in practice?

The L5-30P plug limits input to a 30 A, 120 V circuit, and the ten outlets (eight 5-20R, one L5-20R, one L5-30R) share the single 2700 W output capacity.
