Black rectangular network video recorder with eight PoE ports on the front and HDMI, VGA, USB ports on the back

Camius

Camius IPVAULT1128PR 8-Channel 4K PoE NVR 3TB

SKU CH-HXQQ-PZC24

Eight-channel 4K PoE network video recorder with a pre-installed 3 TB drive and 128 Mbps recording bandwidth

  • Channel8 Channel
  • Supported ProtocolsCamius private, Onvif, RTSP
  • Network InterfaceNetwork WAN, DHCP, PPPOE, SNMP, DDNS, HTTP, HTTPS RTSP, UPNP
  • Ports8 PoE ports, Audio out, HDMI, VGA, WAN, USB
  • Video Input8 x RJ-45
  • Video Output1 x VGA, 1 x HDMI

Options 3 TB

  • 4 TB
  • 3 TB

取り消し線の付いたバージョンは存在しますが、こちらでは取り扱っていません。

  • Records up to 8 cameras at 4K resolution using 128 Mbps bandwidth
  • Pre-installed 3TB drive stores footage and supports upgrades to 10TB total capacity

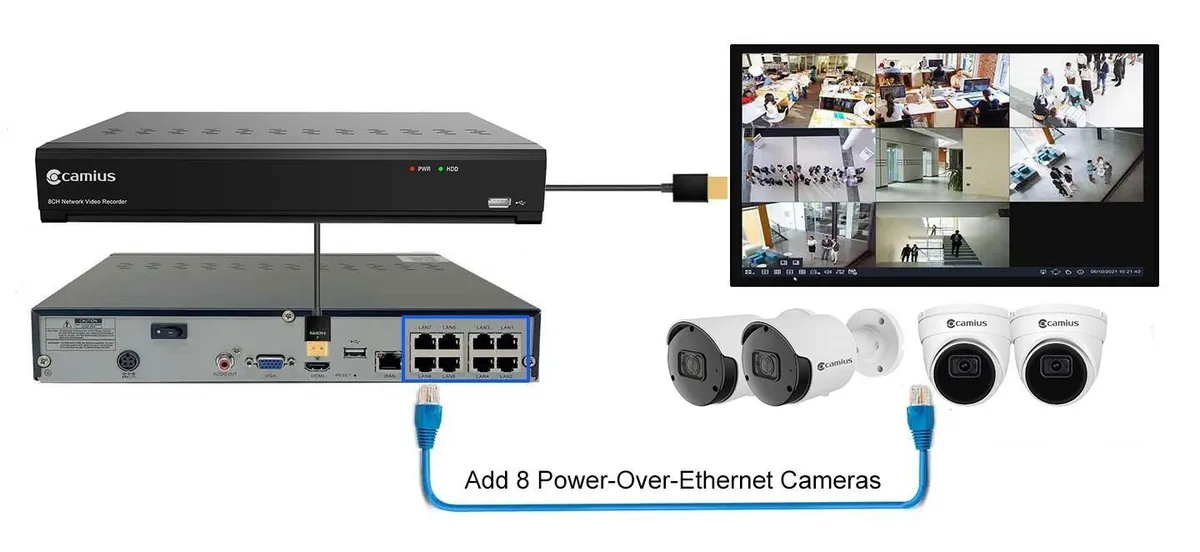

  • Eight PoE ports power and connect Camius cameras through one cable each
  • Remote viewing works on PC, Mac, browser and the Camius View smartphone app
  • HDMI output delivers 4K video while VGA provides 1080P for a second display

8-Channel 4K PoE NVR

The Camius IPVAULT1128PR is an 8-channel network video recorder with eight built-in PoE ports and a pre-installed 3 TB hard drive. It supports H.264, H.265, H.264+ and H.265+ compression at up to 128 Mbps recording bandwidth. Remote access is provided through VMS software for Windows and Mac, web-browser viewing, and the Camius View app for iOS and Android. The unit includes a 48 V power adaptor, HDMI cable, network cable and USB mouse.

Installation checklist

Verify that each IP camera you plan to connect uses a standard RJ-45 Ethernet cable and draws no more than 802.3af power per port. The eight PoE ports are optimised for Camius cameras; non-Camius models may require an external PoE switch to join the system. Ensure the mounting location stays within the 0 °C to 40 °C operating range and below 90 % relative humidity. Confirm your monitor or TV accepts either 4K HDMI or 1080P VGA input for live view.

Storage and camera upgrade path

The installed 3 TB drive can be replaced with a single drive up to 10 TB using the HDD health-checking feature to monitor condition. If you need more than eight cameras or higher per-camera bitrates, the 128 Mbps bandwidth ceiling will limit further expansion. The jump to a larger drive is worth it when retention days must increase without adding a second recorder. Builders who need more than eight PoE ports or cameras beyond 4K resolution should look elsewhere.

特長

  • Records up to 8 cameras at 4K resolution using 128 Mbps bandwidth
  • Pre-installed 3TB drive stores footage and supports upgrades to 10TB total capacity
  • Eight PoE ports power and connect Camius cameras through one cable each
  • Remote viewing works on PC, Mac, browser and the Camius View smartphone app
  • HDMI output delivers 4K video while VGA provides 1080P for a second display

仕様

BrandCamius
ModelIPVAULT1128PR
Part NumberIPVAULT1128PR
Channel8 Channel
Supported ProtocolsCamius private, Onvif, RTSP
Network InterfaceNetwork WAN, DHCP, PPPOE, SNMP, DDNS, HTTP, HTTPS RTSP, UPNP, TCP, FTP, IP FILTER, P2P
Ports8 PoE ports, Audio out, HDMI, VGA, WAN, USB
Video Input8 x RJ-45
Video Output1 x VGA, 1 x HDMI
Frame Rate30
Compression FormatVideo: H.264, H.265, H.264+, H.265+, MJPEG I Audio: G.711A/G.711U
Recording TypeNVR
RemotePC & Mac compatible software (VMS, VMS Pro), Web-browser access
• Camius View (iOS/Android smartphone app)
Storage Installed3TB
Max Capacity10TB
Operating SystemiOS, Android, Windows, Mac OS
Power Supply48V power adaptor included (8 Built-in PoE ports, a single port up to 802.3af (we recommend using Camius NVR’s original power supply for full functionality and safety)
TemperatureOperating Temperature 32°F ~ 104°F (0°C~+40°C)
HumidityHumidity : Less than 90% RH
Dimensions1 x 8 channel NVR
1 x Pre-installed 3TB internal hard drive
1 x 48V power supply with a power cord
1 x 3ft HDMI cable
1 x 3ft Network cable
1 x USB mouse
1 x Set of screws for the chassis
1 x Installation Guide
Weight5lb
Package Contents1 x 8 channel NVR
1 x Pre-installed 3TB internal hard drive
1 x 48V power supply with a power cord
1 x 3ft HDMI cable
1 x 3ft Network cable
1 x USB mouse
1 x Set of screws for the chassis
1 x Installation Guide

この商品に関する質問

What comes in the box with the IPVAULT1128PR and do I need to buy cameras separately?

The box includes the 8-channel NVR with a pre-installed 3 TB hard drive, a 48 V power supply and cord, a 3 ft HDMI cable, a 3 ft network cable, a USB mouse, chassis screws and an installation guide. Cameras are not included and must be purchased separately.

Should I choose the 3 TB model or plan for the 10 TB maximum capacity?

The unit ships with a 3 TB drive installed and supports a single drive up to 10 TB. Start with the included 3 TB for typical 4K recording and upgrade later if you need longer retention across all eight channels.

What does the 128 Mbps recording bandwidth mean for daily use?

It allows the NVR to record up to eight 4K IP cameras simultaneously at full frame rate without dropping frames, provided the cameras use H.264, H.265 or the plus variants supported by the recorder.
