Three white 120mm ARGB case fans in a pack

Corn Electronics

Corn Electronics ZH-120 ARGB 120mm case fan 3-pack white

SKU CH-Y4Q7-RT999 MPN ZH-120

Three 120 mm white ARGB case fans with hydraulic bearings, 500–1500 RPM and 20.1–60.45 CFM airflow

  • Fan Counts3 Fans
  • Fan ControllerNo Controller
  • TypeCase Fan
  • Fan Thickness25mm
  • Bearing TypeHydro Bearing
  • RPM500-1500±10%RPM
  • Quiet operation at 23.8 dB(A) minimum noise
  • Strong airflow up to 60.45 CFM for effective cooling
  • ARGB lighting via 5V 3-pin motherboard sync
  • Hydraulic bearing rated for 40000 hours MTTF

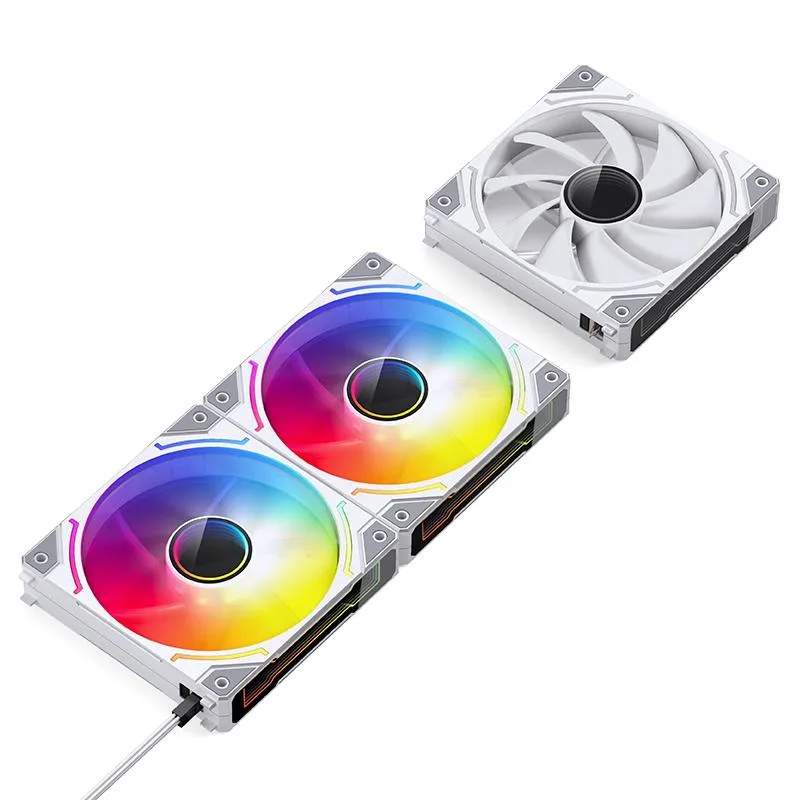

  • Wire-free splicing simplifies three-fan installation

Three-Fan ARGB Kit

The Corn Electronics ZH-120 ARGB pack contains three 120 mm case fans finished in white. Each unit uses a hydraulic bearing and runs between 500 and 1500 RPM, delivering 20.1 to 60.45 CFM of airflow at 23.8 to 29.3 dB(A). Addressable RGB lighting is powered through a 5 V 3-pin header.

Builders Wanting Simple ARGB Cooling

This kit suits builders who want coordinated lighting without a separate controller and who have a motherboard with a 5 V 3-pin ARGB header. It is not for systems that lack a 5 V ARGB header or for users who prefer PWM-only fans without any LED circuitry.

Straightforward Installation With Cable Management

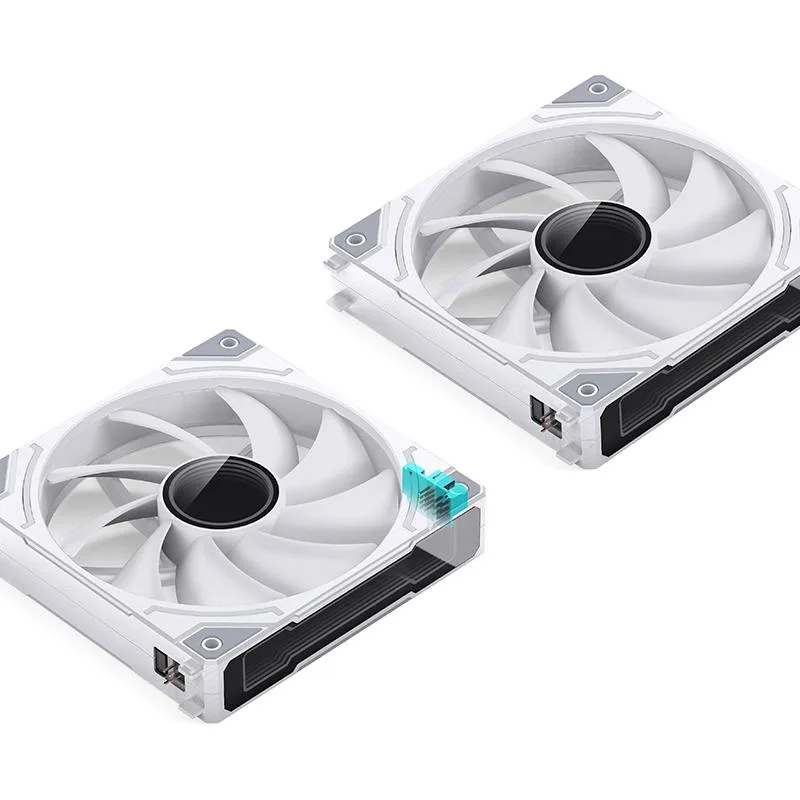

Each fan connects via a 4-pin PWM fan header and a 3-pin ARGB header; the wire-free splicing design lets the three units link together to reduce cable clutter. The main risk is forgetting to plug in the 5 V ARGB connector, which leaves the lighting inactive while the fan still spins.

特長

  • Quiet operation at 23.8 dB(A) minimum noise
  • Strong airflow up to 60.45 CFM for effective cooling
  • ARGB lighting via 5V 3-pin motherboard sync
  • Hydraulic bearing rated for 40000 hours MTTF
  • Wire-free splicing simplifies three-fan installation

仕様

BrandJONSBO
SeriesZH-120 ARGB
Fan Counts3 Fans
Fan ControllerNo Controller
TypeCase Fan
Fan Thickness25mm
Bearing TypeHydro Bearing
RPM500-1500±10%RPM
Air Flow20.1-60.45CFM
Noise Level23.8-29.3dB(A)
Power Connector4 Pin
ColorWhite
LEDARGB
Dimensions120 × 120 × 25 mm

この商品に関する質問

Does my motherboard need a 5 V three-pin ARGB header and a four-pin fan header for each of the three fans?

Yes — each fan draws up to 0.28 A on the 12 V four-pin connector and 0.28 A on the 5 V three-pin ARGB connector, so the board must supply both headers for every fan.

Can I run these 120 mm hydraulic-bearing fans on the same PWM curve as older three-pin fans?

The four-pin PWM input accepts a 500-1500 ±10 % RPM range, so the motherboard can match the curve used by existing three-pin fans as long as the header supports PWM control.

How do I confirm the ARGB lighting is synchronised with my motherboard software after installation?

Connect the three-pin 5 V ARGB leads to the board's addressable RGB header; the LEDs should then appear in the vendor's sync utility and change colour in step with other ARGB devices.
