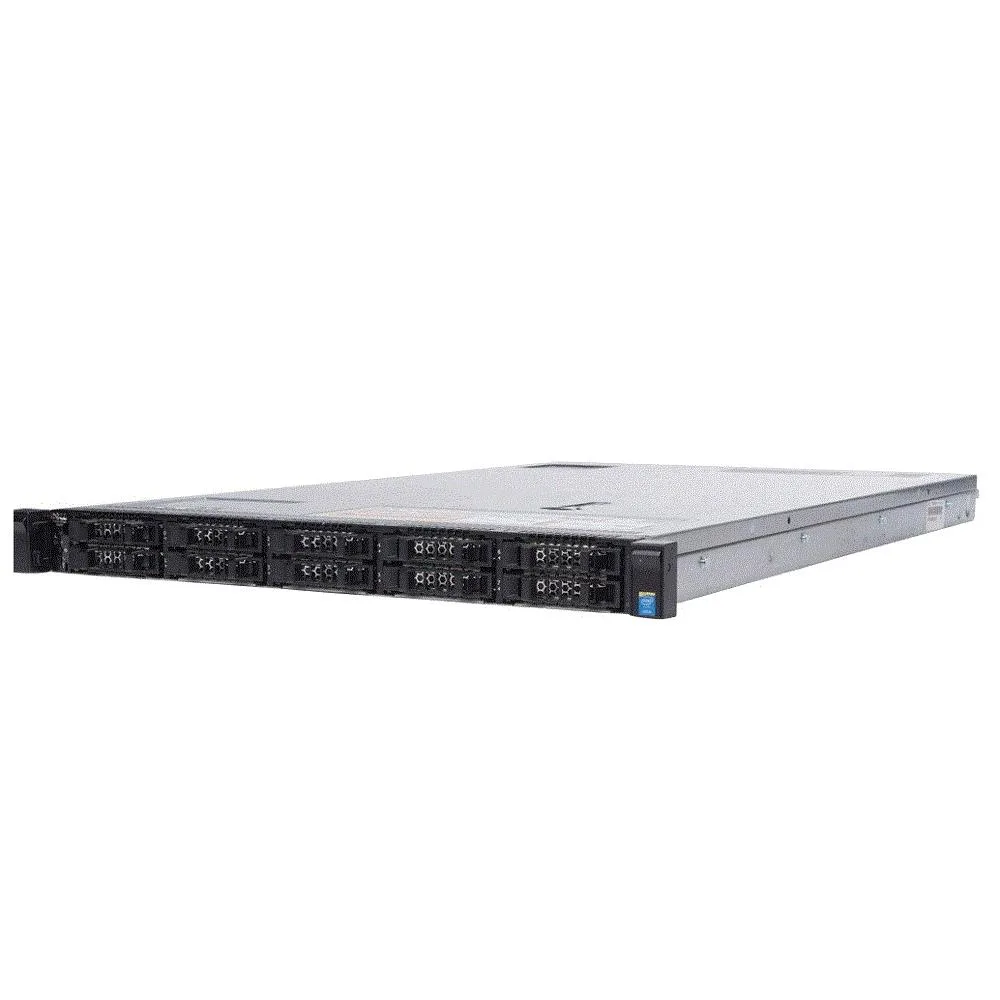

Silver 1U rack server front with ten drive bays and bezel

DELL

DELL PowerEdge R630 10B 2x E5-2603 V3 1.6GHz 48GB H330 rack server

SKU CH-J0ZV-NCB8Z

1U rack server with dual Xeon E5-2603 v3 CPUs, 48 GB DDR4, H330 RAID controller, ten 2.5" hot-plug bays and redundant 750 W power supplies

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeDual Intel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 48GB

  • Dual Xeon E5-2603 v3 processors deliver 12 total cores
  • 48 GB DDR4 memory supports demanding workloads
  • H330 12 Gbps RAID controller enables RAID 0/1/5/10/50/60
  • Two 750 W hot-swap power supplies provide redundancy
  • 10 x 2.5" hot-plug drive bays allow high storage density

Dell PowerEdge R630 10-bay rack server

This 1U Dell PowerEdge R630 fits ten 2.5-inch hot-plug SAS or SATA drives and runs dual Intel Xeon E5-2603 V3 six-core processors at 1.6 GHz. It ships with 48 GB of DDR4 memory across 24 DIMM slots and a Perc H330 RAID controller supporting RAID 0, 1, 5, 10, 50 and 60. Dual 750 W redundant power supplies and iDRAC8 remote management are included.

Suits dense storage clusters

The ten-bay chassis maximises drive count in a single rack unit, making it a good match for workloads that prioritise local capacity over expansion slots. Buyers who need more than three PCIe 3.0 slots, an optical drive, or a dedicated graphics processor should look elsewhere.

H330 RAID controller with twelve Gbps SAS

The onboard Perc H330 handles twelve Gbps SAS connectivity and the listed RAID levels without a separate card. If a workload demands a different controller feature set or external SAS ports, this server will not meet that requirement.

特長

  • Dual Xeon E5-2603 v3 processors deliver 12 total cores
  • 48 GB DDR4 memory supports demanding workloads
  • H330 12 Gbps RAID controller enables RAID 0/1/5/10/50/60
  • Two 750 W hot-swap power supplies provide redundancy
  • 10 x 2.5" hot-plug drive bays allow high storage density

仕様

BrandDELL
SeriesPowerEdge
ModelPowerEdge R630
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeDual Intel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size48GB
Memory TypeDDR4
Max Memory Capacity48GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity14TB
Media DrivesNo
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 3 x PCIe 3.0 slots plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight60.0000LBS

このモデルの他のバージョン

同シリーズにさらに 5点

同じファミリーで、メモリ・クーラー・クロックが異なります — 購入前に比較してください。

この商品に関する質問

What does the 1.6 GHz clock speed of the dual E5-2603 V3 processors mean for real-world throughput?

The two six-core Xeon CPUs run at a fixed 1.6 GHz, giving twelve threads total; performance scales with workloads that can use all cores rather than single-thread burst speed.

How does the H330 12Gbps RAID controller limit drive performance in practice?

The Perc H330 caps each SAS or SATA lane at 12 Gbps and supports RAID 0/1/5/10/50/60, so maximum array throughput is bounded by that controller link speed.

What physical space and mounting hardware does the 1U chassis require?

The server is 26.8 inches deep, 17.44 inches wide and 3.4 inches high, weighs 58 lbs and needs a standard 1U rack opening with compatible sliding rails for the chassis.
