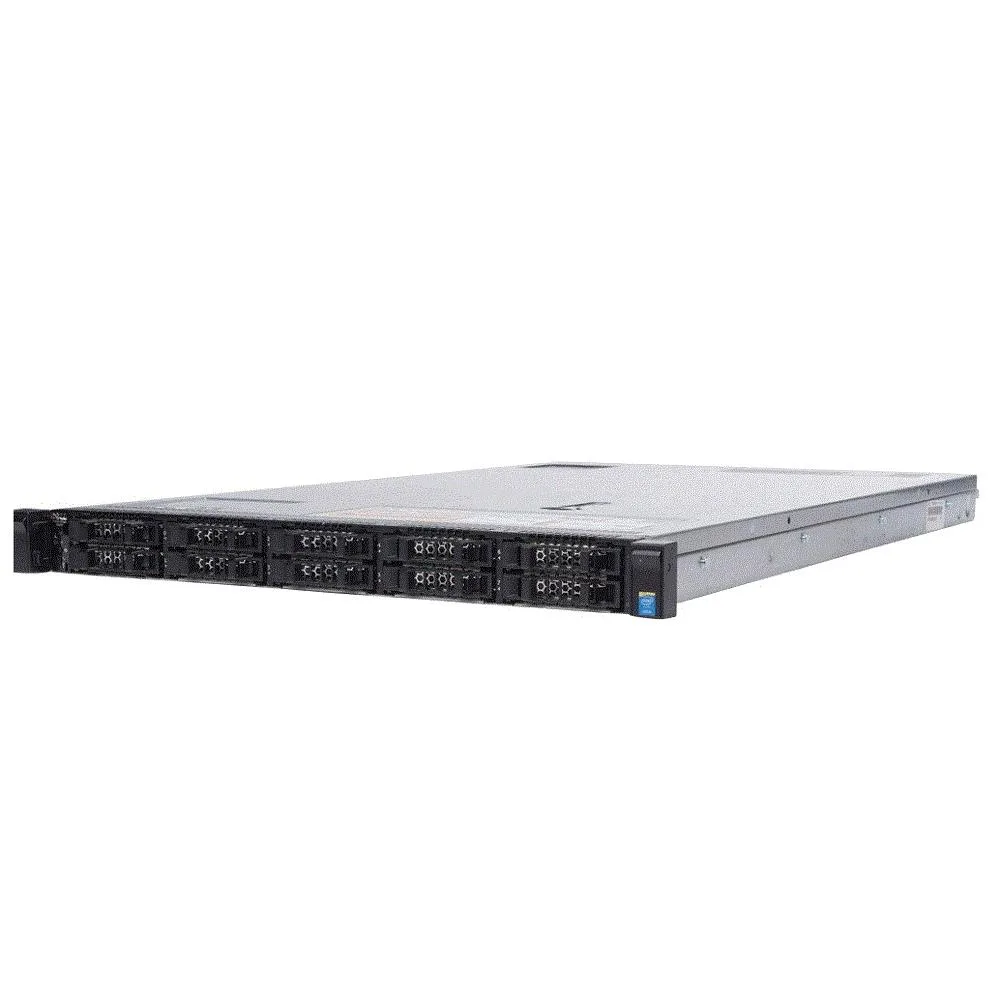

Silver 1U rack server with ten front drive bays and dual redundant power supplies

DELL

DELL PowerEdge R630 10B 2x E5-2609 V3 1.9GHz 64GB H330 rack server

SKU CH-K6A5-GC8G5

1U rack server with dual Xeon E5-2609 V3 processors, 64 GB DDR4, H330 RAID controller and ten 2.5-inch hot-plug bays

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeDual Intel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 64GB

  • Dual Xeon E5-2609 v3 CPUs deliver 12 cores for parallel workloads
  • 64 GB DDR4 memory installed across 24 DIMM slots for large datasets
  • H330 12 Gbps RAID controller supports RAID 0/1/5/10/50/60
  • 10 hot-plug 2.5" drive bays allow flexible SAS or SATA storage
  • Dual 750 W redundant power supplies keep the 1U server running

Compact 1U rack server for dense compute

The Dell PowerEdge R630 fits dual Xeon E5-2609 V3 processors and 64 GB of DDR4 memory into a single rack unit. Ten 2.5-inch hot-plug bays connect to a PERC H330 controller supporting RAID 0, 1, 5, 10, 50 and 60. Redundant 750 W power supplies and a quad-port 1 GbE daughter card come standard.

Upgrade from single-socket or smaller chassis

Moving from a 1-socket tower or a 2U box with fewer drive bays adds a second CPU, doubles memory channels and provides ten front-accessible bays without extra rack space. The jump is worthwhile when workloads need more threads, larger memory capacity or local storage density in a fixed 1U slot.

Slide-in rails and cable-free drive install

The server mounts on included rails and drives snap into hot-plug carriers without tools or cables. iDRAC8 Express gives remote console and power control before the OS loads. Common pitfalls: forgetting that the 10-bay chassis excludes an optical drive, and ordering 3.5-inch drives that will not fit the 2.5-inch sleds.

特長

  • Dual Xeon E5-2609 v3 CPUs deliver 12 cores for parallel workloads
  • 64 GB DDR4 memory installed across 24 DIMM slots for large datasets
  • H330 12 Gbps RAID controller supports RAID 0/1/5/10/50/60
  • 10 hot-plug 2.5" drive bays allow flexible SAS or SATA storage
  • Dual 750 W redundant power supplies keep the 1U server running

仕様

BrandDELL
SeriesPowerEdge
ModelPowerEdge R630
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeDual Intel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size64GB
Memory TypeDDR4
Max Memory Capacity64GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity14TB
Media DrivesNo
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 3 x PCIe 3.0 slots plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight60.0000LBS

このモデルの他のバージョン

同シリーズにさらに 5点

同じファミリーで、メモリ・クーラー・クロックが異なります — 購入前に比較してください。

この商品に関する質問

What rack dimensions does the 1U PowerEdge R630 need?

The server is 1U high and measures 26.8 inches long by 17.44 inches wide by 3.4 inches high, weighing 58 lbs.

How are the two E5-2609 V3 processors and H330 controller installed, and what step is often missed?

Both CPUs come pre-installed; the H330 occupies the dedicated PERC slot, so do not use a standard PCIe 3.0 slot for it.

What DDR4 memory upgrades will the R630 need later, and how many slots are free?

It has 24 DIMM slots total with 64 GB installed; supported modules are 4 GB to 128 GB DDR4 up to 2400 MT/s, speed limited by the CPU.
