Green circuit board with gold edge connector and silver SATA port

GLOTRENDS

GLOTRENDS PA09-SA M.2 SATA Adapter expansion card

SKU CH-CB4Y-B1ZJ7

Adds a SATA port for M.2 SATA SSDs using a PCIe x1 slot, includes brackets and cable

  • TypePCIe expansion card

Option M.2 SATA Adapter

  • M.2 PCIe X1 Adapter
  • M.2 SATA Adapter

取り消し線の付いたバージョンは存在しますが、こちらでは取り扱っていません。

  • Converts M.2 SATA SSD to motherboard SATA port using Key B/B+M drives only
  • Fits PCIe X1/X4/X8/X16 slots drawing 3.3 V power from the bus
  • Works with SATA I/II/III — reach 6 Gbps when the motherboard port is SATA III
  • Boots from M.2 SATA SSD on Windows, Linux or Mac without extra drivers

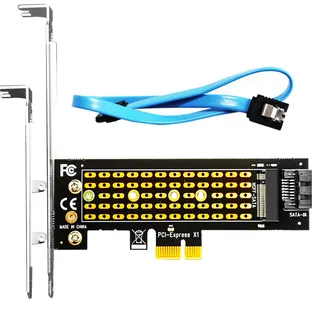

  • Ships with full-height and low-profile brackets plus SATA III cable and M.2 screws

Product Identity

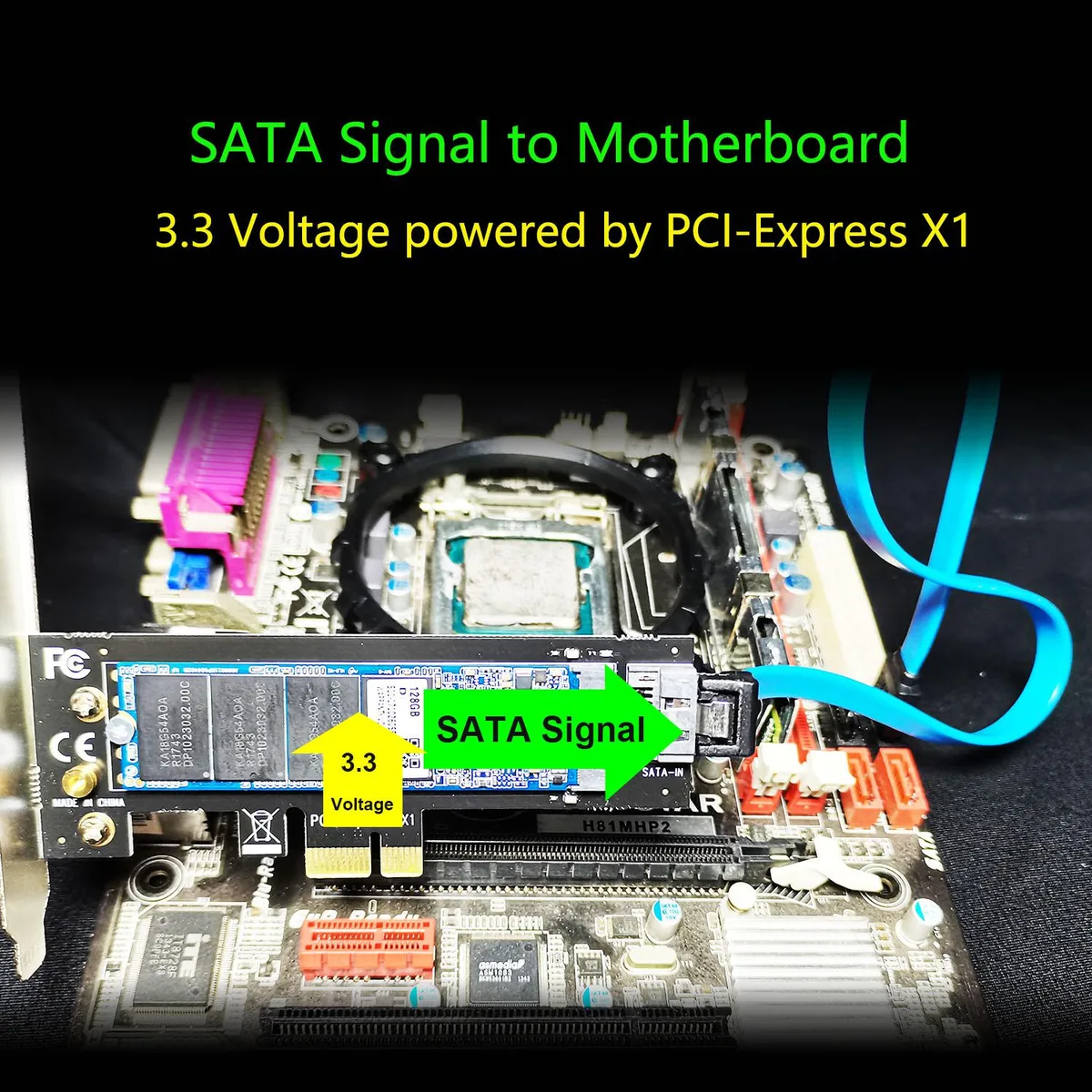

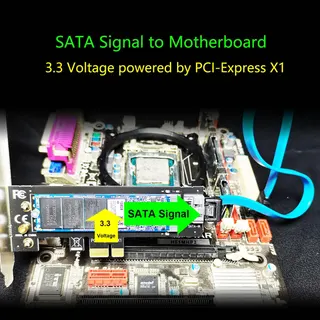

The GLOTRENDS PA09-SA is a PCIe expansion card that converts a single M.2 SATA solid-state drive into a standard SATA connection on the motherboard. It draws power from a PCIe x1 lane at 3.3 V and fits x1, x4, x8 or x16 slots. Both a regular bracket and a low-profile bracket are included along with a SATA III cable and mounting screw. The adapter works with Windows, Linux and Mac OS without extra drivers and allows booting from the installed drive.

Who It Fits

Builders who have an M.2 SATA module with Key B or B+M notching and want to connect it through a free SATA port will find this card a direct fit. It suits upgrades on older boards that lack an M.2 slot and deployments in 2U servers using the low-profile bracket. Not for users who need to connect M.2 PCIe Key M drives or who require more than one M.2 device on a single card.

Deciding Specification

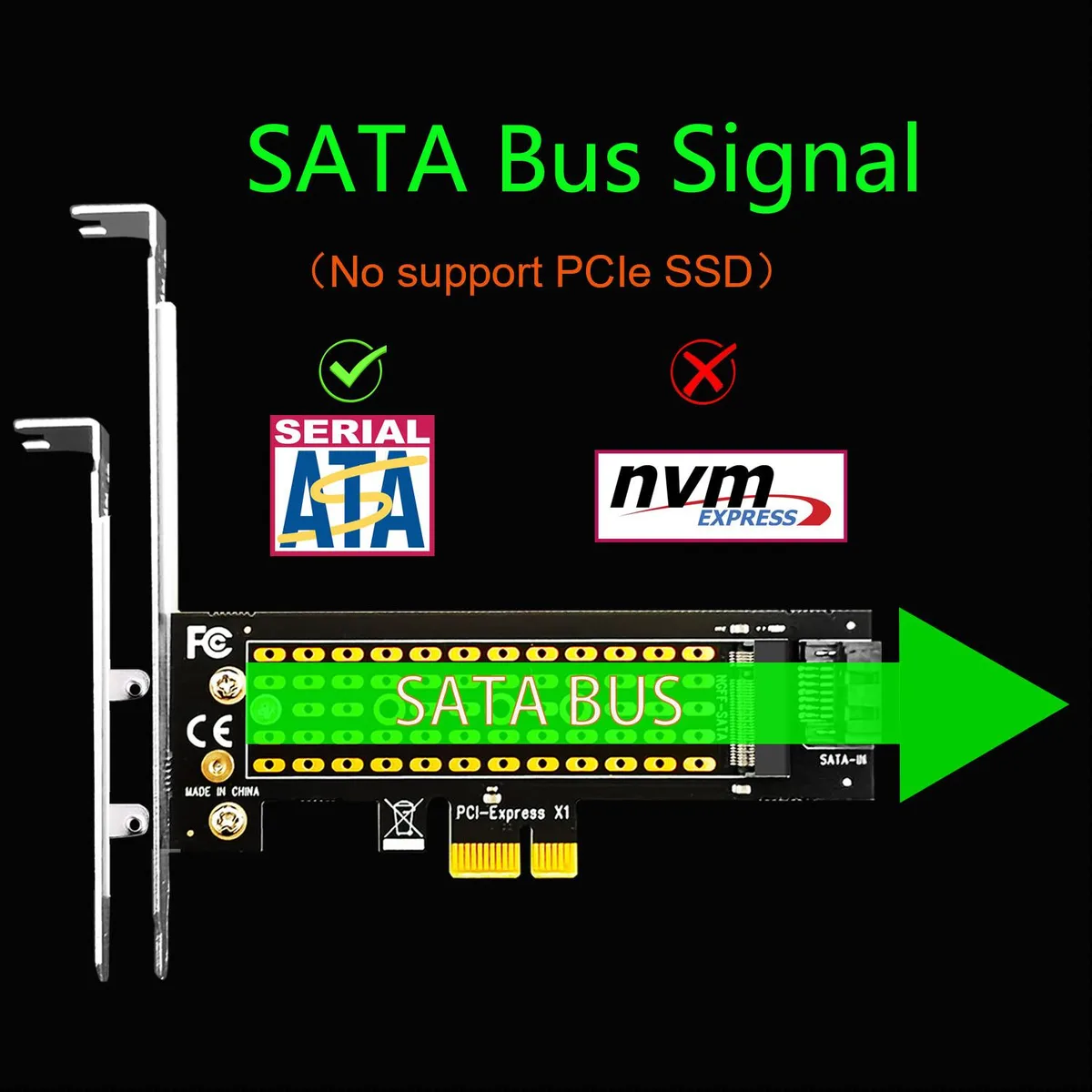

The card accepts only M.2 SATA SSDs with Key B or B+M pinouts; M.2 PCIe Key M drives are not supported. The host motherboard must provide a SATA III port to reach 6 Gbps throughput. A PCIe x1 lane supplies 3.3 V power to the adapter.

特長

  • Converts M.2 SATA SSD to motherboard SATA port using Key B/B+M drives only
  • Fits PCIe X1/X4/X8/X16 slots drawing 3.3 V power from the bus
  • Works with SATA I/II/III — reach 6 Gbps when the motherboard port is SATA III
  • Boots from M.2 SATA SSD on Windows, Linux or Mac without extra drivers
  • Ships with full-height and low-profile brackets plus SATA III cable and M.2 screws

仕様

BrandGLOTRENDS
ModelPA09-SA
TypePCIe expansion card

この商品に関する質問

What M.2 SSD key types does the PA09-SA accept?

The PA09-SA accepts M.2 SATA SSDs with Key B or Key B+M; it does not support Key M PCIe drives.

Will the card fit in a PCIe 4.0 x16 slot on my current motherboard?

Yes, the card draws 3.3 V power from any PCIe x1, x4, x8 or x16 slot, including PCIe 4.0 versions.

How can I confirm the adapter is delivering SATA III 6 Gbps after installation?

Verify the motherboard SATA port is SATA III, then check the drive negotiates 6 Gbps in the OS disk utility.
