Green Mini PCIe network card with single RJ45 port and gold contacts

LR-LINK

LR-LINK LRES2201PT Mini PCIe Single Port Gigabit Network Card

SKU CH-9W24-WSVKB

Adds a single Gigabit Ethernet port over Mini PCIe with 9 KB jumbo frames and PXE boot support

  • Connectors1 x RJ45
  • InterfaceMini PCI Express
  • Wake On LANNo
  • Temperature0°C ~ 55°C
  • Humidity5 % ~ 95 % (Non-condensing)
  • Class1000M, PCIE
  • Single-port Gigabit Ethernet for wired network speed
  • Mini PCIe interface fits compact industrial PCs
  • Intel 82574 controller handles 10/100/1000Mbps links
  • 9 KB jumbo frames boost large-packet throughput
  • Gold-plated RJ45 resists corrosion for reliable connection

Mini PCIe Gigabit Adapter

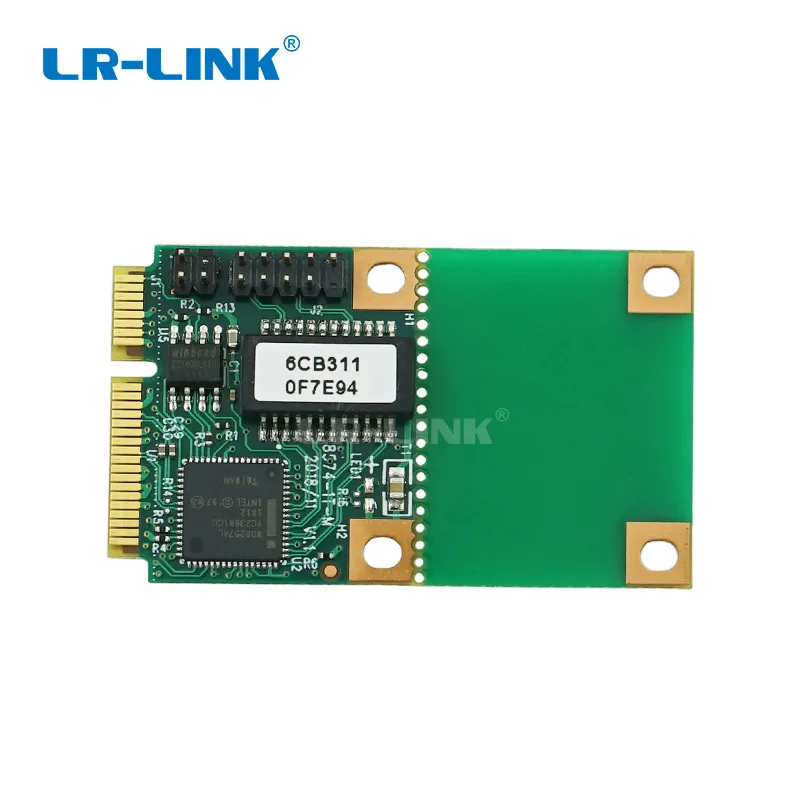

The LR-LINK LRES2201PT is a single-port copper Gigabit Ethernet network adapter built on the Intel 82574 controller. It connects through a Mini PCI Express slot and provides one RJ45 connector with thickened gold plating for reliable links. The card supports 10/100/1000Mbps speeds, 9 KB jumbo frames, PXE boot and flow control. It ships with both low-profile and full-height brackets for flexible mounting in industrial PCs or single-board computers. Operating range is 0°C to 55°C with 5% to 95% non-condensing humidity.

Upgrade From Onboard Or Missing Port

This adapter adds a wired Gigabit connection to systems that lack an Ethernet port or need a replacement for a failed onboard controller. The Mini PCIe interface suits compact industrial equipment where space is limited and standard PCIe cards will not fit. The jump is worth it when a device requires a stable copper link for data transfer, network boot via PXE, or deterministic throughput without relying on wireless. It does not serve builds needing multiple ports, fibre connectivity or Wake-on-LAN capability.

Build Integration Notes

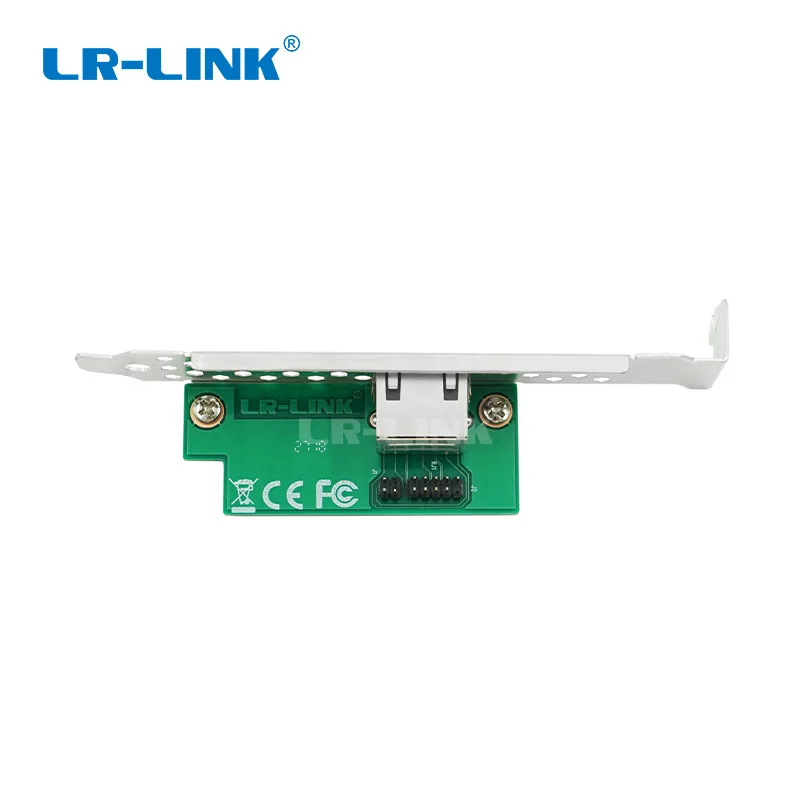

The card installs into any available Mini PCIe slot and draws power directly from the bus. No external power cable is required. Driver support spans Windows XP through 10 and Server 2003 through 2016, plus Linux kernels 2.4.x and later, Red Hat Enterprise Linux 5 and later, SUSE Linux Enterprise Server 10 and later, VMware ESX/ESXi 4.x through 6.x, and FreeBSD 9 and later. The included brackets let the RJ45 port align with either low-profile or standard chassis cut-outs, freeing the builder from sourcing a separate bracket.

特長

  • Single-port Gigabit Ethernet for wired network speed
  • Mini PCIe interface fits compact industrial PCs
  • Intel 82574 controller handles 10/100/1000Mbps links
  • 9 KB jumbo frames boost large-packet throughput
  • Gold-plated RJ45 resists corrosion for reliable connection

仕様

BrandLR-LINK
ModelLRES2201PT
Connectors1 x RJ45
InterfaceMini PCI Express
Wake On LANNo
Temperature0°C ~ 55°C
Humidity5 % ~ 95 % (Non-condensing)
Class1000M, PCIE

この商品に関する質問

Does the LRES2201PT need a low-profile or full-height bracket for my chassis?

The card ships with both low-profile and full-height brackets so it fits either chassis type.

Which way round does the Mini PCIe card go in and where does the RJ45 face?

Insert the Mini PCIe edge connector into the slot at the correct angle, secure the screw, then attach the bracket so the RJ45 port faces outward.

How often should I clean the gold-plated RJ45 contacts on the LRES2201PT?

Inspect the thickened gold RJ45 contacts once a year and wipe gently with a dry lint-free cloth if dust builds up.
