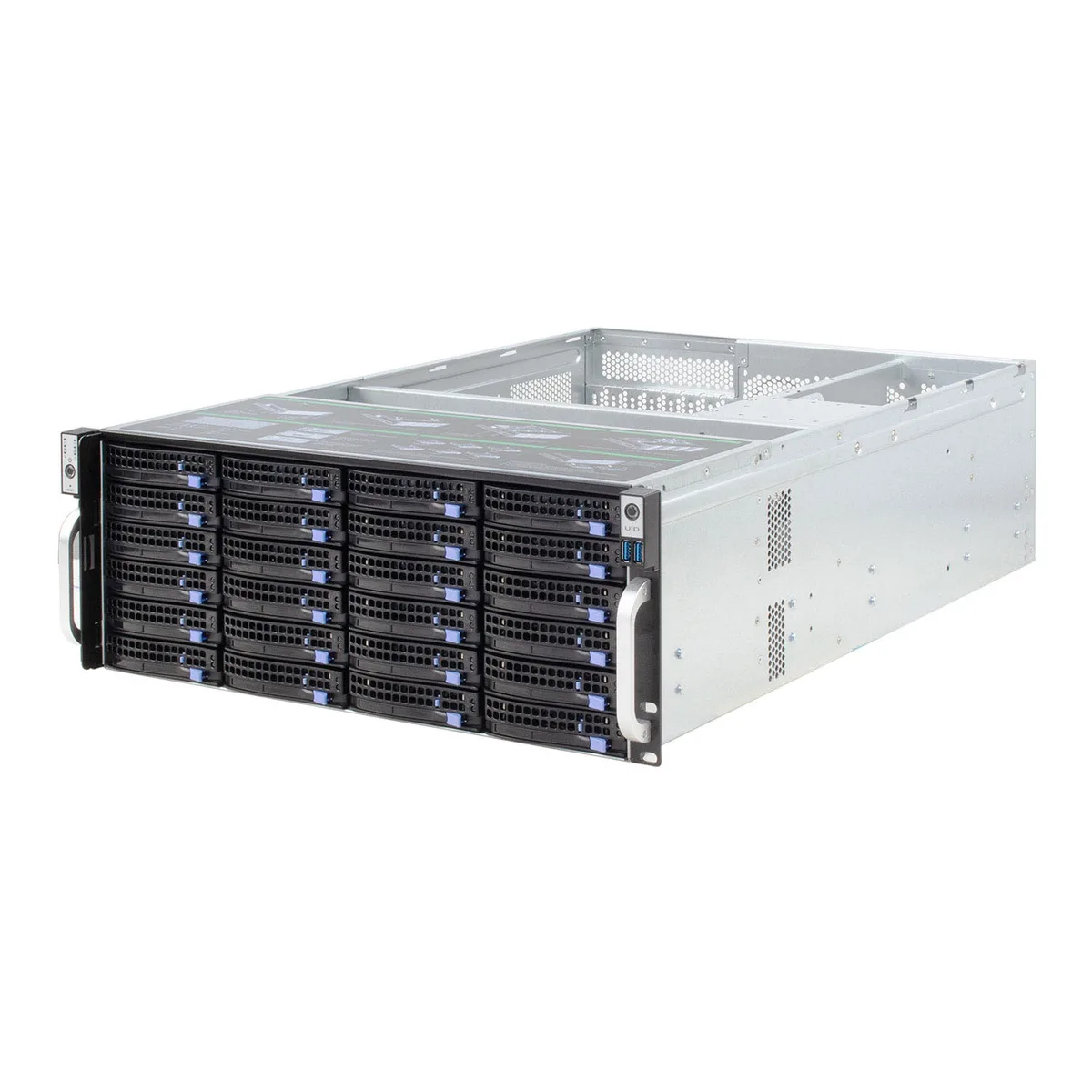

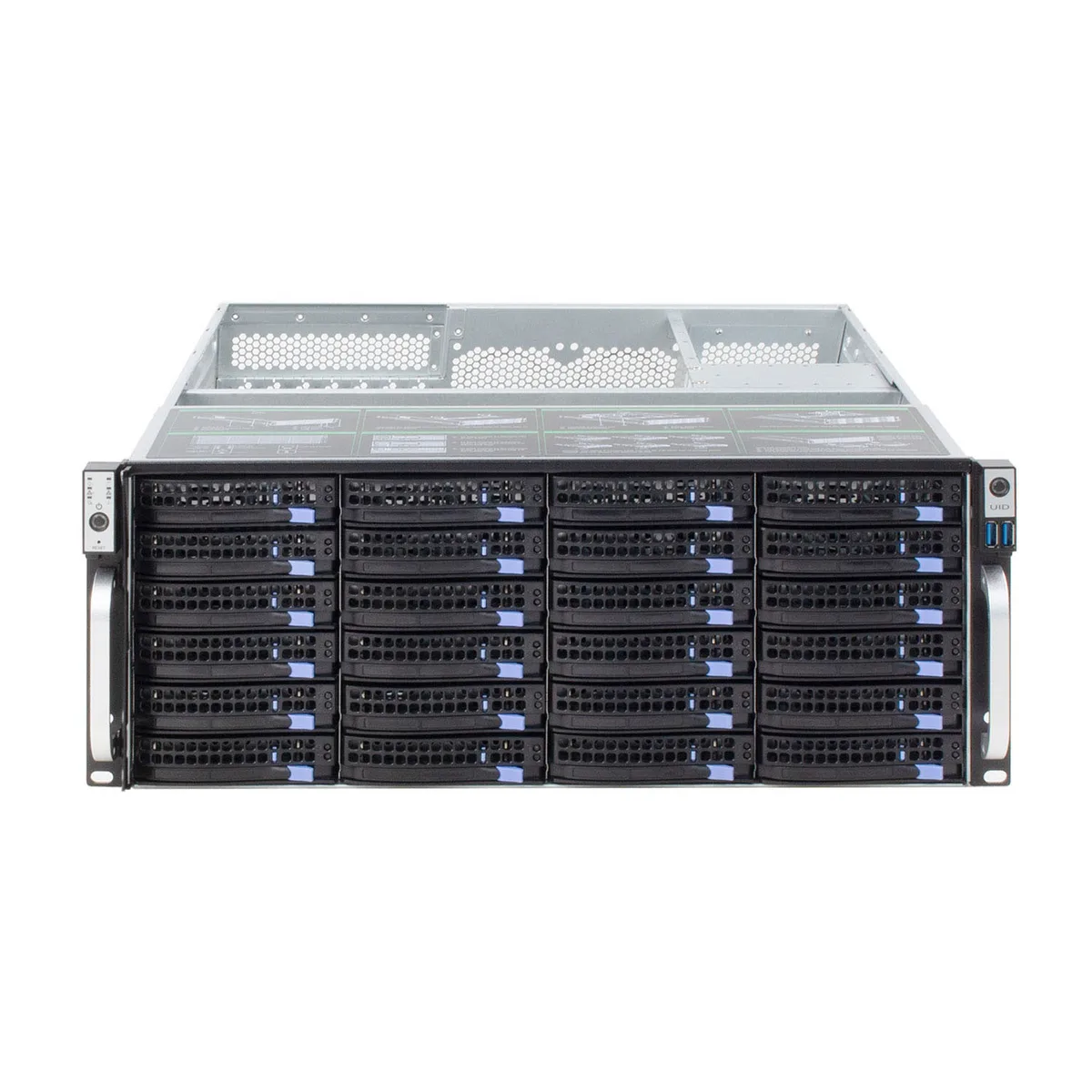

Silver 4U rackmount server chassis with twenty-four front hot-swap drive trays and status LEDs

Shenzhen Junxiangcheng Technology Co.,

Shenzhen Junxiangcheng Technology Co., 24-bay 4U Rackmount Server Chassis 6Gb/s SAS SFF-8087

SKU CH-BVBV-5K43C

A 4U rackmount server chassis holding 24 front 3.5-inch drives plus three internal 2.5-inch bays with a 6Gb/s SAS backplane

  • Chassis TypeRackmount
  • Form Factor4U
  • 24 front hot-swap bays support 3.5 and 2.5 inch drives
  • 3 internal 2.5 inch slots add extra storage density
  • 6 Gb/s SAS SFF-8087 backplane delivers reliable data throughput
  • 0 mm SGCC chassis resists fingerprints and EMI
  • Fits standard motherboards up to 12 by 13 inches

24-Bay 4U Rackmount Server Chassis

This 4U rackmount chassis holds twenty-four front-access 3.5-inch drives and three internal 2.5-inch drives. It accepts standard motherboards up to twelve by thirteen inches. The unit is built from 1.0-millimetre SGCC steel with a fingerprint-resistant finish and measures six hundred fifty millimetres deep by four hundred thirty-seven point five millimetres wide by one hundred seventy-six millimetres high.

High-density storage builds.

The twenty-four hot-swap bays suit storage clusters, backup appliances and media servers that need maximum capacity in a single rack unit. Builds requiring a smaller footprint, tower orientation or fewer than twenty-four front bays should consider a different form factor.

6 Gb/s SAS backplane with SFF-8087 connectors

The backplane provides six-gigabit SAS connectivity through mini-SAS SFF-8087 ports and includes temperature monitoring with SGPIO signalling. Each drive tray uses an anti-EMI design with a light-guide column for status indication and slides on rails for smooth insertion and removal.

特長

  • 24 front hot-swap bays support 3.5 and 2.5 inch drives
  • 3 internal 2.5 inch slots add extra storage density
  • 6 Gb/s SAS SFF-8087 backplane delivers reliable data throughput
  • 0 mm SGCC chassis resists fingerprints and EMI
  • Fits standard motherboards up to 12 by 13 inches

仕様

Chassis TypeRackmount
Form Factor4U

この商品に関する質問

Will the 6 Gb/s Mini-SAS SFF-8087 backplane work with an older SAS HBA that only supports 3 Gb/s?

The backplane uses a 6 Gb/s Mini-SAS SFF-8087 interface; it will negotiate down to 3 Gb/s with an older HBA, so your existing controller can drive the 24 front bays and three internal 2.5" slots.

How do I confirm the chassis fans and temperature control are operating correctly after installation?

The backplane includes temperature control and SGPIO; the light-guide columns on each drive tray show drive activity and fault status, while the chassis fan speed should ramp up when drive temperatures rise.

What comes in the box and which major parts must be sourced separately?

You receive the empty 4U chassis with 24 hot-swap 3.5" trays, three fixed 2.5" mounts, the 6 Gb/s Mini-SAS SFF-8087 backplane and slide rails; motherboard, CPUs, memory, drives, PSU and rails for the rack are not included.
