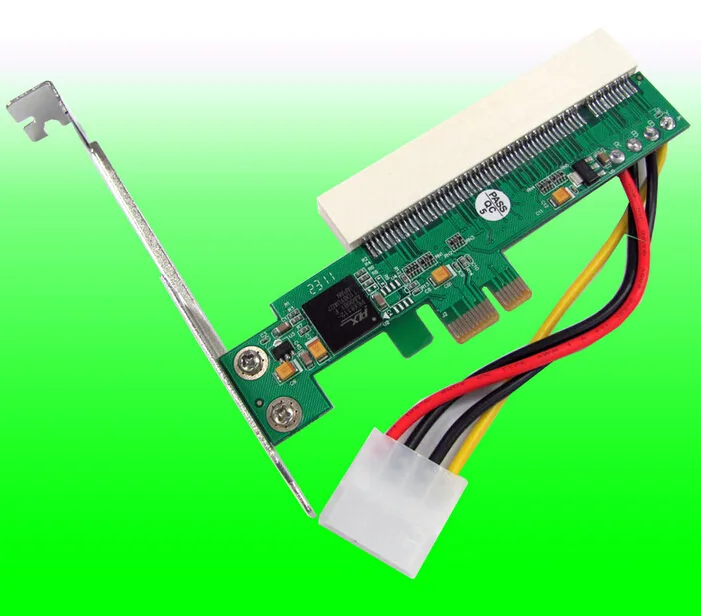

Green PCB adapter card with PCIe x1 edge connector and one white 32-bit PCI slot plus 4-pin power header

TeKit

TeKit NTRC100339W PCI-E1X to PCI expansion card

SKU CH-XZ36-330CX

Connects legacy PCI cards to a PCIe x1 slot with PCI 2.3 and PCIe 1.0 compliance

  • StandardPCI-E1X TO PCI expansion card PCI-Express-to-PCI adapter
  • SpecificationsPCI-E1X TO PCI expansion card PCI-Express-to-PCI adapter
  • FeaturesPCI-E1X TO PCI expansion card PCI-Express-to-PCI adapter
  • Connect legacy PCI cards to PCIe motherboards via PCIe 1.0 lane
  • Plug-and-play installation requires no driver configuration for immediate use
  • Supports 32-bit 33 MHz PCI bus with 2.5 Gbps per direction bandwidth
  • Provides 3.3 V, 5 V and 12 V power through 4-pin connector
  • Compatible with Windows 2000, XP, Vista, 7, 8 and Linux

Legacy PCI Adapter for Modern Systems

This TeKit NTRC100339W adapter lets you install a 32-bit 33 MHz PCI card into an open PCI Express x1 slot on a current motherboard. It targets IT professionals and enthusiasts who must keep older expansion hardware working on newer platforms.

Plug-and-Play Build with Auxiliary Power

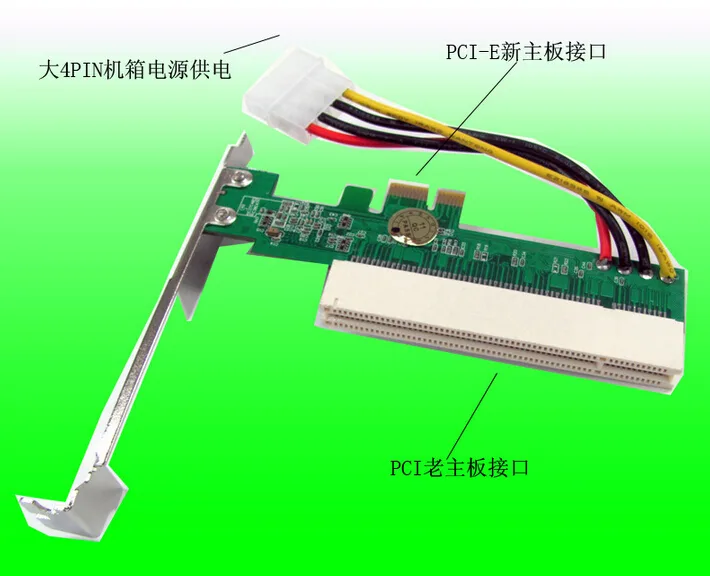

The card follows the PCI Express 1.0 and PCI 2.3 specifications and presents a single low-profile PCI slot. A 4-pin power connector must be attached to supply 3.3 V, 5 V and 12 V rails to the installed device for stable operation.

Bandwidth and Voltage Constraints

The x1 link provides 2.5 Gbps per direction under the 1.0 standard, limiting throughput for high-speed legacy cards. The slot delivers up to 1 A at 3.3 V, 100 mA at 3.3 V auxiliary, 5 A at 5 V and 500 mA at 12 V, so power-hungry peripherals may exceed the budget.

特長

  • Connect legacy PCI cards to PCIe motherboards via PCIe 1.0 lane
  • Plug-and-play installation requires no driver configuration for immediate use
  • Supports 32-bit 33 MHz PCI bus with 2.5 Gbps per direction bandwidth
  • Provides 3.3 V, 5 V and 12 V power through 4-pin connector
  • Compatible with Windows 2000, XP, Vista, 7, 8 and Linux

仕様

BrandTeKit
ModelNTRC100339W
StandardPCI-E1X TO PCI expansion card PCI-Express-to-PCI adapter
SpecificationsPCI-E1X TO PCI expansion card PCI-Express-to-PCI adapter
FeaturesPCI-E1X TO PCI expansion card PCI-Express-to-PCI adapter

この商品に関する質問

What bandwidth does the PCI Express 1.0 x1 link on this adapter actually provide?

The card uses a PCI Express 1.0 single-lane connection running at 2.5 Gbps per direction, which is the practical throughput ceiling for any PCI device plugged into it.

What slot size and power connector does the TeKit NTRC100339W need on the motherboard and from the PSU?

It installs in a standard PCI Express x1 slot and requires a 4-pin Molex power lead supplying both 12 V and 5 V to run the onboard PCI slot.

Which step do builders most often miss when fitting this PCI-E-to-PCI adapter?

Forgetting to plug the 4-pin Molex power cable into the card; without it the PCI slot receives no 3.3 V, 5 V or 12 V supply and the legacy card will not work.
