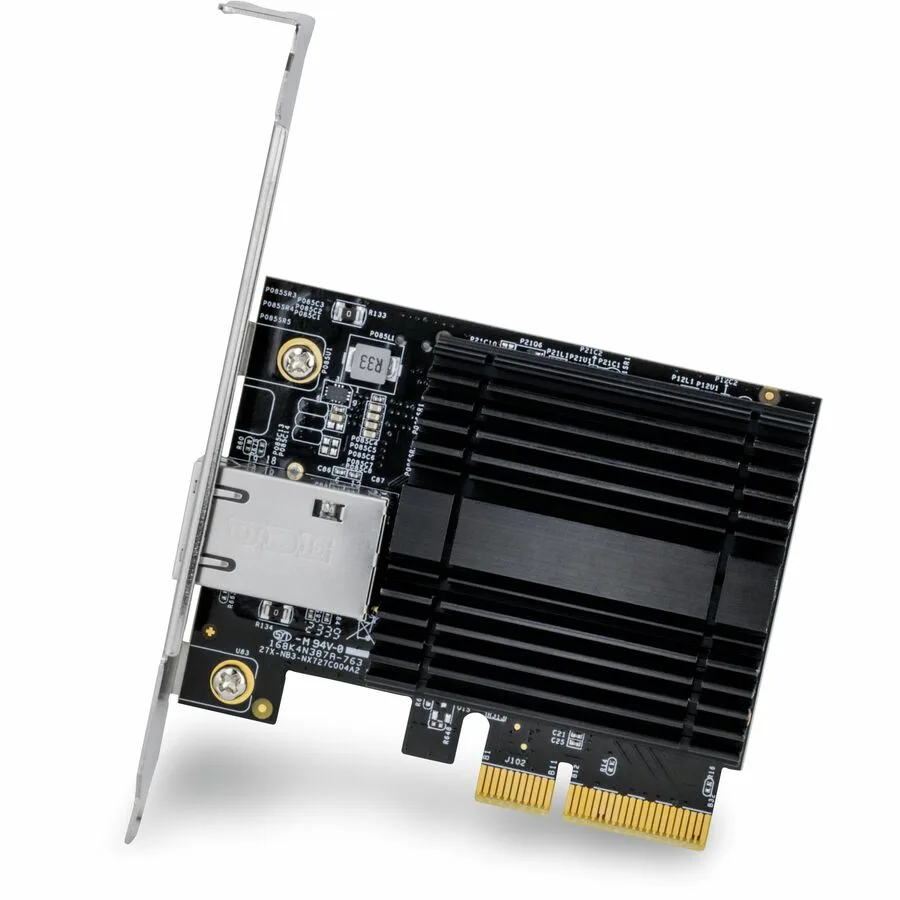

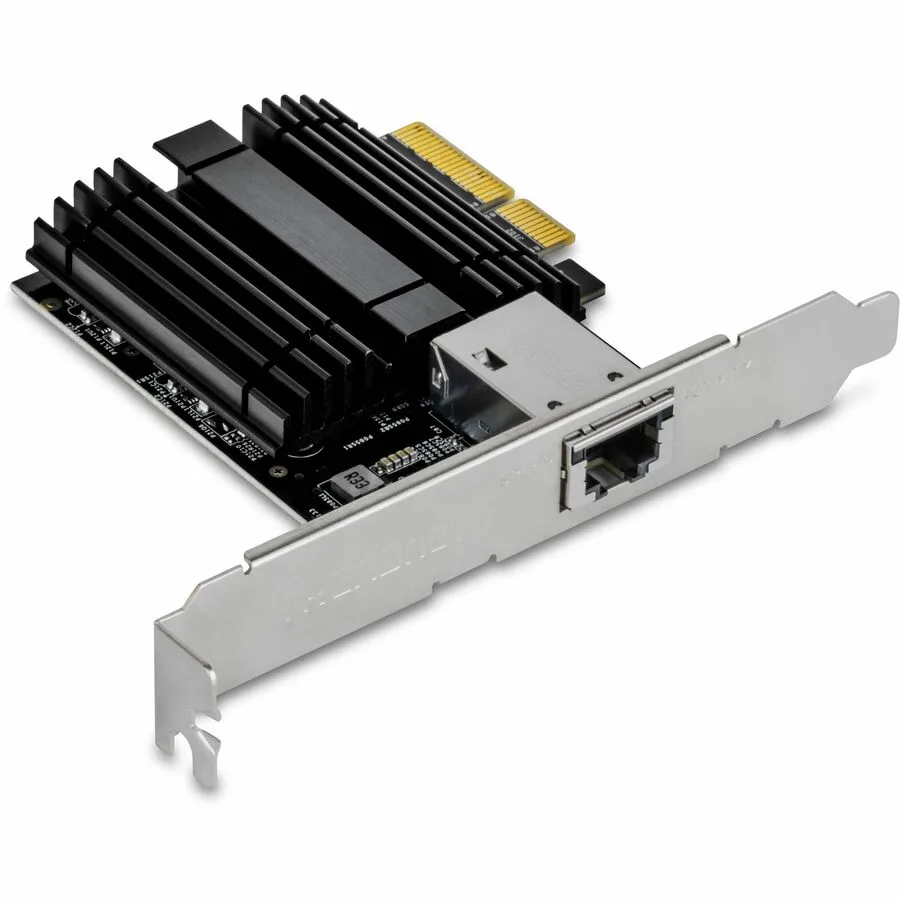

Silver PCIe network card with single RJ45 port and low-profile bracket

TRENDnet

TRENDnet TEG-10GECTX (v3.0R) 10Gbps PCIe network card

SKU CH-DAZX-DN9Y4 MPN TEG-10GECTX (v3.0R)

Adds a 10 Gbps RJ45 Ethernet port through a PCIe slot with 2.5 Gbps and 1 Gbps fallback speeds

  • StandardsIEEE 802.3ab IEEE 802.3bz 2.5GBASE-T IEEE 802.3an 10GBASE-T
  • Speed10Gbps
  • Connectors1 x RJ45
  • InterfacePCI-Express
  • TemperatureOperating Temperature 0° - 70°C (32° - 158°F)
  • HumidityOperating Humidity Max. 90% non-condensing
  • Adds 10Gbps Ethernet through a PCIe 3.0 x4 slot
  • Auto-negotiates 10G, 2.5G and 1G speeds over copper cabling
  • Supports 802.1Q VLAN tagging for network segmentation
  • Ships with both standard and low-profile mounting brackets
  • Drivers provided for Windows, Windows Server and Linux

10Gbps PCIe network adapter

This TRENDnet card converts a free PCI Express 3.0 x4 slot into a single 10 Gigabit Ethernet port. It supports selectable link speeds of 10Gbps, 2.5Gbps and 1Gbps over twisted-pair cabling. The adapter targets workstations and servers that need higher throughput than standard gigabit connections provide.

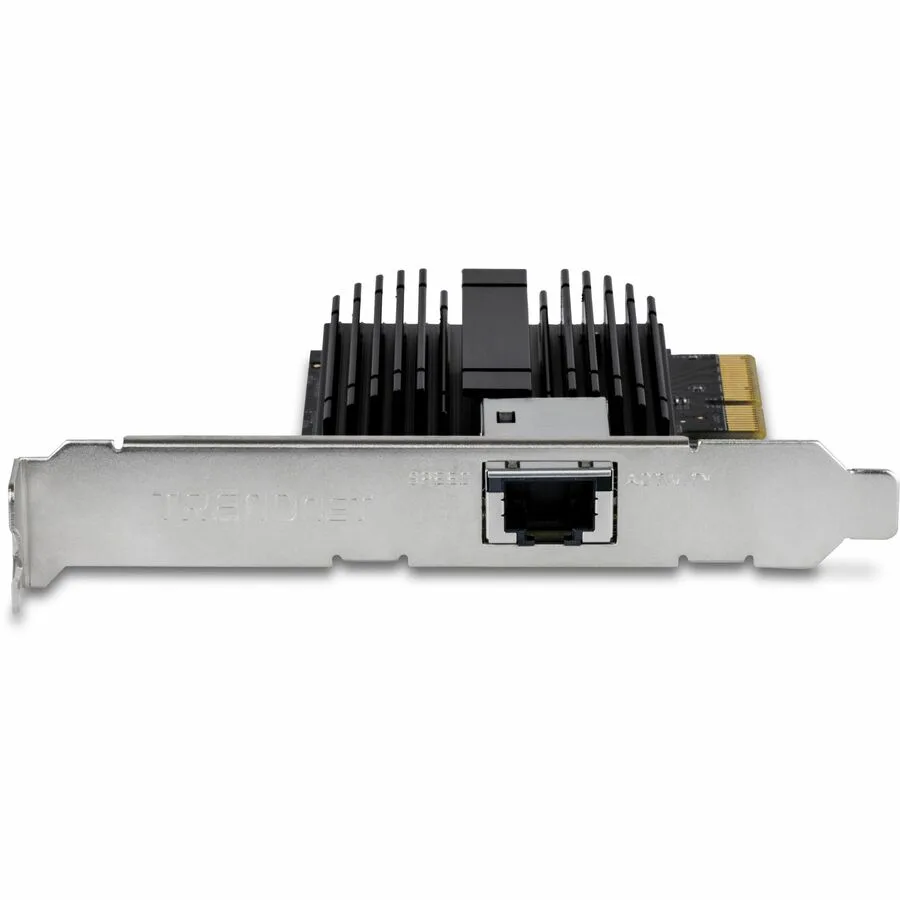

Low-profile brackets and RJ45 connector

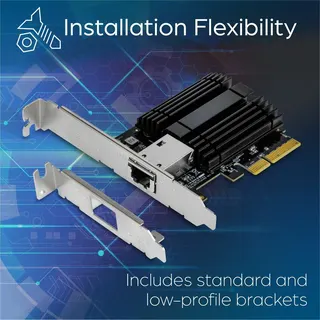

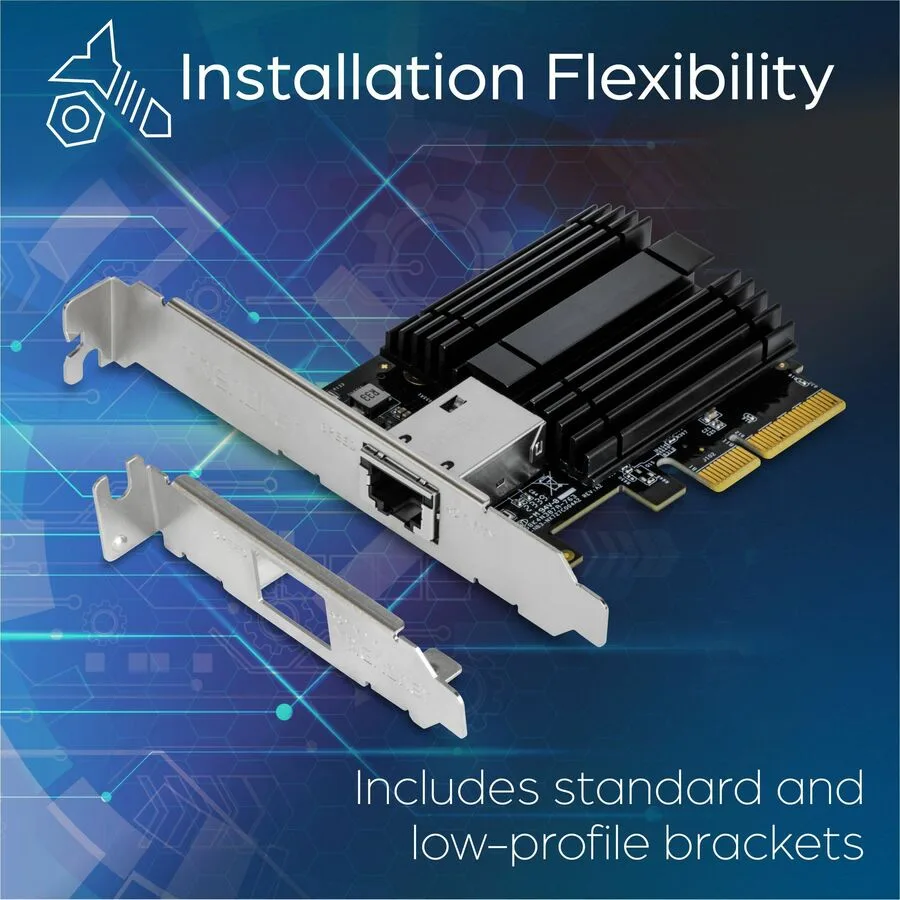

A standard-height bracket and a low-profile bracket are included, allowing installation in full-size or slim chassis. The single RJ45 port accepts Cat5e for 1Gbps or 2.5Gbps links up to 100 metres, Cat6 for 10Gbps up to 55 metres and Cat6A for 10Gbps up to 100 metres. Operating temperature ranges from 0 to 70°C with 90% maximum non-condensing humidity.

Cable-length limits for each speed tier

At 10Gbps the copper medium restricts reach to 55 metres on Cat6 and 100 metres on Cat6A, while 2.5Gbps and 1Gbps run the full 100 metres on Cat5e. Jumbo frames up to 16KB are supported for larger packet payloads. The card requires a PCIe 3.0 x4 slot; narrower or older slots will reduce available bandwidth.

特長

  • Adds 10Gbps Ethernet through a PCIe 3.0 x4 slot
  • Auto-negotiates 10G, 2.5G and 1G speeds over copper cabling
  • Supports 802.1Q VLAN tagging for network segmentation
  • Ships with both standard and low-profile mounting brackets
  • Drivers provided for Windows, Windows Server and Linux

仕様

BrandTRENDnet
ModelTEG-10GECTX (Version v3.0R)
StandardsIEEE 802.3ab
IEEE 802.3bz 2.5GBASE-T
IEEE 802.3an 10GBASE-T
IEEE 802.1Q
IEEE 802.3ad
Speed10Gbps
Connectors1 x RJ45
InterfacePCI-Express
TemperatureOperating Temperature 0° - 70°C (32° - 158°F)
HumidityOperating Humidity Max. 90% non-condensing
FeaturesCable Requirements
10GBASE-T (10Gbps): Cat6 twisted pair @ 55m / 180 ft. (max.) / Cat6A twisted pair @ 100m / 328 ft. (max.)
2.5GBASE-T (2.5Gbps): Cat5e twisted pair @ 100m / 328 ft. (max.)
1000BASE-T (1Gbps): Cat5e twisted pair @ 100m / 328 ft. (max.)
Compatibility
Windows® 11, 10, 8.1
Windows® Server 2022, 2019, 2016, 2012 R2
Jumbo Frames: Up to 16KB
Special Features
10GBASE-T (10Gbps) & 2.5G/5GBASE-T (2.5Gbps/5Gbps) support for high speed network connectivity
Windows Server support
Additional Support
802.1Q VLAN Tagging
Receive-side scaling (RSS)
Message Signaled Interrupts (MSI)
Dimensions4.70" x 2.50" x 0.70"
Weight2.60 oz.
Package ContentsTEG-10GECTX
Quick Installation Guide
CD-ROM (Driver)
配送重量0.18 kg
梱包サイズ168 × 130 × 33 mm

この商品に関する質問

What IEEE standard and cable length does the 10GBASE-T port actually support?

The card follows IEEE 802.3an for 10GBASE-T and reaches 55 m on Cat6 or 100 m on Cat6A twisted-pair cable.

Which brackets are supplied and what slot size does the card occupy?

Both a standard-height and a low-profile bracket are included; the board measures 4.70" x 2.50" x 0.70" and fits a single PCIe x4 slot.

How is the driver installed and what step is often missed?

Run the installer from the supplied CD-ROM (or download the latest package), then reboot before connecting the RJ45 cable so the 10 Gbps link negotiates correctly.
