Green PCIe x1 card with three blue USB-A and two USB-C ports on a metal bracket

ESTONE

ESTONE PCIE23A2C3.2 5-Port USB 3.2 PCIe Expansion Card

SKU CH-B4SC-XR9QA

Adds five USB 3.2 ports — three Type-A and two Type-C — through a single PCIe slot at up to 10 Gbps

  • TypePCI to USB Card
  • External USB Ports5x USB Ports
  • StandardUSB 3.1
  • Data Transfer RateUp to 10 Gbps
  • Operating Systems SupportedWindows 7/8/10/11
  • CompatibilityWidely Compatibility: The card is compatible with Windows 7/
  • Add 5 USB 3.2 ports to a desktop via PCIe x1 slot
  • Two USB-C and three USB-A connectors for mixed peripherals
  • Up to 10 Gbps transfer speed for fast file moves
  • Works with Windows 7 through 11 plus macOS 10.8.2 and Linux
  • Backward compatible with USB 2.0 and 1.1 devices

Five-port USB 3.2 expansion card

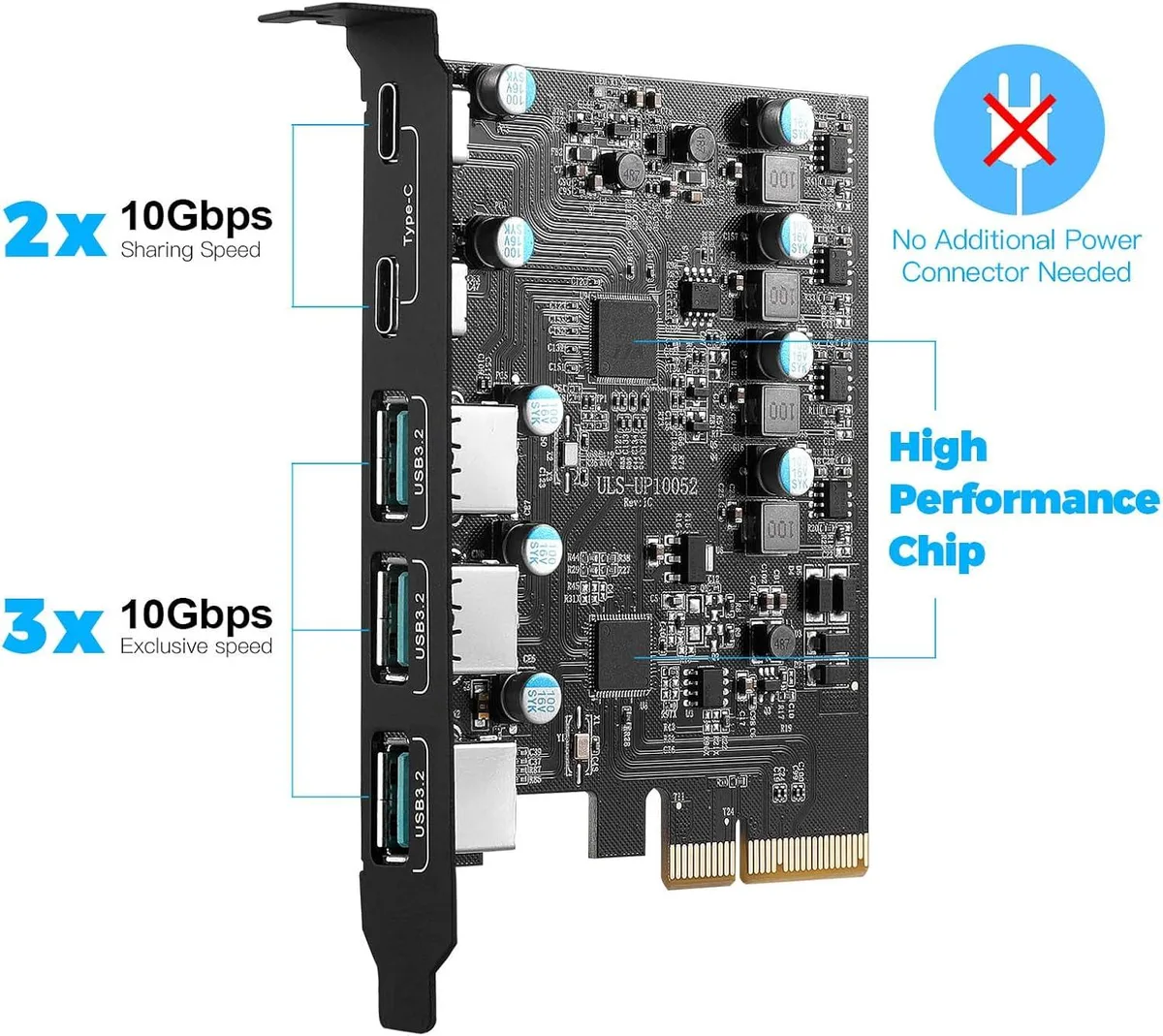

The ESTONE PCIE23A2C3.2 adds two USB Type-C and three USB Type-A ports to a desktop through a single PCI Express slot. It is aimed at users who need more high-speed connections for external drives, cameras, VR headsets or other USB peripherals without replacing the motherboard.

PCIe 2.0 x1 lane limits total throughput

The card operates on a PCI Express 2.0 x1 link, so the combined 10 Gbps rating is shared across all five ports and cannot exceed the lane's maximum bandwidth. Actual transfer speeds will also be limited by the connected device and its own USB standard.

Driver installation required for older Windows

Windows 10, 11, Mac OS 10.8.2 and later, and Linux work without extra drivers, but Windows XP, Vista, 7, 8 and Server 2008 need the supplied Renesas or VLI driver from the included CD. A free x1, x4, x8 or x16 slot is required; the bracket fits standard full-height cases.

주요 특징

  • Add 5 USB 3.2 ports to a desktop via PCIe x1 slot
  • Two USB-C and three USB-A connectors for mixed peripherals
  • Up to 10 Gbps transfer speed for fast file moves
  • Works with Windows 7 through 11 plus macOS 10.8.2 and Linux
  • Backward compatible with USB 2.0 and 1.1 devices

사양

BrandESTONE
SeriesPCIE23A2C3.2
ModelPCIE23A2C3.2
TypePCI to USB Card
External USB Ports5x USB Ports
StandardUSB 3.1
Data Transfer RateUp to 10 Gbps
Operating Systems SupportedWindows 7/8/10/11
CompatibilityWidely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 and above. The card only requires installing a driver which you can download from our CD driver, when operating on Windows 7. Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10/11 and Mac OS and Linux don't need drivers.
Specifications5 Ports PCI-E to USB 3.2 HUB PCI Express Expansion Card Adapter 10Gbps for Motherboard
You need to install the RENESAS/VLI USB3.0 driver for your computer first.
Supports PCI Express 2.0 X1 lane, can transferring up to 10Gbps.
PCI Express x1 slot card for usb expansion 5 Ports USB interface Card (2X USB-C - 3X USB-A)
Power Input: no need extral Power Connector
Power output: +/-5V / 900mA (each port)
Compatible: USB1.1/2.0/3.0/3.2
Operating Systems: Windows7/8/10(32/64bit)
?
FeaturesPCI Express x1 slot card for usb expansion 5 Ports USB interface Card (2X USB-C - 3X USB3.2)
USB3.0 Backwards compatible older USB 2.0 and 1.1 devices; Comply with PCI-e 3.0 PCIe 2.0 motherboards, Fits PCI Express x1, x4, x8 or x16 socket .Operating System Supports Windows XP/Vista/2008 Server/7/8/10,and Mac 0s (10.8.2 above) . Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10 and Mac OS 10.8.2 above don't need drivers.
transfer rates of up to 10Gbps copying HD videos, music, photos,data files between USB devices and the computer at blazing fast speeds.Note:T
Dimensions4.92 x 4.06 x 1.06 inches
Weight3.2 ounces
Package Contents1x USB 3.2 PCI-E expansion card, 1x CD driver, 1 x installation screws, and 1x user manual.

이 상품에 대한 질문

Should I pick the three Type-A plus two Type-C layout or a different port mix?

This card only comes in the three Type-A and two Type-C configuration, giving five ports total.

Will the 10 Gbps rating hold when I plug in a fast external SSD?

The 10 Gbps ceiling is shared across the ports; a single SSD can hit that speed, but simultaneous transfers split the bandwidth.

Does the PCIe 2.0 x1 link limit the USB 3.2 10 Gbps throughput?

The card fits x1, x4, x8 or x16 slots and complies with PCIe 2.0, 3.0 and 4.0, so the slot version you use sets the practical ceiling.
