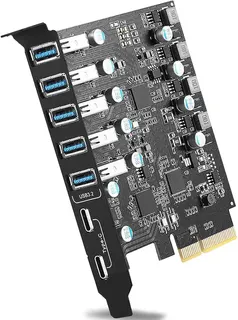

ESTONE PCIE25A2C3.2 PCIe card with seven USB ports, two Type-C and five Type-A, black PCB and metal bracket

ESTONE

ESTONE PCIE25A2C3.2 7-Port PCIe USB 3.2 Expansion Card

SKU CH-9MBS-RSHA7

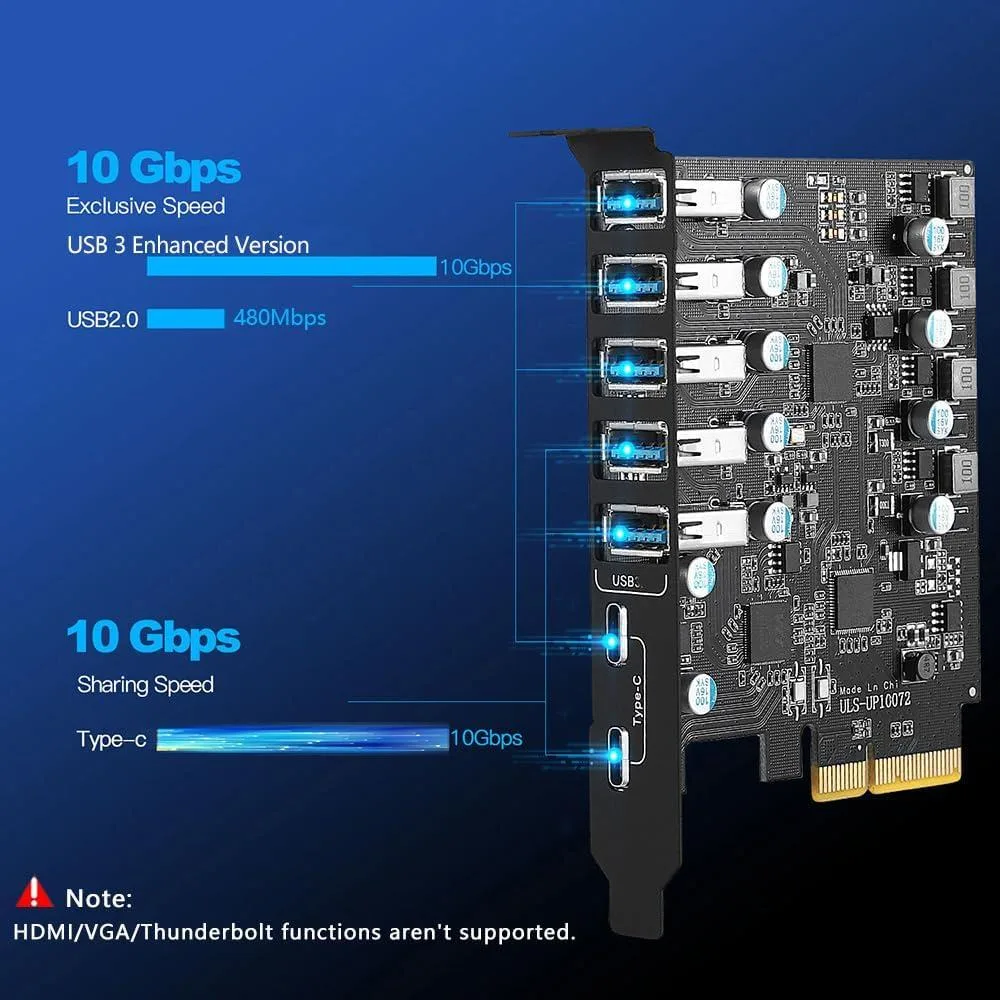

Adds seven USB 3.2 ports — five Type-A and two Type-C with 30 W power delivery — through a single PCIe slot, sharing 20 Gbps bandwidth

  • TypePCI to USB Card
  • External USB Ports7x USB Ports
  • StandardUSB 3.1
  • Data Transfer RateUp to 10 Gbps
  • Operating Systems SupportedWindows 7/8/10/11
  • CompatibilityWidely Compatibility: The card is compatible with Windows 7/
  • Add 7 USB 3.2 ports (5× Type-A, 2× Type-C) via one PCIe x1 slot
  • Each port delivers up to 10 Gbps; all 7 share 20 Gbps total bandwidth
  • Two USB-C ports supply up to 30 W each for phone, tablet or laptop charging
  • Five USB-A ports provide up to 7.5 W each per BC 1.2 for peripherals
  • Works with Windows 7/8/10/11, Linux and macOS 10.8.2+; driver needed for older Windows

Seven-port USB 3.2 expansion card

The ESTONE PCIE25A2C3.2 adds seven USB 3.2 ports to a desktop through a single PCI Express x1 slot. Two ports are USB Type-C and five are USB Type-A, each capable of up to 10 Gbps data transfer. The card draws power from the PCIe interface and requires no external power connector. It targets users who need more high-speed ports for external drives, VR headsets, cameras or charging devices.

Check motherboard slot and driver needs

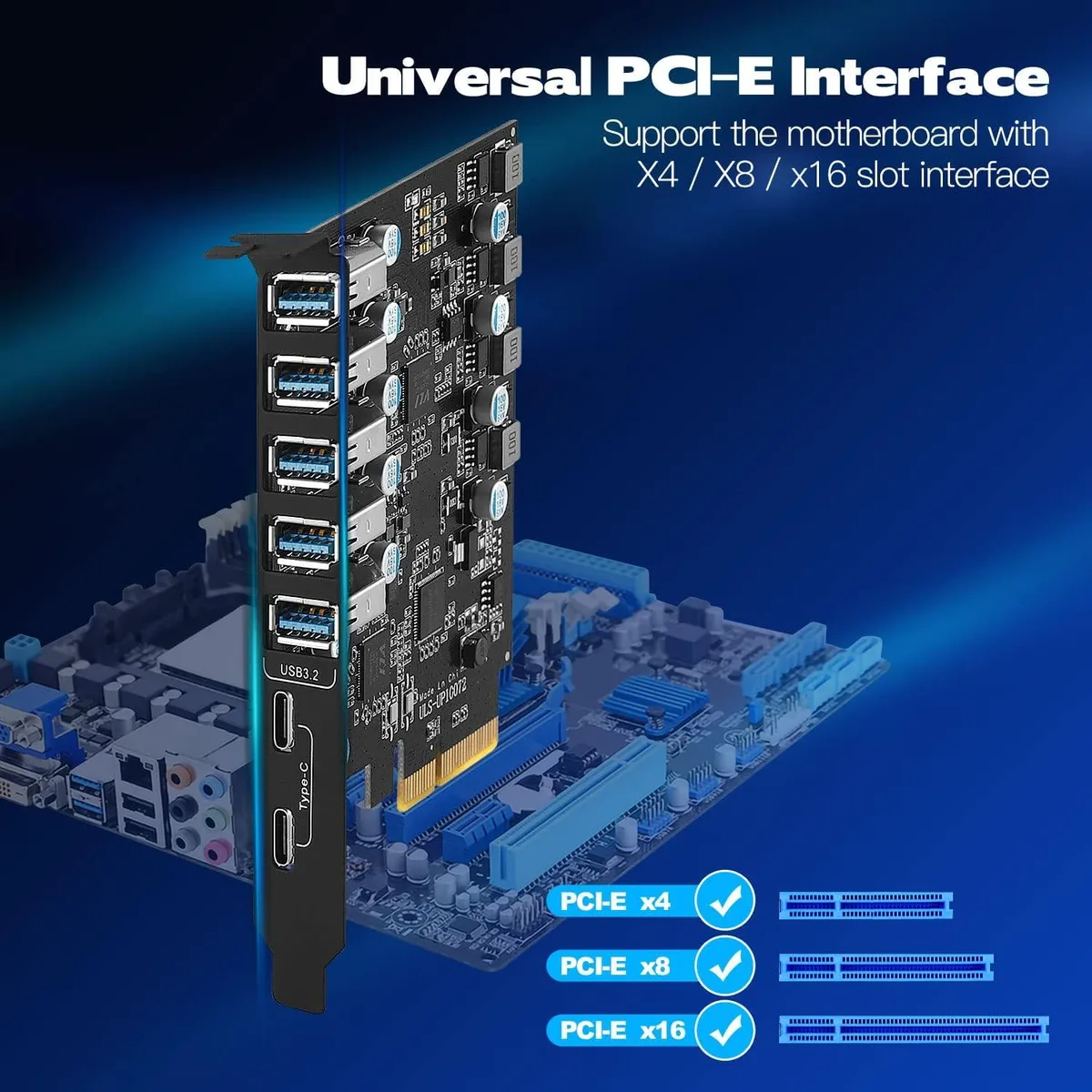

Verify that your motherboard has a free PCI Express x1, x4, x8 or x16 slot and that the bracket height matches a standard full-height case. Windows 7, 8, 8.1 and Linux require the supplied Renesas or VLI driver from the CD before the ports become active. Windows 10, 11 and Mac OS 10.8.2 or later work without extra drivers. The card is compatible with PCIe 2.0 and 3.0 motherboards.

Driver CD, screws and manual included

The bundle provides a driver CD for legacy operating systems, mounting screws for the bracket and a printed user manual. No external power adapter or internal power cable is supplied because the card is bus-powered. The CD contains the Renesas or VLI USB 3.0 driver required for Windows 7, 8 and Linux installations. The manual explains bracket installation and driver steps.

주요 특징

  • Add 7 USB 3.2 ports (5× Type-A, 2× Type-C) via one PCIe x1 slot
  • Each port delivers up to 10 Gbps; all 7 share 20 Gbps total bandwidth
  • Two USB-C ports supply up to 30 W each for phone, tablet or laptop charging
  • Five USB-A ports provide up to 7.5 W each per BC 1.2 for peripherals
  • Works with Windows 7/8/10/11, Linux and macOS 10.8.2+; driver needed for older Windows

사양

BrandESTONE
SeriesPCIE25A2C3.2
ModelPCIE25A2C3.2
TypePCI to USB Card
External USB Ports7x USB Ports
StandardUSB 3.1
Data Transfer RateUp to 10 Gbps
Operating Systems SupportedWindows 7/8/10/11
CompatibilityWidely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 and above. The card only requires installing a driver which you can download from our CD driver, when operating on Windows 7. Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10/11 and Mac OS and Linux don't need drivers.
Specifications7 Ports PCI-E to USB 3.2 HUB PCI Express Expansion Card Adapter 10Gbps for Motherboard
You need to install the RENESAS/VLI USB3.0 driver for your computer first.
Supports PCI Express 2.0 X1 lane, can transferring up to 10Gbps.
PCI Express x1 slot card for usb expansion 7 Ports USB interface Card (2X USB-C - 5X USB-A)
Power Input: no need extral Power Connector
Power output: +/-5V / 900mA (each port)
Compatible: USB1.1/2.0/3.0/3.2
Operating Systems: Windows7/8/10(32/64bit)
?"
?
FeaturesUSB PCIe Card upgrades your desktop computer to 7 USB 3.2 ports (2x USB C,5x USB 3.2) via a PCI Express x1 slot.Solve the problem of fewer USB ports inside the computer host, allowing more USB data devices to be connected to your computer system
SuperSpeed USB 3.2: Supporting data transfer rates of up to 10Gbps, The overall transfer speed is 20 times faster than the old version USB 2.0,providing greater efficiency for your file transfers.(Note: Actual transfer speeds may be limited by the connected device.)
Easy to Use: Each port supports a maximum power of 5W (5V/1A), the pcie usb c
Dimensions4.92 x 4.06 x 1.06 inches
Weight3.2 ounces
Package Contents1x USB 3.2 PCI-E expansion card, 1x CD driver, 1 x installation screws, and 1x user manual.

이 상품에 대한 질문

What comes in the box and do I need any extra cables or power adapters?

The box contains the PCIe expansion card, a driver CD, installation screws and a user manual. The card draws power from the PCIe slot so no external power supply or extra cables are required.

Should I choose the USB-C or USB-A version of this card?

This single model provides both interfaces — two USB-C ports and five USB-A ports — so there is no separate version to select.

What does the 20 Gbps bandwidth figure mean when all seven ports are in use?

The 20 Gbps is the total bandwidth shared across all seven ports; each port can reach up to 10 Gbps when used alone, but simultaneous transfers divide the 20 Gbps pool.
