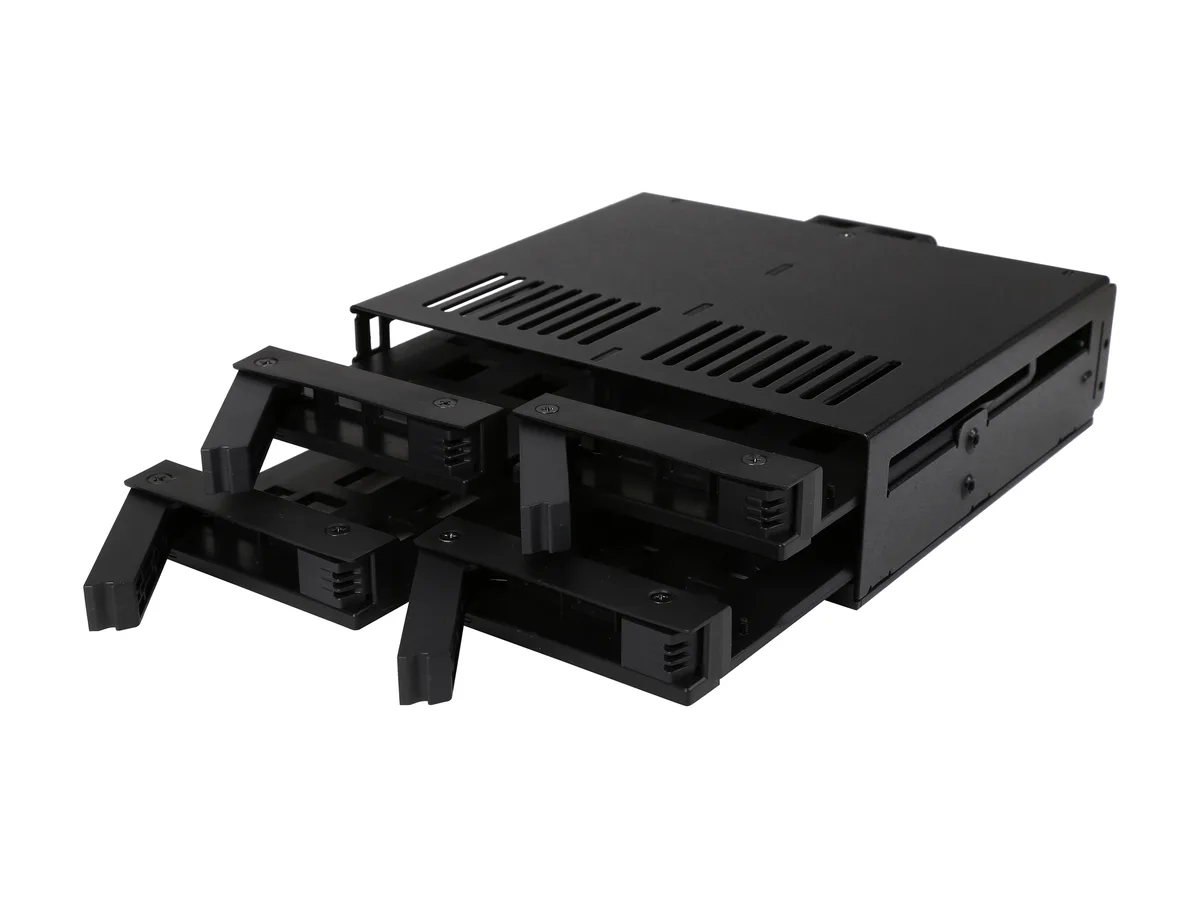

Black metal cage with four front drive slots and a 40mm rear fan

ICY DOCK

ICY DOCK MB324SP-B 4 x 2.5" to 5.25" SSD accessory

SKU CH-BC4M-HGPGY MPN MB324SP-B

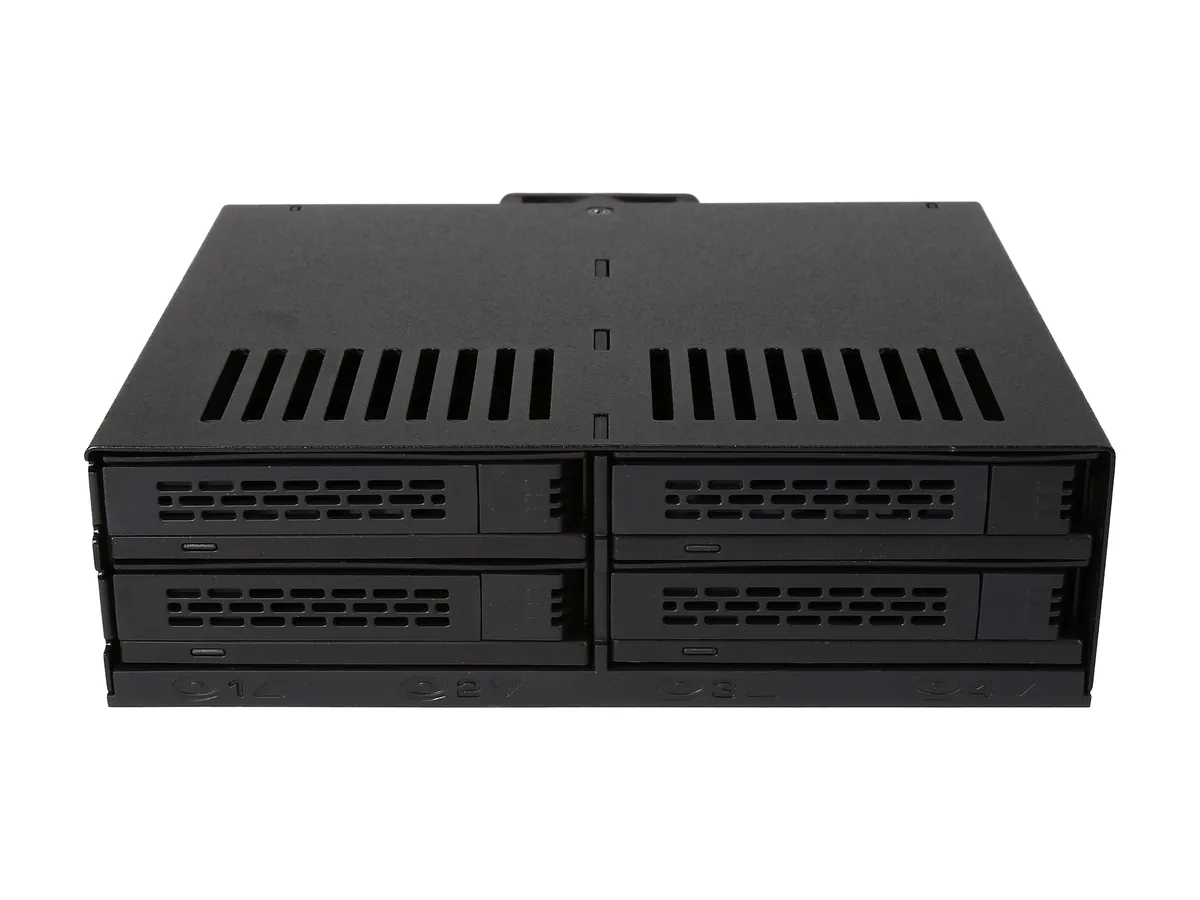

Converts one 5.25" bay into four hot-swappable 2.5" SATA/SAS drive slots with 6 Gb/s transfer and adjustable fan cooling

  • ColorBlack
  • Conversion Tray4 x 2.5" Drive to 5.25" Bay
  • Mobile Rack Drives SupportSingle 5.25" half height device bay to 4 x 2.5" SATA or SAS
  • Mobile Rack InterfaceSATA I/II/III/SAS
  • Protection CaseMultiple Drives
  • Compatible Products2.5"

Model 4 x 2.5in

Option Express Cages 4Bay

취소선으로 표시된 버전은 존재하지만, 이곳에서는 취급하지 않습니다.

  • Fits four 2.5" SATA or SAS drives into one 5.25" bay for maximum storage density
  • Hot-swappable bays let you swap drives without powering down the system
  • Tool-less ExpressTray system enables quick drive installation comparable to tray-less designs
  • Adjustable 40mm fan with high, low and auto settings keeps drives cool under load
  • Supports 7mm, 9.5mm and 12.5mm drive heights for broad compatibility

4 x 2.5" to 5.25" Hot-Swap Cage

The ICY DOCK MB324SP-B fits four 2.5-inch SATA or SAS drives into one 5.25-inch half-height bay. It uses a removable ExpressTray system for tool-less installation and provides hot-swap capability for quick drive changes. A 40 mm fan with high, low and auto speed settings delivers active cooling. The unit connects via four 7-pin SATA data ports and a single 15-pin SATA power connector.

Suits builders adding dense SATA or SAS storage

This cage serves system builders who want up to four 2.5-inch drives in a single optical bay with hot-swap convenience. It supports 7 mm, 9.5 mm and 12.5 mm drive heights and works with SATA 6 Gb/s or single-channel SAS hosts. Buyers whose chassis have no 5.25-inch bay cannot install it. Users needing more than four drives or a different bay form factor must choose another solution.

Single 15-pin SATA power for four drives

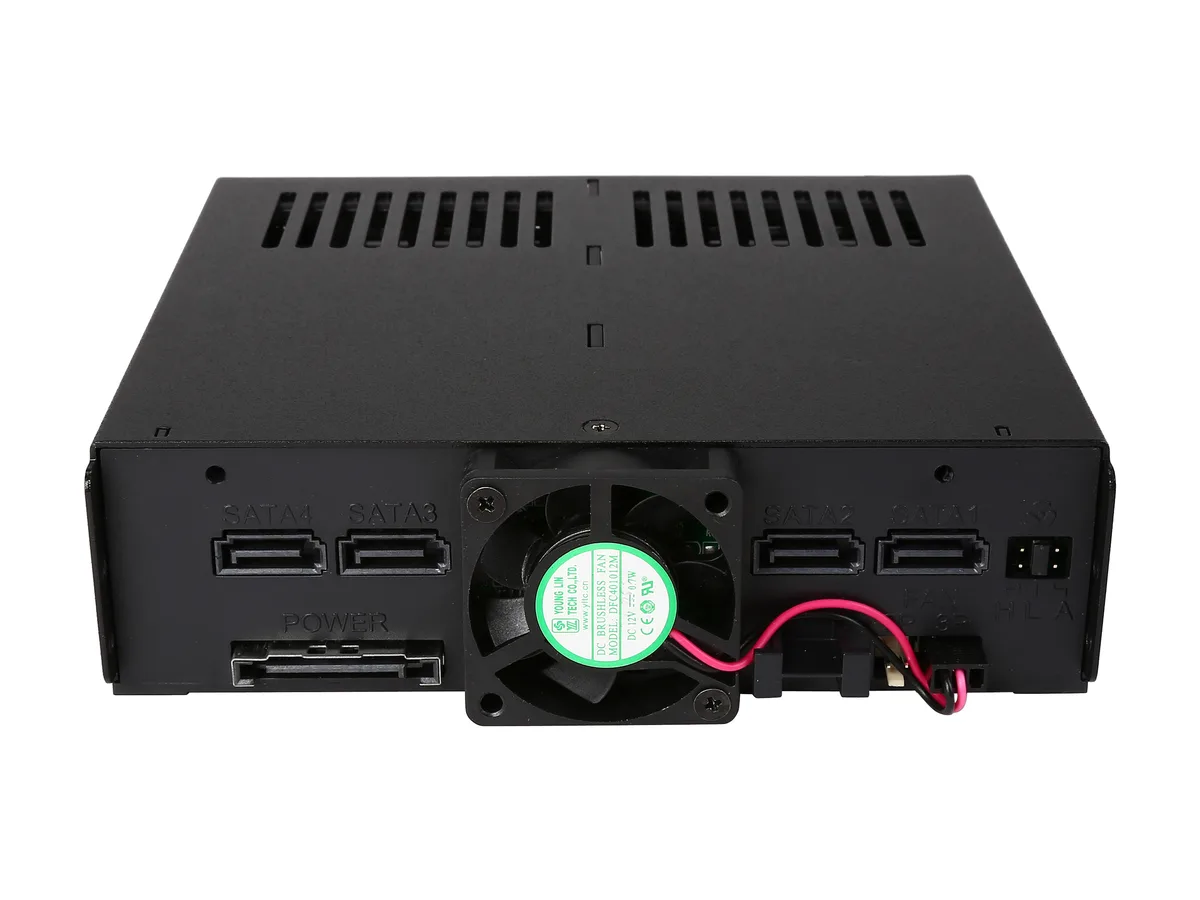

The backplane draws all power for four drives through one 15-pin SATA connector, so the power supply must provide that lead. Four separate 7-pin SATA data cables are required to reach the host controller. Verify that your board or HBA has four free SATA ports and a spare 15-pin power plug before purchase.

주요 특징

  • Fits four 2.5" SATA or SAS drives into one 5.25" bay for maximum storage density
  • Hot-swappable bays let you swap drives without powering down the system
  • Tool-less ExpressTray system enables quick drive installation comparable to tray-less designs
  • Adjustable 40mm fan with high, low and auto settings keeps drives cool under load
  • Supports 7mm, 9.5mm and 12.5mm drive heights for broad compatibility

사양

BrandICY DOCK
ModelMB324SP-B
ColorBlack
Conversion Tray4 x 2.5" Drive to 5.25" Bay
Mobile Rack Drives SupportSingle 5.25" half height device bay to 4 x 2.5" SATA or SAS (single channel) HDD/SSD
Mobile Rack InterfaceSATA I/II/III/SAS
Protection CaseMultiple Drives
Compatible Products2.5"
SpecificationsHost Interface: 4 x 7pin SATA
Compatible Drive Heights: 7mm, 9.5mm & 12.5mm
Transfer Rate: Up to 6 Gb/sec. (depending on hard drive speed)
Power Input: Single 15pin SATA power port
Insert& Extract connection Via: Direct SAS/ SATA hard drive connection
Structure: Plastic and metal
Drive Cooling: 40mm rear cooling fan
Fan Speed Control: High / Low / Auto jumper
Power Indicator: Solid blue LED
HDD Access Indicator: Blinking blue LED
Dimension: 5.53" x 1.63" x 5.74"
Weight: 0.97 lb.
FeaturesSupports up to 4 x 2.5" SATA/SAS HDD/SSD into a single 5.25" bay
Support SATA 6Gbps or SAS single channel (requires SAS host)
Hot-swappable bays for quick drive installation
Accommodates 2.5" drives with 7mm, 9.5mm &12.5mm Height
Active Power Technology (APT) - only powers up if there is drive installed in the drive bay
Removable ExpressTray system for tool-less, easy installation comparable to tray-less designs
배송 무게0.52 kg
포장 크기155 × 152 × 51 mm

이 모델의 다른 버전

같은 라인업에서 3개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

Does my motherboard need four free SATA ports and a SATA power connector to use all four bays?

Yes, the unit connects through four 7-pin SATA data ports and a single 15-pin SATA power plug, so each drive needs its own data cable and the cage draws power from one SATA power lead.

Can I keep my older 3 Gbps SATA SSDs in this cage alongside newer 6 Gbps drives?

The backplane supports SATA I, II and III signalling up to 6 Gbps, so legacy 3 Gbps drives will operate at their native speed while newer drives run at 6 Gbps on the same four ports.

How do I confirm the fan is actually cooling the drives after I build the system?

Set the jumper to HIGH, LOW or AUTO; in AUTO mode the 40 mm fan speeds up when drive temperature rises, and you can verify airflow by feeling exhaust at the rear or monitoring drive temperatures in your OS.
