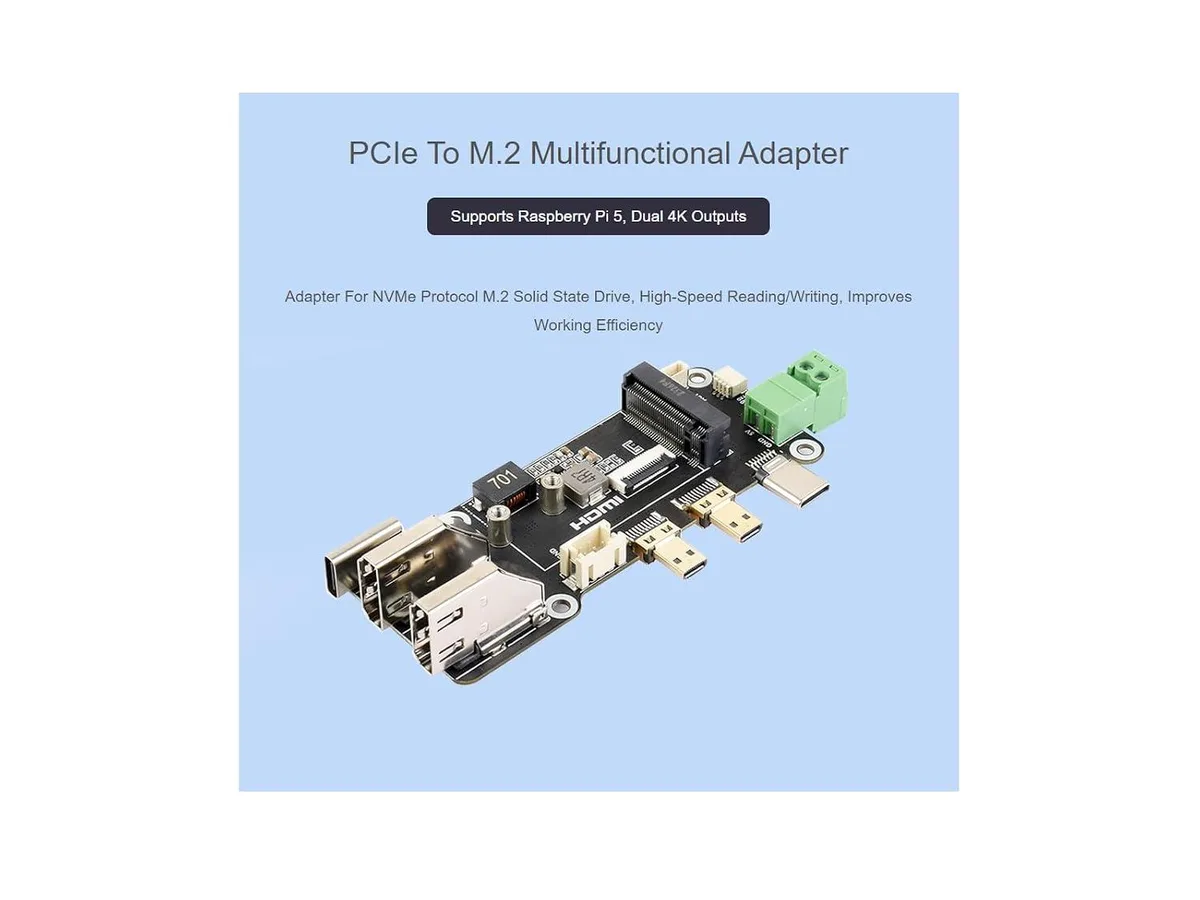

LORDWORLD PCIe to M.2 Multifunctional Adapter for Raspberry Pi 5 NVMe 2230 2242

Raspberry Pi 5 NVMe adapter

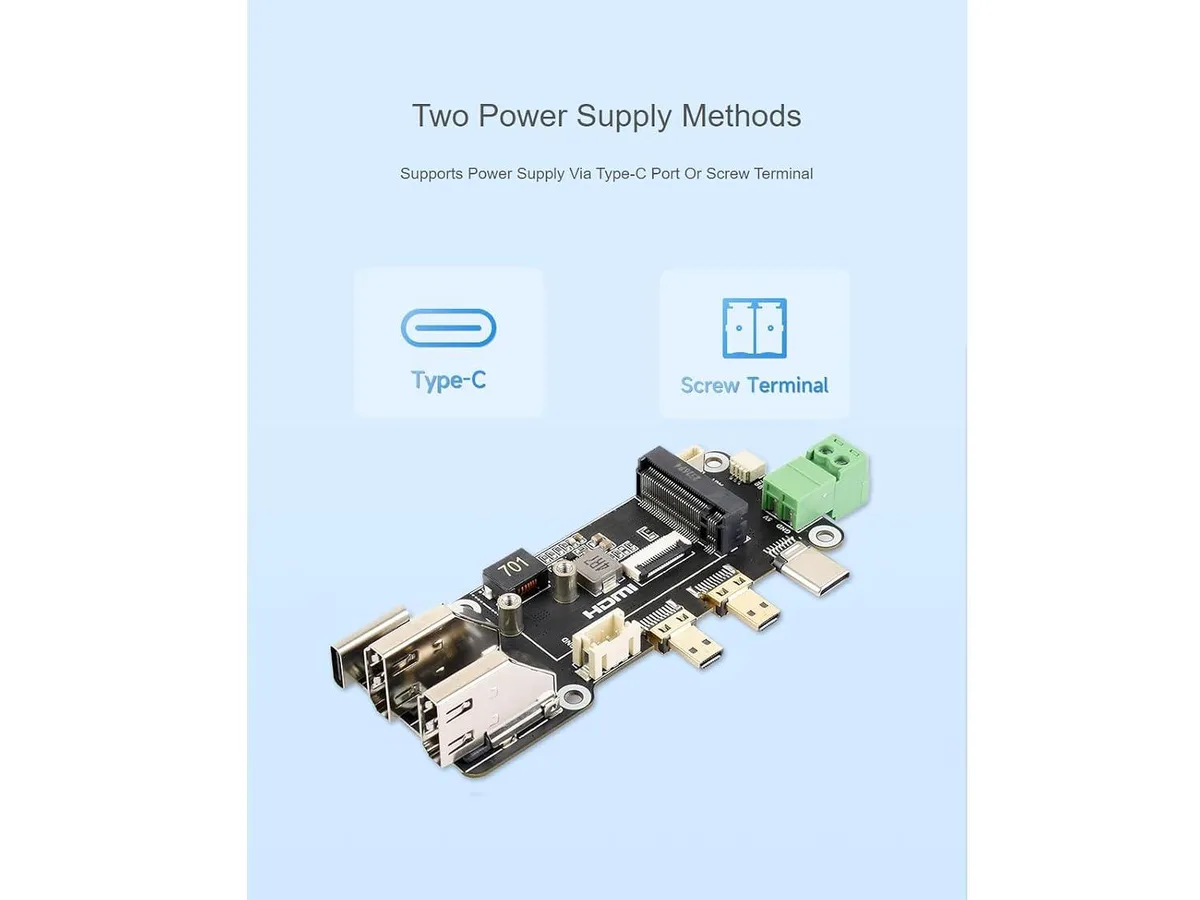

The LORDWORLD PCIe to M.2 adapter connects a Raspberry Pi 5 to NVMe solid-state drives through its 16-pin PCIe interface. It accepts 2230 and 2242 form-factor drives and supports Gen2 and Gen3 signalling. The board also converts the Pi’s micro-HDMI outputs to two full-size HDMI female ports for dual 4K display connectivity. Power can be supplied via USB Type-C or a screw terminal block.

MicroSD to NVMe boot upgrade

This adapter replaces the standard microSD card as the primary boot device, letting the Pi 5 start directly from a faster NVMe drive. The jump is worth it when applications demand quicker random I/O, shorter boot times or greater endurance than flash cards provide. Builders who need more storage capacity than the supported 2230 and 2242 drives offer should look elsewhere.

Straightforward HAT installation

The unit mounts on the Pi 5’s 16-pin PCIe connector using the included cable and aligns with the standard HAT mounting holes. No soldering or custom kernel builds are required; the Pi 5 firmware recognises the NVMe drive for booting once the latest bootloader is applied. Common issues include loose cable seating, insufficient power from the Type-C port under load, and forgetting to update the bootloader before first use.
