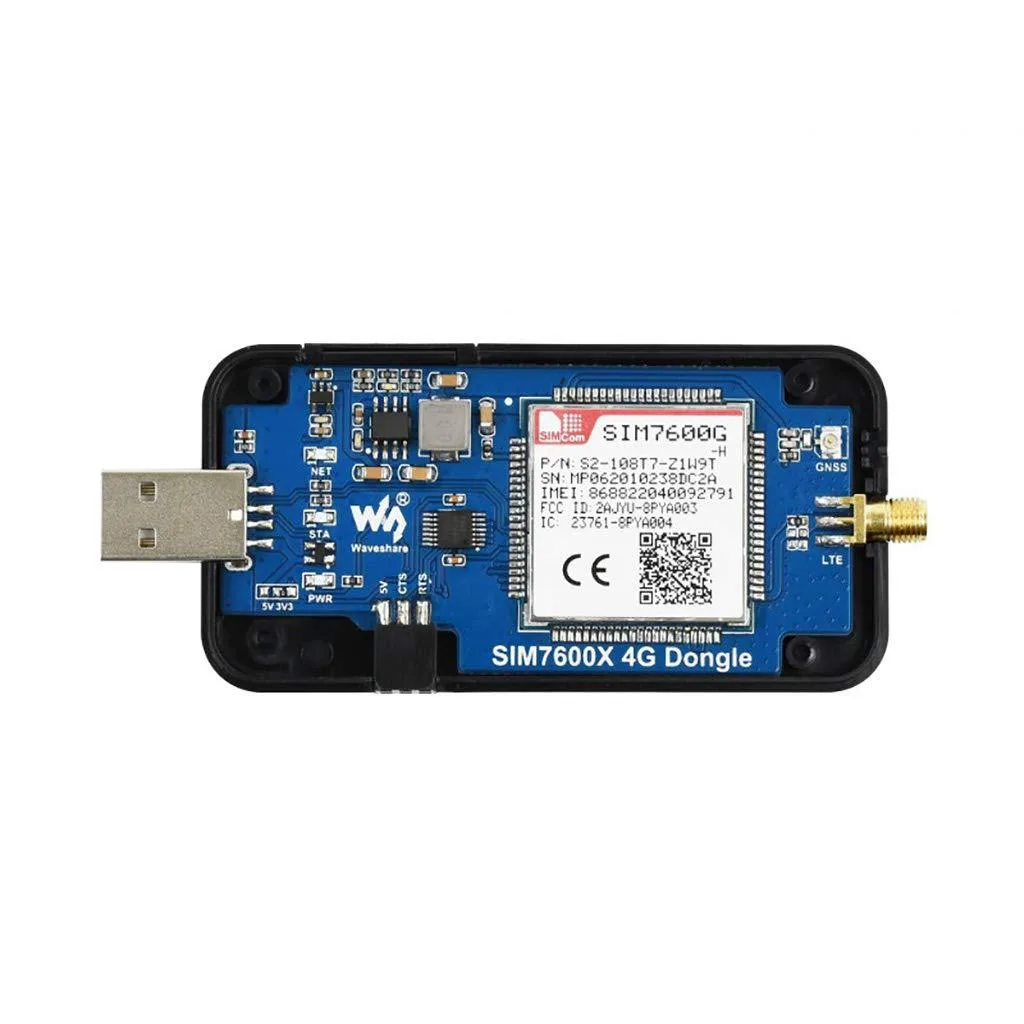

LORDWORLD SIM7600G-H 4G dongle board with external antenna attached

LORDWORLD

LORDWORLD SIM7600G-H 4G Dongle Development Board with Antenna

SKU CH-2SQM-5YS00

Adds 2G, 3G and 4G connectivity with GNSS positioning to IoT projects using a nano SIM slot and drivers for Windows, Linux and Android

  • Global 2G, 3G and 4G connectivity on a single dongle
  • Multi-protocol stack including TCP/IP, FTP and HTTPS built in
  • Ready-to-use drivers for Windows, Linux and Android
  • Onboard GNSS supports GPS, Beidou, Glonass and LBS positioning
  • Nano SIM slot accepts both 1.8 V and 3 V cards

Industrial IoT Development Board

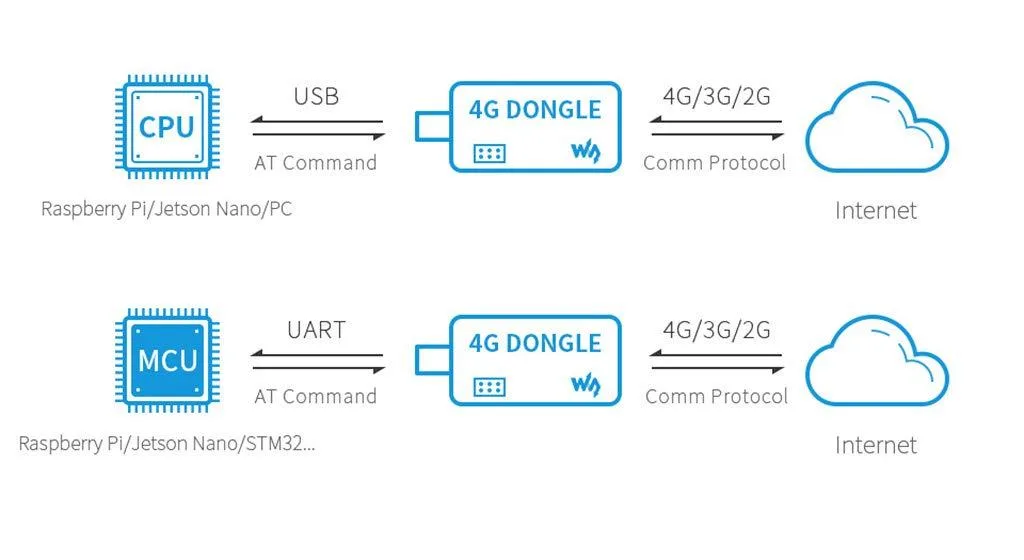

The LORDWORLD SIM7600G-H is a 4G dongle development board designed for engineers and makers building cellular-connected IoT edge devices. It provides a ready-to-use platform for prototyping applications that require global 2G, 3G and 4G connectivity without designing a custom modem integration from scratch.

Global Band Modem with GNSS

The board exposes a nano SIM slot compatible with 1.8V and 3V cards and includes a primary antenna for cellular communication. An onboard GNSS engine supports GPS, Beidou, Glonass and LBS positioning, though a dedicated GNSS antenna is required and not supplied. Drivers are available for Windows, Linux and Android, enabling integration across common development environments.

Upgrade from Basic USB Modems

This board replaces simple USB dongles when a project needs direct access to TCP/IP, IPv4, IPv6, Multi-PDP, FTP, FTPS, HTTP, HTTPS and DNS protocol stacks on the host processor. The jump is worth it for developers who require a compact, driver-supported module with global band support and integrated satellite positioning capability for asset tracking or remote monitoring prototypes.

주요 특징

  • Global 2G, 3G and 4G connectivity on a single dongle
  • Multi-protocol stack including TCP/IP, FTP and HTTPS built in
  • Ready-to-use drivers for Windows, Linux and Android
  • Onboard GNSS supports GPS, Beidou, Glonass and LBS positioning
  • Nano SIM slot accepts both 1.8 V and 3 V cards

사양

BrandLORDWORLD

이 상품에 대한 질문

Does the USB interface cap practical speeds to 4G LTE rates?

Yes, the board connects over USB and real-world throughput is limited by the 4G LTE network, not the USB link.

What physical space and antenna clearance does the dongle need?

It requires a USB-A port and room for the included LTE antenna; the GNSS antenna is sold separately and also needs clearance.

How is the board installed and which step is often missed?

Insert a 1.8 V or 3 V nano SIM, plug the dongle into USB, install the Windows, Linux or Android driver, then attach the LTE antenna — forgetting the antenna leaves the modem offline.
