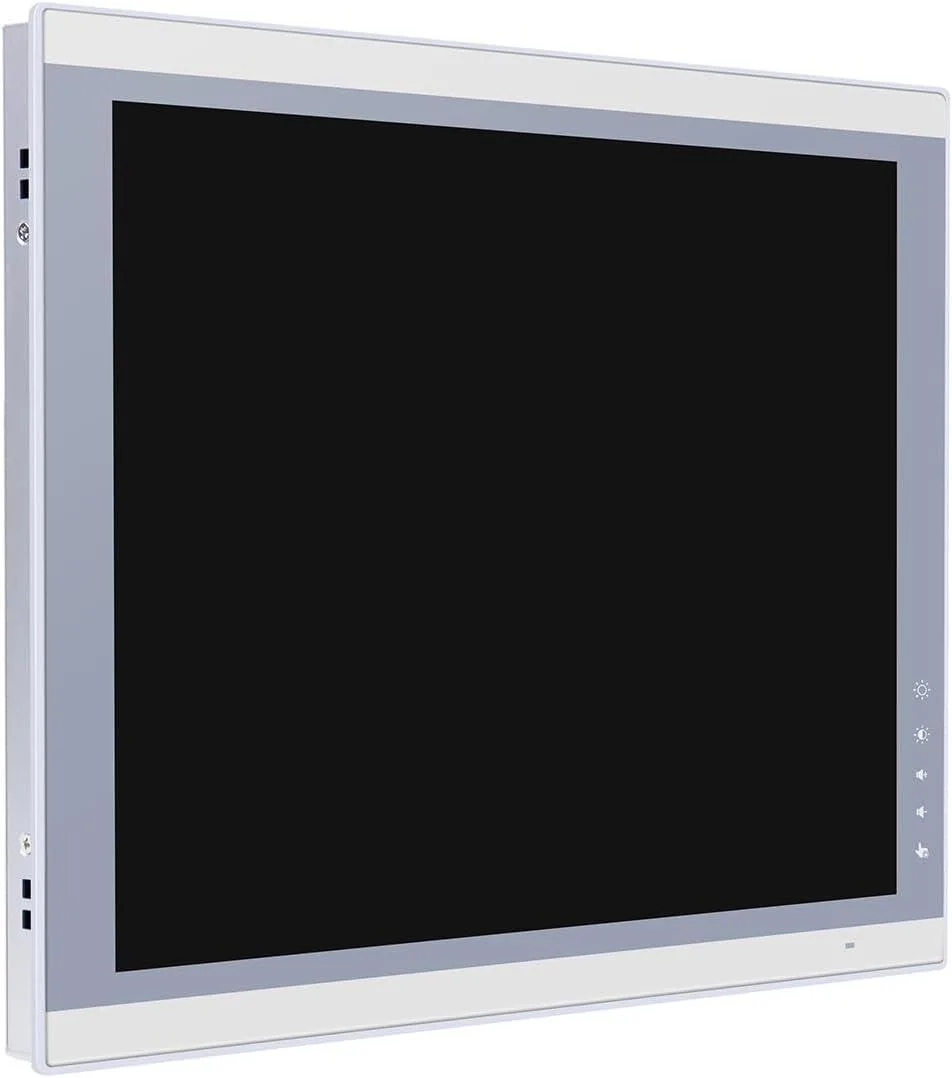

15 inch gray all-in-one panel PC with IP65 front touchscreen

partaker

partaker A23 all-in-one PC 15" IP65 Core i5-1135G7 32GB DDR4 512GB Windows 11 Pro

SKU CH-847P-YZKN8

15-inch IP65 touchscreen all-in-one with Core i5-1135G7, 32GB DDR4, 512GB SSD, and fanless aluminium chassis for 24/7 industrial use

  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 11th Gen
  • CPU NameIntel Core i5-1135G7
  • GPU/VGA TypeIntel Iris Xe Graphics

CPU Type Intel Core i5 11th Gen

CPU Name Intel Core i5-1135G7

GPU Intel Iris Xe Graphics

Memory 32GB DDR4

SSD 512GB

  • 256GB
  • 512GB
  • 1TB
  • 128GB

취소선으로 표시된 버전은 존재하지만, 이곳에서는 취급하지 않습니다.

  • IP65 front protection withstands dust and water jets
  • 10-point capacitive touch handles multi-finger input
  • Intel Core i5-1135G7 reaches 4.20 GHz for demanding workloads
  • 32GB DDR4 and 512GB SSD support multitasking and fast storage
  • Fanless aluminium chassis runs silently from 0 to 50 °C

Industrial Panel PC for Automation

The Partaker A23 is a 15-inch all-in-one computer with an IP65-rated front panel and 10-point projected capacitive touchscreen. It runs on an Intel Core i5-1135G7 processor with 32GB of DDR4 memory and a 512GB SSD, pre-loaded with Windows 11 Pro for industrial control tasks.

Verify Power Mounting and Expansion Needs

Confirm your site provides 12V DC input within the 100-240V AC adapter range and check the 348 x 272mm cut-out dimensions for embedded installation. Ensure peripheral interfaces match your equipment: two LAN ports, two COM ports, VGA, HDMI, two USB 3.0 and two USB 2.0 ports are available.

Fanless Chassis Frees Rack Space for I/O

The aluminum alloy fanless design operates silently from 0 to 50°C, eliminating moving-part failures and allowing dense cabinet mounting. An M.2 Key E slot supports WIFI6, while a Key B slot with SIM tray enables 5G connectivity, reducing external gateway hardware in distributed automation networks.

주요 특징

  • IP65 front protection withstands dust and water jets
  • 10-point capacitive touch handles multi-finger input
  • Intel Core i5-1135G7 reaches 4.20 GHz for demanding workloads
  • 32GB DDR4 and 512GB SSD support multitasking and fast storage
  • Fanless aluminium chassis runs silently from 0 to 50 °C

사양

ModelA23-I5 1135G7-32G512G
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 11th Gen
CPU NameIntel Core i5-1135G7
GPU/VGA TypeIntel Iris Xe Graphics
Memory Capacity32GB DDR4
SSD512GB
HDDNo
Screen Size15"
TouchscreenYes

이 모델의 다른 버전

같은 라인업에서 5개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

What comes in the box and what must I buy separately?

The packing list includes the Partaker A23 panel PC with Windows 11 Pro pre-installed, 32GB DDR4 memory and a 512GB SSD already fitted. A 12V DC power adapter is required for operation and mounting hardware for embedded, wall, desktop or cantilever installation is not included.

Which memory and storage version should I choose for expansion?

The unit ships with 32GB DDR4-3200 in two SODIMM slots, expandable to 64GB. Storage uses one M.2 2260/2280 PCIe x1/SATA SSD plus one 2.5" SATA bay; the 512GB drive occupies the M.2 slot, leaving the 2.5" bay free for an additional SATA SSD or HDD.

What does the IP65 rating mean once the PC is mounted in my machine?

The front panel achieves IP65 protection when properly embedded using the 348 x 272 mm cut-out, sealing against dust and water jets. The fanless aluminum chassis operates from 0 to 50 °C with the fitted SSD, so the enclosure must provide adequate airflow around the rear I/O and heatsink surfaces.
