15 inch gray all-in-one industrial panel PC with IP65 touchscreen

partaker

partaker A23 all-in-one PC 15" i7-8565U 32GB 512GB

SKU CH-SBTN-P4KA0

15-inch IP65 touchscreen all-in-one with Core i7-8565U, 32GB DDR4, 512GB SSD and fanless aluminium cooling for 24/7 industrial use

  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 8th Gen
  • CPU NameIntel Core i7-8565U
  • GPU/VGA TypeIntel UHD Graphics

CPU Type Intel Core i7 8th Gen

CPU Name Intel Core i7-8565U

GPU Intel UHD Graphics

Memory 32GB DDR4

SSD 512GB

  • 256GB
  • 512GB
  • 1TB
  • 128GB

취소선으로 표시된 버전은 존재하지만, 이곳에서는 취급하지 않습니다.

  • 15" IP65 front panel resists dust and water jets
  • 10-point capacitive touch supports multi-finger industrial control
  • Core i7-8565U with 32 GB DDR4 runs automation workloads
  • Fanless aluminium chassis operates silently from 0 to 50 °C
  • HDMI, VGA, dual LAN, dual COM and four USB ports integrate machinery

Industrial 15-inch Panel PC

The Partaker A23 is a fanless all-in-one computer built around an Intel Core i7-8565U processor with 32GB of DDR4 memory and a 512GB SSD. It runs Windows 11 Pro on a 15-inch TFT LED display with 1024x768 resolution. The IP65-rated front panel and 10-point capacitive touchscreen target continuous-duty industrial automation, kiosk, and HMI deployments where reliability matters.

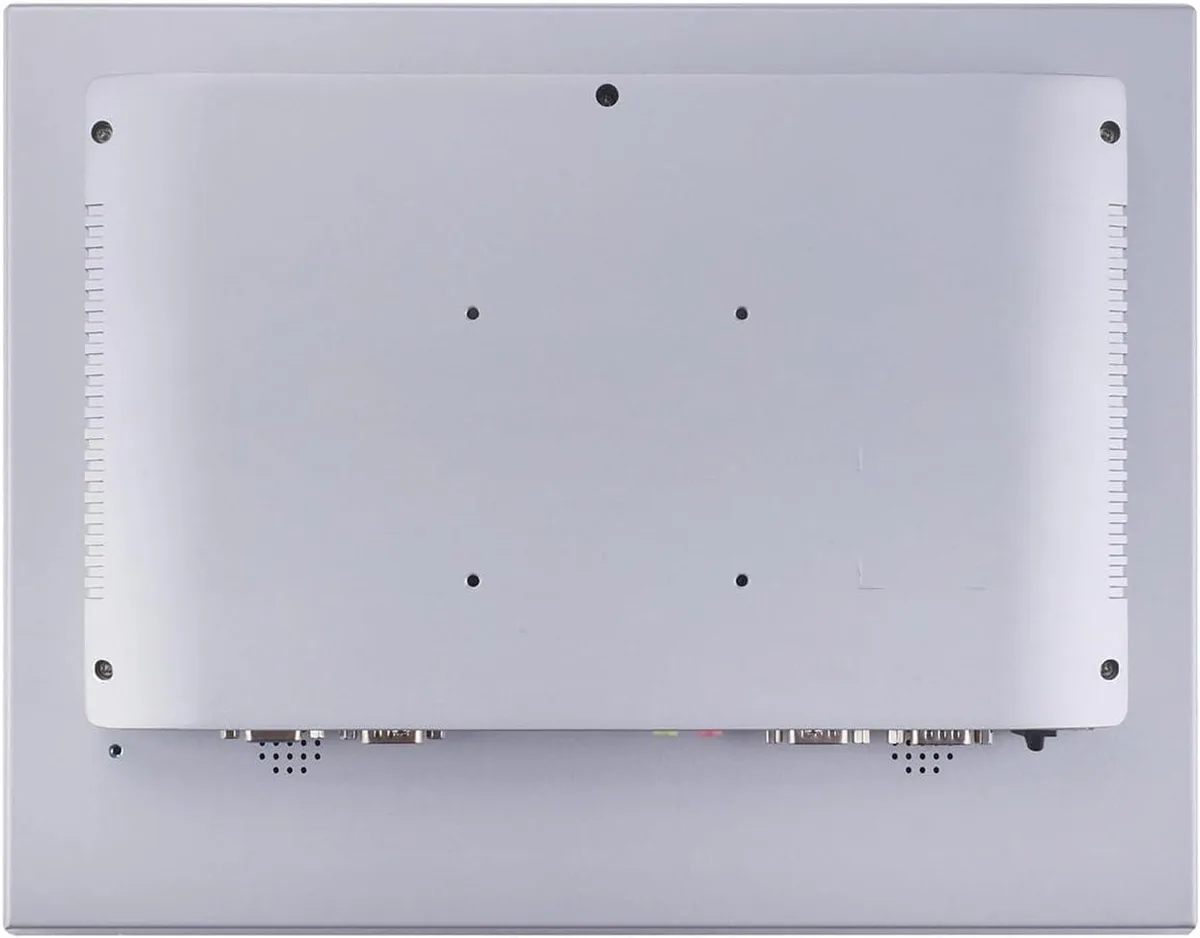

Aluminium chassis and versatile I/O

An aluminium alloy enclosure provides fanless, silent cooling and dust-proof operation within a 354.3 x 278.3 x 54mm footprint weighing 3.6kg. Connectivity includes HDMI, VGA, two USB 3.0, two USB 2.0, dual LAN, two COM ports, audio in/out, and a 12V DC input with auto-power recovery. Internal expansion covers one mSATA, one M.2 2280 NVME/SATA slot, one 2.5-inch SATA bay, and a Mini PCIe slot with SIM holder for wireless modules.

Check mounting and power before ordering

The embedded mounting cut-out measures 348 x 272mm, so verify your panel opening matches this dimension. The unit requires a 12V DC supply from the included 100-240V AC adapter; ensure your cabinet can route this voltage. Operating temperature is rated 0 to 50°C with SSD installed, and humidity tolerance reaches 95% non-condensing at 40°C. Buyers needing a larger display, higher resolution, or active cooling should consider other form factors.

주요 특징

  • 15" IP65 front panel resists dust and water jets
  • 10-point capacitive touch supports multi-finger industrial control
  • Core i7-8565U with 32 GB DDR4 runs automation workloads
  • Fanless aluminium chassis operates silently from 0 to 50 °C
  • HDMI, VGA, dual LAN, dual COM and four USB ports integrate machinery

사양

ModelA23-I7 8565U-32G512G
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 8th Gen
CPU NameIntel Core i7-8565U
GPU/VGA TypeIntel UHD Graphics
Memory Capacity32GB DDR4
SSD512GB
HDDNo
Screen Size15"
TouchscreenYes

이 모델의 다른 버전

같은 라인업에서 5개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

What display outputs does the HDMI and VGA on this panel PC support?

The unit provides one HDMI and one VGA port for external monitors; the built-in 15-inch panel runs at 1024 x 768 resolution.

What are the cut-out dimensions for embedded mounting?

The required panel cut-out is 348 x 272 mm, matching the 354.3 x 278.3 x 54 mm chassis.

How do you install an NVMe drive in the M.2 2280 slot?

Remove the rear cover, insert the M.2 2280 NVMe SSD at an angle into the keyed slot, then secure it with the retention screw.
