Silver 13.3 inch fanless all-in-one panel PC with resistive touchscreen

partaker

partaker A3 13.3" all-in-one PC i3 4th Gen 8GB 256GB SSD 1TB HDD

SKU CH-0J2R-NGQ1C

A 13.3" industrial all-in-one with IP65 front protection, fanless cooling, a 4th-gen Intel Core i3, 8GB DDR3, 256GB SSD plus 1TB HDD, and resistive touchscreen

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i3 4th Gen
  • GPU/VGA TypeIntel HD Graphics 4400
  • Memory Capacity8GB DDR3

CPU Type Intel Core i3 4th Gen

GPU/VGA Type Intel HD Graphics 4400

Memory Capacity 8GB DDR3

  • 4GB DDR3
  • 8GB DDR3

SSD 256GB

  • 64GB
  • 256GB
  • 512GB

HDD 1TB

취소선으로 표시된 버전은 존재하지만, 이곳에서는 취급하지 않습니다.

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminum alloy cooling enables silent 24/7 operation
  • 3" TFT LED display with 5-wire resistive touch supports gloved use
  • Intel Core i3 4th Gen with 8GB DDR3 handles industrial workloads
  • Dual storage: 256GB SSD plus 1TB HDD for OS speed and data capacity

Industrial panel PC with resistive touch

The Partaker A3 is a 13.3 inch all-in-one computer built for embedded or wall-mounted use in industrial settings. It runs on a 4th generation Intel Core i3 processor with Intel HD Graphics 4400 and ships with Windows 10 Pro. The fanless aluminium chassis carries an IP65 front rating and operates from 0 to 50 °C with the installed SSD.

Check power input and mounting cut-out

Verify that your installation can supply 12 V DC via the included 100-240 V AC adapter and that the panel cut-out matches the 326 by 232 mm opening. The system uses a single SODIMM DDR3L slot already populated to 8 GB and provides one mSATA plus one 2.5 inch SATA bay, both occupied by the 256 GB SSD and 1 TB HDD. Expansion is limited to a mini PCIe slot with a SIM holder for wireless modules.

Replaces older fanless panels needing IP65

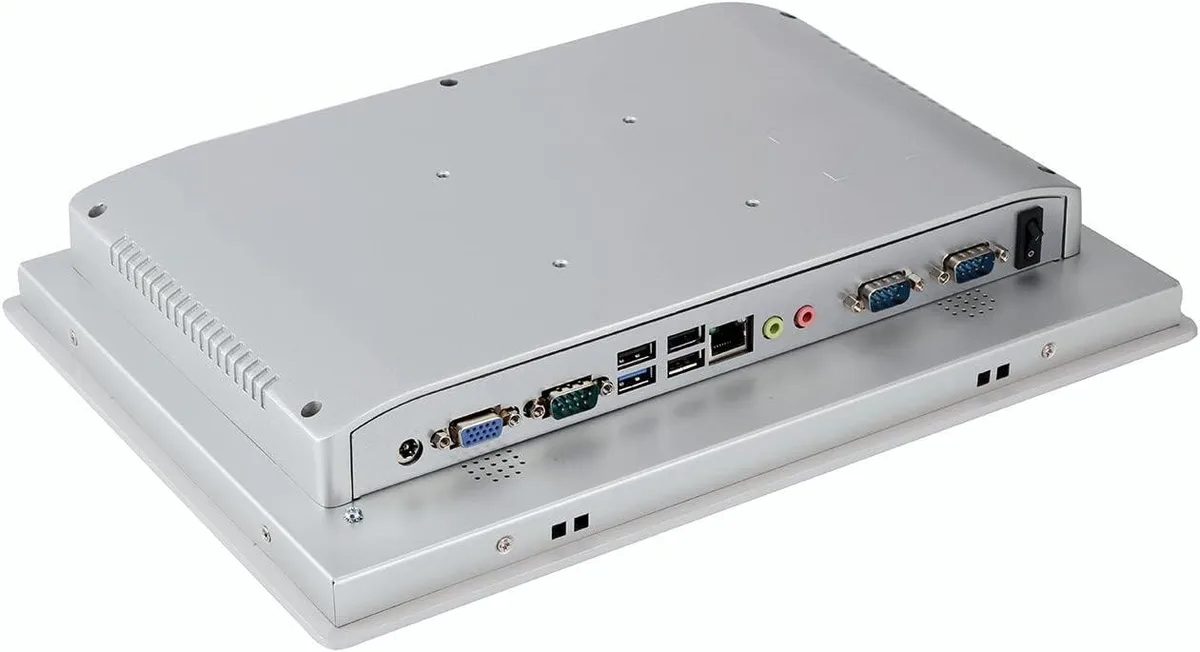

This unit upgrades legacy industrial displays that lack resistive touch durability rated at 35 million touches or that cannot run 24/7 without active cooling. The jump is worthwhile when you need the combined SSD and HDD capacity in a sealed 52.5 mm deep enclosure with VGA, HDMI, dual COM and four USB ports for legacy peripheral integration.

주요 특징

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminum alloy cooling enables silent 24/7 operation
  • 3" TFT LED display with 5-wire resistive touch supports gloved use
  • Intel Core i3 4th Gen with 8GB DDR3 handles industrial workloads
  • Dual storage: 256GB SSD plus 1TB HDD for OS speed and data capacity

사양

ModelA3-PA-133TPC-CE5A(I34)-8G256G1TB
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeIntel Core i3 4th Gen
GPU/VGA TypeIntel HD Graphics 4400
Memory Capacity8GB DDR3
SSD256GB
HDD1TB
Screen Size13.3"
TouchscreenYes

이 모델의 다른 버전

같은 라인업에서 5개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

What comes in the box and do I need to buy a mounting kit separately?

The box includes the Partaker A3 panel PC, a power supply, a power cord, embedded buckle kits for mounting, and a warranty card. No separate mounting kit is required for embedded installation.

Should I choose the 256 GB SSD or the 1 TB HDD for the operating system drive?

Use the 256 GB mSATA SSD for the operating system and applications to benefit from faster boot times and silent operation up to 50 °C. The 1 TB 2.5-inch SATA HDD adds bulk storage but limits the operating temperature to 40 °C.

What does the 13.3-inch 1280 x 800 resistive touch screen mean for daily use in a bright workshop?

The 300 cd/m² brightness and 800:1 contrast give a readable image indoors, while the five-wire resistive layer works with gloves or a stylus. The 70/55-degree viewing angles mean the picture stays clear when viewed from the side or slightly above.
