Silver 13.3 inch all-in-one panel PC with resistive touchscreen and fanless aluminium chassis

partaker

partaker A3 13.3" All-in-One PC Intel Core i3 4th Gen 8GB DDR3 512GB SSD

SKU CH-49JX-D650S

A 13.3-inch fanless all-in-one with an IP65 front panel, Intel Core i3 4th Gen, 8GB DDR3 and a 512GB SSD for industrial use

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i3 4th Gen
  • GPU/VGA TypeIntel HD Graphics 4400
  • Memory Capacity8GB DDR3

CPU Type Intel Core i3 4th Gen

GPU/VGA Type Intel HD Graphics 4400

Memory Capacity 8GB DDR3

  • 4GB DDR3
  • 8GB DDR3

SSD 512GB

HDD None

  • None
  • 1TB

취소선으로 표시된 버전은 존재하지만, 이곳에서는 취급하지 않습니다.

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminum cooling runs silently for continuous 24/7 operation
  • 3" resistive touchscreen withstands 35 million touches at high temperatures
  • 512 GB SSD and 8 GB DDR3 deliver responsive industrial performance

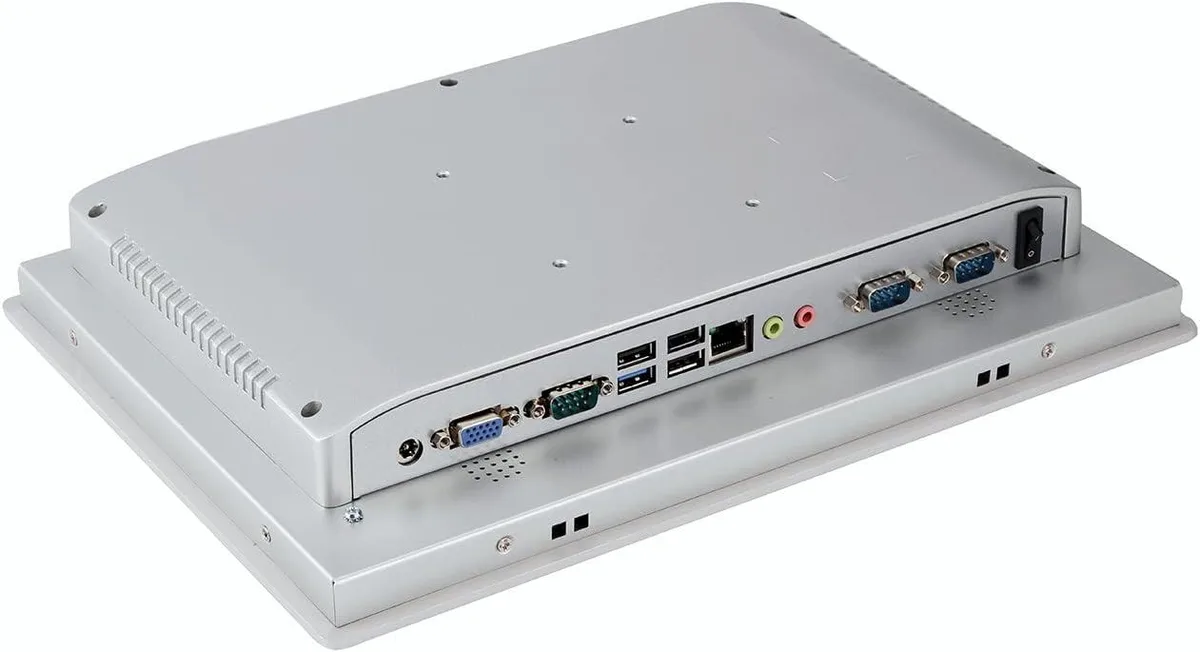

  • HDMI, VGA, dual LAN, 2 COM and 4 USB ports connect legacy and modern gear

Compact industrial panel PC

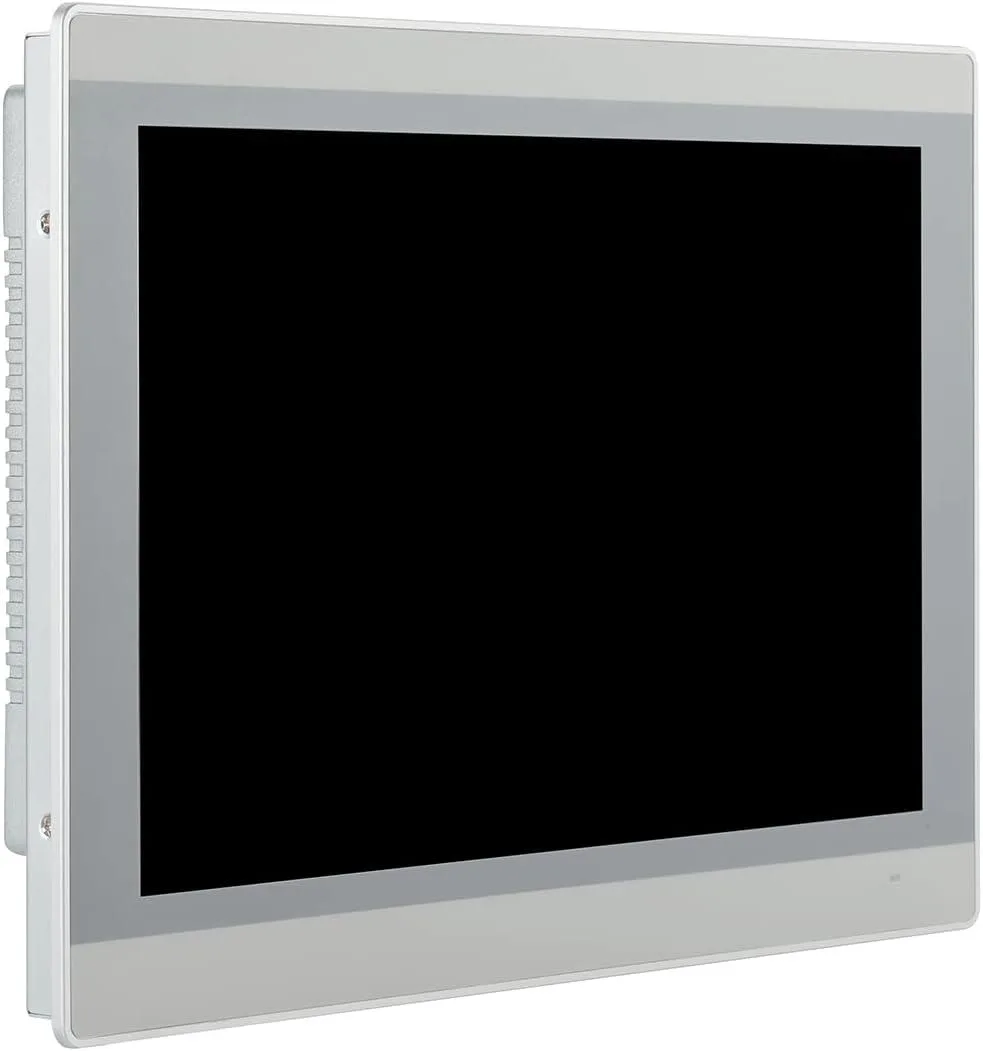

The Partaker A3 integrates a 13.3 inch TFT LED display with an IP65-rated front panel and a high-temperature five-wire resistive touchscreen. A fanless aluminium chassis houses a fourth-generation Intel Core i3 processor and Intel HD Graphics 4400, delivering silent 24/7 operation in embedded, wall-mounted or desktop installations.

8 GB DDR3L and 512 GB SSD headroom

The system ships with 8 GB of DDR3L 1333/1600 memory in a single SODIMM slot, which is also the maximum supported capacity. Storage uses a 512 GB mSATA SSD with an additional 2.5 inch SATA bay available for a second drive, while a Mini PCIe slot with SIM socket allows wireless expansion.

Upgrade from legacy panel PCs

This unit replaces older fan-cooled or lower-resolution industrial panels that lack IP65 sealing or resistive touch rated for 35 million actuations. The jump is worthwhile when silent cooling, extended temperature range (0–50 °C with SSD) and legacy COM-port connectivity are required for automation or kiosk deployments.

주요 특징

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminum cooling runs silently for continuous 24/7 operation
  • 3" resistive touchscreen withstands 35 million touches at high temperatures
  • 512 GB SSD and 8 GB DDR3 deliver responsive industrial performance
  • HDMI, VGA, dual LAN, 2 COM and 4 USB ports connect legacy and modern gear

사양

ModelA3-PA-133TPC-CE5A(I34)-8G512G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeIntel Core i3 4th Gen
GPU/VGA TypeIntel HD Graphics 4400
Memory Capacity8GB DDR3
SSD512GB
HDDNo
Screen Size13.3"
TouchscreenYes

이 모델의 다른 버전

같은 라인업에서 5개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

Will the 2 x COM ports on the Partaker A3 connect to my existing serial equipment?

Yes, the unit provides two standard COM ports for legacy serial devices, and the fanless aluminium-alloy chassis is rated for 0–50 °C operation so it can sit alongside older industrial gear in the same cabinet.

How can I verify the 13.3" TFT LED panel and Intel HD Graphics 4400 are running correctly after installation?

Power on the system; the 1280 x 800 resistive touchscreen should respond to stylus or gloved input, and Windows 10 Pro will show the Intel HD Graphics 4400 adapter in Device Manager with the correct driver version.

What ships in the box and which expansion parts must I source separately?

The package includes the A3 panel PC, 12 V power supply, power cord, embedded buckle kits and warranty card; a Mini PCIe Wi-Fi/4G module with SIM, additional mSATA or 2.5" SATA storage, and up to 8 GB DDR3L SODIMM RAM are not included.
