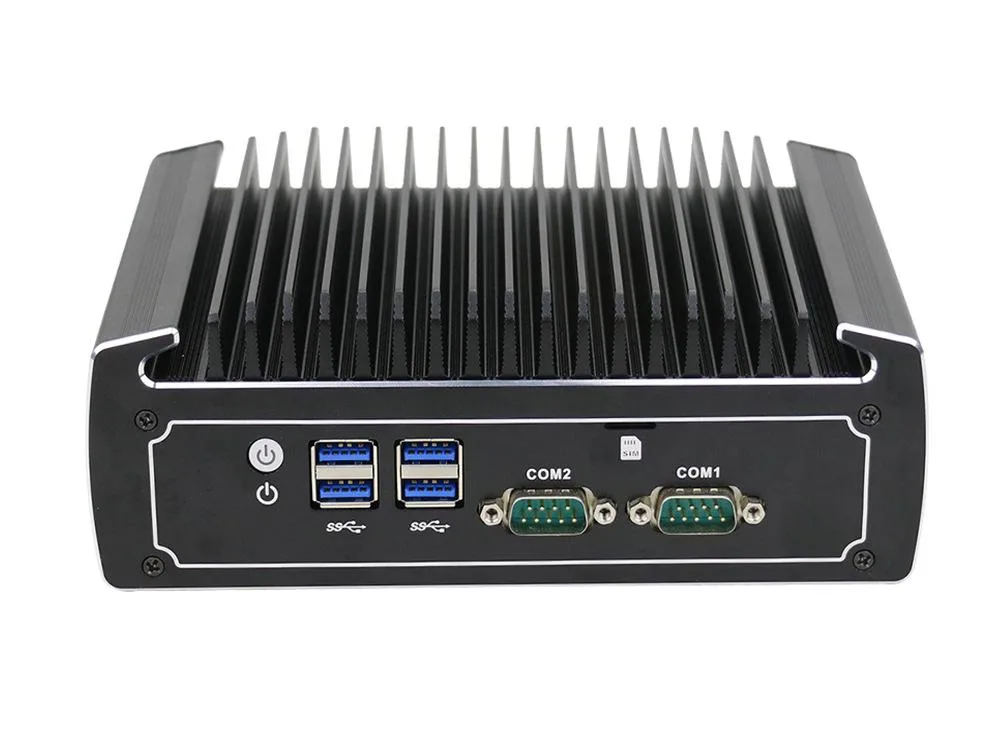

Compact black aluminium fanless mini PC, 186 x 126.5 x 66 mm

partaker

partaker I28 barebone mini PC Core i7-10810U 32GB 512GB

SKU CH-3G50-Z0XGT

Fanless mini PC with an Intel Core i7 10810U, 32 GB DDR4 memory, 512 GB SSD, dual 2.5 GbE LAN, HDMI and DP outputs, plus COM, SIM and RAID support

  • ColorBlack
  • CPU TypeIntel Core i7 10th Gen

Group 32G RAM / 512G SSD

  • Fanless aluminium chassis runs silently in noise-sensitive spaces
  • Intel Core i7-10810U delivers six cores and twelve threads for multi-tasking
  • Dual 2.5G Intel LAN ports handle high-throughput industrial networking
  • RAID 0/1 across M.2 and 2.5" drives protects critical data
  • VESA, DIN-rail and desktop mounting fit any installation

Fanless Mini PC with Core i7-10810U

The Partaker I28 is a fanless industrial barebone mini PC built around an Intel Core i7-10810U six-core processor. It ships with 32 GB of DDR4-2666 memory and a 512 GB SSD installed. The aluminium chassis acts as a passive heatsink for silent 15 W operation. Windows 11 Pro is pre-loaded and the unit includes a VESA mount plate and DIN rail bracket for flexible deployment.

Suited for embedded and edge workloads

This unit suits integrators who need dual 2.5 GbE LAN ports, dual COM ports with RS232/485 options, and a SIM slot for cellular expansion in a compact fanless enclosure. It also supports RAID 0/1 across the M.2 2280 and 2.5-inch SATA bays. Builders who require active cooling for sustained high turbo frequencies, discrete graphics, or more than one memory channel should look at other form factors.

Integration-ready I/O and expansion

The system provides HDMI and DP outputs, four USB 3.0 ports, two USB 2.0 ports, audio, and a 12 V DC input accepting 100-240 V AC via the included adapter. A Mini PCIe slot accepts Wi-Fi or 4G modules using the embedded SIM socket. Hardware watchdog, WOL, PXE boot and auto power-on features simplify remote management in kiosk, signage or virtualisation server roles.

주요 특징

  • Fanless aluminium chassis runs silently in noise-sensitive spaces
  • Intel Core i7-10810U delivers six cores and twelve threads for multi-tasking
  • Dual 2.5G Intel LAN ports handle high-throughput industrial networking
  • RAID 0/1 across M.2 and 2.5" drives protects critical data
  • VESA, DIN-rail and desktop mounting fit any installation

사양

ColorBlack
CPU TypeIntel Core i7 10th Gen

이 모델의 다른 버전

같은 라인업에서 5개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

What RAM module do I need to reach the 32 GB capacity?

One DDR4 SODIMM rated 2666 or 2933 MT/s fills the single slot and maxes the board at 32 GB.

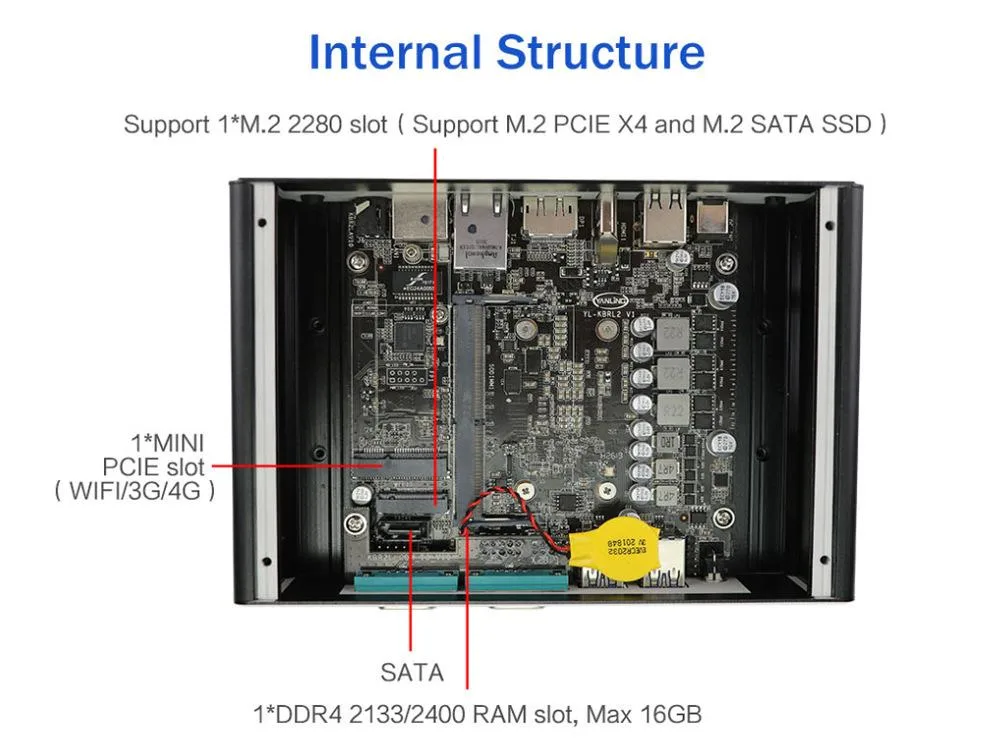

Can I keep my existing 2.5-inch SATA drive and add the supplied M.2 SSD together?

Yes, the chassis has both a 2.5-inch bay and an M.2 2280 slot, and the BIOS supports RAID 0/1 across them.

How do I confirm the dual 2.5 GbE ports are linked at full speed after install?

Check each Intel I225-V adapter in Device Manager or ethtool; both should report 2.5 Gbps link with no errors.
