Black aluminium fanless mini PC barebone, 186 x 126.5 x 66mm, VESA mount base included

partaker

Partaker I28 i7-10810U 8GB 128GB barebone mini PC

SKU CH-94FT-FTJNQ

Fanless industrial mini PC with Intel Core i7 10810U, 8 GB DDR4, 128 GB SSD, dual 2.5G LAN, HDMI, DP, two COM ports, SIM slot, VESA and DIN-rail mounting, RAID 0/1 support, TPM 2.0, Windows 11 Pro

  • ColorBlack
  • CPU TypeIntel Core i7 10th Gen

Group 8GB / 128GB

  • Fanless aluminium chassis runs silently in noise-sensitive spaces
  • Intel Core i7-10810U six-core CPU with 4.9 GHz turbo for demanding workloads
  • Dual 2.5 GbE Intel I225-V LAN ports plus optional 4G via Mini PCIe
  • RAID 0/1 support across M.2 2280 and 2.5″ SATA bays protects or accelerates data
  • VESA, DIN-rail and desktop mounting options fit industrial and office installations

Industrial Fanless Mini PC

The Partaker I28 is a fanless barebone built around an Intel Core i7 10810U six-core processor with a 1.1 GHz base clock and 4.9 GHz maximum turbo. Its aluminium chassis acts as a heatsink, allowing silent operation in noise-sensitive environments. The platform targets integrators deploying edge gateways, digital-signage players or light virtualisation hosts on Proxmox or VMware ESXi.

Connectivity and Mounting Flexibility

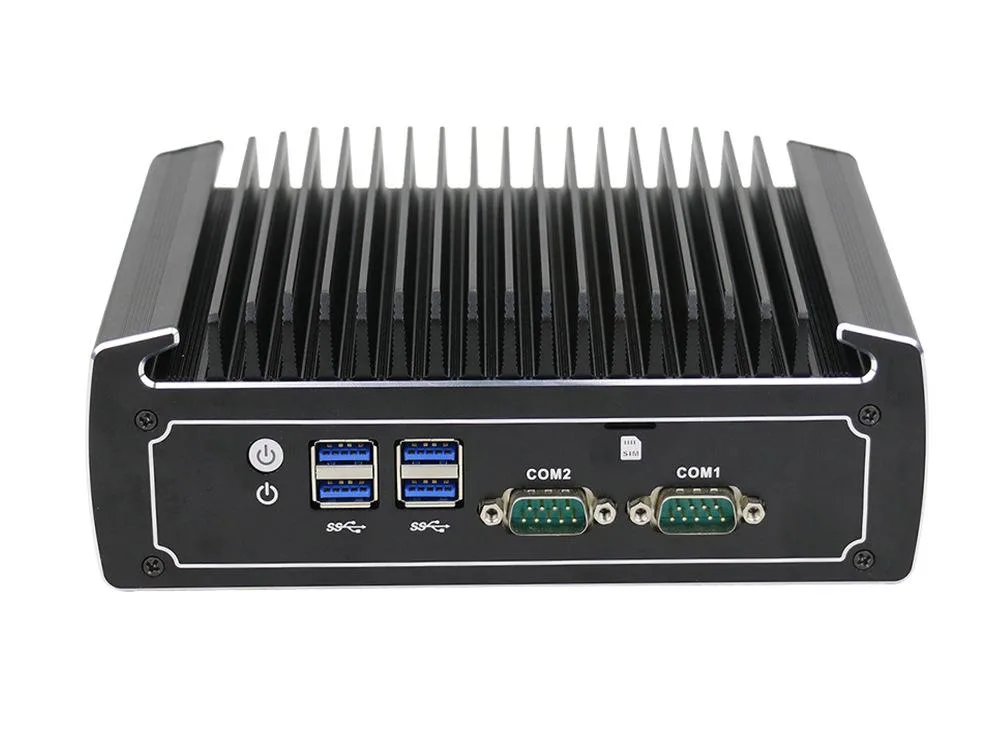

Two Intel I225-V 2.5GbE ports, HDMI, DisplayPort, four USB 3.0 and two USB 2.0 ports handle typical peripheral and display needs. Dual COM headers with RS232/485 support and a SIM slot suit industrial automation and cellular failover scenarios. The unit ships with hardware for desktop, VESA or DIN-rail mounting, and the 12 V DC input accepts 100-240 V AC via the included adapter.

Storage and Memory Headroom

One DDR4 SODIMM slot supports up to 32 GB at 2666 or 2933 MT/s, while an M.2 2280 slot and a 2.5-inch SATA bay enable RAID 0 or 1 across NVMe or SATA drives. The supplied 128 GB SSD covers the OS, but workloads needing larger datasets or redundancy must add their own drives. Buyers who need more than one memory module or more than two internal drives should look elsewhere.

주요 특징

  • Fanless aluminium chassis runs silently in noise-sensitive spaces
  • Intel Core i7-10810U six-core CPU with 4.9 GHz turbo for demanding workloads
  • Dual 2.5 GbE Intel I225-V LAN ports plus optional 4G via Mini PCIe
  • RAID 0/1 support across M.2 2280 and 2.5″ SATA bays protects or accelerates data
  • VESA, DIN-rail and desktop mounting options fit industrial and office installations

사양

ColorBlack
CPU TypeIntel Core i7 10th Gen

이 모델의 다른 버전

같은 라인업에서 5개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

What M.2 interface does the I28 support and what speed does it cap at?

The M.2 2280 slot accepts both PCIe x4 and SATA SSDs so the practical ceiling is the PCIe x4 lane.

What are the exact chassis dimensions and which mounting options are built in?

The aluminium case measures 186 x 126.5 x 66 mm and includes holes for desktop, VESA and DIN-rail mounting.

How is the operating system installed on the barebone and which step is often missed?

Insert the M.2 or 2.5-inch drive first, then boot the Windows 11 Pro USB stick; many forget to initialise the new drive in the installer.
