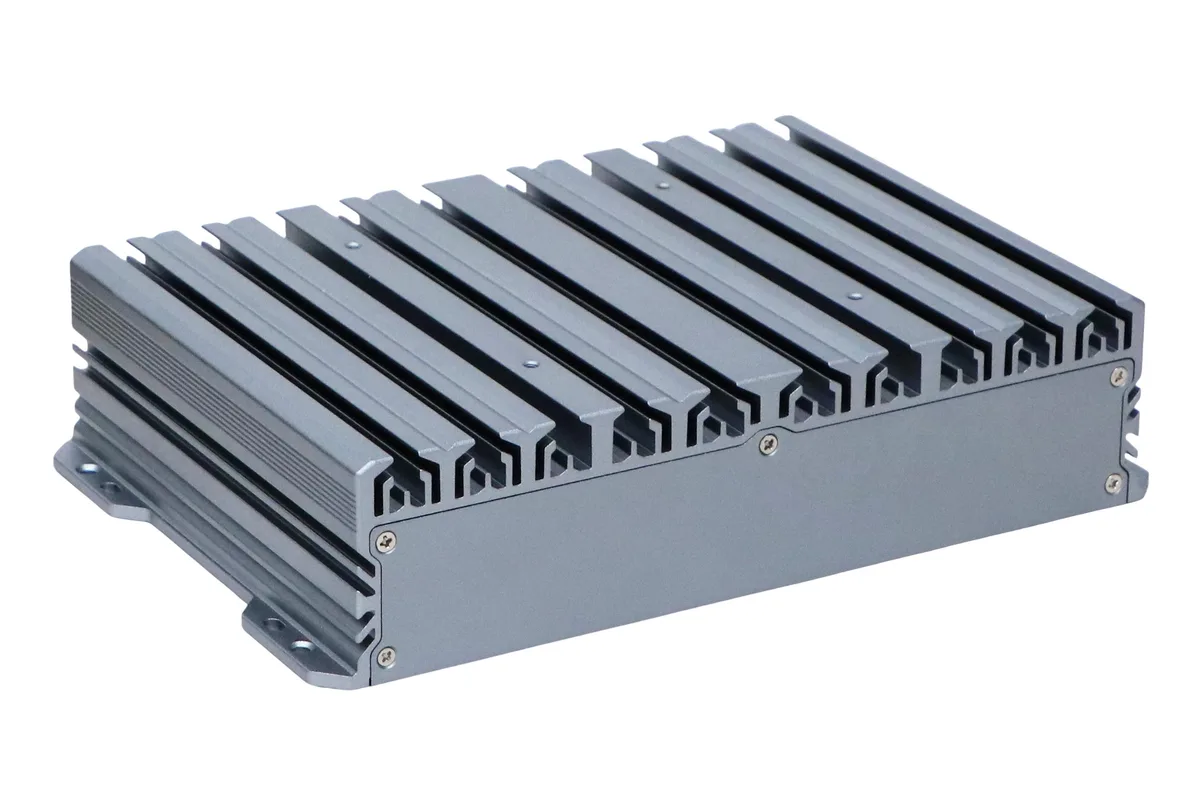

Compact gray aluminium fanless mini PC, industrial barebone form factor, matte anodised finish with visible cooling fins

partaker

partaker I34 barebone mini PC i5-4300U 8GB 512GB

SKU CH-1D7N-EDJ49

Fanless industrial mini-PC with Core i5-4300U, 8GB RAM, 512GB SSD, six COM ports and dual Gigabit LAN for automation

  • ColorGray
  • CPU TypeIntel Core i5 4th Gen

I34 I5 4300U 8G+512G

  • 4th Gen Core i5-4300U up to 2.90 GHz for industrial workloads
  • Fanless aluminium alloy chassis runs silent from -20 to 60 °C

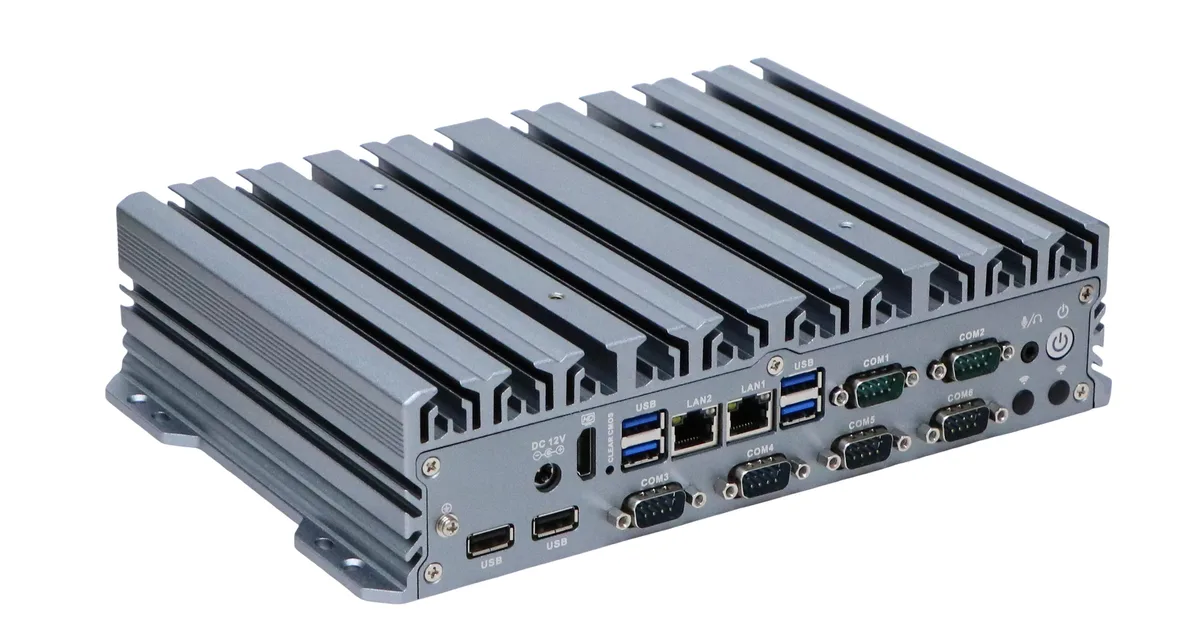

  • Six COM ports RS232/485 plus four USB 3.0 and two USB 2.0
  • Dual Gigabit LAN with Wake-on-LAN and PXE boot support
  • Dual storage with mSATA slot and 2.5" SATA bay for flexible capacity

Industrial mini PC for automation

The Partaker I34 is a fanless barebone system built around an Intel Core i5-4300U processor with 8 GB of DDR3 memory and a 512 GB solid-state drive. Its aluminium alloy chassis operates silently from minus 20 to plus 60 Celsius, making it suitable for factory floors, logistics hubs and medical equipment racks where dust and vibration rule out conventional desktops.

Replaces bulky DIN-rail controllers

Six configurable COM ports and dual Gigabit Ethernet replace the tangle of USB-to-serial adapters and separate network cards that older SCADA setups require. The jump is worth it when a project needs legacy RS232 or RS485 links alongside modern IP connectivity without adding external hubs or increasing cabinet depth.

Mounts in standard enclosures

Four mounting holes on the 260 by 173 millimetre footprint align with common industrial brackets, and the single DC 12 V input simplifies wiring to existing power supplies. Installers should verify that the mSATA and 2.5 inch SATA bays match the chosen storage modules, and that the two mini-PCIe slots accept only half-height wireless or cellular cards.

주요 특징

  • 4th Gen Core i5-4300U up to 2.90 GHz for industrial workloads
  • Fanless aluminium alloy chassis runs silent from -20 to 60 °C
  • Six COM ports RS232/485 plus four USB 3.0 and two USB 2.0
  • Dual Gigabit LAN with Wake-on-LAN and PXE boot support
  • Dual storage with mSATA slot and 2.5" SATA bay for flexible capacity

사양

ColorGray
CPU TypeIntel Core i5 4th Gen

이 모델의 다른 버전

같은 라인업에서 4개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

What mounting clearance does the 260×173×61 mm fanless chassis require?

The aluminum alloy case measures 260×173×61 mm and relies on surface airflow; allow open space around all faces so heat can dissipate without forced air.

Which screw or latch secures the 2.5″ SATA drive during installation?

The internal 2.5″ SATA bay uses a screw-fastened caddy; the common mistake is seating the drive without tightening the caddy screws, which lets vibration disconnect the SATA connector.

When should the CMOS battery be checked or replaced?

The board includes a CLEAR CMOS button; if BIOS settings or system time start drifting after extended power-off periods, replace the onboard coin cell.
