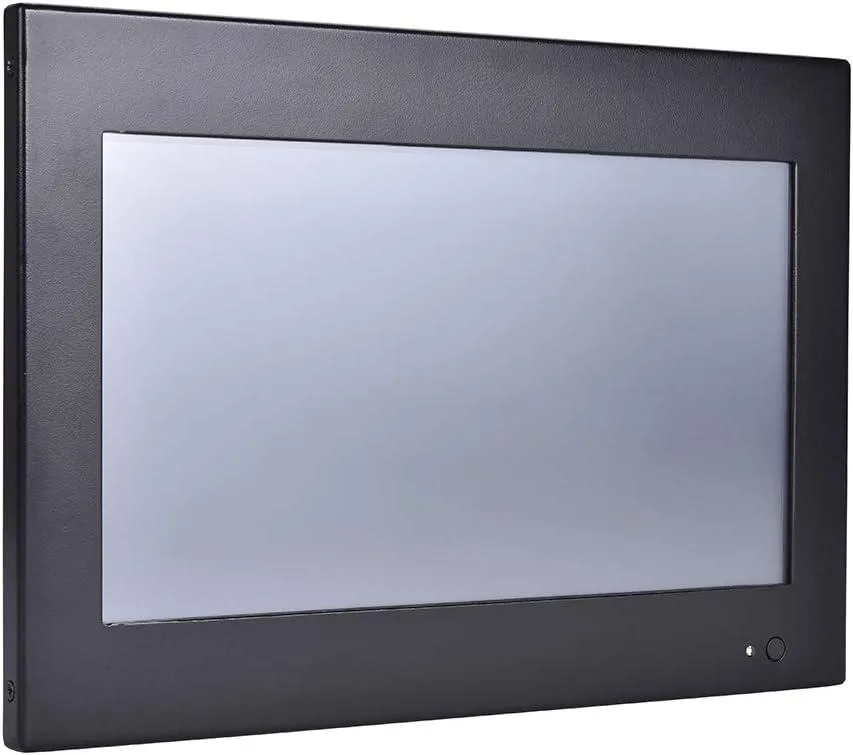

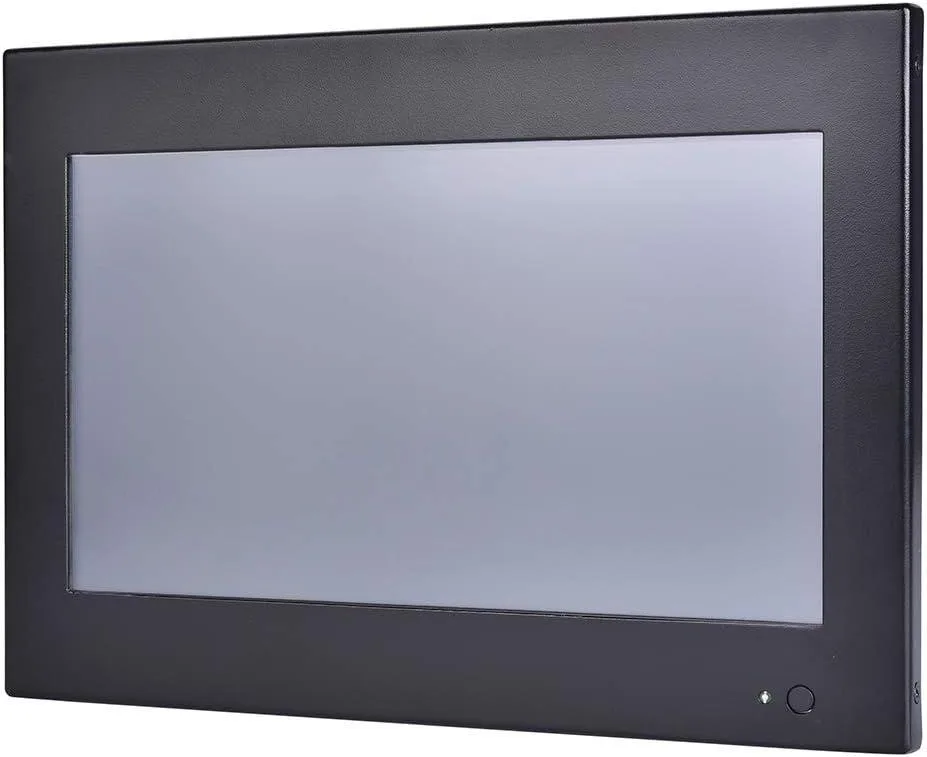

Black 10.1 inch industrial all-in-one panel PC with resistive touchscreen and fanless aluminium chassis

partaker

Partaker Z6-I5 3317U 10.1" 8GB 512GB All-in-One PC

SKU CH-CTQM-134WB

A compact 10.1-inch industrial panel PC with a resistive touchscreen, Intel Core i5-3317U processor, 8GB DDR3L memory and 512GB mSATA SSD, running Windows 11 Pro in a fanless aluminium chassis

  • Form FactorAll-in-One
  • ColorBlack
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 3rd Gen
  • CPU NameIntel Core i5-3317U
  • GPU/VGA TypeIntel HD Graphics 4000

CPU Type Intel Core i5 3rd Gen

CPU Name Intel Core i5-3317U

GPU Intel HD Graphics 4000

Memory 8GB DDR3

  • 4GB DDR3
  • 8GB DDR3

SSD 512GB

취소선으로 표시된 버전은 존재하지만, 이곳에서는 취급하지 않습니다.

  • Fanless aluminium cooling keeps the system silent from 0 °C to 50 °C
  • Resistive touchscreen rated for 5 million touches suits gloved or stylus use
  • Intel Core i5-3317U with Intel HD Graphics 4000 drives 1024 × 600 display
  • 8 GB DDR3L and 512 GB mSATA SSD provide responsive Windows 11 Pro operation
  • HDMI, VGA, four USB 2.0, two COM, LAN and Mini PCIe cover industrial I/O needs

Compact industrial all-in-one

The Partaker Z6-I5 3317U is a 10.1-inch all-in-one panel PC built for embedded and industrial use. It combines an Intel Core i5-3317U processor with 8GB DDR3L memory and a 512GB mSATA SSD. The resistive touchscreen withstands five million touches and runs Windows 11 Pro out of the box.

Fanless aluminium chassis and mounting

A sealed aluminium alloy body dissipates heat without fans, allowing silent operation in dusty or vibration-prone settings. The unit measures 270 x 192 x 47mm and weighs 3.0 kgs, with an opening hole of 227 x 183mm for panel or wall mounting. Connectivity covers HDMI, VGA, four USB 2.0 ports, two COM ports, LAN, audio in/out, a Mini PCIe slot with SIM holder, and 12V DC input.

Silent thermals and wide temperature range

Fanless cooling keeps the system quiet while maintaining an operating range of 0 to 50°C with the SSD installed. The 12V DC supply accepts 100 to 240V AC at 50 to 60Hz, drawing modest power for continuous industrial duty. Storage temperature spans -20 to 60°C, and humidity tolerance reaches 95% at 40°C non-condensing.

주요 특징

  • Fanless aluminium cooling keeps the system silent from 0 °C to 50 °C
  • Resistive touchscreen rated for 5 million touches suits gloved or stylus use
  • Intel Core i5-3317U with Intel HD Graphics 4000 drives 1024 × 600 display
  • 8 GB DDR3L and 512 GB mSATA SSD provide responsive Windows 11 Pro operation
  • HDMI, VGA, four USB 2.0, two COM, LAN and Mini PCIe cover industrial I/O needs

사양

ModelZ6-I5 3317U-N-8G512G
Form FactorAll-in-One
ColorBlack
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 3rd Gen
CPU NameIntel Core i5-3317U
GPU/VGA TypeIntel HD Graphics 4000
Memory Capacity8GB DDR3
SSD512GB
HDDNo
Screen Size10.1"
TouchscreenYes

이 모델의 다른 버전

같은 라인업에서 5개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

What resolution does the HDMI port support on this panel PC?

The HDMI output can drive an external display at the panel's native 1024 x 600 resolution.

What are the exact cut-out dimensions for embedded mounting?

The opening hole measures 227 x 183 mm for flush panel installation.

How do I install an mSATA SSD, and which step is often missed?

Insert the mSATA drive into the Mini PCIe slot at a 45° angle, then secure it with the screw; the step often missed is fastening that screw before closing the chassis.
