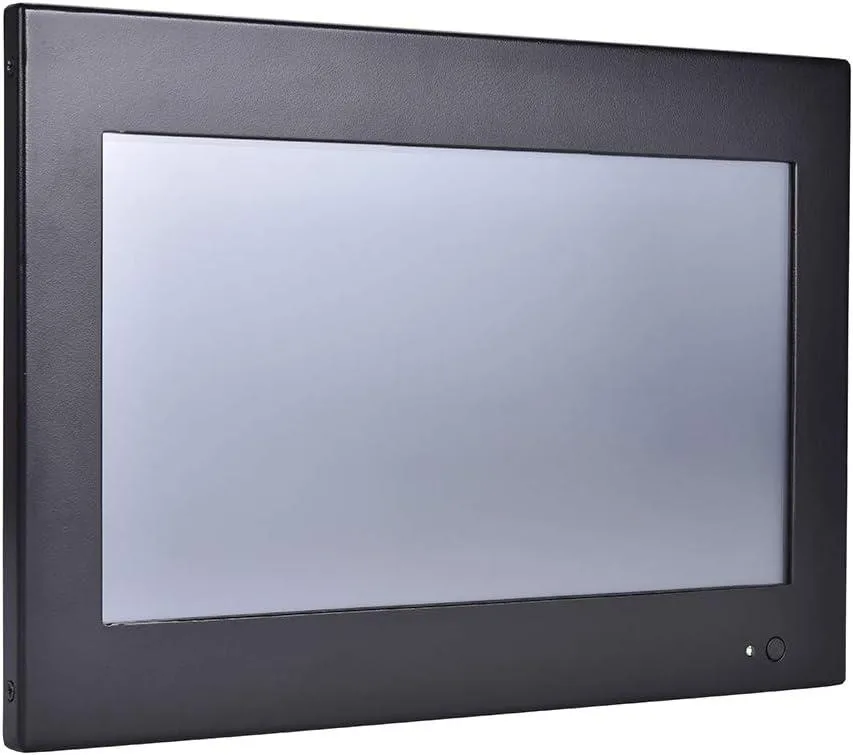

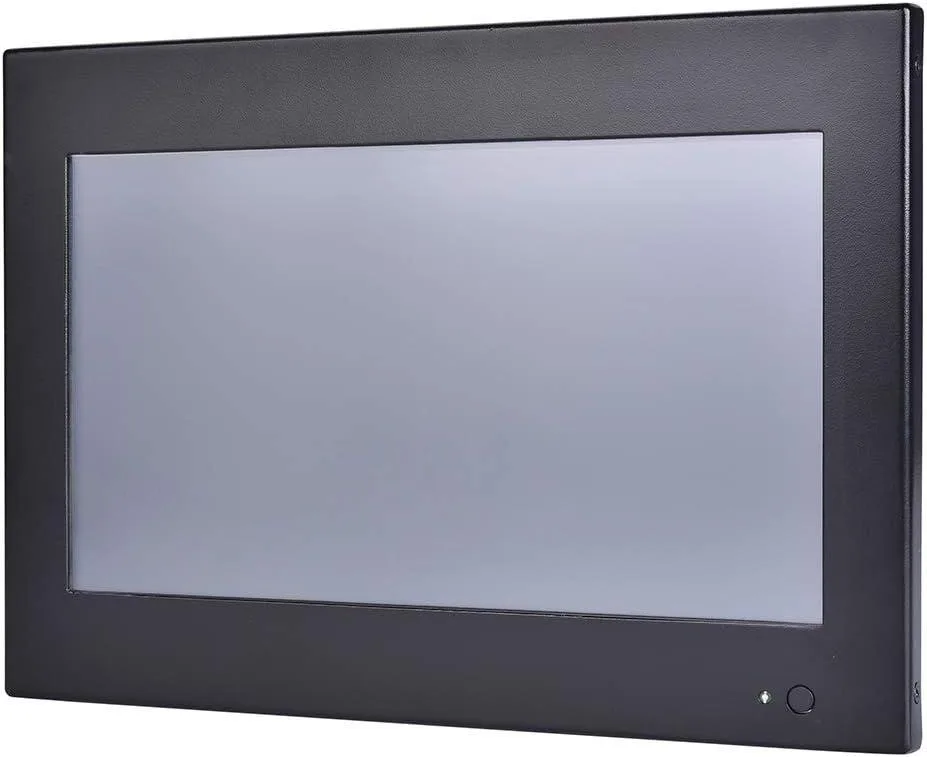

Compact black 10.1 inch all-in-one panel PC with resistive touchscreen, fanless aluminum chassis, embedded mounting brackets visible

partaker

Partaker Z6-J1900-N-8G256G 10.1" all-in-one PC

SKU CH-46Q7-5VKE4

10.1" industrial panel PC with resistive touchscreen, fanless J1900 quad-core, 8GB DDR3L, 256GB mSATA SSD, Windows 11 Pro, and extensive I/O for embedded use

  • Form FactorAll-in-One
  • ColorBlack
  • Operating SystemWindows 11 Pro
  • CPU TypeCeleron
  • CPU NameIntel Celeron J1900
  • GPU/VGA TypeIntel HD Graphics

CPU Type Celeron

CPU Name Intel Celeron J1900

GPU Intel HD Graphics

Memory 8GB DDR3

  • 4GB DDR3
  • 8GB DDR3

SSD 256GB

취소선으로 표시된 버전은 존재하지만, 이곳에서는 취급하지 않습니다.

  • Silent 24/7 operation with fanless J1900 quad-core up to 2.42GHz
  • Rugged 10.1" resistive touchscreen rated for 5M+ touch cycles at 1024x600
  • Industrial I/O with 3× COM, 4× USB, VGA and LAN for automation
  • Wide 0–50°C operating range on 12V DC with 100–240V AC adapter
  • Windows 11 Pro preloaded on 8GB DDR3L and 256GB mSATA SSD

Compact industrial panel PC

The Partaker Z6-J1900-N-8G256G is a 10.1-inch all-in-one computer built for embedded and industrial deployment. It integrates an Intel Celeron J1900 quad-core processor with 8GB DDR3L memory and a 256GB mSATA SSD. The resistive touchscreen supports five million touch cycles and runs Windows 11 Pro out of the box.

Sustained-load behaviour

Fanless aluminium alloy cooling keeps the system silent during continuous 24/7 operation. The J1900 CPU maintains up to 2.42GHz within a 0 to 50°C operating window when an SSD is installed. Passive thermal design avoids throttling in typical automation, kiosk or IoT workloads without moving parts.

Thermals noise and power

Zero fan noise results from the fully passive heatsink. Power is supplied by an external 12V DC adapter accepting 100 to 240V AC input. The unit meets CCC and EMC standards for industrial environments. Operating humidity spans 10% to 95% at 40°C non-condensing.

주요 특징

  • Silent 24/7 operation with fanless J1900 quad-core up to 2.42GHz
  • Rugged 10.1" resistive touchscreen rated for 5M+ touch cycles at 1024x600
  • Industrial I/O with 3× COM, 4× USB, VGA and LAN for automation
  • Wide 0–50°C operating range on 12V DC with 100–240V AC adapter
  • Windows 11 Pro preloaded on 8GB DDR3L and 256GB mSATA SSD

사양

ModelZ6-J1900-N-8G256G
Form FactorAll-in-One
ColorBlack
Operating SystemWindows 11 Pro
CPU TypeCeleron
CPU NameIntel Celeron J1900
GPU/VGA TypeIntel HD Graphics
Memory Capacity8GB DDR3
SSD256GB
HDDNo
Screen Size10.1"
TouchscreenYes

이 모델의 다른 버전

같은 라인업에서 5개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

How loud and hot does the fanless J1900 system get during continuous 24/7 operation?

The aluminium-alloy chassis cools the quad-core Celeron J1900 passively so there is no fan noise and the unit is rated for 0 to 50 °C ambient temperature with the installed SSD.

Which peripherals and cables must I already have to install this panel PC?

You need a 12 V DC supply (the 100-240 V AC adapter is included), a VGA cable for external video and serial cables for any COM devices you plan to attach.

Can I keep using my existing DDR3L SODIMM modules if I open the chassis later?

The board has one DDR3L 1333 SODIMM slot already populated to the 8 GB maximum so there is no free slot for additional modules.
