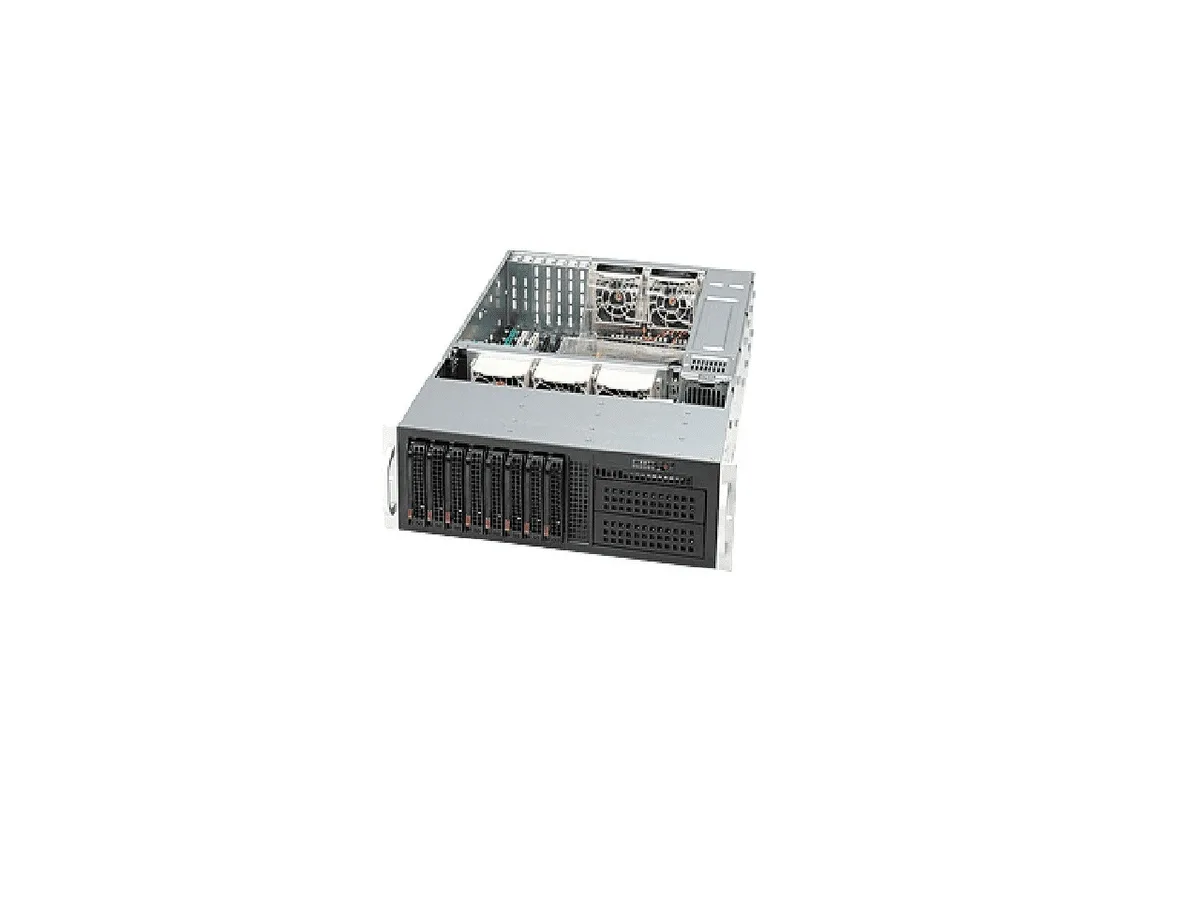

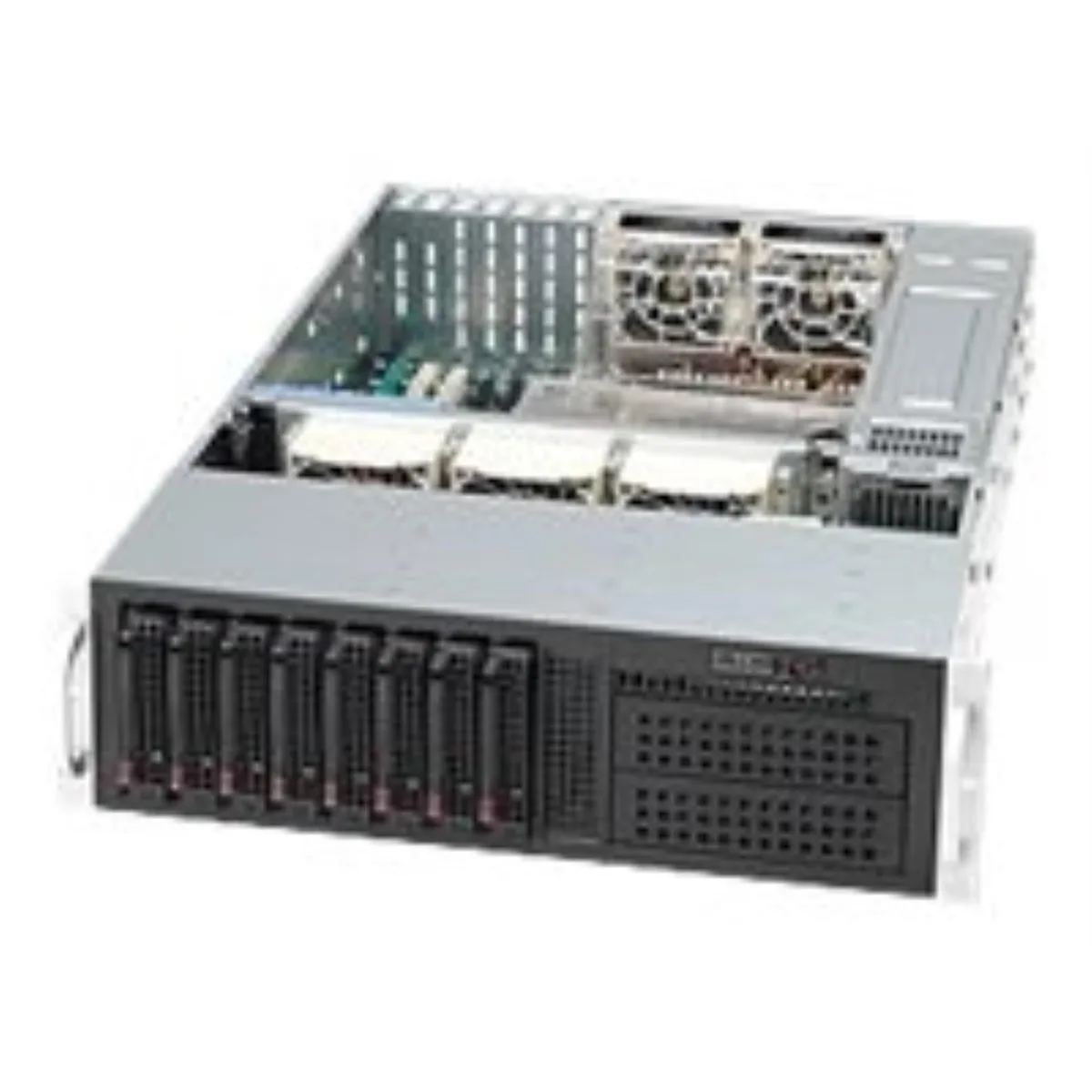

Silver 3U rack chassis with eight 3.5-inch hot-swap bays, two 5.25-inch bays, redundant 920W PSU and front fan modules

Supermicro

Supermicro CSE-835TQ-R921B 3U server chassis 920W redundant PSU

SKU CH-6BBJ-YNC3E MPN CSE-835TQ-R921B

3U chassis holds eight 3.5" hot-swap SAS/SATA drives and two 5.25" bays with redundant 920W Platinum power supply

  • Supports E-ATX and ATX motherboards in a 3U form factor
  • Eight hot-swap bays for 3.5-inch SAS and SATA drives
  • Two 5.25-inch drive bays for optical or accessory storage
  • Redundant 920-watt Platinum power supply with PMBus monitoring
  • Seven full-height full-length expansion slots for add-in cards

3U server chassis with redundant 920W PSU

This 3U rackmount chassis accepts E-ATX and ATX motherboards and ships with a 1U 920W redundant Platinum power supply featuring PMbus monitoring. Eight 3.5" hot-swap bays support SAS and SATA drives, while two 5.25" bays remain available for optical or auxiliary devices. Seven full-height, full-length expansion slots provide room for multiple add-in cards.

Hot-swap drive cage and cooling layout

The backplane uses the SAS833/835 design with an AMI MG9072 controller, allowing drive replacement without tools or downtime. Three 80mm hot-swap PWM fans at the front and two 80mm rear hot-swap exhaust PWM fans maintain airflow and can be swapped while the system runs. Redundant power modules and fan trays are all accessible from the front or rear for simplified service.

Verify motherboard and rail compatibility

Confirm that your E-ATX or ATX board fits the 3U mounting pattern and that the seven expansion slots align with your card layout. Ensure the rack depth can accommodate the chassis and that the 920W redundant supply meets the total power draw of your planned components. Buyers needing 2.5" drive support or front USB 3.0 ports should look elsewhere.

주요 특징

  • Supports E-ATX and ATX motherboards in a 3U form factor
  • Eight hot-swap bays for 3.5-inch SAS and SATA drives
  • Two 5.25-inch drive bays for optical or accessory storage
  • Redundant 920-watt Platinum power supply with PMBus monitoring
  • Seven full-height full-length expansion slots for add-in cards

사양

이 상품에 대해 아직 공개된 사양이 없습니다.

이 상품에 대한 질문

What backplane interface does the SAS833/835 panel use, and what drive types does it support?

The SAS833/835 backplane with AMI MG9072 connects 8 hot-swap 3.5" bays for SAS and SATA drives.

What motherboard form factors fit in this 3U chassis, and how many full-height slots are available?

It accepts E-ATX and ATX boards and provides 7 full-height, full-length expansion slots.

How are the redundant power supplies installed, and what is the common oversight?

Slide both 1U 920W Platinum modules into the front bays until they latch; the step often missed is seating the PMbus connector on each unit.
