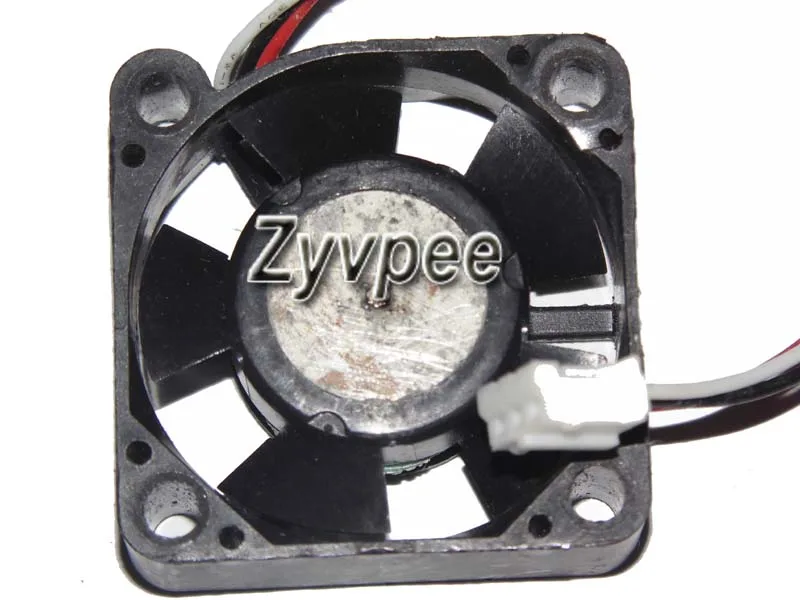

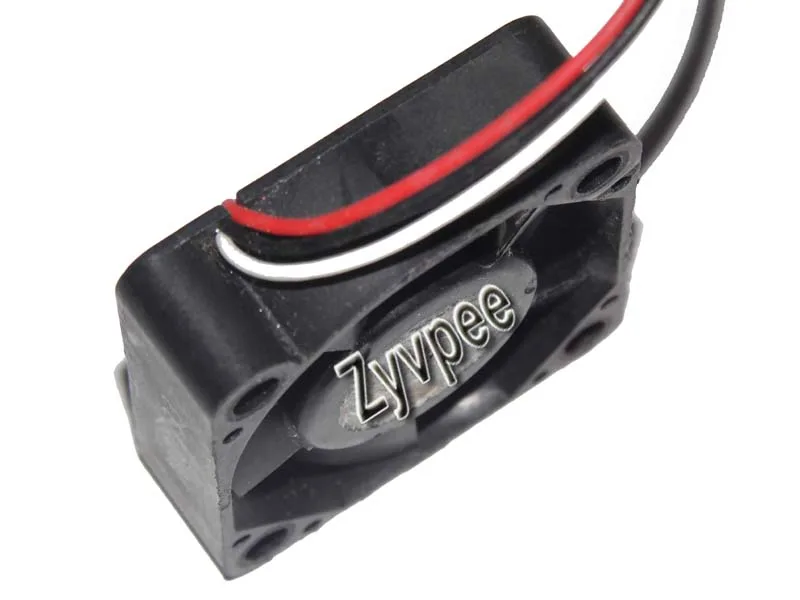

Zyvpee 1204KL-04W-B59 30x10mm 12V 3-pin case fan

Zyvpee 30 mm Micro Case Fan

The Zyvpee 1204KL-04W-B59 is a 30 by 10 millimetre DC micro cooler designed for tight spaces inside a computer chassis. It runs on 12 volts and draws 0.12 amps through a three-pin power connector. The black frame houses a ball bearing for durable rotation. No LED lighting is included.

Suits Compact Builds Needing Spot Airflow

Builders working on small form factor systems, embedded boards or custom brackets where a standard 120 millimetre fan cannot fit will find this size useful. The three-wire connection allows basic speed monitoring but not PWM control. Buyers who need higher static pressure, larger air volume or four-pin regulation should look at something else.

Simple Three-Pin Mount in Confined Areas

Installation consists of aligning the four screw holes and connecting the three-pin header to a compatible motherboard or controller. The 30 millimetre footprint leaves almost no margin for error when routing the short lead. The most common issue is discovering the connector cannot reach the header without an extension cable.
