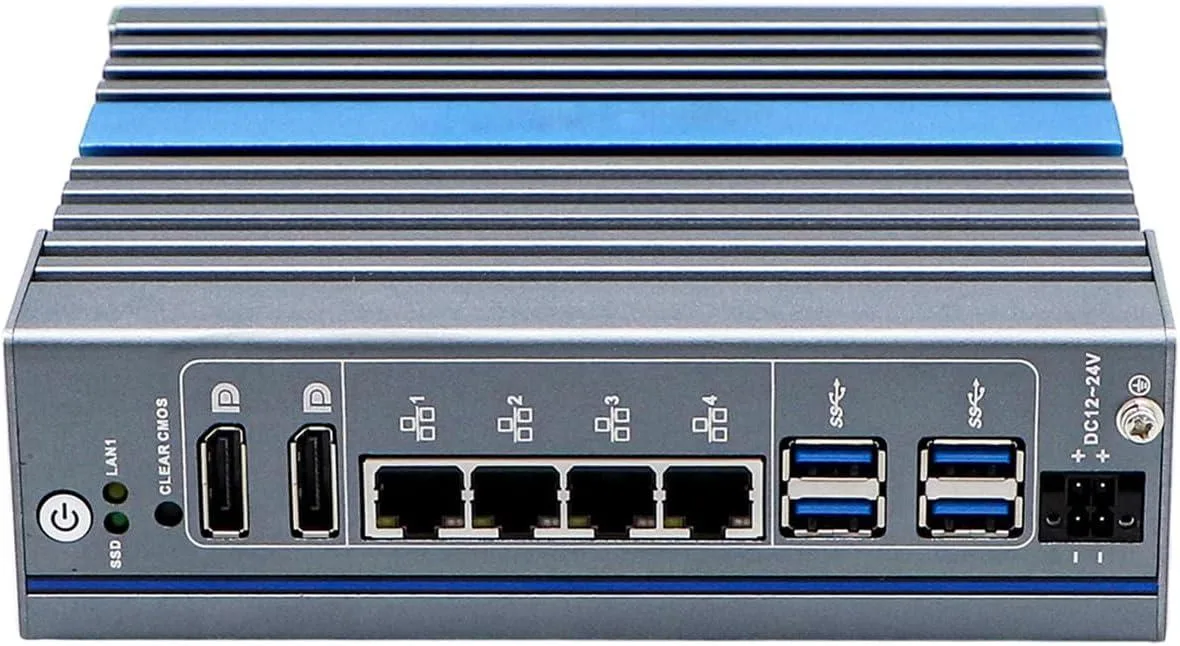

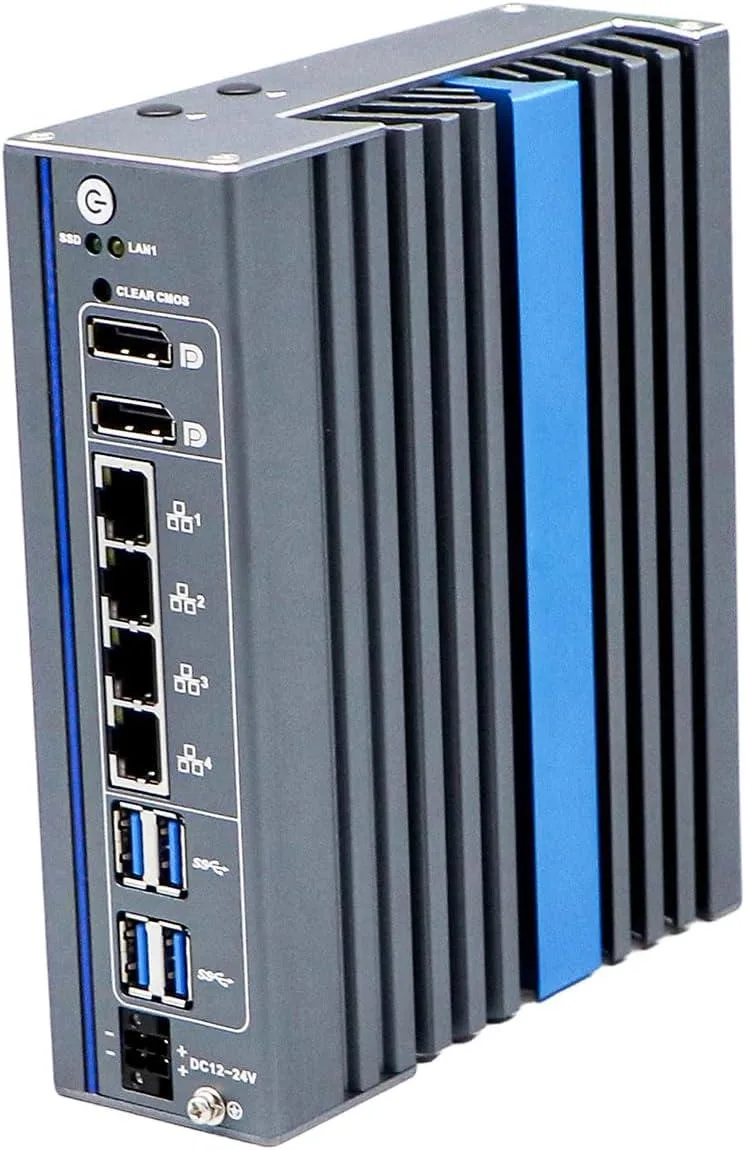

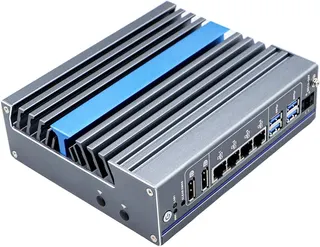

Gray rectangular fanless mini PC with aluminum finish and Phoenix power connector

partaker

partaker I19 i7-1255U barebone mini PC 32G 512G

SKU CH-TXVD-HNF4S

Fanless aluminium mini PC with an Intel Core i7-1255U, 32 GB DDR5, 512 GB storage, four Gigabit LAN ports, dual DisplayPort 8K output and 12–24 V Phoenix power input

  • ColorGray
  • CPU TypeIntel Core i7 12th Gen

I19 CPU I7 1255U 32GB RAM / 512GB SSD

  • Fanless aluminium alloy runs silently from -20°C to +60°C
  • i7-1255U with 10 cores and 12 threads reaches 4.7 GHz
  • 32 GB DDR5 4800 MT/s installed, expandable to 64 GB
  • 512 GB NVMe SSD plus mSATA and Mini PCIe slots
  • Four Gigabit LAN ports, one vPro, dual DP up to 7680×4320 @60 Hz

Industrial fanless barebone for edge workloads

The Partaker I19 is a book-style mini PC built around an Intel Core i7-1255U processor with 10 cores and 12 threads reaching 4.7 GHz. It ships with 32 GB of DDR5-4800 memory and a 512 GB SSD installed. The all-aluminium chassis operates silently from -20 °C to 60 °C, targeting industrial automation, digital signage and rugged edge deployments.

Passive cooling with 15-55 W TDP range

Fanless thermal design dissipates heat across the full aluminium body without moving parts, so acoustic output is zero in normal use. The CPU sustains its 15-55 W configurable TDP across the rated temperature span while humidity tolerance reaches 95 % non-condensing. Power enters through a 12-24 V Phoenix terminal fed by an included 100-240 V AC adapter rated at 7.5 A.

Replaces noisy embedded boxes or rack units

The four Intel Gigabit LAN ports, dual DisplayPort outputs at 7680 x 4320 @ 60 Hz and legacy COM expansion suit installations that previously needed a larger fan-cooled appliance. The jump is worth it when silence, wide-voltage input and an operating envelope of -20 °C to 60 °C are mandatory. Buyers who need internal 2.5-inch drive bays or PCIe add-in cards cannot use this chassis.

Pluspunten

  • Fanless aluminium alloy runs silently from -20°C to +60°C
  • i7-1255U with 10 cores and 12 threads reaches 4.7 GHz
  • 32 GB DDR5 4800 MT/s installed, expandable to 64 GB
  • 512 GB NVMe SSD plus mSATA and Mini PCIe slots
  • Four Gigabit LAN ports, one vPro, dual DP up to 7680×4320 @60 Hz

Specificaties

ColorGray
CPU TypeIntel Core i7 12th Gen

Andere versies van dit model

Nog 5 in dezelfde serie

Dezelfde familie, met ander geheugen, andere koeler of kloksnelheid — vergelijk voordat u beslist.

Vragen over dit artikel

How do I install the DDR5 RAM and what step is often missed?

Insert each stick into the two SODIMM slots at 4800 MT/s until the clips lock; the step often missed is seating both modules fully so the system recognises the full 32 GB.

Which storage slots may need a drive replacement later?

The M.2 2280 slot (SATA or NVMe PCIe x1) and the mSATA slot hold the 512 GB SSD; either can be swapped when capacity or speed demands change.

What thermal limit appears first during continuous heavy load?

The fanless aluminium chassis is rated to 60 °C ambient; sustained loads pushing the 15-55 W TDP envelope will hit that ceiling before any throttling occurs.
