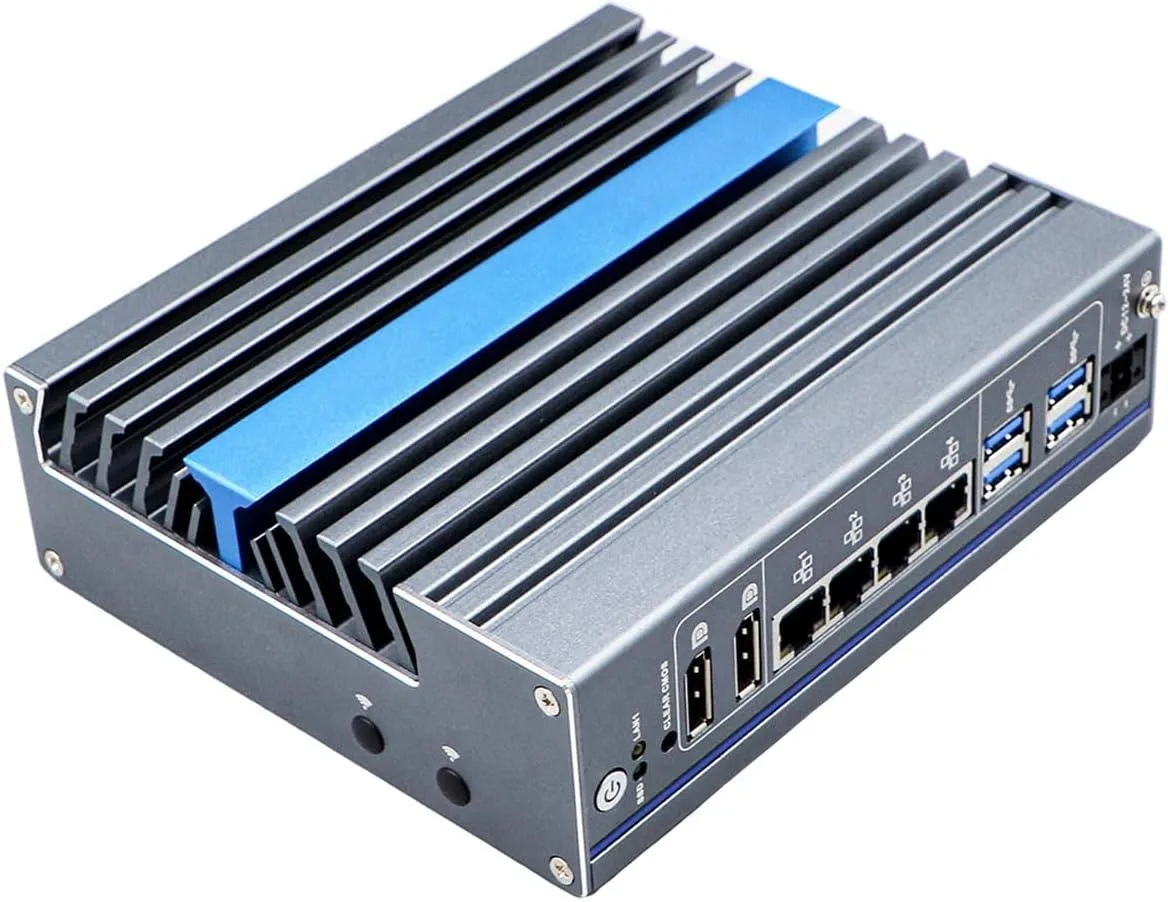

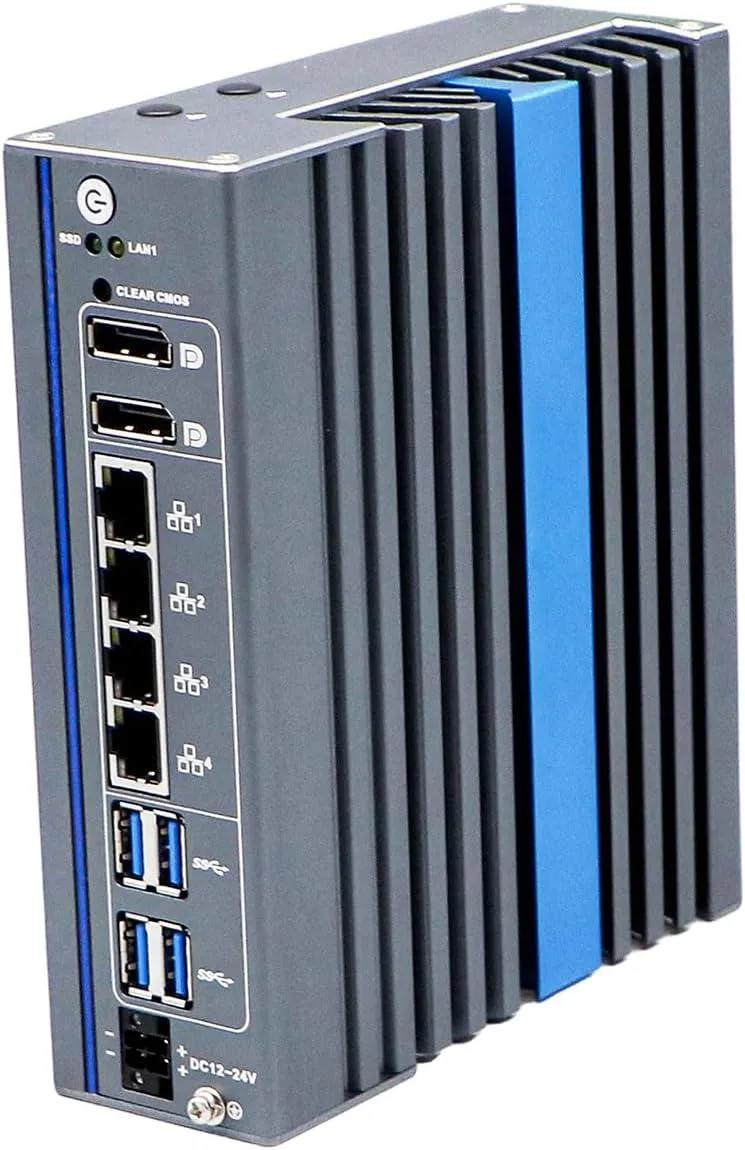

Gray aluminium book-style mini PC, 205 x 146 x 50 mm

partaker

partaker I19 i5-1235U 32GB 512GB barebone mini PC

SKU CH-X8JA-Q02TX

Fanless industrial mini PC with a 10-core i5-1235U, 32 GB DDR5, 512 GB storage, four Gigabit LAN ports and dual 8K DisplayPort outputs

  • ColorGray
  • CPU TypeIntel Core i5 12th Gen

I19 CPU I5 1235U 32GB RAM / 512GB SSD

  • Fanless aluminium chassis runs silently from -20 °C to +60 °C
  • i5-1235U with 10 cores and 12 threads reaches 4.4 GHz
  • 32 GB DDR5 4800 MT/s installed, expandable to 64 GB
  • Four Gigabit LAN ports, one with vPro remote management
  • Dual DP outputs drive two 8K displays at 7680×4320 @60 Hz

Industrial Fanless Mini PC

The Partaker I19 is a book-style barebone built around an Intel Core i5-1235U processor with 10 cores and 12 threads reaching 4.4 GHz. It ships with 32 GB of DDR5 4800 MT/s memory and a 512 GB SSD installed. The all-aluminium chassis runs silently from -20 °C to 60 °C and accepts 12-24 V DC via a 4-pin Phoenix terminal for industrial power environments.

Verify Power And Expansion Needs

Confirm your site can supply 12-24 V DC through a 4-pin Phoenix connector before ordering. The unit provides four USB 3.0 ports, dual DisplayPort outputs and four Gigabit LAN ports, one supporting vPro remote management. Internal expansion includes one M.2 2280 slot for NVMe or SATA, one mSATA slot and one full-length Mini PCIe slot with a Nano-SIM socket for 4G or Wi-Fi modules.

Replaces Noisy Or Bulkier Industrial PCs

This fanless system replaces legacy rackmount or desktop boxes that require active cooling and wider operating-temperature margins. The jump is worth it when you need silent 24/7 operation in dusty, vibration-prone or temperature-extreme settings and want dual 8K display support plus quad LAN in a 205 x 146 x 50 mm footprint.

Pluspunten

  • Fanless aluminium chassis runs silently from -20 °C to +60 °C
  • i5-1235U with 10 cores and 12 threads reaches 4.4 GHz
  • 32 GB DDR5 4800 MT/s installed, expandable to 64 GB
  • Four Gigabit LAN ports, one with vPro remote management
  • Dual DP outputs drive two 8K displays at 7680×4320 @60 Hz

Specificaties

ColorGray
CPU TypeIntel Core i5 12th Gen

Andere versies van dit model

Nog 5 in dezelfde serie

Dezelfde familie, met ander geheugen, andere koeler of kloksnelheid — vergelijk voordat u beslist.

Vragen over dit artikel

What comes in the box and which parts must I source separately?

The package includes the I19 barebone, a 12 V 7.5 A power supply with Phoenix terminal, power cord, book-style mount and warranty card. RAM, SSD and any wireless or COM modules are not included.

Which memory and storage options fit the two DDR5 4800 MT/s slots and the M.2 2280 bay?

Two SODIMM DDR5 4800 MT/s modules up to 64 GB total, plus one M.2 2280 drive supporting SATA or NVMe PCIe x1; an mSATA slot is also available.

What does the 4.4 GHz turbo figure mean when the unit runs fanless at 60 °C ambient?

The i5-1235U can reach 4.4 GHz on its performance cores, but sustained speed depends on the all-aluminium chassis dissipating 15–55 W within the -20 °C to +60 °C operating range.
