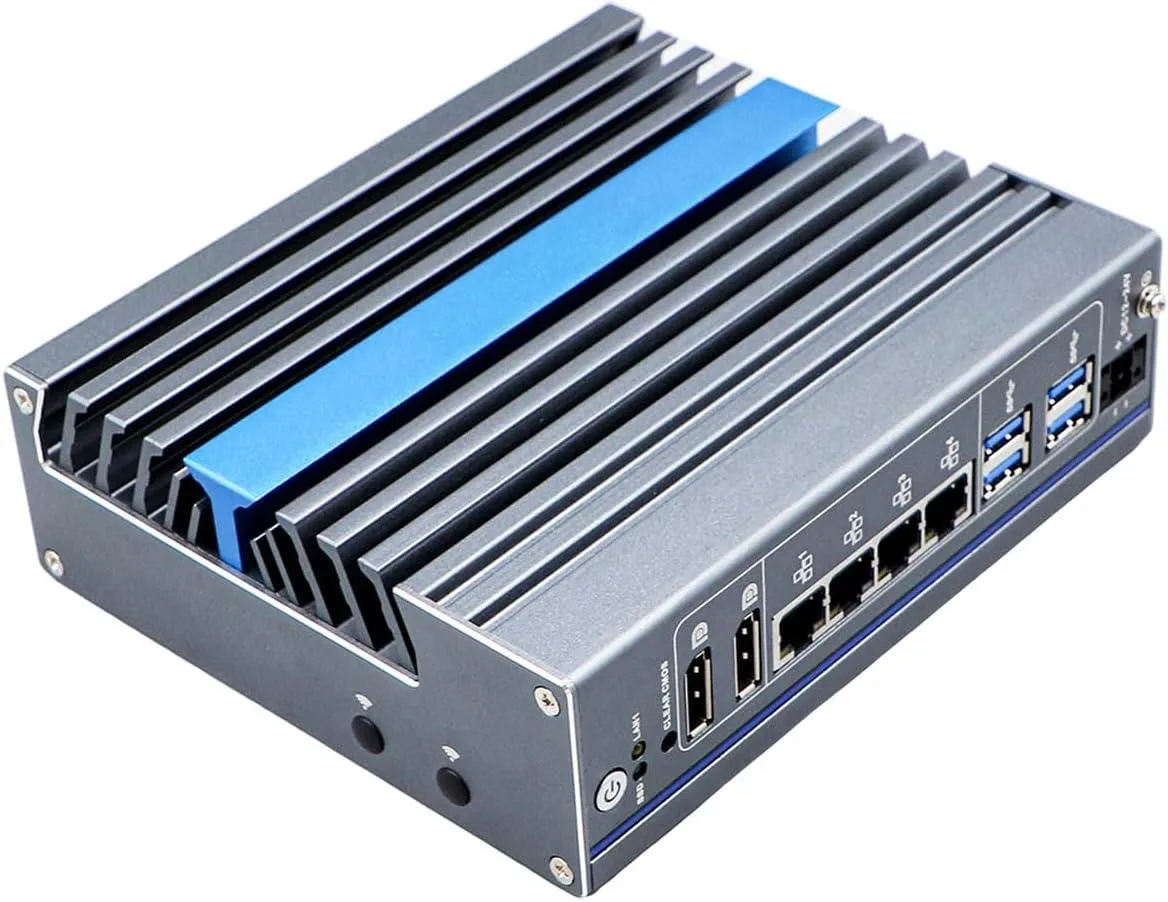

Gray aluminium fanless mini PC, book-style, 205 x 146 x 50 mm

partaker

Partaker I19 i5-1235U 8GB 128GB barebone mini PC

SKU CH-33XW-A4Y38

Fanless industrial mini PC with a 10-core i5-1235U, 8 GB DDR5, 128 GB SSD, four Gigabit LAN ports and dual 8K DisplayPort outputs

  • ColorGray
  • CPU TypeIntel Core i5 12th Gen

I19 CPU I5 1235U 8GB RAM / 128GB SSD

  • Fanless aluminium chassis operates from -20 °C to +60 °C for harsh environments
  • i5-1235U with 10 cores and 12 threads reaches 4.4 GHz for demanding workloads
  • Dual DDR5 4800 MHz slots support up to 64 GB memory capacity
  • Four Gigabit LAN ports plus one vPro-enabled port for remote management
  • Two DP outputs drive dual 7680 x 4320 displays at 60 Hz

Industrial Fanless Mini PC

The Partaker I19 is a book-style barebone built around an Intel Core i5-1235U with 10 cores and 12 threads reaching 4.4 GHz. It arrives with 8 GB of DDR5 4800 memory and a 128 GB SSD installed. The all-aluminium chassis runs silently from -20 °C to +60 °C, targeting integrators who need reliable edge compute in harsh environments.

Upgrade From Legacy Fanless Boxes

This unit replaces older fanless systems limited to dual-core processors, single LAN ports or SATA-only storage. The jump is worth it when you need four independent Gigabit Ethernet interfaces with one vPro-enabled, dual DisplayPort outputs at 7680x4320, and an M.2 slot accepting both NVMe and SATA drives alongside an mSATA bay.

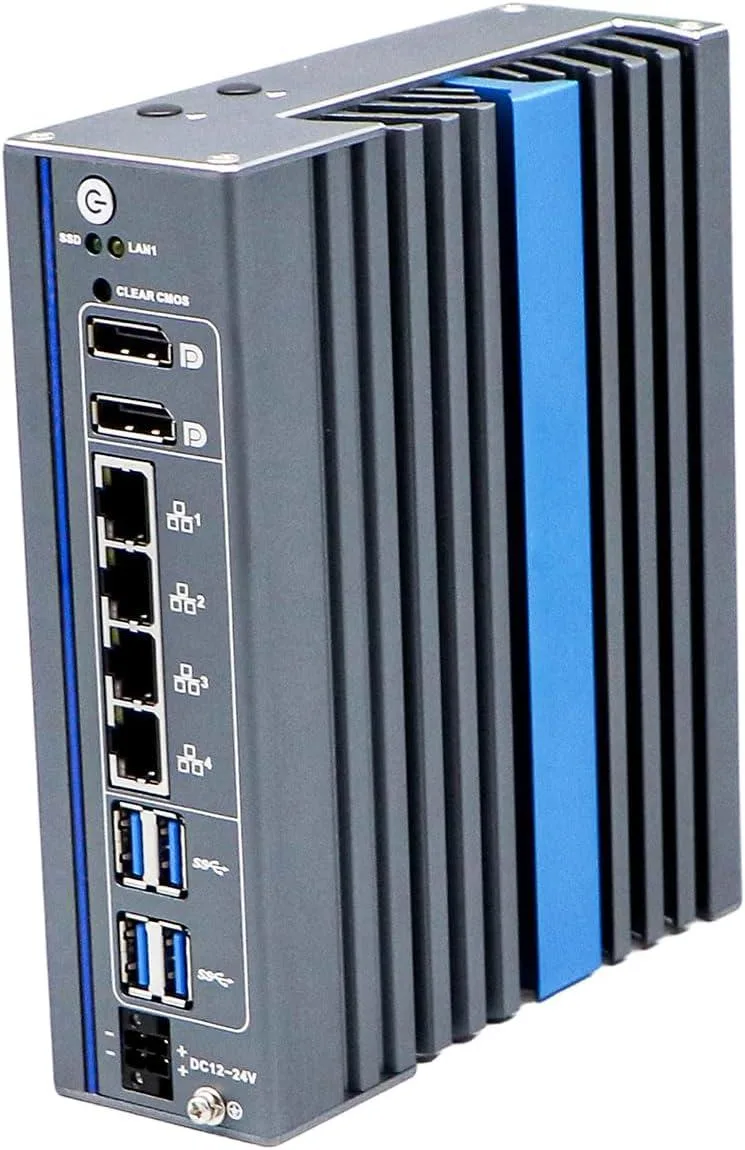

Simple DIN-Rail Integration

Mounting uses the supplied book-style bracket; the 12-24 V Phoenix terminal accepts wide-range DC input without a separate adapter. Common pitfalls include forgetting to populate the Nano-SIM for 4G modules, leaving the Mini PCIe slot keying unchecked for USB 2.0 versus PCIe signals, and exceeding the 64 GB RAM ceiling across the two SODIMM slots.

Pluspunten

  • Fanless aluminium chassis operates from -20 °C to +60 °C for harsh environments
  • i5-1235U with 10 cores and 12 threads reaches 4.4 GHz for demanding workloads
  • Dual DDR5 4800 MHz slots support up to 64 GB memory capacity
  • Four Gigabit LAN ports plus one vPro-enabled port for remote management
  • Two DP outputs drive dual 7680 x 4320 displays at 60 Hz

Specificaties

ColorGray
CPU TypeIntel Core i5 12th Gen

Andere versies van dit model

Nog 5 in dezelfde serie

Dezelfde familie, met ander geheugen, andere koeler of kloksnelheid — vergelijk voordat u beslist.

Vragen over dit artikel

What mounting hardware is included for the 205 x 146 x 50 mm chassis?

A book-style mount is supplied in the packing list for wall or surface attachment.

Which screw must be removed to access the two DDR5 4800 SODIMM slots and the M.2 2280, mSATA and Mini PCIe slots?

The bottom cover is secured by a single captive screw; removing it exposes all memory, storage and expansion sockets.

What is the rated lifespan of the fanless aluminium heatsink under continuous 15-55 W TDP load?

The solid-state heatsink has no moving parts and is rated for the full -20 °C to +60 °C operating range without degradation.
