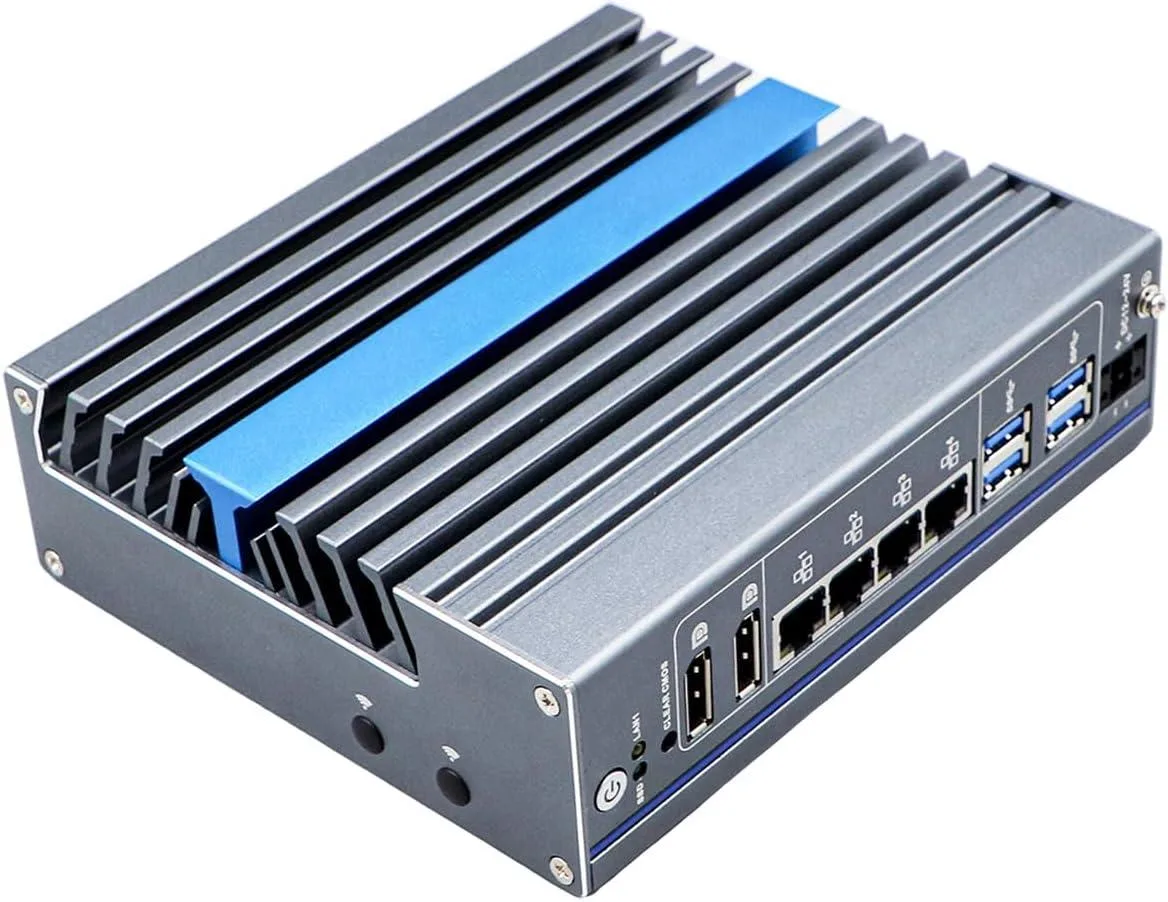

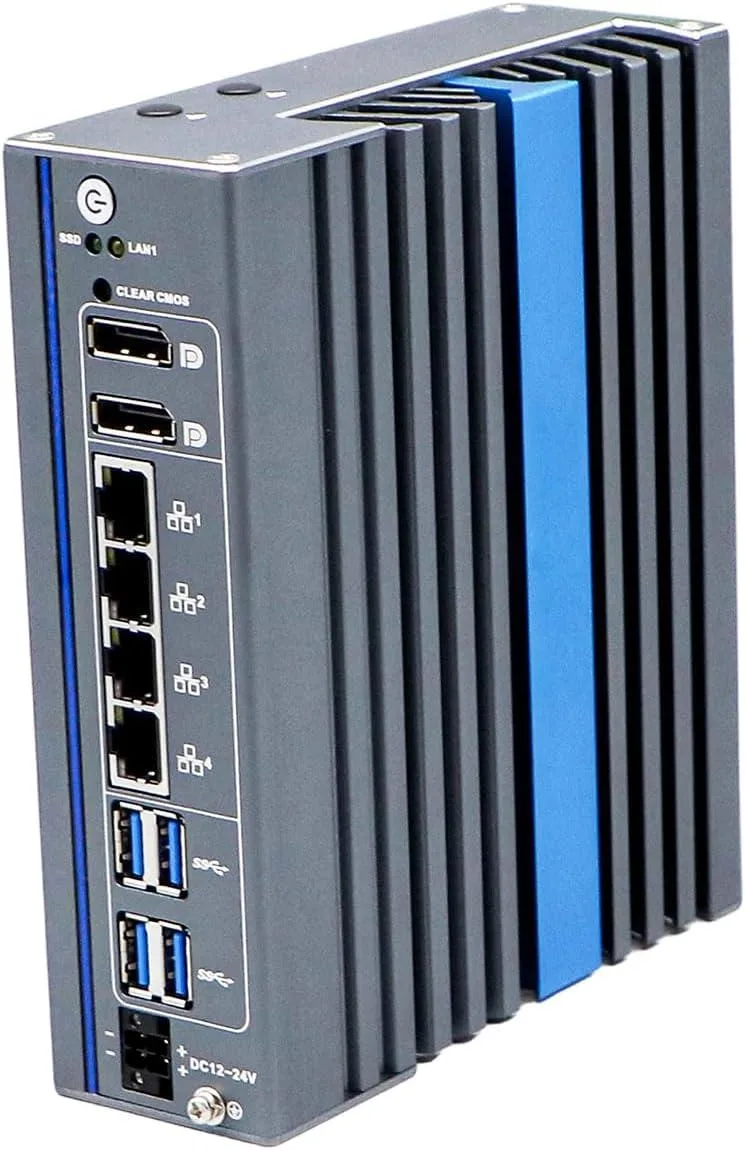

Gray aluminium book-style mini PC, fanless, compact rectangular shape

partaker

Partaker I19 Fanless Mini PC i5-1235U 64GB RAM 1TB SSD

SKU CH-161C-W9P2S

Fanless industrial mini PC with a 10-core i5-1235U, 64 GB DDR5, 1 TB storage, four Gigabit LAN ports and dual 8K DisplayPort outputs

  • ColorGray
  • CPU TypeIntel Core i5 12th Gen

I19 CPU I5 1235U 64GB RAM / 1TB SSD

  • Fanless aluminium chassis operates reliably from -20°C to +60°C
  • Intel Core i5-1235U delivers 10 cores and 12 threads up to 4.4 GHz
  • Dual-channel DDR5 4800 MT/s memory scales to 64 GB for demanding workloads
  • Four Gigabit LAN ports include one with vPro remote management
  • Dual DP outputs drive two 7680 x 4320 displays at 60 Hz

Industrial Fanless Mini PC

The Partaker I19 is a compact industrial computer built around an Intel Core i5-1235U processor with 10 cores and 12 threads. It ships with 64GB of DDR5 4800MT/s memory and a 1TB SSD pre-installed. The all-aluminium chassis dissipates heat silently across a -20°C to +60°C operating range. It targets automation, edge computing and digital signage deployments that demand rugged, noise-free operation.

Memory and Storage Headroom

Dual SODIMM slots are filled to the 64GB maximum, leaving no room for further RAM expansion. The M.2 2280 slot supports both NVMe and SATA drives alongside an mSATA bay, providing flexible storage growth. Four Gigabit LAN ports handle concurrent network streams, while dual DisplayPort outputs drive two 7680x4320 displays at 60Hz. The 15-55W TDP envelope defines the sustained performance ceiling under passive cooling.

Upgrade Path and Fit

This unit replaces legacy fan-based boxes that fail in dusty, vibration-prone or temperature-extreme settings. The wide 12-24V Phoenix power input suits unstable industrial supplies where standard AC adapters cannot operate. It is not for buyers who require internal PCIe add-in cards or more than 64GB of system memory. The Mini PCIe and Nano-SIM slots accept 4G or Wi-Fi modules for wireless connectivity.

Pluspunten

  • Fanless aluminium chassis operates reliably from -20°C to +60°C
  • Intel Core i5-1235U delivers 10 cores and 12 threads up to 4.4 GHz
  • Dual-channel DDR5 4800 MT/s memory scales to 64 GB for demanding workloads
  • Four Gigabit LAN ports include one with vPro remote management
  • Dual DP outputs drive two 7680 x 4320 displays at 60 Hz

Specificaties

ColorGray
CPU TypeIntel Core i5 12th Gen

Andere versies van dit model

Nog 5 in dezelfde serie

Dezelfde familie, met ander geheugen, andere koeler of kloksnelheid — vergelijk voordat u beslist.

Vragen over dit artikel

Will the i5-1235U and four Intel Gigabit LAN ports work with my existing Cat5e cabling and 1080p monitors?

The i5-1235U has 10 cores and 12 threads up to 4.4 GHz. Four Intel Gigabit LAN ports (three i210-AT, one i219-LM) and two DP outputs support 7680x4320 @60 Hz each.

How can I verify the fanless cooling keeps the i5-1235U within its 15-55 W TDP under load?

Monitor CPU package power and core temperatures in HWInfo or BIOS; the all-aluminium chassis is rated for -20 °C to +60 °C ambient.

Does the package include the 12-24 V Phoenix power supply and mounting hardware, or must I source them separately?

The packing list includes the Partaker I19 unit, a 12 V 7.5 A power supply with 4-pin Phoenix terminal, power cord, book-style mount, and warranty card.
