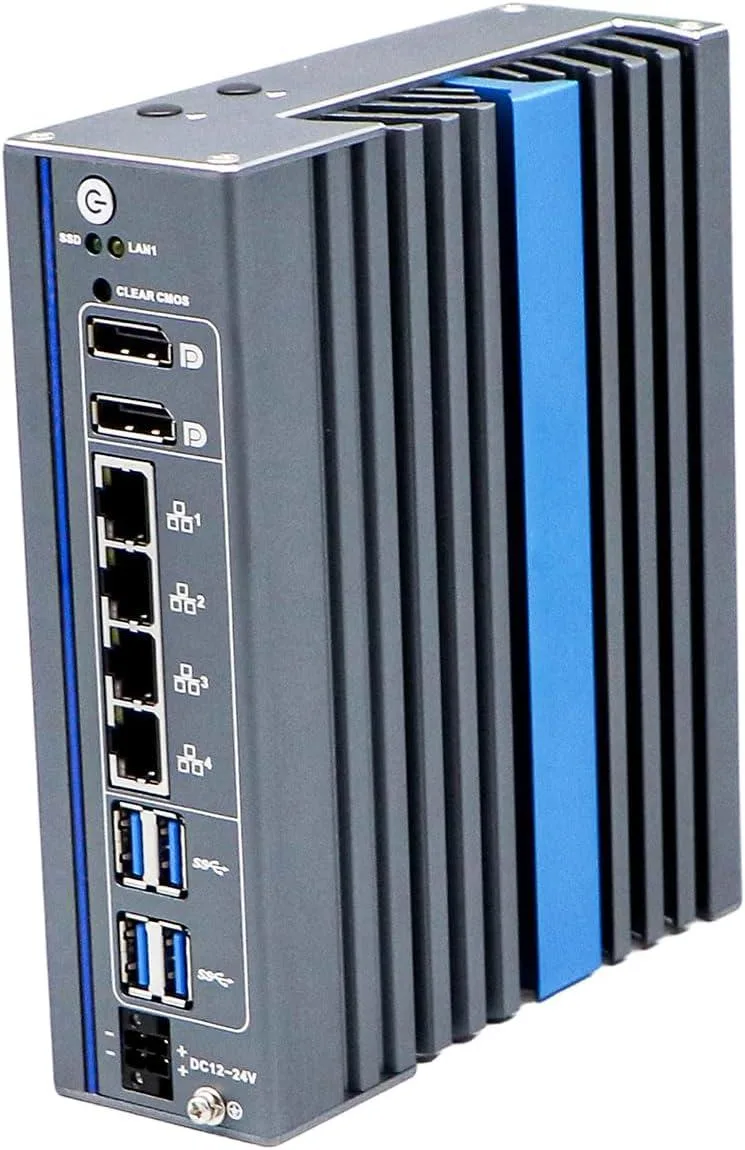

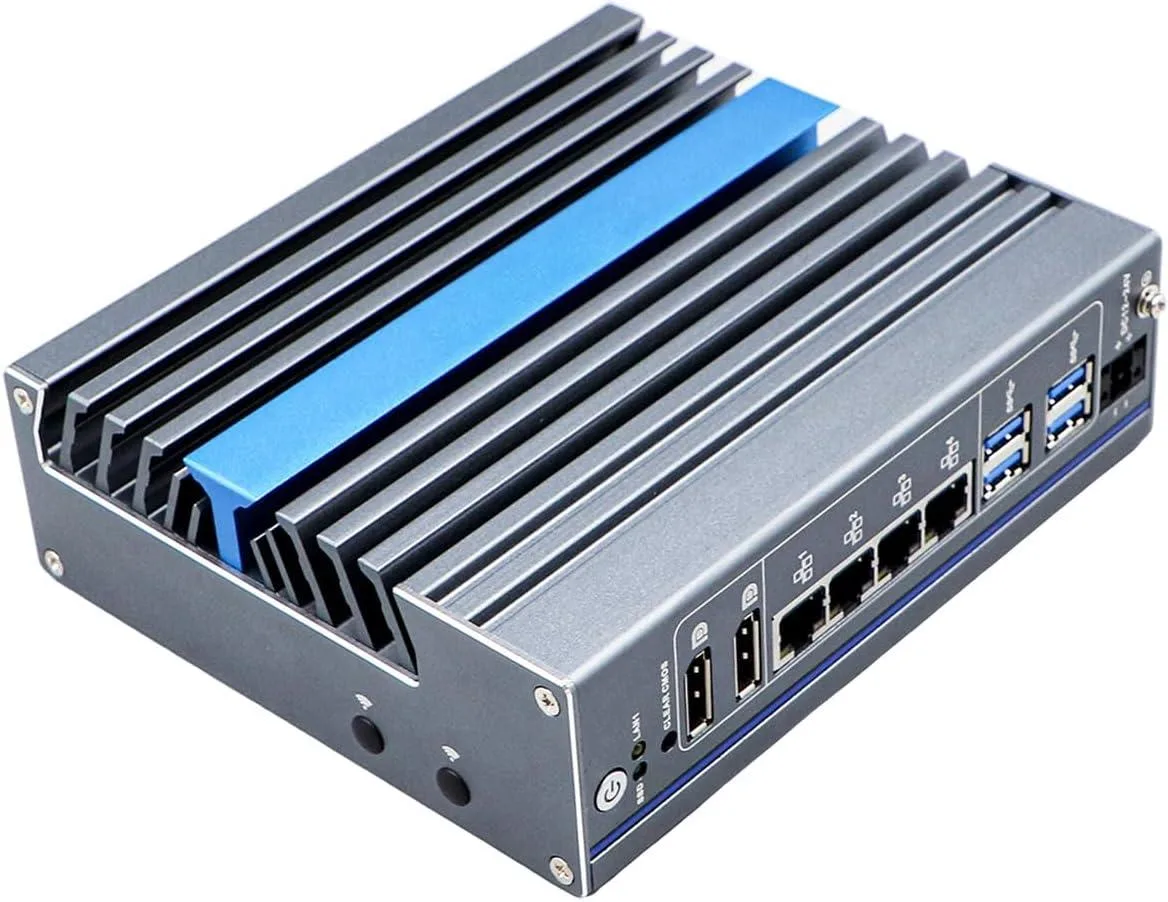

Gray fanless mini PC with aluminum alloy chassis and Phoenix power terminal

partaker

partaker I19 i5-1235U 16GB 512GB barebone mini PC

SKU CH-C7DP-2644W

Fanless aluminium mini PC with Core i5-1235U, 16 GB DDR5, 512 GB SSD, four Gigabit LAN ports and dual 8K DisplayPort outputs

  • ColorGray
  • CPU TypeIntel Core i5 12th Gen

I19 CPU I5 1235U 16GB RAM / 512GB SSD

  • Fanless aluminium chassis runs silently from -20 °C to +60 °C
  • i5-1235U delivers 10 cores and 12 threads up to 4.4 GHz
  • Dual DP outputs drive two 8K displays at 7680 × 4320 @ 60 Hz
  • Four Gigabit LAN ports include one with vPro remote management
  • Wide 12–24 V Phoenix power input suits industrial installations

Industrial barebone mini PC

The Partaker I19 is a fanless, book-style mini PC built around an Intel Core i5-1235U processor with 10 cores and 12 threads. It ships with 16 GB of DDR5-4800 memory and a 512 GB SSD installed. The all-aluminium chassis operates silently from -20 °C to +60 °C, making it suited for industrial automation, edge computing and digital signage deployments.

Build integration and expansion

Dual DDR5 SODIMM slots allow memory upgrades to 64 GB, while one M.2 2280 slot and one mSATA slot provide flexible storage expansion. A full-length Mini PCIe slot with a Nano-SIM socket accepts 4G, Wi-Fi or Bluetooth modules. Four Gigabit LAN ports — one with vPro remote management — plus four USB 3.0 ports and optional dual COM ports handle diverse industrial I/O requirements.

Upgrade context

This unit replaces legacy fan-cooled industrial PCs that struggle with dust, vibration or wide temperature ranges. The silent fanless design eliminates moving-part failures, and the 12–24 V Phoenix terminal input simplifies power integration in cabinet installations. Buyers who need more than four Ethernet ports or internal PCIe x4 expansion should consider larger chassis solutions.

Pluspunten

  • Fanless aluminium chassis runs silently from -20 °C to +60 °C
  • i5-1235U delivers 10 cores and 12 threads up to 4.4 GHz
  • Dual DP outputs drive two 8K displays at 7680 × 4320 @ 60 Hz
  • Four Gigabit LAN ports include one with vPro remote management
  • Wide 12–24 V Phoenix power input suits industrial installations

Specificaties

ColorGray
CPU TypeIntel Core i5 12th Gen

Andere versies van dit model

Nog 5 in dezelfde serie

Dezelfde familie, met ander geheugen, andere koeler of kloksnelheid — vergelijk voordat u beslist.

Vragen over dit artikel

Will the i5-1235U throttle at 55 W TDP when the fanless chassis hits 60 °C?

The processor runs at 15–55 W inside an all-aluminium case rated for -20 °C to +60 °C ambient, so sustained load stays within thermal limits without active cooling.

How loud and hot does the unit get during 24/7 operation?

Fanless design means zero acoustic noise; the aluminium enclosure acts as a heatsink and is specified for continuous use up to 60 °C ambient with 5–95 % humidity.

Which power supply do I need to have on hand before the mini PC will start?

A 12 V 7.5 A source with a 4-pin Phoenix terminal is required; the box includes a matching 100–240 V AC adapter and power cord.
