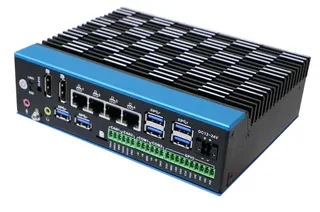

Compact black-grey aluminium mini PC, book-style, single-side ports

partaker

partaker I37 i7-1255U 16GB 512GB barebone mini PC

SKU CH-D8ER-A7KY3

Industrial mini PC with Core i7-1255U, 16 GB DDR5, 512 GB storage, four Gigabit LAN ports, dual DisplayPort, six USB 3.0, isolated RS485 and GPIO, 12–24 V DC input, and -20 °C to 60 °C operation

  • ColorBlack gray
  • CPU TypeIntel Core i7 12th Gen

I37 CPU I7 1255U 16GB RAM / 512GB SSD

  • Intel Core i7-1255U with 10 cores and 12 threads reaches 4.7 GHz for demanding workloads
  • 16 GB DDR5 4800 MHz memory and 512 GB SSD deliver fast responsiveness out of the box
  • Four Gigabit LAN ports including one with vPro enable reliable network redundancy
  • Dual DisplayPort outputs support up to 7680 x 4320 at 60 Hz for multi-monitor setups
  • Wide 12-24 V DC input and -20 °C to +60 °C operation suit industrial environments

Compact industrial mini PC for automation

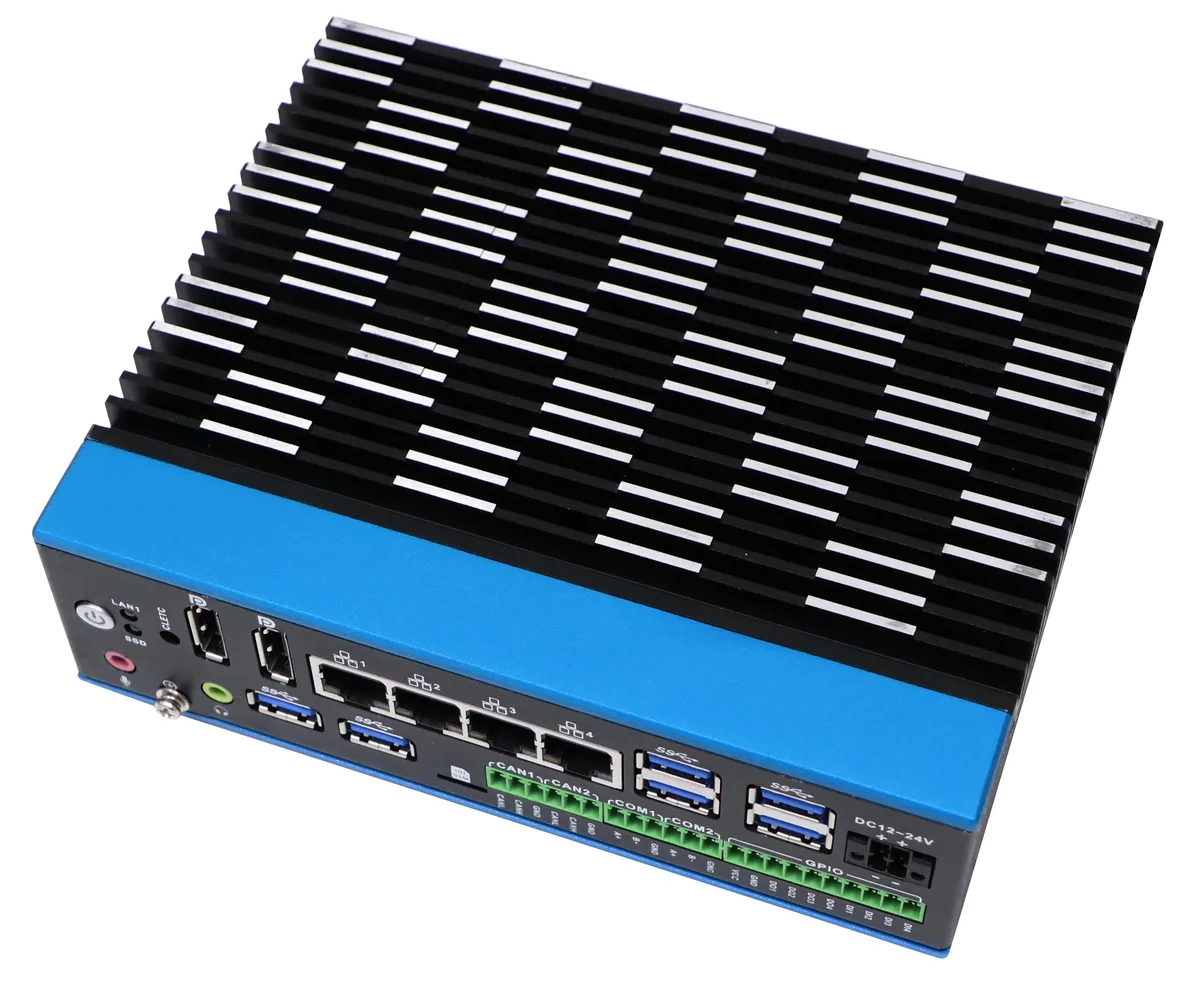

The Partaker I37 integrates an Intel Core i7-1255U with 10 cores and 12 threads reaching 4.7 GHz, paired with 16 GB of DDR5 4800 MHz memory and a 512 GB SSD. Its all-aluminium chassis uses active cooling and a single-side I/O layout to fit inside cabinets, AGV platforms, or machine-tending stations where space is limited.

Aluminium chassis with wide-voltage input

The unit accepts 12 V to 24 V DC through a 4-pin Phoenix connector and operates from -20 °C to +60 °C with an industrial SSD. Wall-mount brackets are included, while DIN-rail and desktop options extend placement flexibility for continuous 24/7 duty cycles in factory environments.

Pre-installed memory and storage plus expansion

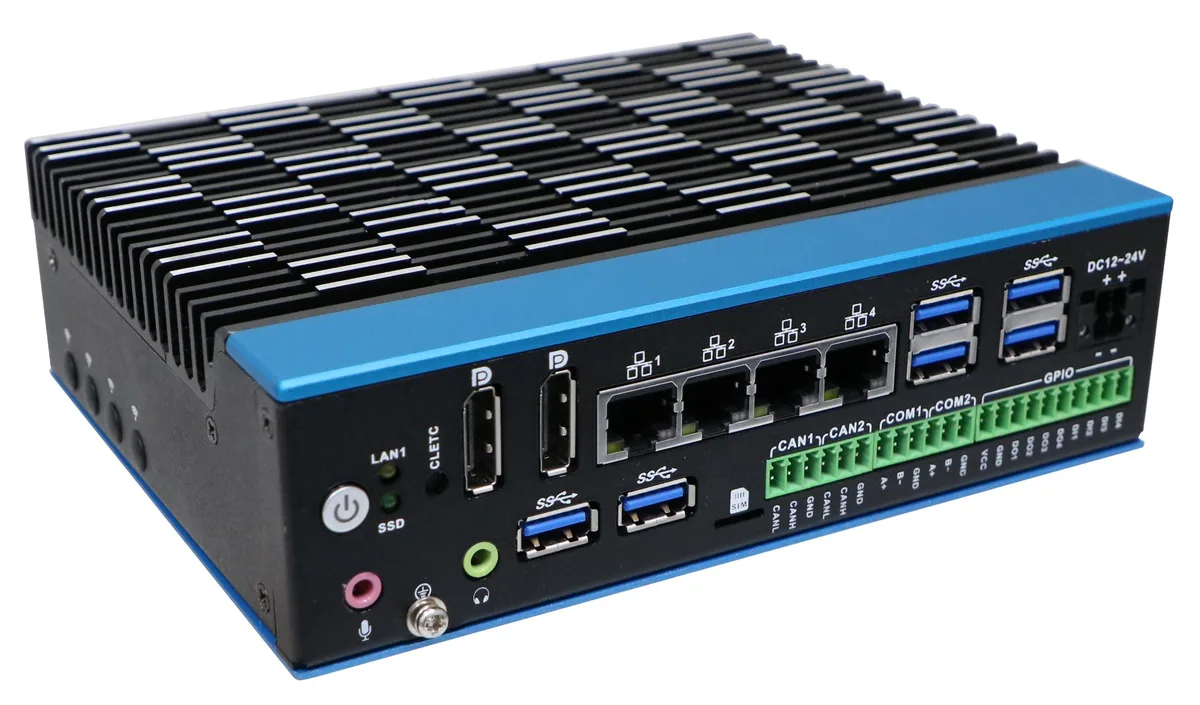

Two DDR5 SODIMM slots support up to 64 GB total, and the M.2 2280 slot alongside an mSATA socket allow additional SATA or NVME drives. Three Mini PCIe slots and an M.2 3052 B-key with a Nano-SIM slot enable 4G/5G or Wi-Fi modules, while isolated RS485, GPIO and optional CAN ports connect directly to sensors and actuators.

Pluspunten

  • Intel Core i7-1255U with 10 cores and 12 threads reaches 4.7 GHz for demanding workloads
  • 16 GB DDR5 4800 MHz memory and 512 GB SSD deliver fast responsiveness out of the box
  • Four Gigabit LAN ports including one with vPro enable reliable network redundancy
  • Dual DisplayPort outputs support up to 7680 x 4320 at 60 Hz for multi-monitor setups
  • Wide 12-24 V DC input and -20 °C to +60 °C operation suit industrial environments

Specificaties

ColorBlack gray
CPU TypeIntel Core i7 12th Gen

Andere versies van dit model

Nog 5 in dezelfde serie

Dezelfde familie, met ander geheugen, andere koeler of kloksnelheid — vergelijk voordat u beslist.

Vragen over dit artikel

Does the dual DisplayPort output really reach 7680×4320 at 60 Hz?

Yes, the two DisplayPort connectors support up to 7680×4320@60 Hz from the Intel Iris Xe graphics.

What clearance is needed for the 172×136×50 mm chassis and the included wall-mount bracket?

The unit measures 172×136×50 mm without the bracket; allow extra depth for the single-side I/O cables and the bracket itself.

How is the 12-24 V DC supply connected, and what mistake should be avoided?

Power enters via a 4-pin Phoenix connector; wire the polarity correctly — reverse voltage will damage the board.
