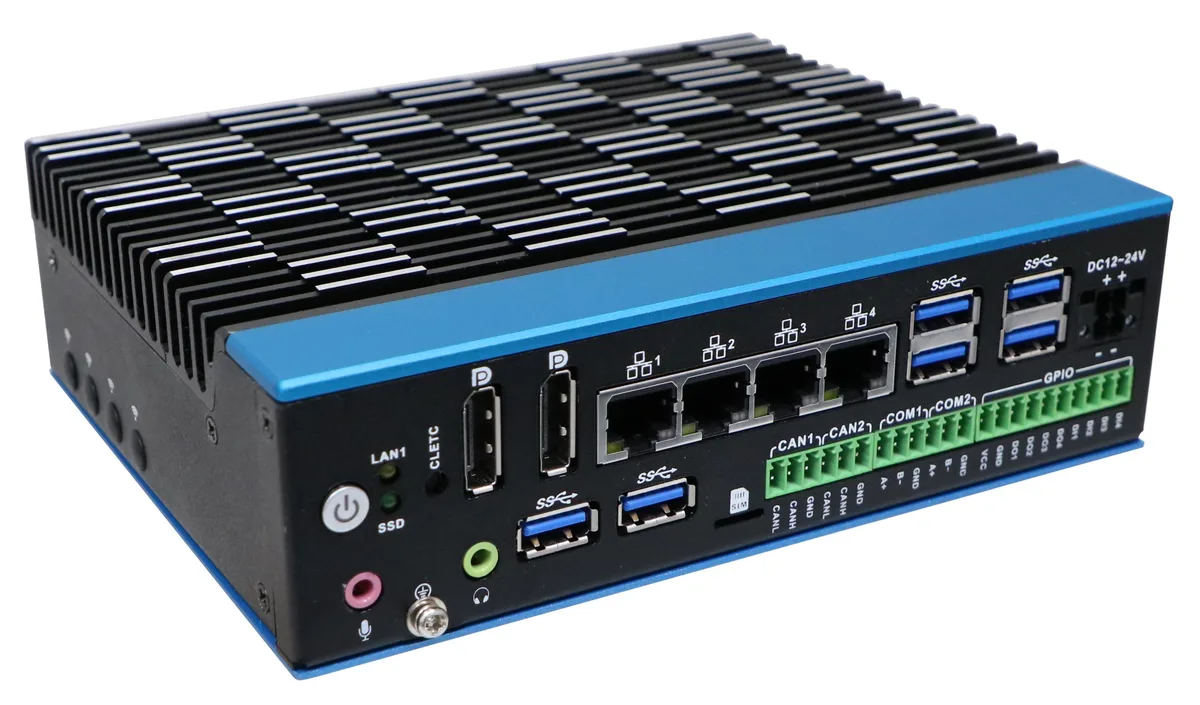

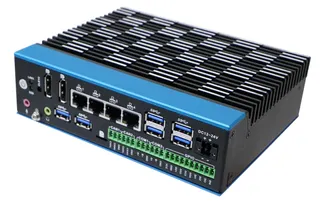

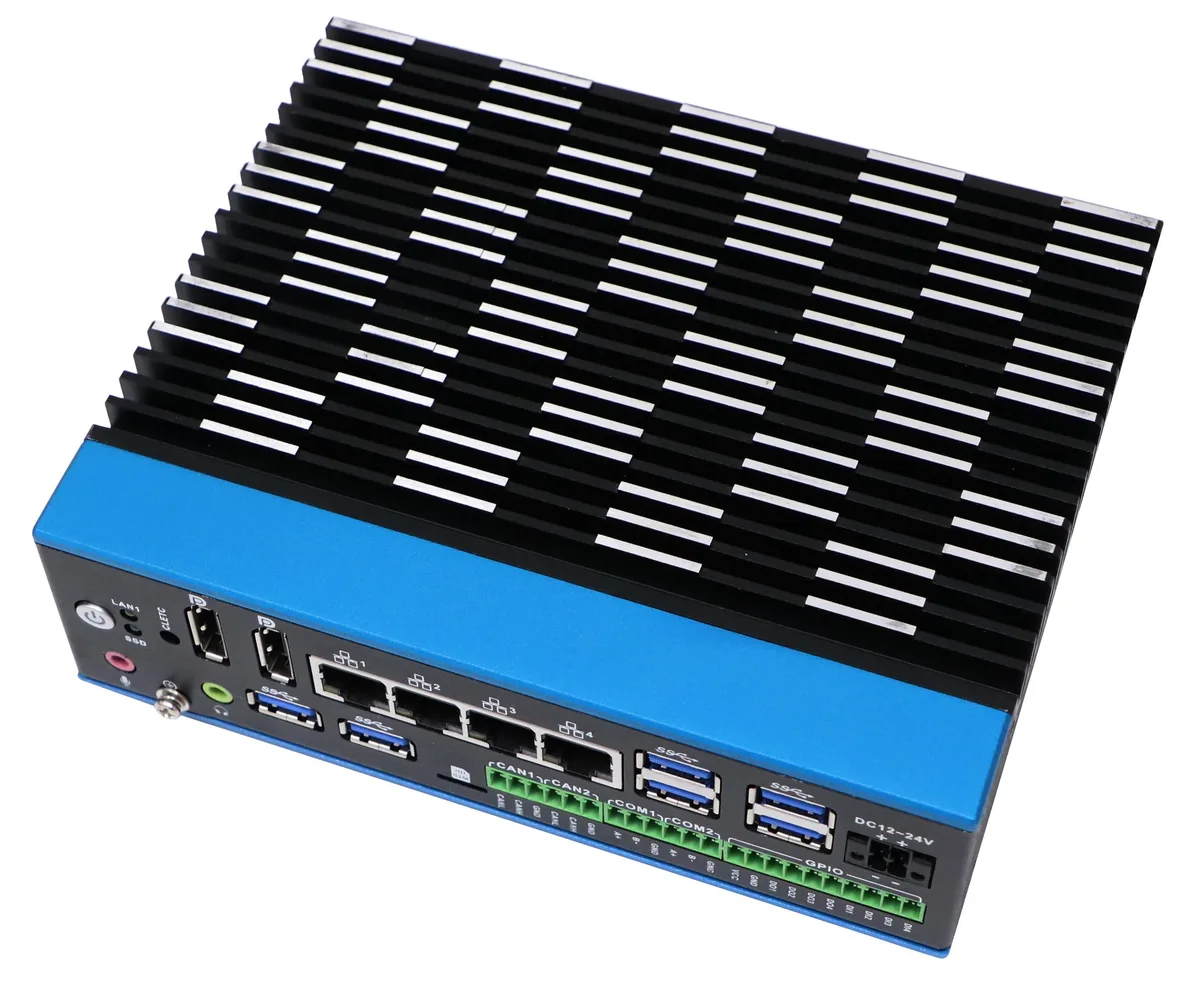

Compact black-grey aluminium mini PC with single-side ports

partaker

partaker I37 Core i7-1255U 8G RAM 256G SSD barebone mini PC

SKU CH-ZA10-WSSSH

Industrial mini PC with Core i7-1255U, 8 GB DDR5, 256 GB storage, four Gigabit LAN ports, dual DisplayPort, six USB 3.0, isolated RS485 and GPIO, 12-24 V DC input, -20 to 60 °C operation

  • ColorBlack gray
  • CPU TypeIntel Core i7 12th Gen

I37 CPU I7 1255U 8GB RAM / 256GB SSD

  • 10-core i7-1255U reaches 4.7 GHz for responsive compute
  • Dual DDR5 4800 MHz slots support up to 64 GB memory
  • Four Gigabit LAN ports with one vPro-enabled for management
  • Dual DisplayPort drives 7680×4320 at 60 Hz
  • 12-24 V DC input runs -20 °C to 60 °C industrial range

Compact industrial barebone with Core i7-1255U

The Partaker I37 is a book-style mini PC built around an Intel Core i7-1255U processor with ten cores and twelve threads reaching 4.7 GHz. Its all-aluminium chassis uses active cooling and a single-side I/O layout for tight industrial cabinets. The system ships with 8 GB of DDR5 4800 MHz memory and a 256 GB SSD installed.

Memory expandable to 64 GB

Two SODIMM slots accept DDR5 4800 MHz modules up to 64 GB total. One M.2 2280 M-key slot takes SATA or NVME SSDs and one mSATA slot provides additional storage flexibility. The pre-installed 256 GB drive handles OS and applications while the open slots allow capacity growth for data logging or edge workloads.

Four Gigabit LAN ports and isolated industrial I/O

Three Intel i210-AT and one i219-LM controller give four Gigabit Ethernet ports with vPro support on LAN1. Six USB 3.0 ports include two with reverse-flow protection. Two optically isolated RS485 ports on 3-pin Phoenix connectors and eight-channel isolated GPIO rated to 924V suit factory automation. Optional isolated CAN modules fit the reserved Mini PCIe slot. 12-24 V DC input via 4-pin Phoenix connector powers the unit from -20 °C to +60 °C.

Pluspunten

  • 10-core i7-1255U reaches 4.7 GHz for responsive compute
  • Dual DDR5 4800 MHz slots support up to 64 GB memory
  • Four Gigabit LAN ports with one vPro-enabled for management
  • Dual DisplayPort drives 7680×4320 at 60 Hz
  • 12-24 V DC input runs -20 °C to 60 °C industrial range

Specificaties

ColorBlack gray
CPU TypeIntel Core i7 12th Gen

Andere versies van dit model

Nog 5 in dezelfde serie

Dezelfde familie, met ander geheugen, andere koeler of kloksnelheid — vergelijk voordat u beslist.

Vragen over dit artikel

Will the 12-24 V DC input on the Partaker I37 let me keep using my existing 24 V industrial power supply?

Yes, the unit accepts a wide 12-24 V DC range through a 4-pin Phoenix connector, so a standard 24 V supply works without modification.

How can I confirm the Intel Iris Xe graphics are driving both DisplayPort outputs at 7680x4320@60 Hz after installation?

Connect two monitors, open the Intel Graphics Command Center, and verify each DP port reports 7680x4320 at 60 Hz with HDR enabled.

The box lists 8 GB DDR5 and a 256 GB SSD — do I need to buy any RAM modules or drives separately to start working?

No, the system ships with one 8 GB DDR5 4800 MHz SODIMM installed and a 256 GB M.2 2280 SSD populated, so it boots straight to the OS.
