Green circuit board with two blue USB Type-A ports on a metal bracket, a 20-pin internal header, and a 15-pin SATA power connector

EN-Labs

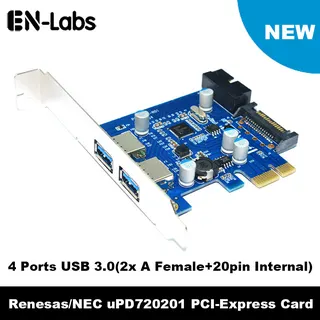

EN-Labs PCE4USB-RS1 4-Port USB 3.0 PCIe Expansion Card

SKU CH-VSRQ-W0CDV

Adds four USB 3.0 ports — two external Type-A and two via a 20-pin internal header — through a PCIe x1 slot with SATA power for high-draw devices

  • TypePCI Express to USB Card
  • External USB Ports2 Ext / 2 Int
  • SpecificationsBus Type:PCI Express Type Standard:Profile (LP bracket incl.
  • FeaturesAdd 4 USB 3.0 ports(2 x Type A + 20 Pin Interna) through a P

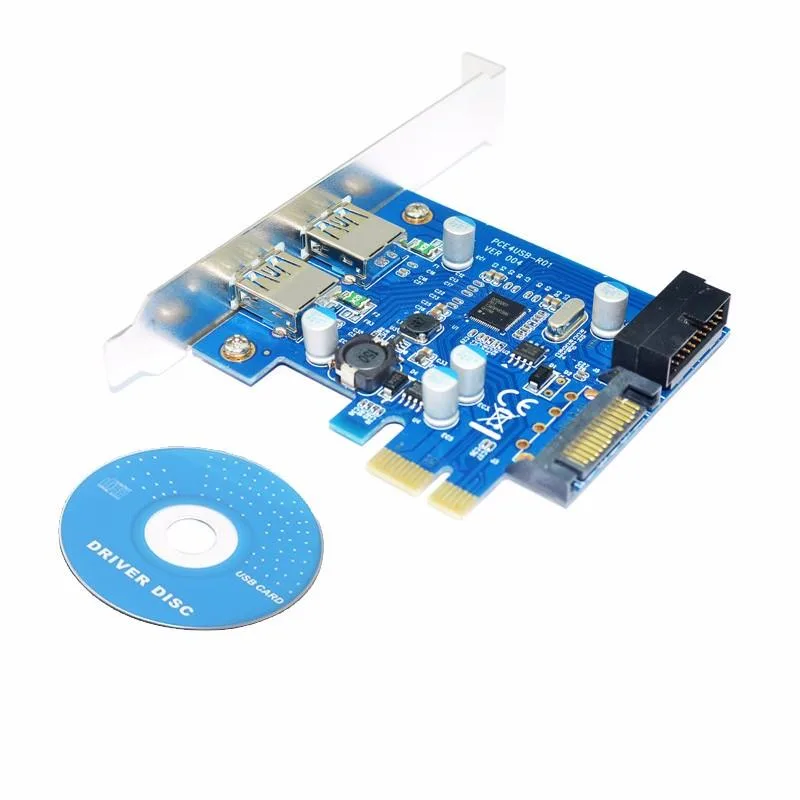

  • Package Contents1 x PCIe USB 3.0 PCI express card 1 x Driver CD

Model 2x Type A – Ext

  • Add four USB 3.0 ports via a single PCIe slot
  • Two external Type-A ports for direct peripheral access
  • Internal 20-pin header adds two front-panel USB 3.0 ports
  • NEC UPD720201 chipset delivers 5 Gbps per port
  • 15-pin SATA power connector supports high-draw devices

EN-Labs 4-Port USB 3.0 PCIe Card

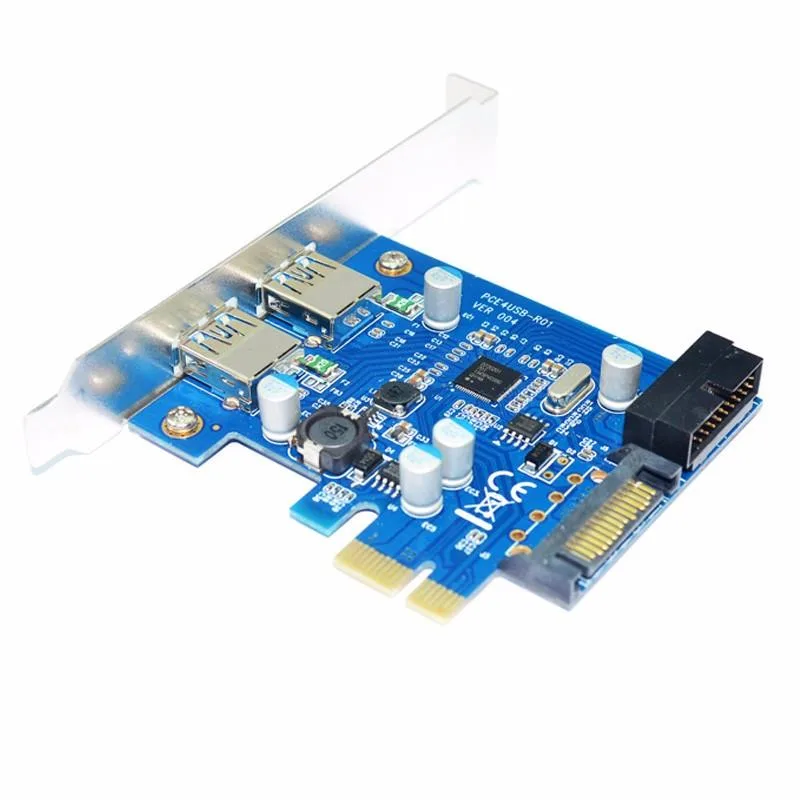

This EN-Labs expansion card adds four USB 3.0 ports to a desktop computer through an available PCI Express slot. It provides two external Type-A ports and two internal ports via a 20-pin header for front-panel connectivity. The card suits builders who need more USB 3.0 connections for peripherals or front-panel upgrades.

Installation notes and common issues

The card fits PCIe x1, x4, x8 and x16 slots and includes a full-profile bracket with a low-profile bracket supplied. A 15-pin SATA power connector is present on the board and must be connected for power-hungry devices; forgetting this cable is the most frequent reason ports appear dead. Driver installation from the included CD or a download is required before the ports become active.

NEC UPD720201 chipset and 5 Gbps limit

The NEC UPD720201 controller delivers up to 5 Gbps per port and is backward compatible with USB 2.0 and USB 1.1 devices. The single PCIe 2.0 x1 host link caps total throughput at the same 5 Gbps, so simultaneous heavy traffic on all four ports will share that bandwidth. Buyers needing higher aggregate throughput or more than four ports should choose a different solution.

Najważniejsze cechy

  • Add four USB 3.0 ports via a single PCIe slot
  • Two external Type-A ports for direct peripheral access
  • Internal 20-pin header adds two front-panel USB 3.0 ports
  • NEC UPD720201 chipset delivers 5 Gbps per port
  • 15-pin SATA power connector supports high-draw devices

Specyfikacja

BrandEn-Labs
ModelPCE4USB-RS1
TypePCI Express to USB Card
External USB Ports2 Ext / 2 Int
SpecificationsBus Type:PCI Express
Type Standard:Profile (LP bracket incl.)
Chipset:NEC UPD720201
Interface: USB 3.0 Port
Type and Rate :USB 3.0 - 5 Gbit/s
Connector Type(s): 1 - PCI Express x1 Male
External Ports: 2 - USB Type-A (9 pin) USB 3.0 Female
Internal Ports : 2 x US 3.0 Internal Ports (20 pin connector) front panel for floppy bay
Internal Ports : 1 - SATA 15 pin interface
FeaturesAdd 4 USB 3.0 ports(2 x Type A + 20 Pin Interna) through a PCI Express slot
Compatible with PCI-Express 2.0 stardard
Compatible with Super Speed USB 3.0 5Gbps stardard,backwards to USB 2.0 and USB 1.1
Compatible with XHCI specification 1.0
Chip set : NEC UPD720201
Maximum transfer speed : 5Gbps
Power by PCIe slot,no extra power adapter is needed, but still built-in power-enhanced SATA 15pin male Interface
Supports PCIe 1x, 4x, 8x, 16x Slot
Support Windows XP / 2003 / Win7 / Win8 / Vista / Linux
Package Contents1 x PCIe USB 3.0 PCI express card
1 x Driver CD

Inne wersje tego modelu

Jeszcze 2 w tej samej serii

Ta sama rodzina, inna pamięć, inne chłodzenie lub taktowanie — proszę porównać przed decyzją.

Pytania dotyczące tego produktu

How do I confirm the NEC UPD720201 chipset is running at 5 Gbps after installation?

Check Device Manager under Universal Serial Bus controllers; the card should appear as a USB 3.0 host controller. Run a file transfer to a USB 3.0 flash drive and verify speeds approach 5 Gbps.

What comes in the box and which cable must I supply?

The package includes the PCIe card, a low-profile bracket, and a driver CD. You must provide a SATA 15-pin power cable from your PSU to the card's onboard connector.

Should I choose the 20-pin internal header or the two external Type-A ports for front-panel USB 3.0?

Use the 20-pin internal header to add two USB 3.0 ports to your case front panel; the two external Type-A ports are fixed at the rear bracket for rear-access devices.
