Green PCIe x1 card with two USB-C and five USB-A ports, full-height bracket

ESTONE

ESTONE PCIE25A2C3.2 7-Port USB 3.2 PCIe Expansion Card

SKU CH-E09W-0JSKV

Adds seven USB 3.2 ports — two Type-C and five Type-A — through a PCI Express x1 slot, sharing 20 Gbps total bandwidth with up to 30 W per Type-C port

  • TypePCI to USB Card
  • External USB Ports7x USB Ports
  • StandardUSB 3.1
  • Data Transfer RateUp to 10 Gbps
  • Operating Systems SupportedWindows 7/8/10/11
  • CompatibilityWidely Compatibility: The card is compatible with Windows 7/
  • Add seven USB ports through one PCIe x1 slot
  • Two USB-C ports deliver up to 30W charging each
  • Five USB-A ports supply up to 7.5W per port
  • Shared 20 Gbps bandwidth across all seven ports
  • Works with Windows 7 through 11 and Mac OS 10.8.2+

7-Port USB 3.2 PCIe Expansion Card

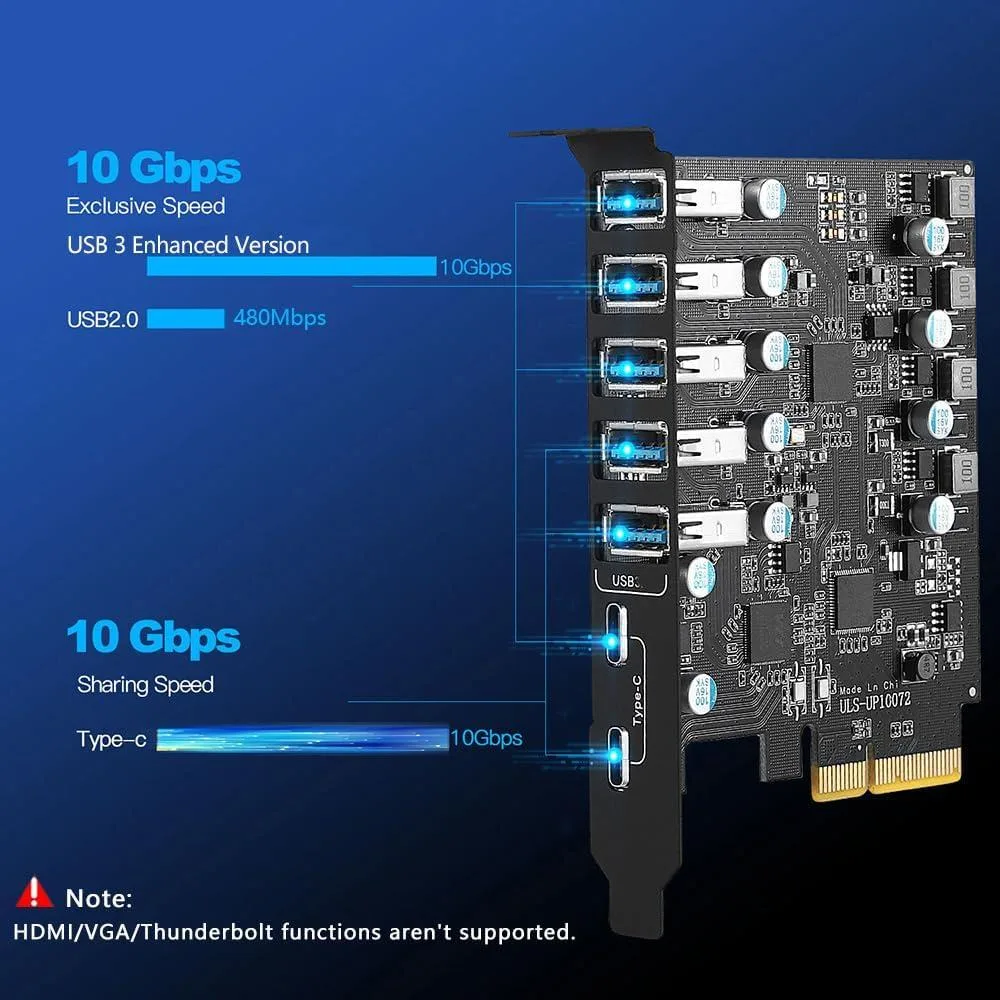

The ESTONE PCIE25A2C3.2 adds seven USB 3.2 ports to a desktop through a single PCI Express x1 slot. Two ports use the USB-C connector and five use the standard USB-A shape. The card targets builders who need more high-speed ports for external drives, cameras or peripherals without occupying drive bays. It does not suit systems that lack a free PCIe x1 or larger slot.

Build quality and daily connectivity

The card draws power directly from the PCIe bus so no external power cable is required. Each USB-C port can deliver up to 30W for charging phones, tablets or laptops while each USB-A port supplies up to 7.5W under the BC 1.2 scheme. An onboard over-current protection chip and IEC 61000-4-2 ESD compliance help protect the host and attached devices during hot-plug events. The low-profile bracket fits standard and slim chassis alike.

Driver disc and bandwidth sharing

A driver CD is included for Windows XP, Vista, 7 and Server 2008 while Windows 10, 11 and Mac OS 10.8.2 or later work without extra software. The seven ports share a total 20 Gbps upstream bandwidth; a single port can reach 10 Gbps when used alone. Mounting screws and a printed manual complete the package for immediate installation.

Najważniejsze cechy

  • Add seven USB ports through one PCIe x1 slot
  • Two USB-C ports deliver up to 30W charging each
  • Five USB-A ports supply up to 7.5W per port
  • Shared 20 Gbps bandwidth across all seven ports
  • Works with Windows 7 through 11 and Mac OS 10.8.2+

Specyfikacja

BrandESTONE
SeriesPCIE25A2C3.2
ModelPCIE25A2C3.2
TypePCI to USB Card
External USB Ports7x USB Ports
StandardUSB 3.1
Data Transfer RateUp to 10 Gbps
Operating Systems SupportedWindows 7/8/10/11
CompatibilityWidely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 and above. The card only requires installing a driver which you can download from our CD driver, when operating on Windows 7. Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10/11 and Mac OS and Linux don't need drivers.
Specifications7 Ports PCI-E to USB 3.2 HUB PCI Express Expansion Card Adapter 10Gbps for Motherboard
You need to install the RENESAS/VLI USB3.0 driver for your computer first.
Supports PCI Express 2.0 X1 lane, can transferring up to 10Gbps.
PCI Express x1 slot card for usb expansion 7 Ports USB interface Card (2X USB-C - 5X USB-A)
Power Input: no need extral Power Connector
Power output: +/-5V / 900mA (each port)
Compatible: USB1.1/2.0/3.0/3.2
Operating Systems: Windows7/8/10(32/64bit)
?"
?
FeaturesUSB PCIe Card upgrades your desktop computer to 7 USB 3.2 ports (2x USB C,5x USB 3.2) via a PCI Express x1 slot.Solve the problem of fewer USB ports inside the computer host, allowing more USB data devices to be connected to your computer system
SuperSpeed USB 3.2: Supporting data transfer rates of up to 10Gbps, The overall transfer speed is 20 times faster than the old version USB 2.0,providing greater efficiency for your file transfers.(Note: Actual transfer speeds may be limited by the connected device.)
Easy to Use: Each port supports a maximum power of 5W (5V/1A), the pcie usb c
Dimensions4.92 x 4.06 x 1.06 inches
Weight3.2 ounces
Package Contents1x USB 3.2 PCI-E expansion card, 1x CD driver, 1 x installation screws, and 1x user manual.

Pytania dotyczące tego produktu

What practical bandwidth limit does the USB 3.2 Gen 2 interface impose on the seven ports?

The seven ports share a total 20 Gbps pool; each port can reach 10 Gbps when used alone, but simultaneous transfers divide that bandwidth.

What motherboard slot and physical clearance does the card require?

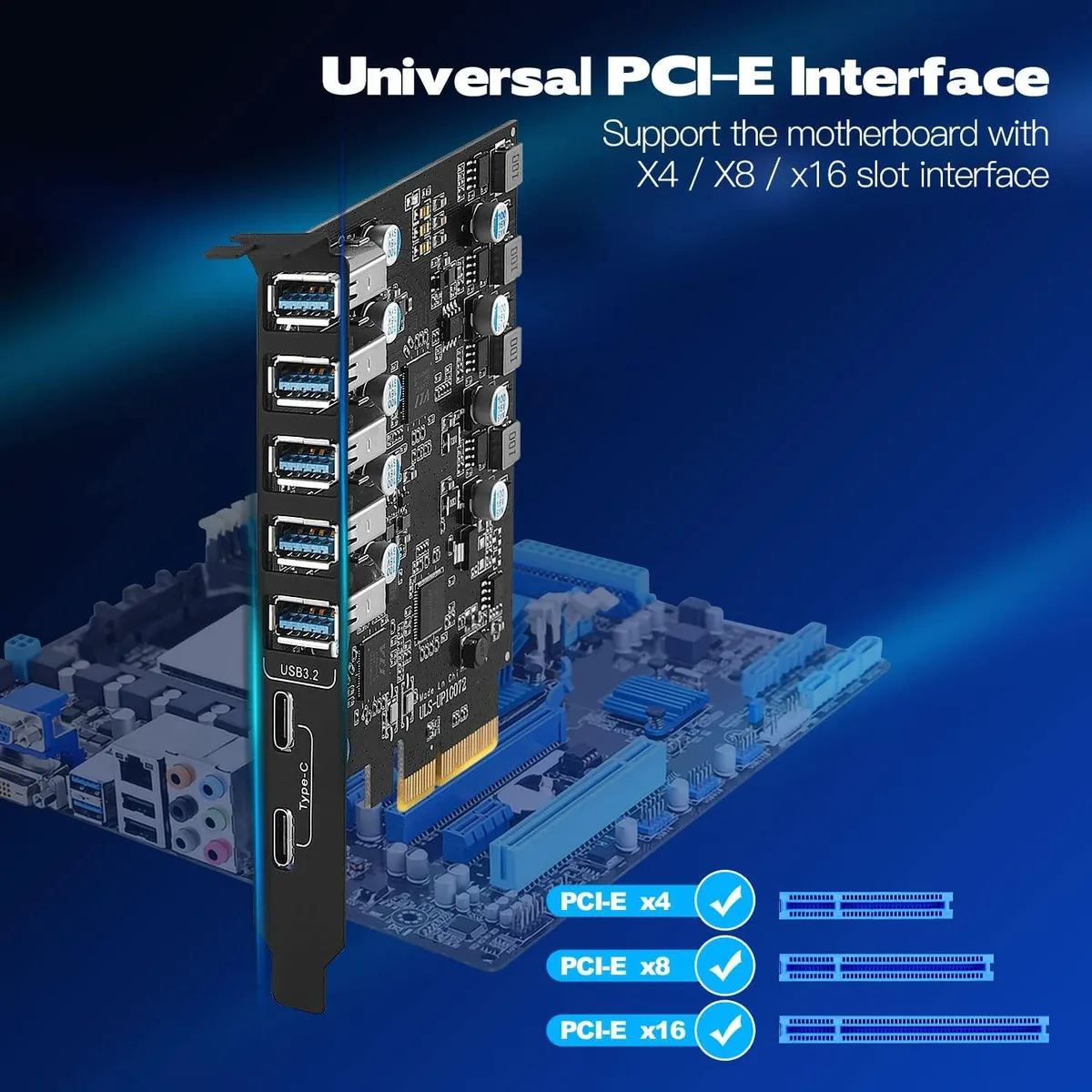

It fits any PCI Express x1, x4, x8 or x16 socket and measures 4.92 x 4.06 x 1.06 inches, so verify your case has room for a full-height bracket.

Which driver step is essential before the card works on Windows 7?

Install the RENESAS/VLI USB 3.0 driver from the included CD before booting; Windows 10 and Mac OS 10.8.2 or later load the driver automatically.
