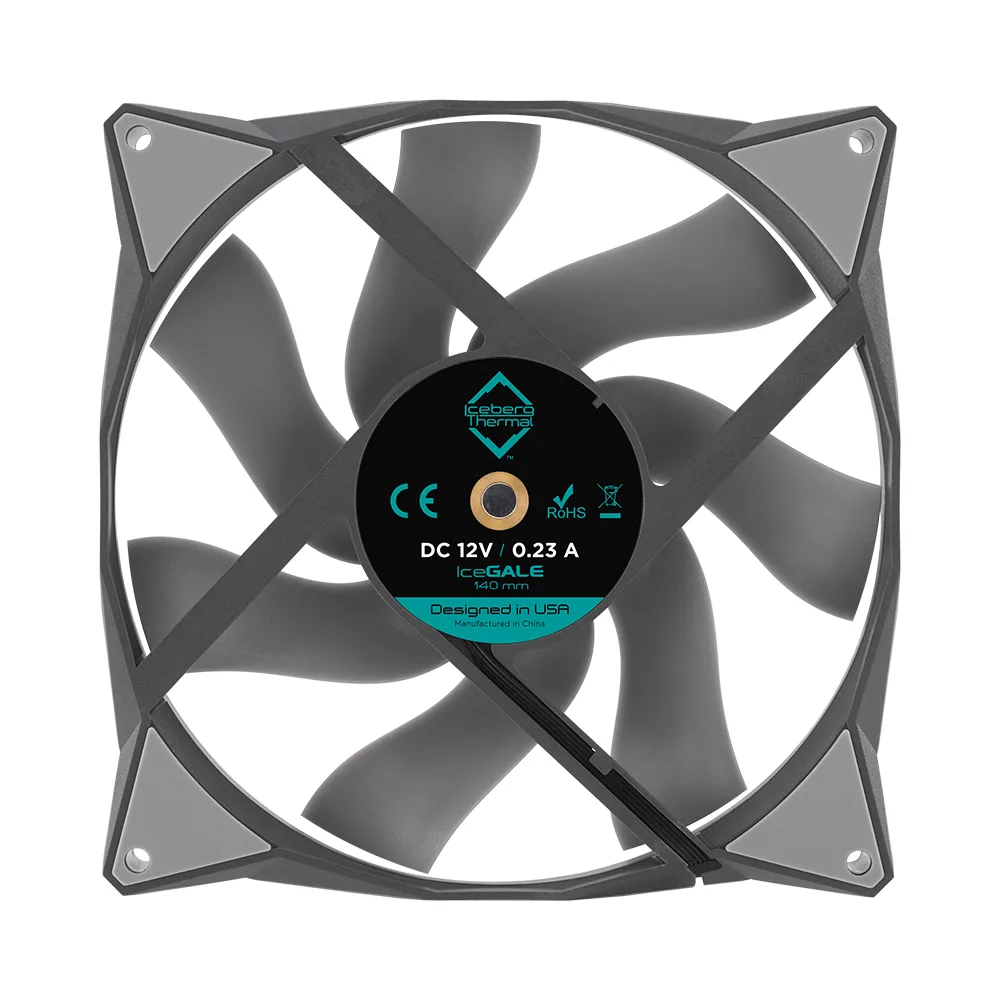

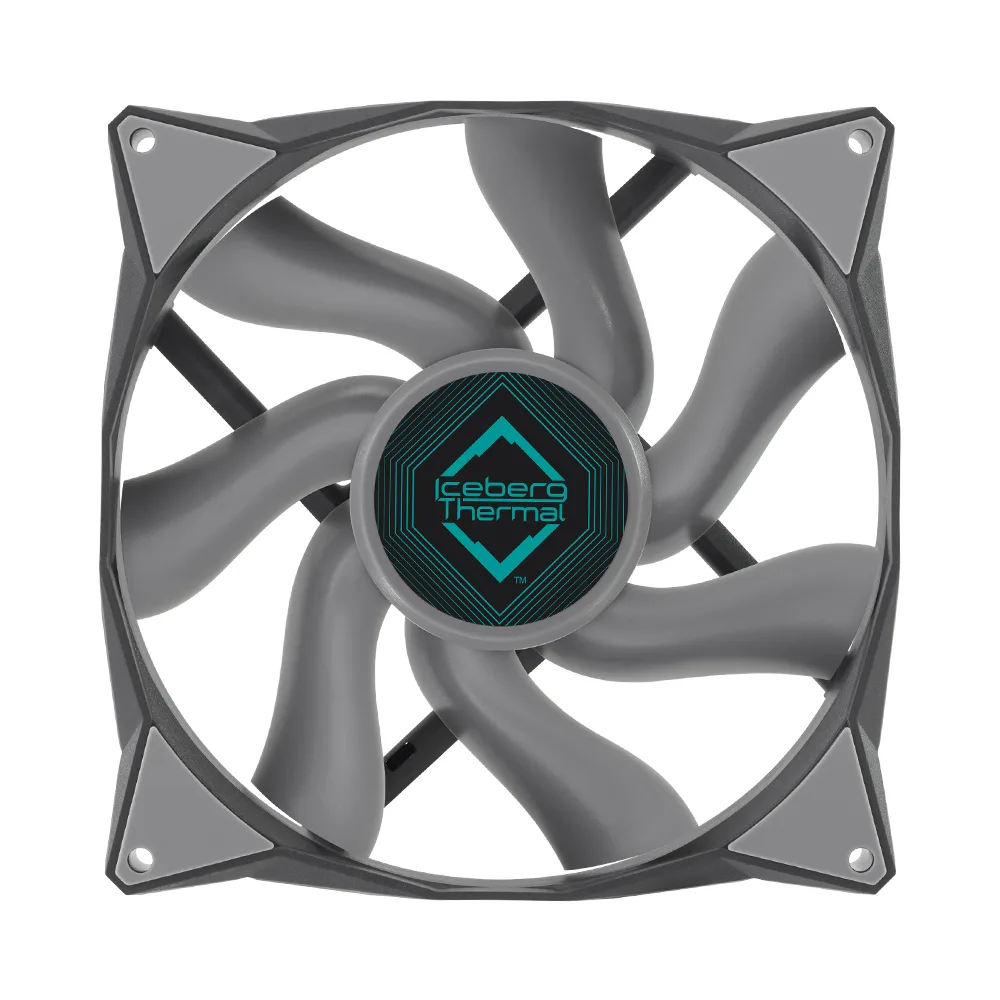

Two gray 140mm square case fans with matte finish, no LED lighting, PWM cables and anti-vibration corners

Iceberg Thermal Inc

Iceberg Thermal IceGALE Xtra 140mm PWM Case Fan 2-Pack Gray

SKU CH-3RAB-Z0H6W

Two 140 mm PWM fans deliver 169 CFM airflow at up to 2500 RPM with dual ball bearings and auto start/stop for 0-47 dBA operation

  • TypeCase Fan
  • CompatibilityCase
  • Fan Size140mm
  • Bearing TypeDual Ball Bearing
  • RPM500-2500 RPM
  • Air Flow169 CFM

Color Gray

LED Non-LED

Model High RPM

  • High airflow of 169 CFM cools demanding builds efficiently
  • Dual ball bearing with brass housing extends operational life
  • PWM speed range 500-2500 RPM matches cooling to load
  • Auto start-stop enables 0 dBA silence at low temperatures
  • Anti-vibration pads and two-plane balance reduce case resonance

Two-Pack 140mm PWM Case Fans

The IceGALE Xtra 140mm PWM fans arrive as a matched pair for builders who want coordinated airflow in a single purchase. Each unit uses a dual ball bearing and a rigid brass housing rated beyond 160000 hours MTTF. The gray finish and non-LED design suit understated builds where lighting is not required.

Standard 4-Pin Mount With Anti-Vibration Pads

Installation follows the usual 4-pin PWM header and four corner screws; anti-vibration pads are included to absorb motor vibration. The two-plane balanced rotors keep wobble low, but the 2500 RPM ceiling can produce 47 dBA if the curve is left aggressive — set a custom fan curve in BIOS to stay near the 0 dBA auto start-stop floor.

169 CFM Airflow at 4.7 mm H2O Static Pressure

This combination of flow and pressure decides whether the fan can push air through dense radiator fins or restrictive front panels. At 12 V and 0.56 A the motor delivers the rated 169 CFM across the 500-2500 RPM range. Builds that need lower pressure or quieter operation at similar size should consider the standard IceGALE 140mm model instead.

Najważniejsze cechy

  • High airflow of 169 CFM cools demanding builds efficiently
  • Dual ball bearing with brass housing extends operational life
  • PWM speed range 500-2500 RPM matches cooling to load
  • Auto start-stop enables 0 dBA silence at low temperatures
  • Anti-vibration pads and two-plane balance reduce case resonance

Specyfikacja

BrandIceberg Thermal
SeriesIceGALE
ModelGray
TypeCase Fan
CompatibilityCase
Fan Size140mm
Bearing TypeDual Ball Bearing
RPM500-2500 RPM
Air Flow169 CFM
Noise Level0-47 dBA
Power Connector4 Pin
ColorGray
LEDNon-LED
FeaturesTwo Plane Balanced

Inne wersje tego modelu

Jeszcze 5 w tej samej serii

Ta sama rodzina, inna pamięć, inne chłodzenie lub taktowanie — proszę porównać przed decyzją.

Pytania dotyczące tego produktu

How can I verify the IceGALE Xtra 140mm fan is running correctly after installation?

Check that the fan spins between 500 and 2500 RPM in your BIOS or monitoring software and listen for noise within the 0-47 dBA range; the auto start/stop feature may pause the fan at low temperatures.

What comes in the 2-pack box and what must I purchase separately?

The box includes two 140mm PWM fans with pre-installed anti-vibration pads; no screws, fan hubs, or RGB controllers are included, so buy mounting screws or a PWM hub separately if your case lacks them.

Which IceGALE version should I choose for maximum airflow on a 140mm radiator?

The IceGALE Xtra 140mm delivers 169 CFM and 4.7 mm H2O static pressure, higher than the standard IceGALE 140mm (96 CFM, 2.65 mm H2O) or the ARGB model (96 CFM, 2.65 mm H2O).
