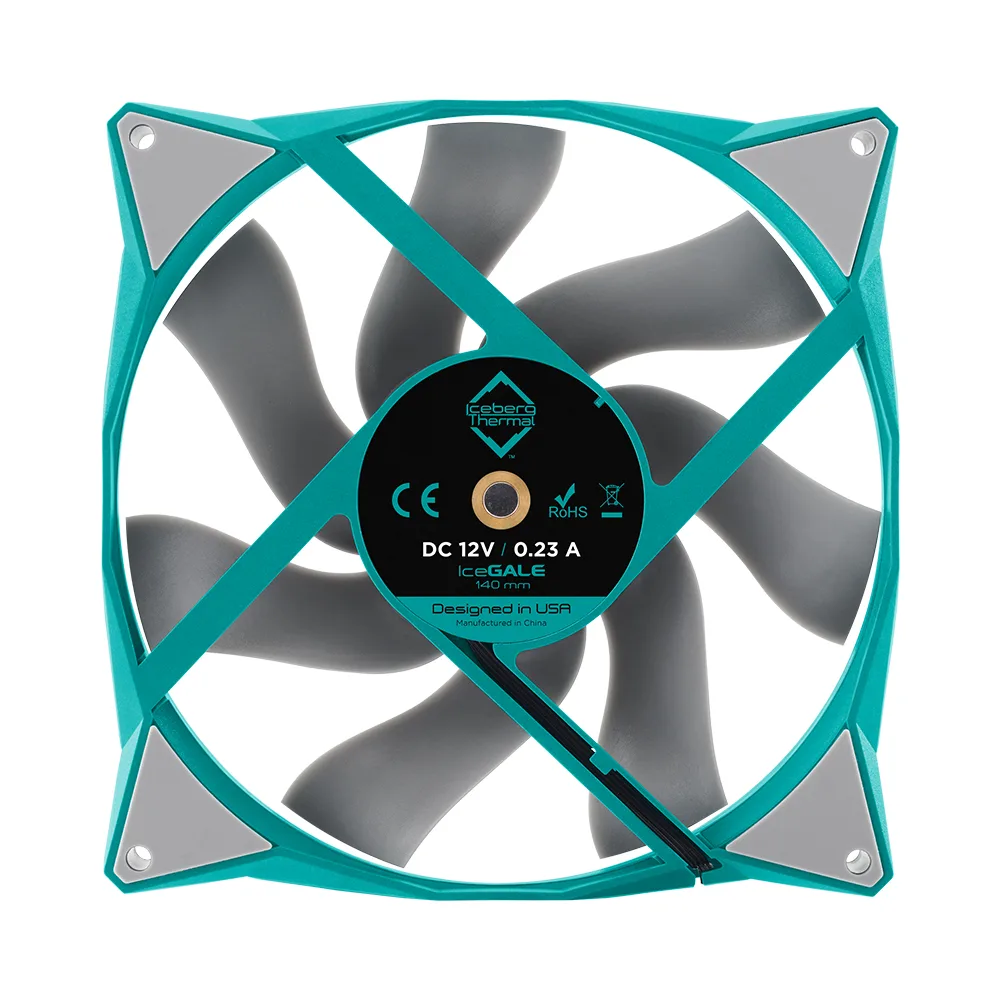

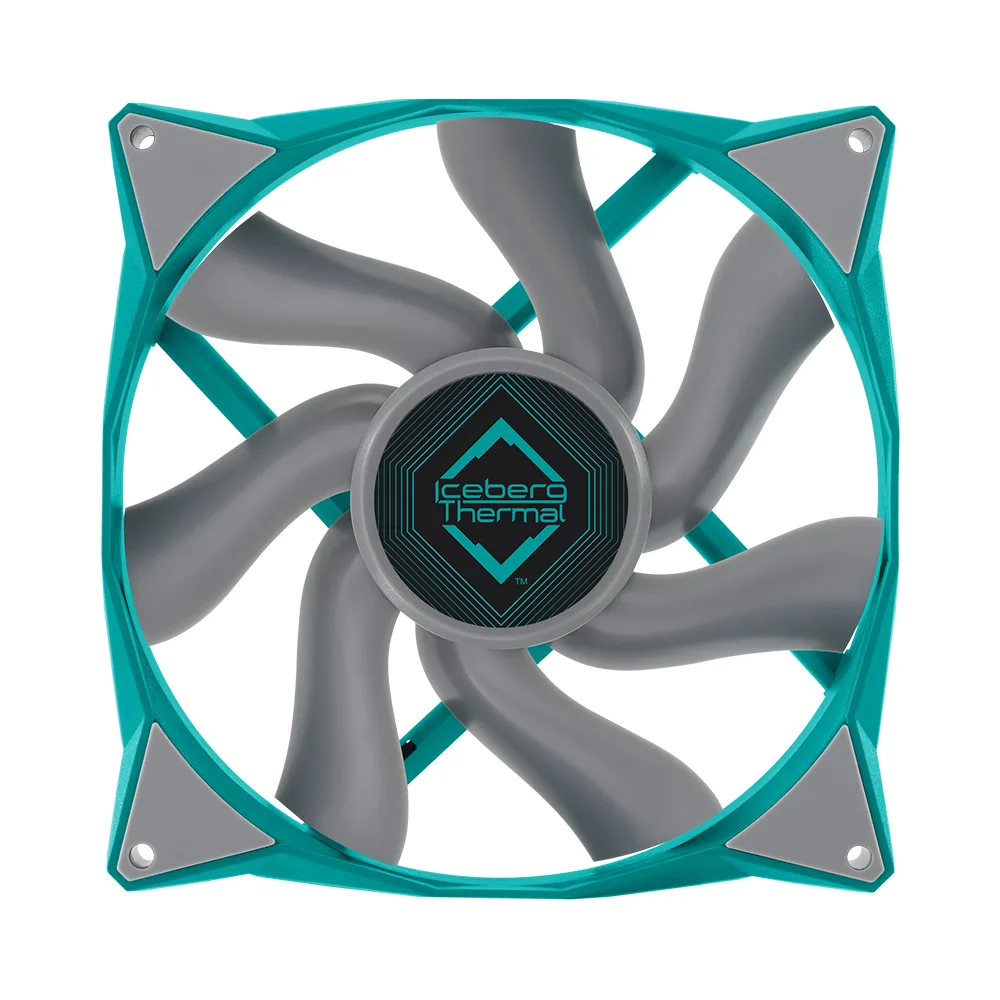

Two teal 140mm case fans with matte blades and anti-vibration corners

Iceberg Thermal Inc

Iceberg Thermal IceGALE Xtra 140mm PWM Case Fan 2-Pack Teal

SKU CH-HF01-SGN2F

Two 140 mm PWM case fans with dual ball bearings, 169 CFM airflow and 0–47 dBA auto start/stop for quiet high-performance cooling

  • TypeCase Fan
  • CompatibilityCase
  • Fan Size140mm
  • Bearing TypeDual Ball Bearing
  • RPM500-2500 RPM
  • Air Flow169 CFM

Color Teal

LED Non-LED

Model High RPM

  • High airflow of 169 CFM cools demanding components
  • Static pressure of 4.7 mm H2O pushes air through dense fins
  • Dual ball bearing with brass housing extends operating life
  • Auto start/stop enables 0 dBA silence at low loads
  • Two-plane balancing and anti-vibration pads reduce mechanical noise

Dual 140mm PWM fans for high-airflow builds

This two-pack supplies a pair of 140 mm case fans with 4-pin PWM control. Each unit spins between 500 and 2500 RPM and moves up to 169 CFM of air. The teal finish and non-LED design suit builders who want visible colour without lighting effects. Dual ball bearings and a brass housing target long service life.

PWM range and auto stop define the acoustic floor

The fans accept standard 4-pin PWM signals from any compatible motherboard header. Speed can drop to 500 RPM and the auto start/stop feature lets the rotor halt completely at low loads. Noise spans 0 to 47 dBA across the curve. Static pressure reaches 4.7 mm H2O, which suits dense fin stacks but offers no margin for extreme restriction.

Dual ball bearing rated beyond 160000 hours

The bearing choice is the decisive durability spec. Dual ball construction with a rigid brass housing is rated at more than 160000 hours MTTF. Two-plane balancing reduces vibration at high RPM. Anti-vibration pads are included for case mounting. Buyers who need addressable RGB lighting or a fluid-dynamic bearing should look elsewhere.

Najważniejsze cechy

  • High airflow of 169 CFM cools demanding components
  • Static pressure of 4.7 mm H2O pushes air through dense fins
  • Dual ball bearing with brass housing extends operating life
  • Auto start/stop enables 0 dBA silence at low loads
  • Two-plane balancing and anti-vibration pads reduce mechanical noise

Specyfikacja

BrandIceberg Thermal
SeriesIceGALE
ModelTeal
TypeCase Fan
CompatibilityCase
Fan Size140mm
Bearing TypeDual Ball Bearing
RPM500-2500 RPM
Air Flow169 CFM
Noise Level0-47 dBA
Power Connector4 Pin
ColorTeal
LEDNon-LED
FeaturesTwo Plane Balanced

Inne wersje tego modelu

Jeszcze 5 w tej samej serii

Ta sama rodzina, inna pamięć, inne chłodzenie lub taktowanie — proszę porównać przed decyzją.

Pytania dotyczące tego produktu

Should I pick the IceGALE Xtra 140 mm in Teal or one of the other IceGALE models?

Choose the Xtra 140 mm if you need the highest airflow at 169 CFM and 4.7 mm H₂O static pressure for dense radiators or restrictive cases; the standard IceGALE 140 mm tops out at 96 CFM and 2.65 mm H₂O, while the ARGB variants share those lower figures but add addressable lighting.

What does 169 CFM actually deliver inside a build?

At full speed the fan moves 169 CFM with 4.7 mm H₂O pressure, enough to push air through thick radiators or restrictive mesh panels, while the auto start/stop function lets it idle at 0 dBA when cooling demand drops.

How does the 4-pin PWM connector control the 500–2500 RPM range?

The 4-pin PWM header lets the motherboard vary voltage from 500 RPM up to 2500 RPM, so the fan only spins as fast as needed; at the top end it draws 0.56 A at 12 V and produces 47 dBA, while the start/stop feature can halt the blades entirely at low temperatures.
