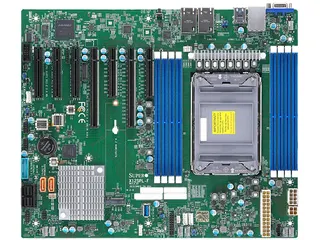

ATX server motherboard, green PCB, silver sockets, eight DDR4 slots, multiple PCIe slots, rear I/O panel

Supermicro

Supermicro MBD-X12SPL-F server motherboard

SKU CH-K28K-YG46S MPN MBD-X12SPL-F

ATX server motherboard supports 3rd Gen Intel Xeon Scalable processors with eight DDR4 3200 slots for up to 2TB ECC memory

  • CPU Socket TypeSocket P+
  • CPU TypeSupports 3rd Gen Intel Xeon Scalable processors
  • North BridgeIntel C621A
  • Number of DDR4 Slots8 x 288-pin
  • DDR4 StandardDDR4 3200
  • Maximum Memory SupportedUp to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRD
  • Supports 3rd Gen Intel Xeon Scalable processors up to 270W TDP
  • Eight DDR4-3200 slots deliver up to 2TB ECC registered or load-reduced memory
  • Ten SATA 6.0Gb/s ports with RAID 0/1/5/10 for flexible storage arrays
  • PCIe 4.0 x16 and multiple x8 slots enable high-bandwidth expansion cards
  • Dual gigabit LAN plus Aspeed AST2600 video simplify remote server management

Socket P+ server board

The Supermicro MBD-X12SPL-F is an ATX server motherboard built for single-socket 3rd Gen Intel Xeon Scalable processors up to 270 W TDP. It targets system integrators and IT teams deploying compute or storage nodes that need high memory capacity in a standard chassis footprint.

Eight DDR4 slots scale to 2 TB

Eight 288-pin slots run DDR4-3200 with ECC, supporting 3DS RDIMM, 3DS LRDIMM and Intel Optane Persistent Memory up to 2 TB total. The board runs out of headroom when workloads demand more than eight DIMM slots or memory speeds beyond the 3200 MT/s ceiling.

Expansion mix covers GPUs, NICs and fast boot

One PCIe 4.0 x16, two PCIe 4.0 x8, one PCIe 4.0 x8 wired in an x16 slot and three PCIe 3.0 x8 slots provide lanes for accelerators and networking cards. Ten SATA 6 Gb/s ports with RAID 0/1/5/10 and a single M.2 M-key slot accepting 2280 or 22110 drives on SATA or PCIe 3.0 x4 handle boot and bulk storage. Rear I/O supplies dual gigabit LAN, VGA, two USB 3.2 Gen1, two USB 2.0 and a COM header; internal headers add four USB 2.0, two USB 3.2 Gen1 and one Type-A port plus a TPM header.

Najważniejsze cechy

  • Supports 3rd Gen Intel Xeon Scalable processors up to 270W TDP
  • Eight DDR4-3200 slots deliver up to 2TB ECC registered or load-reduced memory
  • Ten SATA 6.0Gb/s ports with RAID 0/1/5/10 for flexible storage arrays
  • PCIe 4.0 x16 and multiple x8 slots enable high-bandwidth expansion cards
  • Dual gigabit LAN plus Aspeed AST2600 video simplify remote server management

Specyfikacja

BrandSUPERMICRO
ModelMBD-X12SPM-TF
CPU Socket TypeSocket P+
CPU TypeSupports 3rd Gen Intel Xeon Scalable processors
North BridgeIntel C621A
Number of DDR4 Slots8 x 288-pin
DDR4 StandardDDR4 3200
Maximum Memory SupportedUp to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 2TB Intel Optane Persistent Memory, in 8 DIMM slots
ECC SupportedYes
PCI Express 4.0 x161
PCI Express x82 x PCI Express 4.0 x8
1 x PCI Express 4.0 x8 (in x16 slot)
3 x PCI Express 3.0 x8
SATA10 x SATA 6.0Gb/s
SATA RAID0/1/5/10
M.2M.2 Interface: 1 SATA/PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key
Onboard Video ChipsetAspeed AST2600
LAN ChipsetIntel I210
LAN Speed10/100/1000Mbps
Back I/O Ports2 x RJ45 Gigabit Ethernet LAN ports
6 x USB 2.0 ports (2 rear + 4 via headers)
5 x USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A)
1 x VGA port
1 x COM Port (1 header)
TPM Header
Form FactorATX

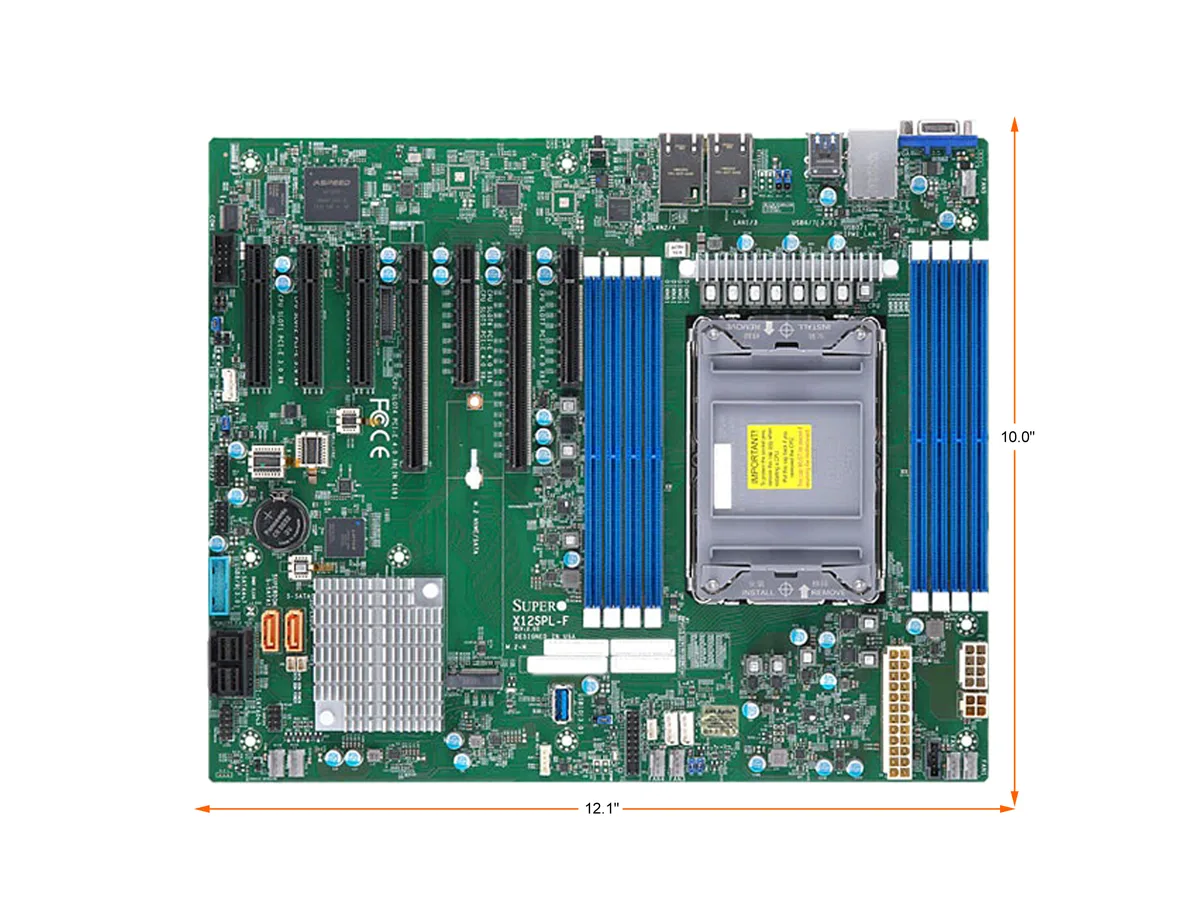

Dimensions (W x L)12.1" x 10"
Waga przesyłki2.27 kg
Wymiary opakowania381 × 330 × 152 mm

Pytania dotyczące tego produktu

Will my existing DDR4-3200 3DS ECC RDIMMs work in the 8 slots of this MBD-X12SPL-F?

Yes, the board accepts up to 2 TB of DDR4-3200 3DS ECC RDIMM or LRDIMM across its 8 x 288-pin slots.

How can I confirm the Aspeed AST2600 video and dual Intel I210 Gigabit LAN are active after first boot?

Connect a monitor to the VGA port and cables to both RJ45 ports; the BIOS splash on screen and link lights on the two LAN jacks show they are working.

Which cables or modules must I add to use the 10 SATA 6.0 Gb/s ports and the M.2 2280/22110 M-Key slot?

You need SATA data cables for each drive you attach to the 10 onboard ports and a M.2 2280 or 22110 M-Key SSD for the M.2 slot.
