Aqua duplex multimode fibre patch cable with LC and FC connectors

Enfain

Enfain OM3 LC-FC Duplex Multimode Fibre Optic Cable 5m Aqua Blue

SKU CH-E37P-35WPN

A 5 metre duplex multimode patch cord with LC and FC connectors, OM3 core rated for 10 gigabit links at 850 nm, 3.0 mm jacket, typical insertion loss of .2 dB and return loss above 38 dB

Length 5m

  • Reliable 10 Gbit links with OM3 10-gigabit core
  • Low signal loss at 0.2 dB typical insertion loss
  • Strong back-reflection protection with >38 dB return loss
  • Durable 3.0 mm PVC jacket rated for 1000 mating cycles
  • Wide operating range from -20 °C to +60 °C

5 metre OM3 duplex patch cable

This aqua blue multimode fibre patch cable uses OM3 10 gigabit core and terminates in LC to FC connectors. It is built for 10G Ethernet links between switches, servers and patch panels in data centre racks. The 3.0 mm PVC jacket protects the fibres during routing. 850 nm wavelength suits standard short range transceivers.

Pre terminated ceramic ferrules simplify

Factory polished ceramic ferrules mean the cable is ready to plug in without field polishing. Typical insertion loss is .2 dB and maximum is .3 dB, while return loss exceeds 38 dB. The minimum bend radius is 330 mm so tight bends behind rack doors must be avoided. Rated for 1000 mating cycles before performance degrades.

OM3 10 gigabit core decides link distance

The OM3 classification limits 10G Ethernet reach to the distances defined by the IEEE standard for 850 nm multimode fibre. Links that exceed this range will require singlemode cable instead. Operating temperature spans -20°C to +60°C for indoor rack environments.

Prednosti

  • Reliable 10 Gbit links with OM3 10-gigabit core
  • Low signal loss at 0.2 dB typical insertion loss
  • Strong back-reflection protection with >38 dB return loss
  • Durable 3.0 mm PVC jacket rated for 1000 mating cycles
  • Wide operating range from -20 °C to +60 °C

Špecifikácie

Pre tento produkt zatiaľ nie sú zverejnené žiadne špecifikácie.

Ďalšie verzie tohto modelu

Ďalších 5 v tomto rade

Rovnaký rad, iná pamäť, chladič alebo frekvencia — porovnajte pred rozhodnutím.

Otázky k tomuto produktu

How do I confirm the link is performing to spec after installation?

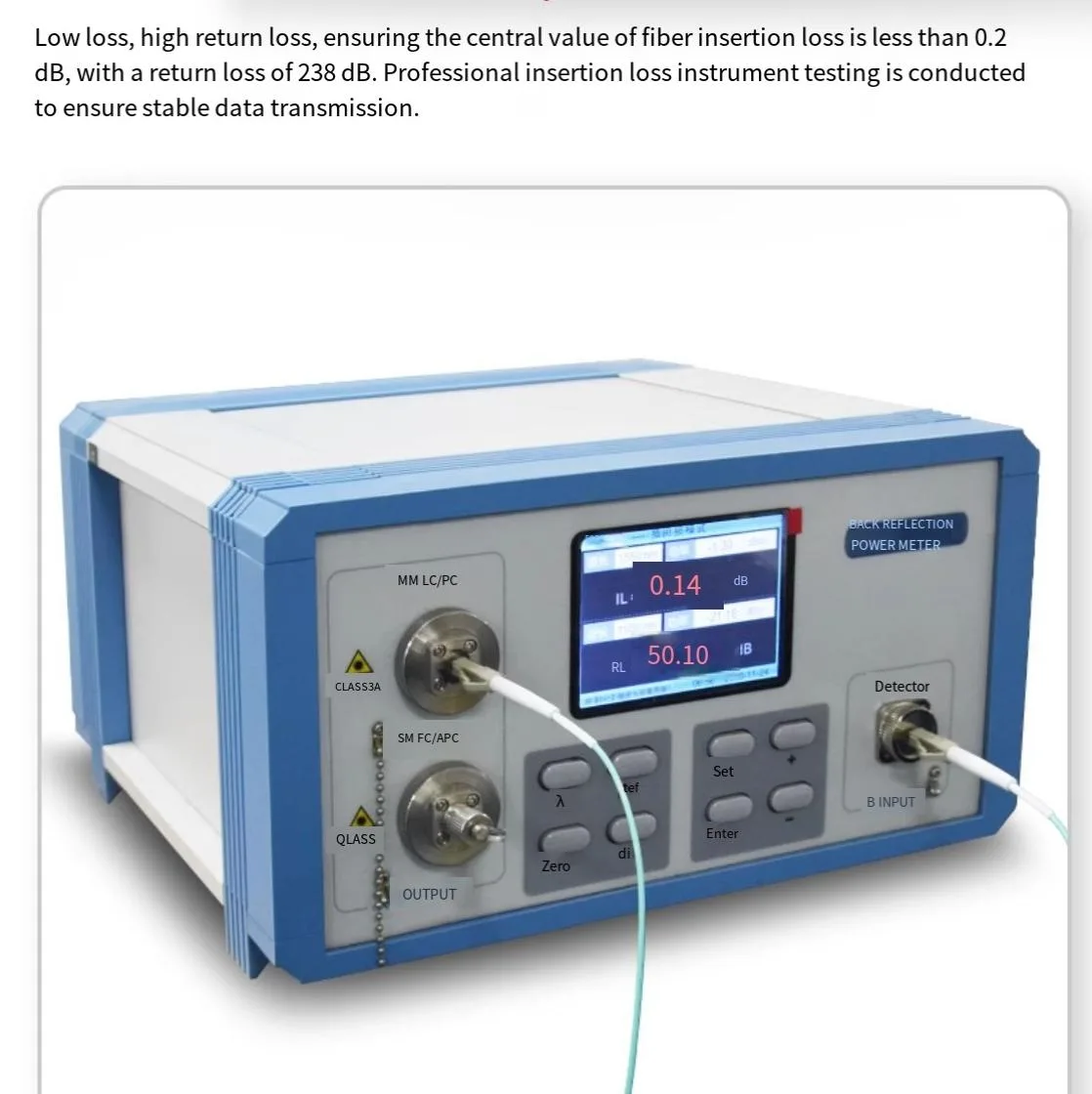

Measure insertion loss with a light source and power meter at 850 nm; the link should show ≤0.3 dB per connector and return loss ≥38 dB.

What connectors and cable are included, and what must I source separately?

The patch cord ships with LC and FC duplex connectors on a 3.0 mm OM3 multimode jacket; you must provide compatible LC and FC transceivers or patch panels.

Which specification suits a 10 GbE multimode run?

The OM3 10-gigabit core with 850 nm wavelength is rated for 10 GbE multimode links; choose this duplex LC-FC cable for that application.
