Aqua duplex fiber patch cable with LC and FC connectors, 10m length

Enfain

Enfain OM3 LC-FC Duplex Multimode Fiber Patch Cable 10m Aqua Blue

SKU CH-J05E-8PTDW

OM3 multimode duplex patch cable with LC-FC connectors, 10 m length, 3.0 mm jacket, 850 nm wavelength, .2 dB typical insertion loss, .3 dB maximum, >38 dB return loss

Length 10m

  • Supports 10 Gb/s links with OM3 10-gigabit core
  • Low 0.2 dB typical insertion loss preserves signal strength
  • Return loss above 38 dB minimises back-reflection
  • 0 mm PVC jacket rated for 1000 mating cycles
  • Operates from -20 °C to +60 °C in data-centre environments

10-metre OM3 duplex patch cable

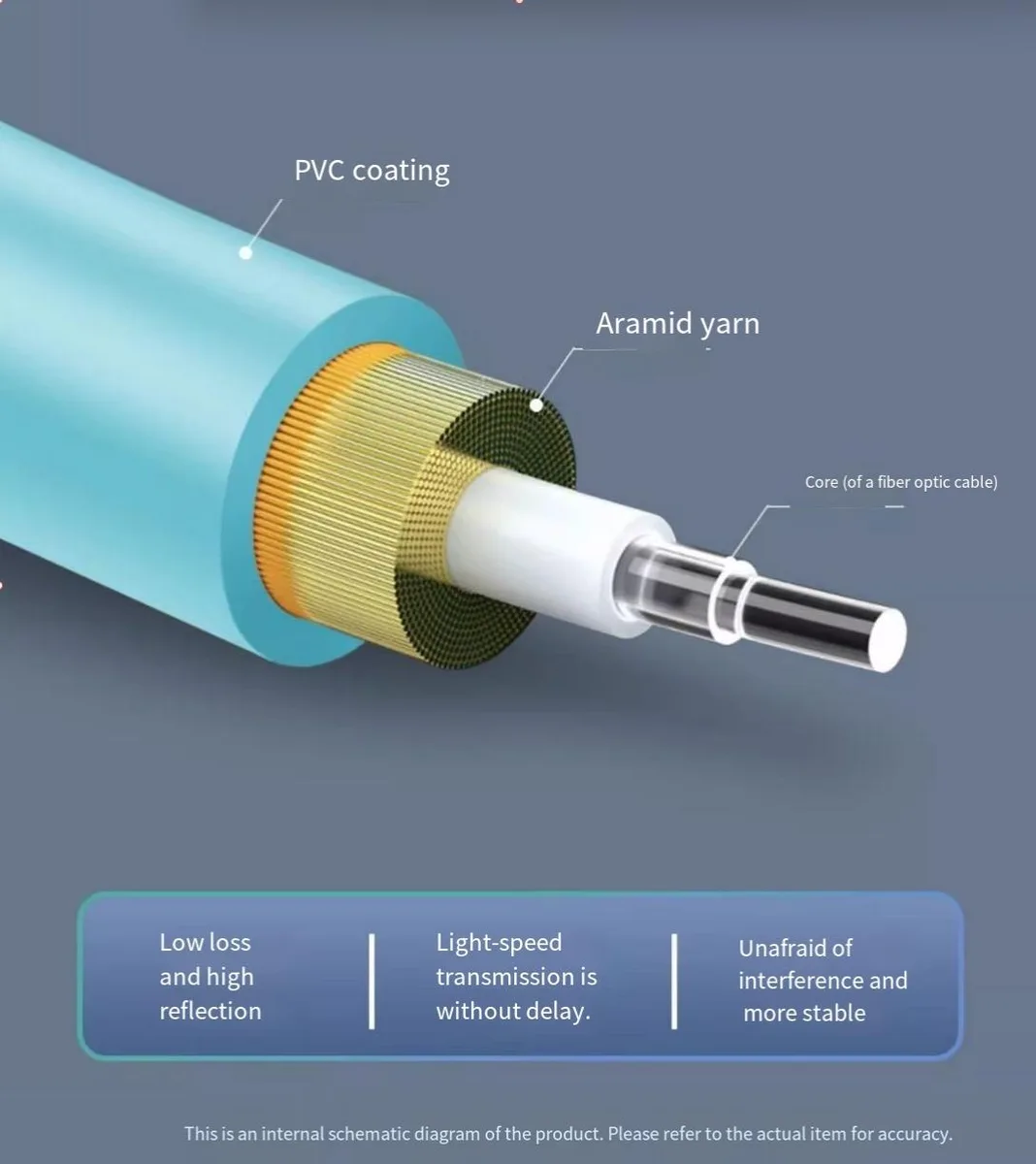

This 10-metre multimode fibre patch cable uses an OM3 10-gigabit core with LC and FC connectors in a duplex arrangement. It is built for 1G, 10G and 40G links in switches, servers and data-centre equipment. The aqua-blue 3.0 mm PVC jacket protects the fibre during routing and handling.

Sustained-link performance

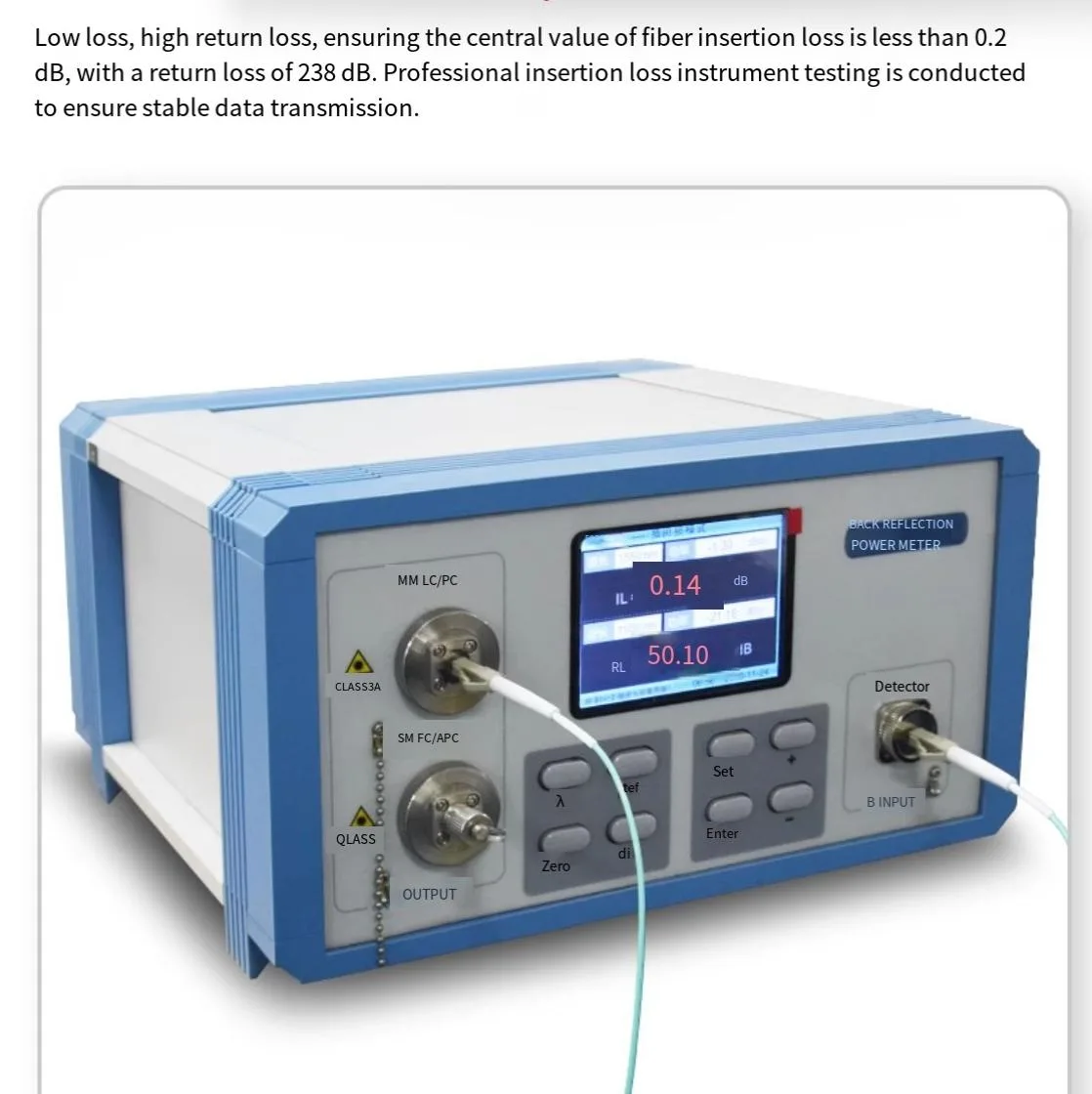

Typical insertion loss is .2 dB and maximum insertion loss is .3 dB, while return loss exceeds 38 dB across the 850 nm wavelength. The cable is rated for 1000 insertion and removal cycles and operates from -20 °C to +60 °C, so repeated patching and temperature swings do not degrade the signal.

Minimum bend radius decides fit

A 330 mm bending radius is the single specification that determines whether the cable can be routed inside a particular rack or tray. Installers must verify that the available bend space meets or exceeds this figure before specifying the part.

Prednosti

  • Supports 10 Gb/s links with OM3 10-gigabit core
  • Low 0.2 dB typical insertion loss preserves signal strength
  • Return loss above 38 dB minimises back-reflection
  • 0 mm PVC jacket rated for 1000 mating cycles
  • Operates from -20 °C to +60 °C in data-centre environments

Špecifikácie

Pre tento produkt zatiaľ nie sú zverejnené žiadne špecifikácie.

Ďalšie verzie tohto modelu

Ďalších 5 v tomto rade

Rovnaký rad, iná pamäť, chladič alebo frekvencia — porovnajte pred rozhodnutím.

Otázky k tomuto produktu

Does the 3.0 mm jacket and 330 mm bending radius let this cable run all day in a warm cabinet without overheating?

The cable is rated for -20 °C to +60 °C operating temperature, so it handles continuous use in typical rack environments without thermal issues.

What connectors must my switch and server already have for this LC-FC duplex patch cord to plug in directly?

One end needs an LC port and the other an FC port; both must accept multimode duplex fiber at the 850 nm wavelength.

Will the 0.2 dB typical insertion loss and >38 dB return loss work reliably with my older 1 Gbps and 10 Gbps OM3 gear?

Yes, the loss figures meet OM3 specs for 1 Gbps, 10 Gbps and 40 Gbps links, so legacy equipment stays compatible.
