Aqua blue duplex multimode fibre patch cable with ST connectors on both ends, 10m length, 3.0mm jacket

Enfain

Enfain OM3 ST-ST Duplex Multimode Fibre Optic Cable 10m Aqua Blue

SKU CH-VS47-EDVQ8

OM3 duplex multimode fibre patch cable with ST connectors, 10 metre length, 3.0 mm jacket, 850 nm wavelength, 0.2 dB typical insertion loss and >38 dB return loss

Length 10m

  • Supports 10 Gbps links with OM3 10-gigabit core
  • Low typical insertion loss of .2 dB for efficient signal transfer
  • Return loss exceeds 38 dB to minimise reflections
  • 0 mm PVC jacket rated for 1000 mating cycles
  • Operates reliably from -20 °C to +60 °C

Ready for 10 Gb links

This duplex multimode patch cord uses an OM3 core rated for 10 Gb transmission at 850 nm. It suits switches, servers and data-centre gear that need short-range fibre connections. Builders running 1 Gb or 40 Gb over the same multimode infrastructure can also use it. It is not for single-mode links or runs that exceed OM3 distance limits.

ST connectors, 3.0 mm jacket

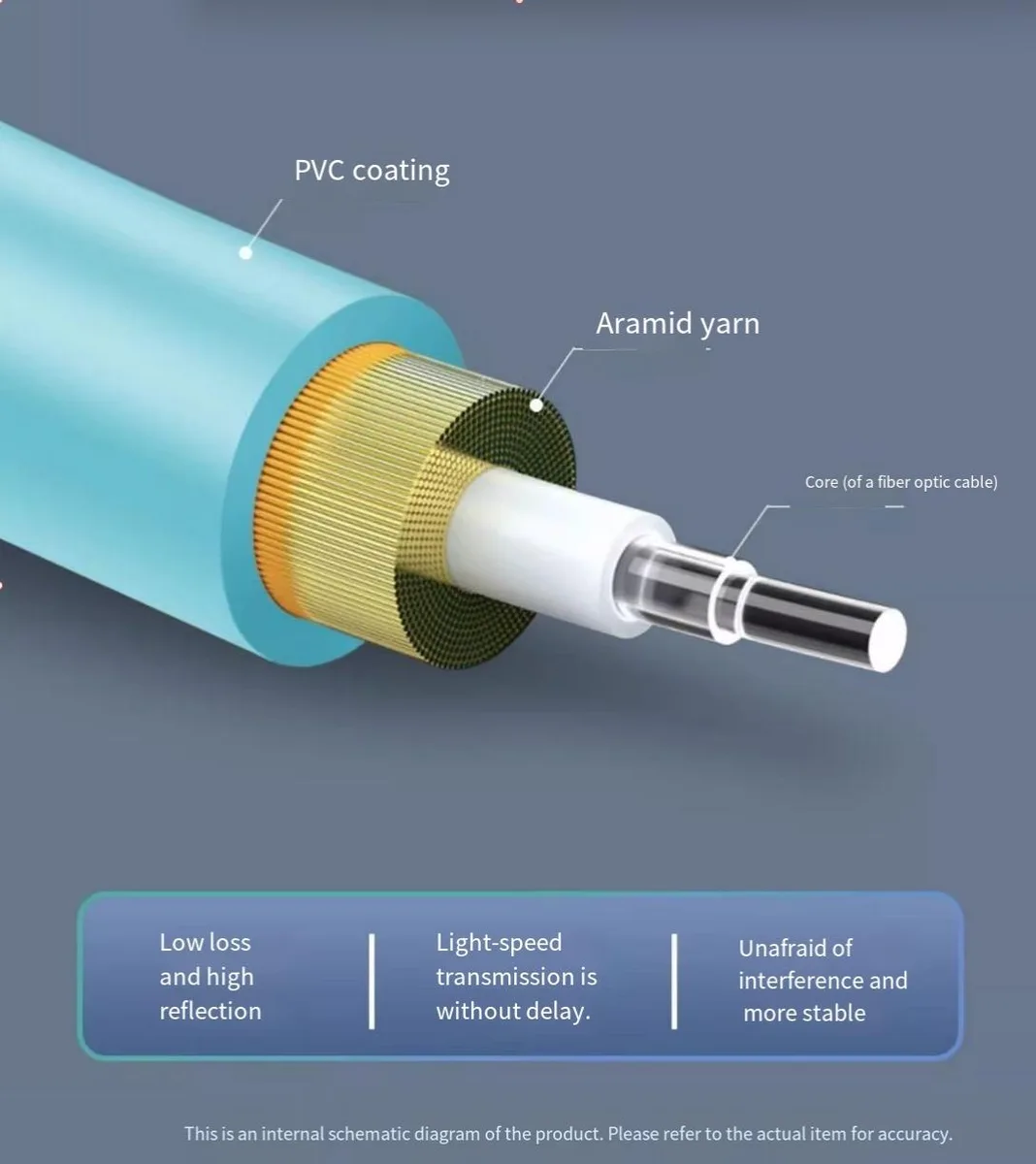

Ceramic ferrules on both ST ends give repeatable alignment over 1000 mating cycles. The 3.0 mm PVC sheath resists everyday rack handling and meets a 330 mm minimum bend radius. Aqua blue colour coding identifies OM3 multimode at a glance. Installers who need LC, SC or MPO interfaces must choose a different cable.

Low loss, wide temperature range

Typical insertion loss is .2 dB with a maximum of .3 dB, while return loss exceeds 38 dB. The assembly operates from -20 °C to +60 °C without active cooling. No power supply or fan is involved, so acoustic noise is zero. Users needing armoured or plenum-rated jackets should select another product.

Prednosti

  • Supports 10 Gbps links with OM3 10-gigabit core
  • Low typical insertion loss of .2 dB for efficient signal transfer
  • Return loss exceeds 38 dB to minimise reflections
  • 0 mm PVC jacket rated for 1000 mating cycles
  • Operates reliably from -20 °C to +60 °C

Špecifikácie

Pre tento produkt zatiaľ nie sú zverejnené žiadne špecifikácie.

Ďalšie verzie tohto modelu

Ďalších 5 v tomto rade

Rovnaký rad, iná pamäť, chladič alebo frekvencia — porovnajte pred rozhodnutím.

Otázky k tomuto produktu

What does the OM3 multimode standard cap the 10 m link at?

The OM3 10-gigabit core supports 1 G, 10 G and 40 G transmission at 850 nm wavelength over this 10 m duplex patch cord.

What physical space is needed to route the 3.0 mm jacket without exceeding the bend limit?

The 3.0 mm PVC jacket requires a minimum bending radius of 330 mm to avoid signal degradation or fibre damage during installation.

How do you seat the ST connectors correctly, and what is the common mistake?

Insert each ST connector fully until the bayonet locks; the common error is stopping at first contact, which leaves insertion loss above the 0.2 dB typical and 0.3 dB maximum spec.
