Aqua blue duplex fibre cable with SC and ST connectors, 30m length

Enfain

Enfain OM3 SC-ST Duplex Multimode Fibre Optic Cable 30m Aqua Blue

SKU CH-HWDV-A5EMK

OM3 duplex multimode cable with SC and ST connectors for 10 Gbit links over 30 m at 850 nm wavelength

Length 30m

  • OM3 core supports 10G, 40G and 1G networks
  • Typical insertion loss of .2dB preserves signal strength
  • Ceramic ferrules deliver return loss greater than 38dB
  • 0mm PVC jacket withstands 1000 mating cycles
  • Operates reliably from -20°C to +60°C

Enfain OM3 SC-ST Duplex Fibre Cable

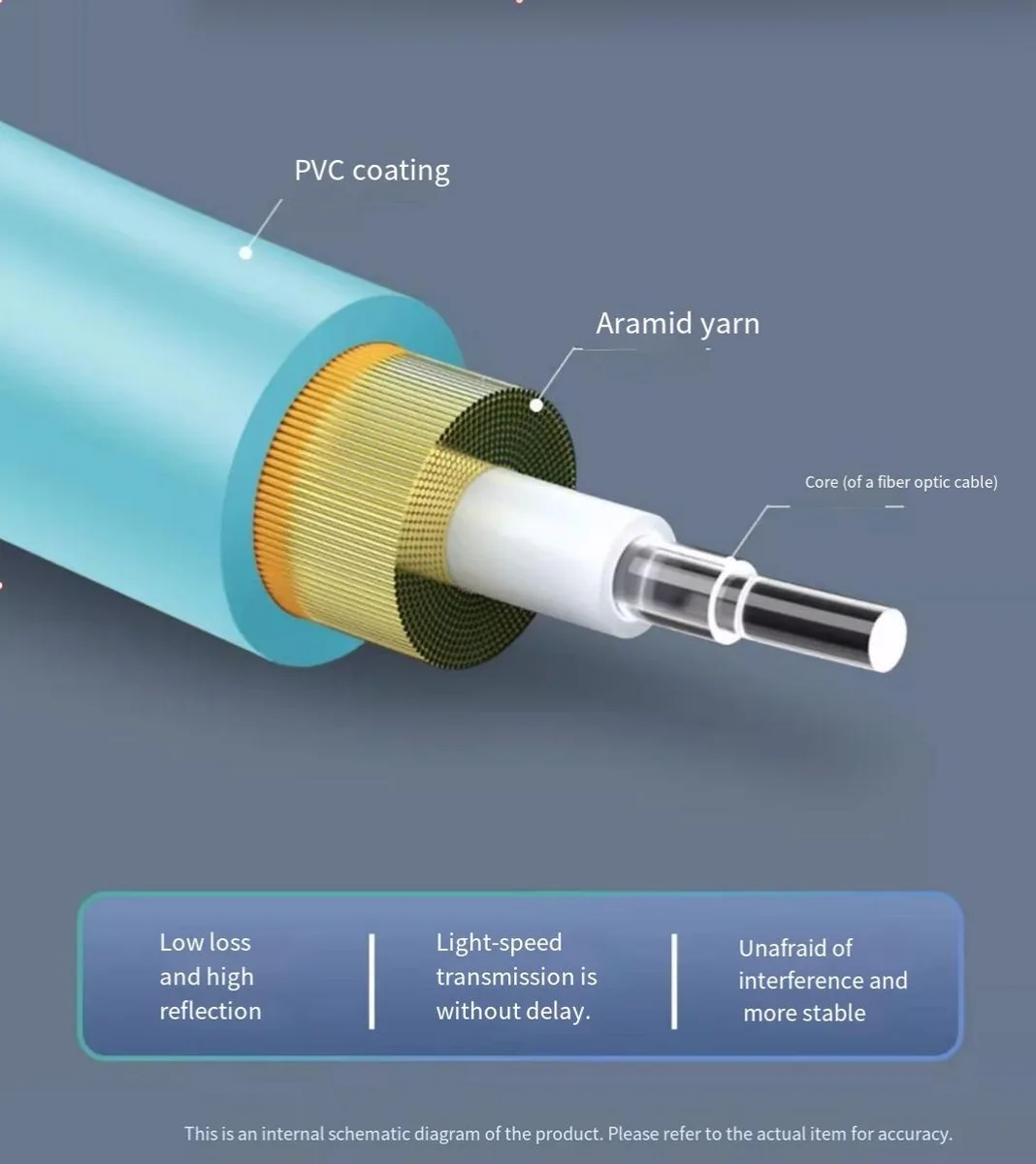

This Enfain OM3 multimode fibre patch cord uses a duplex SC-to-ST connector arrangement with a 3.0 mm aqua blue PVC jacket. It is built for 10-gigabit links at the 850 nm wavelength and tested for 1000 mating cycles. The 30-metre length suits rack-to-rack or cabinet-to-cabinet runs in data centres and server rooms.

Suits 10G multimode links with SC and ST ports

Installers terminating equipment that presents SC on one side and ST on the other will find the connector pairing convenient. The cable is not suited to single-mode infrastructure, to links that require LC, MTP or other connector types, or to environments outside the -20 °C to +60 °C operating range.

Insertion loss ≤ 0.3 dB and return loss > 38 dB

Typical insertion loss is 0.2 dB with a maximum of 0.3 dB, while return loss exceeds 38 dB. These figures determine whether the link meets the loss budget for the intended 10G application.

Prednosti

  • OM3 core supports 10G, 40G and 1G networks
  • Typical insertion loss of .2dB preserves signal strength
  • Ceramic ferrules deliver return loss greater than 38dB
  • 0mm PVC jacket withstands 1000 mating cycles
  • Operates reliably from -20°C to +60°C

Špecifikácie

Pre tento produkt zatiaľ nie sú zverejnené žiadne špecifikácie.

Ďalšie verzie tohto modelu

Ďalších 5 v tomto rade

Rovnaký rad, iná pamäť, chladič alebo frekvencia — porovnajte pred rozhodnutím.

Otázky k tomuto produktu

What connector types does this 30 m duplex cable use?

It uses one SC connector and one ST connector, both with ceramic ferrules, on a 3.0 mm PVC jacket.

How do I install the SC and ST ends without damaging the ferrules?

Push each connector straight in until it clicks; do not twist the ceramic ferrule, and keep bends wider than 330 mm.

When should I replace this patch cord after repeated reconnections?

The connectors are rated for 1000 insertion cycles; replace if loss rises above 0.3 dB or return loss drops below 38 dB.
