Aqua blue duplex fibre cable with LC and ST connectors, 3.0 mm jacket, 25 m length

Enfain

Enfain OM3 LC-ST Duplex Multimode Fibre Optic Cable 25m Aqua Blue

SKU CH-SKHS-1M1S1

A 25 metre OM3 duplex multimode fibre patch cable with LC to ST connectors, 3.0 mm jacket, 850 nm wavelength and insertion loss of .2 dB typical

Length 25m

  • Low-loss links with .2 dB typical insertion loss
  • 10 Gbps throughput on OM3 850 nm multimode core
  • Secure LC-ST duplex connectors rated for 1000 mating cycles
  • Flexible 3.0 mm PVC jacket bends to 330 mm radius
  • Operates reliably from -20 °C to +60 °C

Enfain OM3 LC-ST Duplex 25m Cable

This Enfain OM3 duplex fibre patch cord uses LC and ST connectors with a 3.0 mm aqua jacket. It is built for 10 gigabit multimode links at an 850 nm wavelength. The 25 metre length suits rack-to-rack runs in data centres or server rooms.

Replaces older OM1 or OM2 patch cords

Upgrading from legacy multimode cables is worthwhile when 10 Gbit/s throughput is required over the same distance. The OM3 core supports 10G, 1G and 40G compatible signalling without changing the physical path.

Fits standard LC and ST transceivers

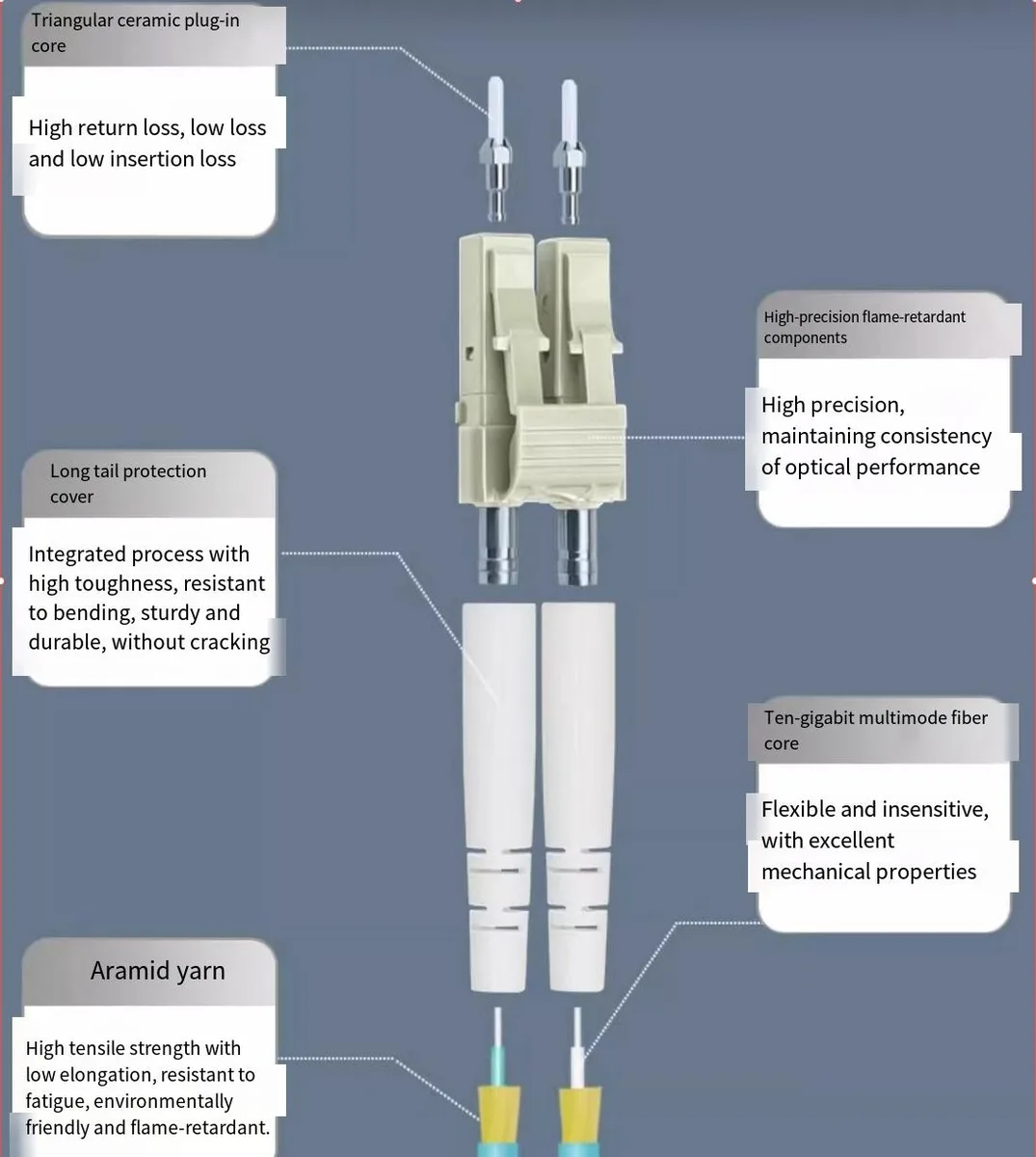

The ceramic ferrules deliver a typical insertion loss of .2 dB and a maximum of .3 dB with return loss above 38 dB. A 330 mm bend radius and 1000 mating cycles allow dense patch-panel routing. Operating range spans -20 °C to +60 °C for cabinet environments.

Prednosti

  • Low-loss links with .2 dB typical insertion loss
  • 10 Gbps throughput on OM3 850 nm multimode core
  • Secure LC-ST duplex connectors rated for 1000 mating cycles
  • Flexible 3.0 mm PVC jacket bends to 330 mm radius
  • Operates reliably from -20 °C to +60 °C

Špecifikácie

Pre tento produkt zatiaľ nie sú zverejnené žiadne špecifikácie.

Ďalšie verzie tohto modelu

Ďalších 5 v tomto rade

Rovnaký rad, iná pamäť, chladič alebo frekvencia — porovnajte pred rozhodnutím.

Otázky k tomuto produktu

What is the outer diameter and minimum bend radius of this 25 m cable?

The jacket is 3.0 mm in diameter and the minimum bending radius is 330 mm.

How should the ceramic ferrule end-faces be cleaned before the first connection?

Use a lint-free wipe and isopropyl alcohol on each end-face, then inspect with a fibre scope; skipping this step is the most common cause of high insertion loss.

How many mating cycles are the LC and ST connectors rated for?

The connectors are rated for 1000 insertion and removal cycles.
