Aqua blue duplex fibre patch cable with LC and SC connectors, 10m length

Enfain

Enfain OM3 LC-SC Duplex Multimode Fibre Optic Cable 10m Aqua Blue

SKU CH-APYF-3VN3G

A 10m OM3 duplex multimode cable with LC to SC connectors, 3.0mm jacket, 850nm wavelength and typical insertion loss of .2dB

Length 10m

  • Low-loss links with typical 0.2 dB insertion loss
  • High signal integrity from return loss exceeding 38 dB
  • Reliable 10 Gbit multimode performance at 850 nm wavelength
  • Durable 3.0 mm PVC jacket rated for 1000 mating cycles
  • Wide operating range from -20 °C to +60 °C

Enfain OM3 LC-SC Duplex Patch Cable

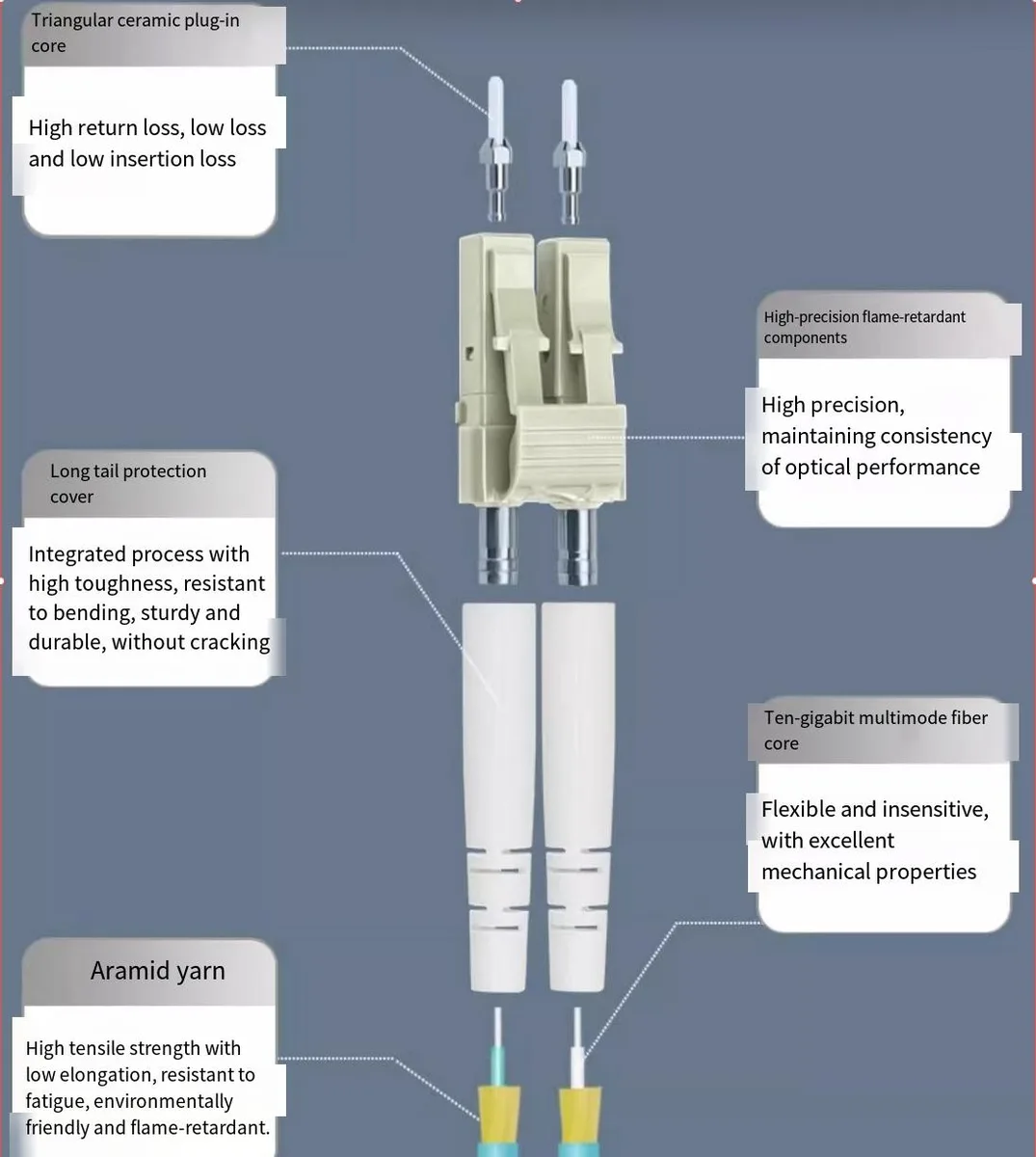

This ten-metre multimode fibre patch cord uses an OM3 10-gigabit core with LC and SC connectors. The aqua-blue 3.0 mm PVC jacket protects ceramic ferrules that operate at an 850 nm wavelength. Typical insertion loss is .2 dB and maximum insertion loss is .3 dB while return loss exceeds 38 dB. The cable is rated for 1000 mating cycles and an operating range of -20 °C to +60 °C.

Suits 10G and 40G short-reach links.

The duplex LC-SC construction fits switches, servers and data-centre patch panels that require multimode connectivity at 1G, 10G or 40G speeds. Installers needing single-mode fibre, longer distances beyond OM3 reach, or different connector polishes should select another cable type. The 330 mm minimum bend radius also means very tight routing paths are unsuitable.

Fits standard LC and SC ports.

The 3.0 mm diameter allows dense patch-panel layouts without blocking adjacent ports. Ceramic ferrules maintain low loss over repeated insertions, reducing the need for frequent cleaning or replacement. No external power or active components are required, so the cable simply connects compatible transceivers on both ends.

Prednosti

  • Low-loss links with typical 0.2 dB insertion loss
  • High signal integrity from return loss exceeding 38 dB
  • Reliable 10 Gbit multimode performance at 850 nm wavelength
  • Durable 3.0 mm PVC jacket rated for 1000 mating cycles
  • Wide operating range from -20 °C to +60 °C

Špecifikácie

Pre tento produkt zatiaľ nie sú zverejnené žiadne špecifikácie.

Ďalšie verzie tohto modelu

Ďalších 5 v tomto rade

Rovnaký rad, iná pamäť, chladič alebo frekvencia — porovnajte pred rozhodnutím.

Otázky k tomuto produktu

What patch-panel or transceiver ports must I already have to connect this LC-SC duplex cable?

You need one LC duplex port and one SC duplex port on your switches, servers or patch panels; the cable mates directly with both connector types.

Will this OM3 10-gigabit core cable work with older 1 Gbit multimode equipment running at 850 nm?

Yes, the OM3 core is fully backward-compatible with 1 Gbit links at 850 nm, so legacy gear stays usable.

How can I verify the link is performing within spec after installation?

Measure insertion loss with a light source and power meter at 850 nm; a reading of 0.2 dB typical or 0.3 dB maximum confirms the cable meets its rated performance.
