Aqua duplex fibre cable with LC and ST ends 10m

Enfain

Enfain OM3 LC-ST Duplex Multimode Fibre Optic Cable Aqua Blue 10m

SKU CH-P19B-TZFPC

OM3 duplex multimode patch cord with LC and ST connectors, 10 m aqua jacket, 3.0 mm diameter, 850 nm wavelength, .2 dB typical insertion loss, >38 dB return loss, 330 mm bend radius.

Length 10m

  • OM3 core supports 10-gigabit multimode transmission at 850nm wavelength
  • Low 0.2dB typical insertion loss preserves signal strength over 10m
  • High >38dB return loss minimises back-reflection in duplex LC-ST links
  • 0mm PVC jacket with 330mm bend radius eases routing in tight racks
  • Rated for 1000 mating cycles from -20°C to +60°C operating range

OM3 duplex patch cable for 10 Gb links

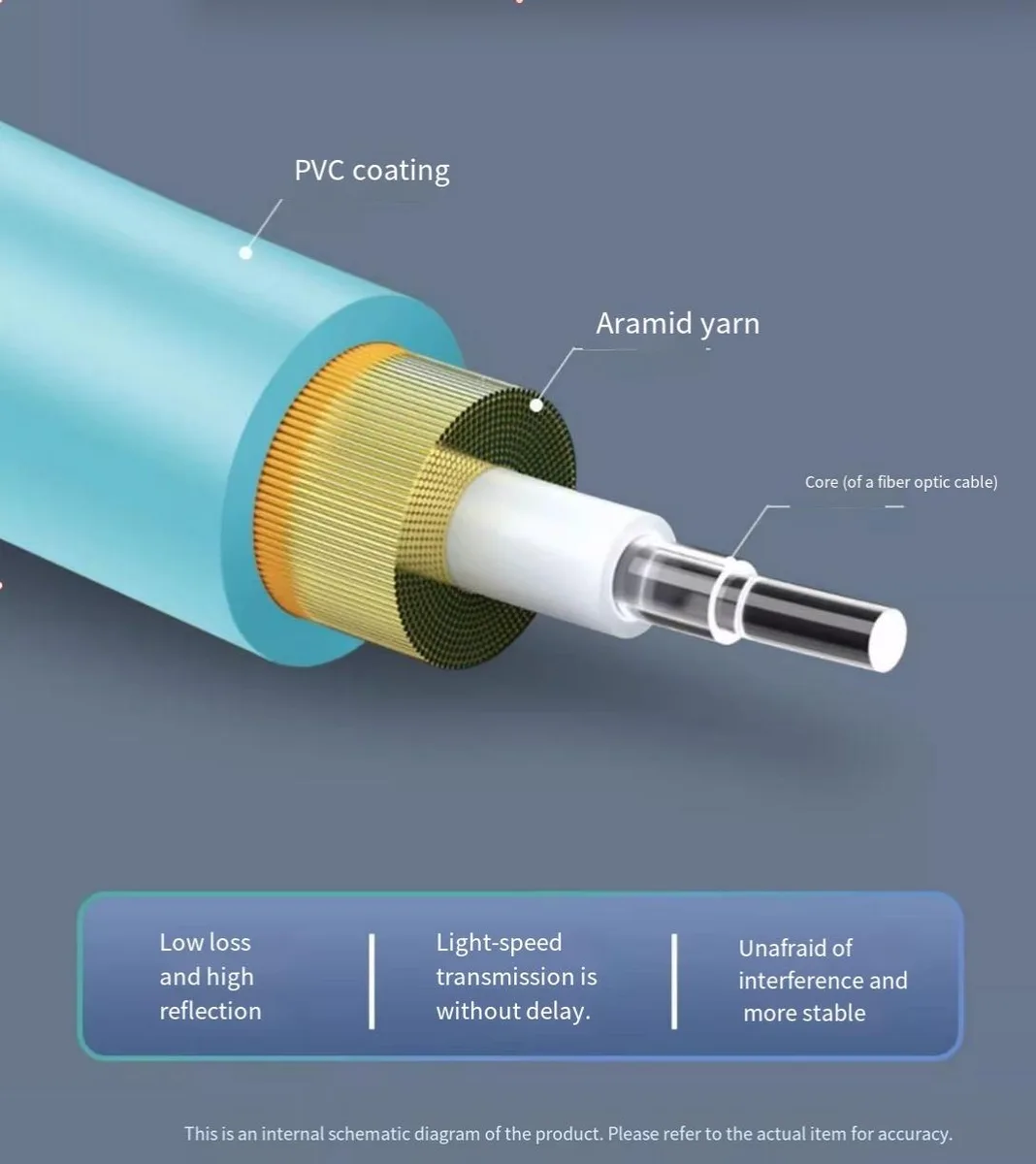

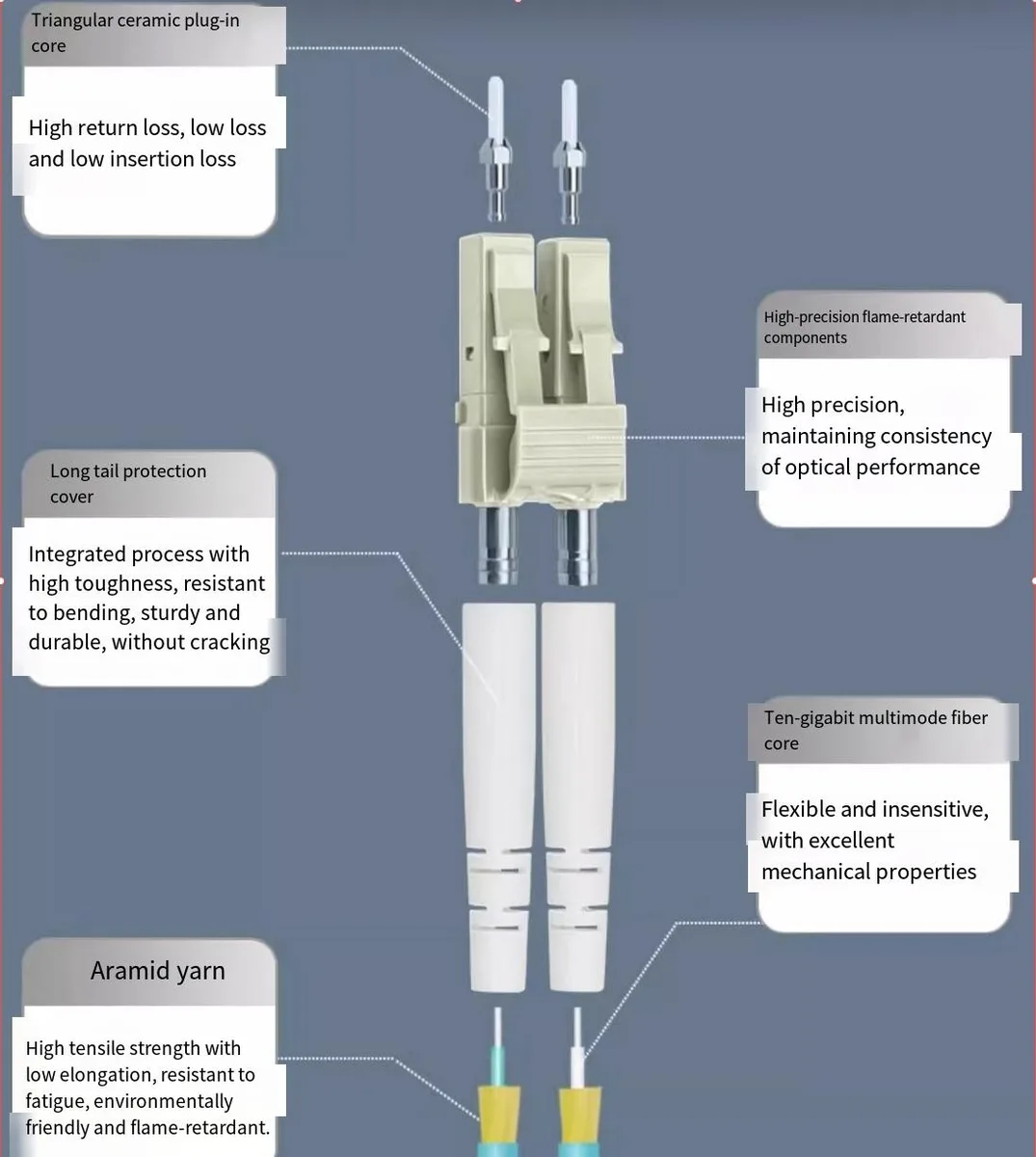

This OM3 multimode fibre patch cable is built for 10 Gb Ethernet and compatible 1 Gb, 10 Gb and 40 Gb links in data-centre, server and switch environments. The duplex LC to ST connectors use ceramic ferrules and a 3.0 mm PVC jacket. It is a ready-to-install link for short-reach multimode runs.

Suits installers needing LC-to-ST connectivity

The cable matches equipment with LC and ST ports operating at 850 nm and supports the 10 Gb OM3 core specification. It is not suited for single-mode infrastructure, for links requiring SC, MPO or other connector types, or for wavelengths outside the 850 nm multimode window.

Fits standard patch panels with 330 mm bend radius

The 3.0 mm jacket allows routing in dense panels while the 330 mm minimum bend radius protects the OM3 core during installation. Typical insertion loss is 0.2 dB and maximum 0.3 dB, with return loss greater than 38 dB. Rated for 1000 mating cycles and an operating range of -20 °C to +60 °C.

Prednosti

  • OM3 core supports 10-gigabit multimode transmission at 850nm wavelength
  • Low 0.2dB typical insertion loss preserves signal strength over 10m
  • High >38dB return loss minimises back-reflection in duplex LC-ST links
  • 0mm PVC jacket with 330mm bend radius eases routing in tight racks
  • Rated for 1000 mating cycles from -20°C to +60°C operating range

Špecifikácie

Pre tento produkt zatiaľ nie sú zverejnené žiadne špecifikácie.

Ďalšie verzie tohto modelu

Ďalších 5 v tomto rade

Rovnaký rad, iná pamäť, chladič alebo frekvencia — porovnajte pred rozhodnutím.

Otázky k tomuto produktu

Do I need existing LC and ST ports on my switch or server for this duplex cable to connect?

Yes, one end terminates in an LC connector and the other in an ST connector, so both corresponding ports must be present on the linked equipment.

Will the 3.0 mm jacket and 330 mm bend radius allow routing through the same trays as my older OM1 cables?

The 3.0 mm diameter and 330 mm minimum bend radius are compatible with standard tray spacing used for legacy multimode cables.

How can I verify the link is performing to spec after installation?

Measure insertion loss at 850 nm; a reading at or below 0.3 dB and return loss above 38 dB confirms the cable meets its rated performance.
