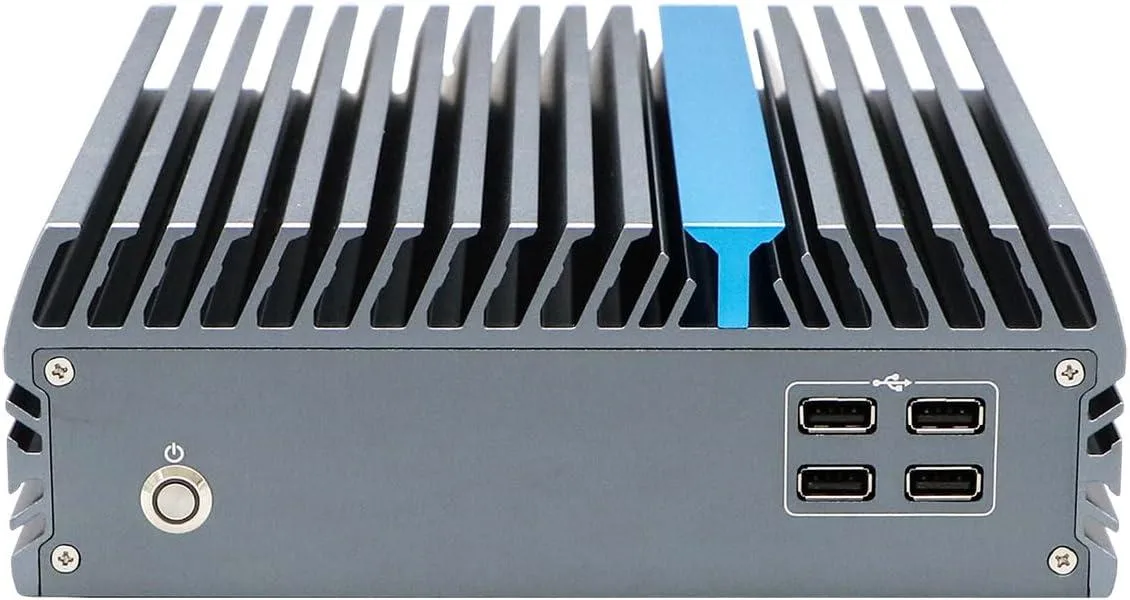

Compact gray aluminum fanless mini PC with mounting brackets

partaker

Partaker I8 barebone mini PC i5-12500T 64GB RAM 1TB SSD

SKU CH-JVN0-V8APF

Fanless aluminium mini PC with a 12-core Intel desktop processor, 64 GB DDR4 memory and 1 TB NVMe storage, operating from -20 °C to 60 °C for industrial automation

  • ColorGray
  • CPU TypeIntel Core i5 12th Gen

I8 H610 I5 12500T 64GB RAM / 1TB SSD

  • Fanless aluminium chassis runs silently from -20 °C to 60 °C
  • Intel Core i5 12th Gen six-core CPU reaches 4.4 GHz for edge workloads
  • 64 GB DDR4 3200 MHz memory plus 1 TB NVMe SSD handle heavy multitasking
  • Triple 4K output via dual HDMI and VGA drives surveillance or HMI walls

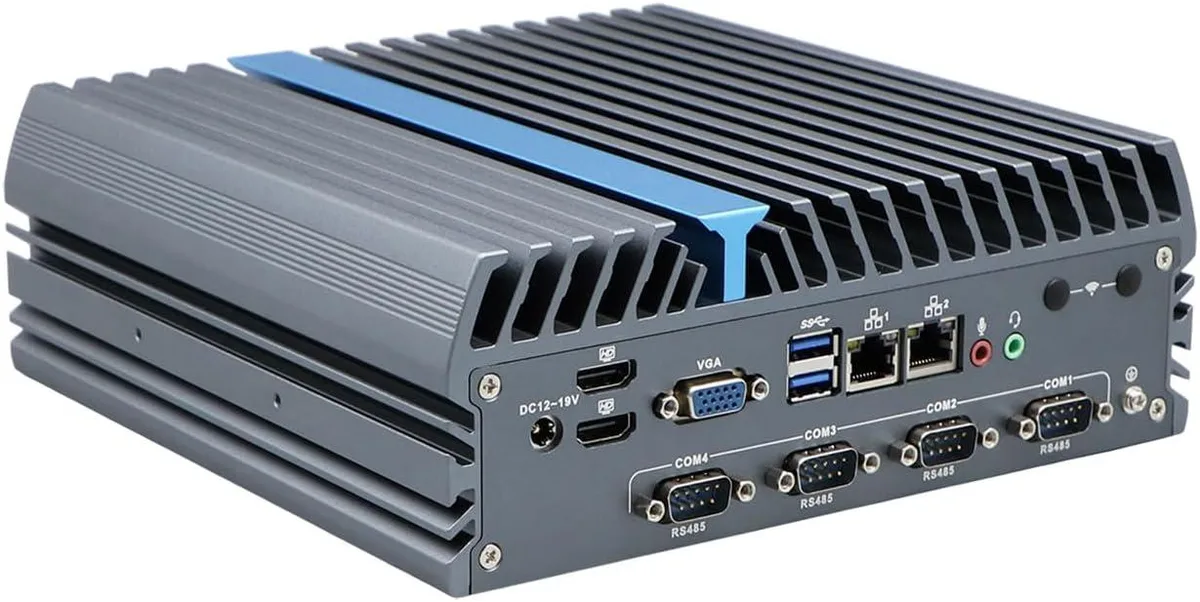

  • Dual Gigabit LAN, four RS-485 COM, GPIO and Mini PCIe slot with Nano SIM enable industrial connectivity

Industrial Fanless Mini PC

The Partaker I8 is a fanless industrial mini PC built around a 12th-generation Intel Core i5 processor with six cores and twelve threads. It ships with 64GB of DDR4-3200 memory and a 1TB NVMe SSD installed. The aluminium chassis operates silently from -20°C to 60°C, making it suitable for 24/7 automation, medical, logistics and transportation deployments.

Installation And Common Issues

The unit includes wall-mount brackets and a 12V 10A power adapter for DC 12-19V input. Mounting is straightforward on any flat surface, and the system supports auto power-on, wake-on-LAN and PXE boot for headless setups. The main installation challenge is fitting additional 2.5-inch SATA storage inside the sealed chassis, which requires removing the bottom plate in a dust-free environment to maintain the IP rating.

Triple 4K Display Capability

Two HDMI ports deliver independent 4K output at 60Hz alongside a VGA port at 1080p, enabling three simultaneous displays for surveillance rooms or industrial HMI. This triple-display support is the decisive specification; if the application only needs one or two screens, a smaller or less expensive barebone may suffice.

أبرز المميزات

  • Fanless aluminium chassis runs silently from -20 °C to 60 °C
  • Intel Core i5 12th Gen six-core CPU reaches 4.4 GHz for edge workloads
  • 64 GB DDR4 3200 MHz memory plus 1 TB NVMe SSD handle heavy multitasking
  • Triple 4K output via dual HDMI and VGA drives surveillance or HMI walls
  • Dual Gigabit LAN, four RS-485 COM, GPIO and Mini PCIe slot with Nano SIM enable industrial connectivity

المواصفات

ColorGray
CPU TypeIntel Core i5 12th Gen

إصدارات أخرى من هذا الطراز

5 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

How do I verify the fanless aluminium chassis is cooling the i5-12500T correctly after installation?

The unit runs silently with no moving parts; confirm operation by checking that the system remains stable under load while the exterior stays within the rated -20°C to 60°C surface temperature range.

Which accessories are included in the packing list and which expansion modules must be purchased separately?

The box contains the I8 industrial PC, wall-mount bracket, power supply, power cord and warranty card; CAN module, additional COM or GPIO boards, and Wi-Fi or 4G Mini PCIe cards are optional extras.

Should I choose the 12400T or 12500T variant when both are listed as possible CPUs?

The supplier ships either the Core i5-12400T or the Core i5-12500T at random; both are six-core, 12-thread desktop processors with a maximum turbo of 4.4 GHz and identical 35-69 W TDP, so performance is equivalent.
